Broadata LBO-SV-AD-T Manual

Link bridge fiber optic s-video/composite video scaling transmitter system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

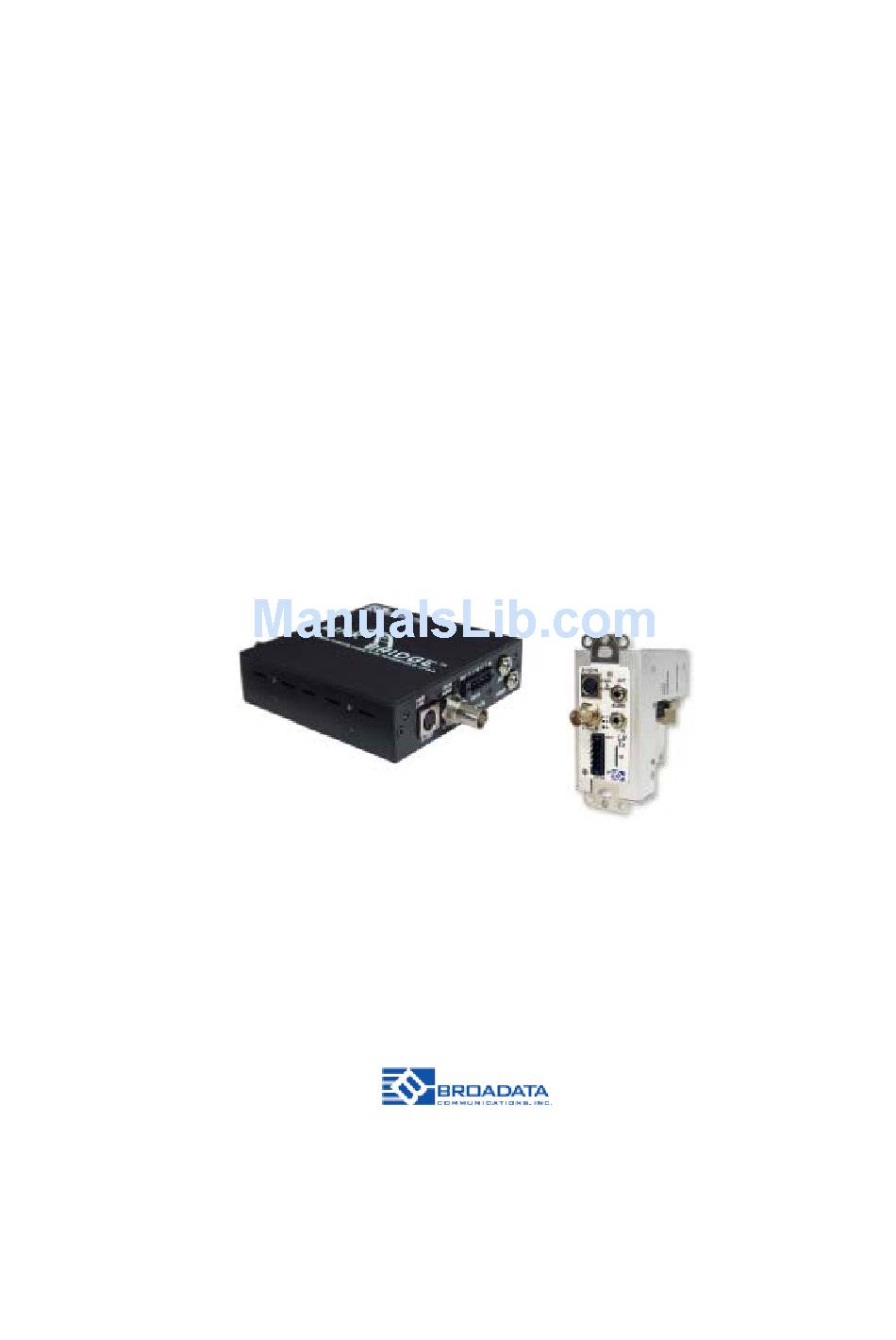

LBO-SV-AD-T
L
B
F
O
TM
INK
RIDGE
IBER
PTIC
S-V
/C
V
S
IDEO
OMPOSITE
IDEO
CALING
T
S
RANSMITTER
YSTEM
BCI reserves the right to make changes to the products described herein without
prior notice or consent. No liability is assumed as a result of their use or
application. All rights reserved.
©2012 Broadata Communications, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LBO-SV-AD-T and is the answer not in the manual?

Questions and answers

Related Manuals for Broadata LBO-SV-AD-T

Summary of Contents for Broadata LBO-SV-AD-T

  • Page 1 IDEO CALING RANSMITTER YSTEM BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2012 Broadata Communications, Inc.
  • Page 2 LBO-SV-AD-T User’s Manual Link Bridge Fiber Optic S-Video/Composite Video Scaling Transmitter System SAFETY INSTRUCTIONS AND COMPLIANCE DECLARATIONS PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS AS OUR PRODUCTS CONTAIN CLASS I LASER PRODUCTS WARNING Do not disconnect the fiber optic connector while the unit is powered up.

  • Page 3: Table Of Contents

    4.0 MAINTENANCE AND TROUBLESHOOTING ....19 4.1 MAINTENANCE ............. 19 4.2 TROUBLESHOOTING ..........19 5.0 SPECIFICATIONS ............21 6.0 SERVICE PROCEDURE ..........23 6.1 REPLACEMENT POLICY ..........23 6.2 RETURN AND REPAIR SERVICE ......... 23 7.0 LIMITED WARRANTY ............ 24 Broadata Technical Support, (800) 214-0222...

  • Page 4: Product Description

    HDTV video resolution. In addition, this product model has an option for video only configuration which allows either fiber or electrical transmission. No user adjustment is required for the LBO-SV-AD-T due to the use of advanced digital fiber optic transmission system technology. This allows for a quick and easy setup, offering trouble-free operation for many years to come.
  • Page 5 Power/Optical Audio Out Link LED Data Data Composite Video Audio In Input Connector S-Video Input Connector Figure 1-1 LBO-SV-AD-T Front Panel REAR PANEL (STANDALONE) Fiber Optic Output Connector Power Connector Figure 1-2 LBO-SV-AD-T Rear Panel Broadata Technical Support, (800) 214-0222...
  • Page 6 LBO-SV-AD-T User’s Manual Link Bridge Fiber Optic S-Video/Composite Video Scaling Transmitter System FRONT PANEL (WALL PLATE) Power/Optical Link LED S-Video Input Connector Audio Out Composite Video Audio In Input Connector Data Data Figure 1-3 LBO-SV-AD-T-WP Front Panel REAR PANEL (WALL PLATE)

  • Page 7: Setup

    Fiber Optic S-Video/Composite Video Scaling Transmitter System 2.0 SETUP LBO-SV-AD-T is a transmitter and it can be paired with any DVI/HDMI centric LBO receiver (such as LBO-DVI-R). One LBO-SV-AD-T transmitter unit is located at the near-end and connected through one optical fiber, to the LBO-DVI-R receiver located at the far-end of the link.

  • Page 8: Electrical Cable Connections

    Composite input port to the corresponding user’s S-Video or Composite video source with the appropriate video cables. 2. Note that the LBO-SV-AD-T has an auto sensing feature which will select the connected input video interface (S-Video or Composite video). If both S-Video and Composite video input are connected, S-Video will be the default input.

  • Page 9: Audio Interface

    “AUDIO INPUT” connector of the line level audio receiver. On the LBO-SV-AD-T unit, connect the other end of the cables to the front panel stereo jack connector labeled “AUDIO OUT” (see Figure 2-3b).

  • Page 10: Serial Data Interface

    Link Bridge Fiber Optic S-Video/Composite Video Scaling Transmitter System 2.2.1.3 Serial Data Interface Each LBO-SV-AD-T unit can be used for RS-232 interface. RS-232 data The LBO-SV-AD-T transmits two channels of data signals. Follow the procedures for installing data terminal devices.

  • Page 11: Optical Fiber Connection

    2. Prior to connecting the fiber optic cables, remove and save the dust caps from the optical port of the LBO-SV-AD-T units. Clean the fiber optic connector and use a lint-free cloth dampened with alcohol to thoroughly wipe the side and end of the ferrule.
  • Page 12 LBO-SV-AD-T User’s Manual Link Bridge Fiber Optic S-Video/Composite Video Scaling Transmitter System LBO-SV-AD-T OPTICS LBO-DVI-R PWR/ LINK 5V/1A LBO-SV-AD-T-WP LBO-DVI-R OPTICS PWR/ LINK 5V/1A Figure 2-5 Fiber Optic Connection Broadata Technical Support, CustomerService@Broadatacom.com...

  • Page 13: Dc Power Connection

    Fiber Optic S-Video/Composite Video Scaling Transmitter System 2.3 DC Power Connection Congratulations! You are now ready to power up the LBO-SV-AD-T and set up your network connection. In order to make sure that you have a proper installation, please observe the following: 1.

  • Page 14: In-Wall Power/Fiber Wiring Instruction

    Fiber Optic S-Video/Composite Video Scaling Transmitter System 2.4 In-Wall Power/Fiber Wiring Instruction The in-wall power/fiber installation for the LBO-SV-AD-T-WP (wall plate version) must confirm national and local electrical codes, e.g., UL junction boxes shall be used and DC power source shall not exceed product rated range (+12VDC @ 1.5A).
  • Page 15 Fiber Optic S-Video/Composite Video Scaling Transmitter System Wall Clamp Junction Box LBO-VGA-AD-WP Unit Power Wire +12V CHASSIS Fiber Cable Link Port Figure 2-6 In-wall fiber/power cable installation Captive Screw Connector +12V GND CHASSIS Figure 2-7 Power Connection Broadata Technical Support, (800) 214-0222...
  • Page 16 LBO-SV-AD-T User’s Manual Link Bridge Fiber Optic S-Video/Composite Video Scaling Transmitter System Note 1: During installation, the installer may need to connect the power supply output to an appropriate Listed NEC type cable before it is routed behind a wall. Simply routing the power supply output cable behind a wall will most likely not comply with applicable installation requirements.

  • Page 17: Operation

    Fiber Optic S-Video/Composite Video Scaling Transmitter System 3.0 OPERATION After the installation procedure is completed, the units are ready for operation. To operate the LBO-SV-AD-T units, simply apply power as indicated in the previous sections. The following describes the LED activity.

  • Page 18: Maintenance And Troubleshooting

    However, observe the following light indicators to make sure that the unit is working properly: 4.2 Troubleshooting If the LBO-SV-AD-T units do not operate properly after installation, check for: possible cable breaks, loose connections, and incorrect cable connections. If a problem exists on the fiber link, please check your fiber connectors for improperly cleaned fiber cables and connectors.
  • Page 19 Both ends of the link are connected to the corresponding equipment and to the same corresponding channel port. c. Cable connections at both the video/audio channels are securely fastened to each connector. Turn the power off, then back on to reset the link. Broadata Technical Support, (800) 214-0222...

  • Page 20: Specifications

    LBO-SV-AD-T User’s Manual Link Bridge Fiber Optic S-Video/Composite Video Scaling Transmitter System 5.0 SPECIFICATIONS Video Input Format S-Video or Composite-Video Output Format DVI/HDMI/VGA Compatible Resolution* Up to 1920x1200 @ 60Hz Up to 1080p @ 60Hz Connector BNC (for composite video) or...
  • Page 21 Add -WP for Wallplate configuration Add -CH for LBO-CH Chassis mounting kit Add -UPS for International Universal Power Supply SV/CV LBO-SV/DH CV/SV to DVI Converter Add -CH for LBO-CH Chassis mounting kit Add -UPS for International Universal Power Supply Broadata Technical Support, (800) 214-0222...

  • Page 22: Service Procedure

    U.S. Please call Customer Service at 800-214-0222 for information. 6.2 Return/Repair Service The LBO-SV-AD-T System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/repair processing please contact Broadata Communications, Inc.

  • Page 23: Limited Warranty

    Fiber Optic S-Video/Composite Video Scaling Transmitter System 7.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s...
  • Page 24 LBO-SV-AD-T User’s Manual Link Bridge Fiber Optic S-Video/Composite Video Scaling Transmitter System Broadata Technical Support, CustomerService@Broadatacom.com...
  • Page 25 LBO-SV-AD-T User’s Manual Link Bridge Fiber Optic S-Video/Composite Video Scaling Transmitter System Broadata Technical Support, (800) 214-0222...
  • Page 26 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com 60000-LBOSV/AD-T...
