Sparklan OA200 Quick Installation Manual page 10

1. Please unscrew the screw part as above figure.

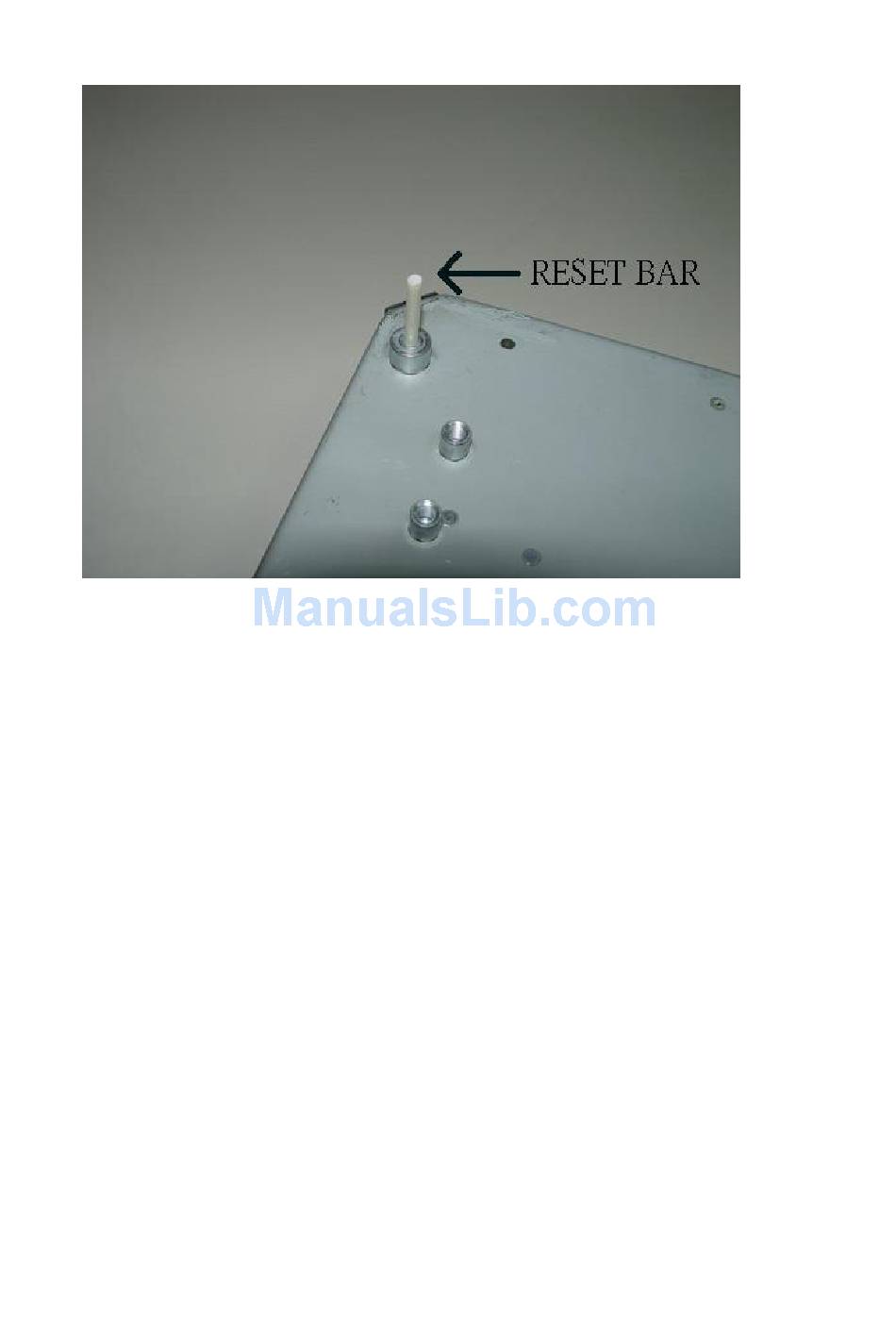

2. Please use the reset bar to reach the reset button. Press it and hold on for
approx 10 seconds.
3. Release the reset button, the device will reboot and all configurations will be
set to factory default settings automatically.
3.5 Antenna installation on OA200
OA200 is one 11ag AP series with external antenna.The cable with male to male
antenna inside box, so the external antenna is necessary for this unit. Please
N-type connector will be use to connect withOA-200 physical utility. The cable
find the RP-SMA Antenna connector on the rear side of this box. Usually, it should be a
with female to female reverse N-type connector shall be used as extension cable
to establish connection with RSMA converter, The Antenna will be connecting to
low loss RF cable connected between OA200N and antenna.
RSMA converter.
For decrease the signal loss, we strongly suggest using RF cable with high
quality and the length should be as short as possible. There are two RP-SMA types
connector at the rear side. One is Antenna 1, the other is Antenna 2
10
