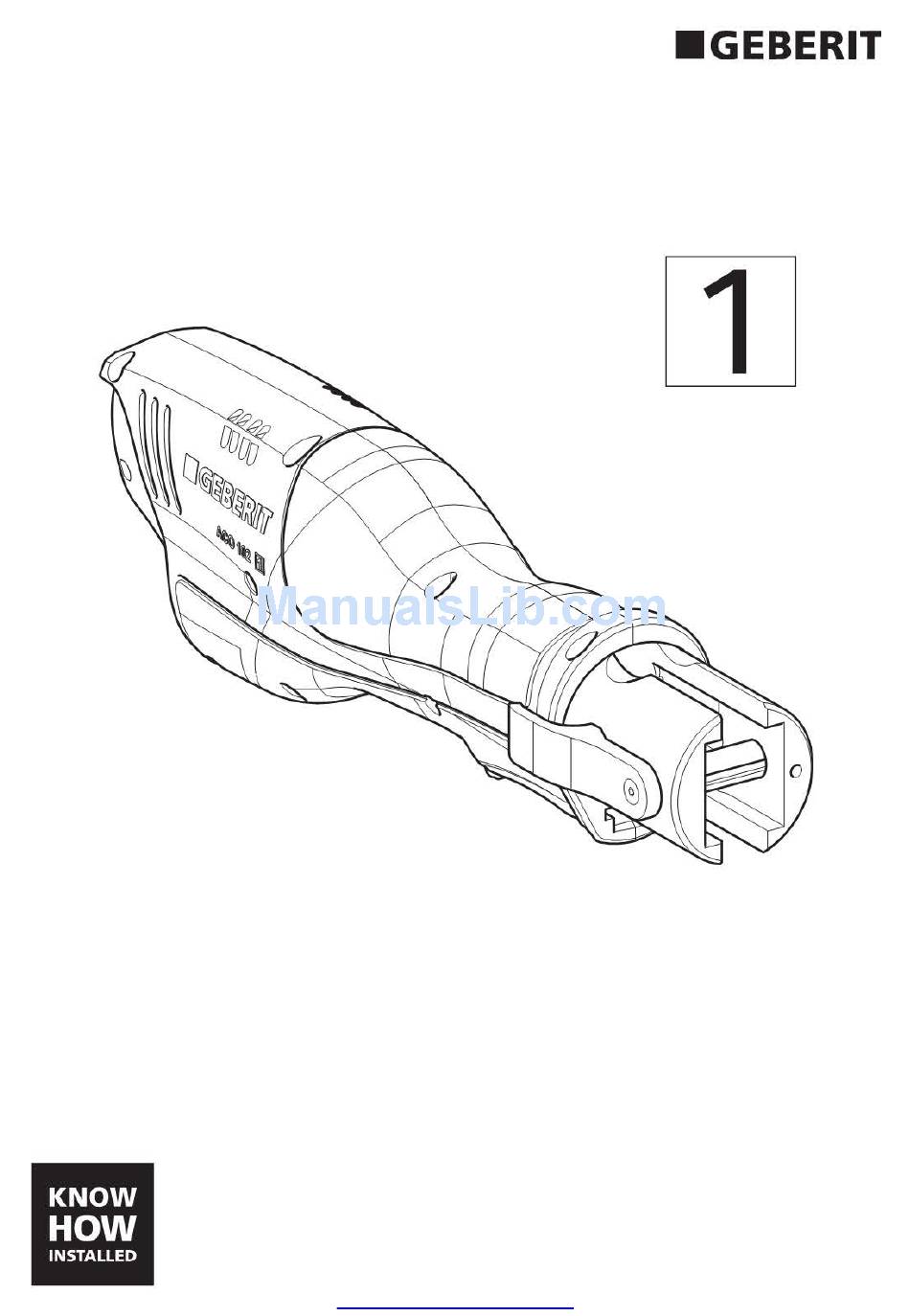

- Page 1 ACO 102 Operation Manual Betriebsanleitung Manuel d’utilisation Istruzioni di funzionamento www.inrusstrade.ru...
- Page 2 www.inrusstrade.ru...
-
Page 3: Target Group
This tool may only be used by skilled persons in accordance with EN IEC 82079-1:2012. Intended use The Geberit pressing tool ACO 102 is only allowed to be used for pressing pipes and pressfittings of the Geberit Mepla and Geberit Mapress pressing systems. -
Page 4: Explanation Of Symbols
NOTE Pressing attachments (pressing jaws, pressing collars, adapter jaws) are wearing parts. Frequent pressing will cause the material to become worn; advanced stages of wear will be indicated by incipient cracks. Pressing attachments that display this kind of wear or are damaged in any other way may break, particularly if they are used incorrectly (e.g. -
Page 5: Product Description
Product description Structure The Geberit pressing tool consists of: • pressing tool incl. operating instructions • pressing jaws • battery charger incl. user manual • rechargeable battery 12 V DC • safety notes • transport case The equipment may vary depending on the scope of delivery. - Page 6 Standby mode If the Geberit pressing tool is not used for 30 minutes, it switches to standby mode. No LED is lit. To start the pressing tool, briefly press the start button [1].
-
Page 7: Technical Data
Technical data Nominal voltage V DC Power consumption Nominal force Protection degree IP20 Net weight Sound pressure level at user's ear dB(A) ≤ 2.5 Vibration emission value Operating temperature -20 – +60 °C Battery capacity Measurement inaccuracy of the sound pressure level: 3 dB(A) Measurement inaccuracy of the vibration emission value: 1.5 m/s The stated vibration emission value has been measured according to a standardised test process and can be used for comparison with another device. -
Page 8: Operation
Push the retaining pin in until the stop position is reached and rotate it by 180° to the rear (see cover page in the front, figure C). Charging and inserting the Geberit rechargeable battery CAUTION Damage to the device due to incorrect rechargeable battery... - Page 9 Pressing with Geberit pressing jaws Prerequisites • Pipe ends are deburred and clean • Pipe and pressfitting have been fitted together in accordance with the piping system installation manual WARNING Risk of injury caused by flying fragments if used incorrectly or if worn or damaged...
- Page 10 Send the pressing tool to an alternately been reached authorised repair shop for testing 1) The addresses of authorised repair shops can be requested from the Geberit sales companies or found at www.geberit.com Troubleshooting after the pressing sequence Fault Cause...
-
Page 11: Maintenance Regulations
The pressing tool must always be taken for maintenance together with the pressing attachments in its transport case. Maintenance work and repair work may only be carried out by Novopress or authorised Novopress repair shops. For addresses of authorised repair shops, contact your Geberit sales company or visit www.geberit.com. Interval Maintenance work Regularly (before use, •... - Page 12 Cleaning and lubricating the Geberit pressing tool Prerequisites Rechargeable battery is not inserted in the pressing tool. WARNING Risk of injury from switching on inadvertently Remove the rechargeable battery before starting any maintenance work on the pressing tool CAUTION Damage to the device from dampness or moisture...
-
Page 13: Disposal Of Waste Electrical And Electronic Equipment
The symbol indicates that the product cannot be disposed of with non-recyclable waste. Old equipment should be returned directly to Geberit, where it will be disposed of appropriately. Please contact your responsible Geberit sales company for addresses to which equipment can be returned. - Page 14 EC declaration of conformity in accordance with directives 2004/108/EC and 2006/42/EC We hereby declare that the Geberit pressing tool ACO 102 meets the relevant basic health and safety requirements as a result of its design and construction type as well as the version that we have put on the market.
