Chapter 4 - Removing and Replacing Field Replaceable Units (FRUs)

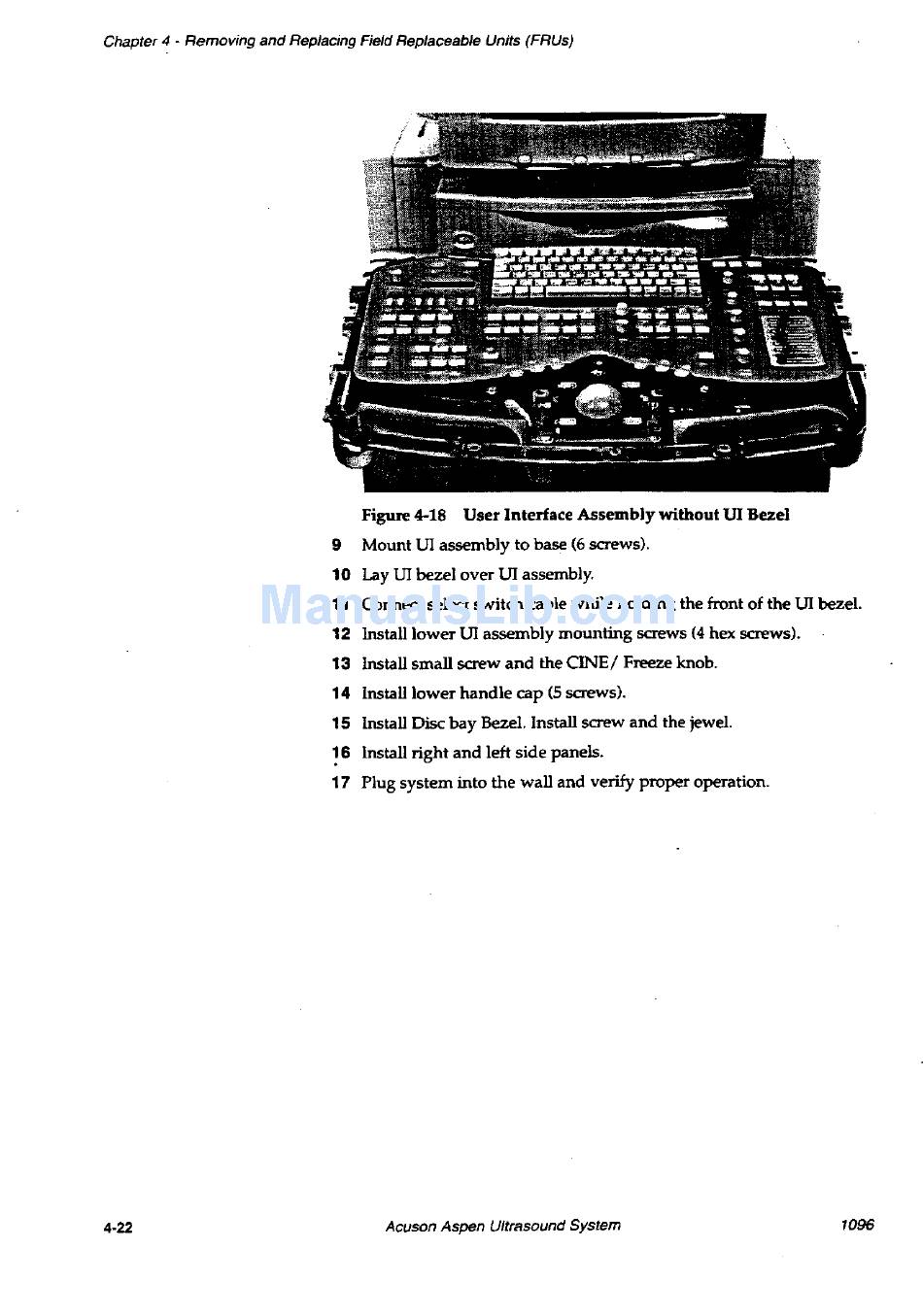

Figure
4-18
User Interface Assembly without VI Bezel
9 Mount VI assembly to base (6 screws).
10 Lay
UJ
bezel over VI assembly.
11 Connect select switch cable while holding the front of the
UJ
bezel.
12 Install lower
UJ
assembly mounting screws (4 hex screws).
13 Install small screw and the CINE/ Freeze knob.
14 Install lower handle cap (5 screws).
15 Install
Disc
bay Bezel. Install screw and the jewel.
16 Install right and left side panels.
17 Plug system into the wall and verify proper operation.
