© 2016 GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in part,
without the written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is
accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind
and assumes no responsibility for errors or omissions. No liability is assumed
for incidental or consequential damages arising from the use of the information
or products contained herein. Features and specifications are subject to
change without notice.
Note: No memory card slot or local storage function for Argentina.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: +886-2-8797-8377
Fax: +886-2-8797-8335
http://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV
series products are trademarks of GeoVision, Inc. Windows is the registered
trademark of Microsoft Corporation.
April 2016
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
www.a1securitycameras.com email: sales@a1securitycameras.com

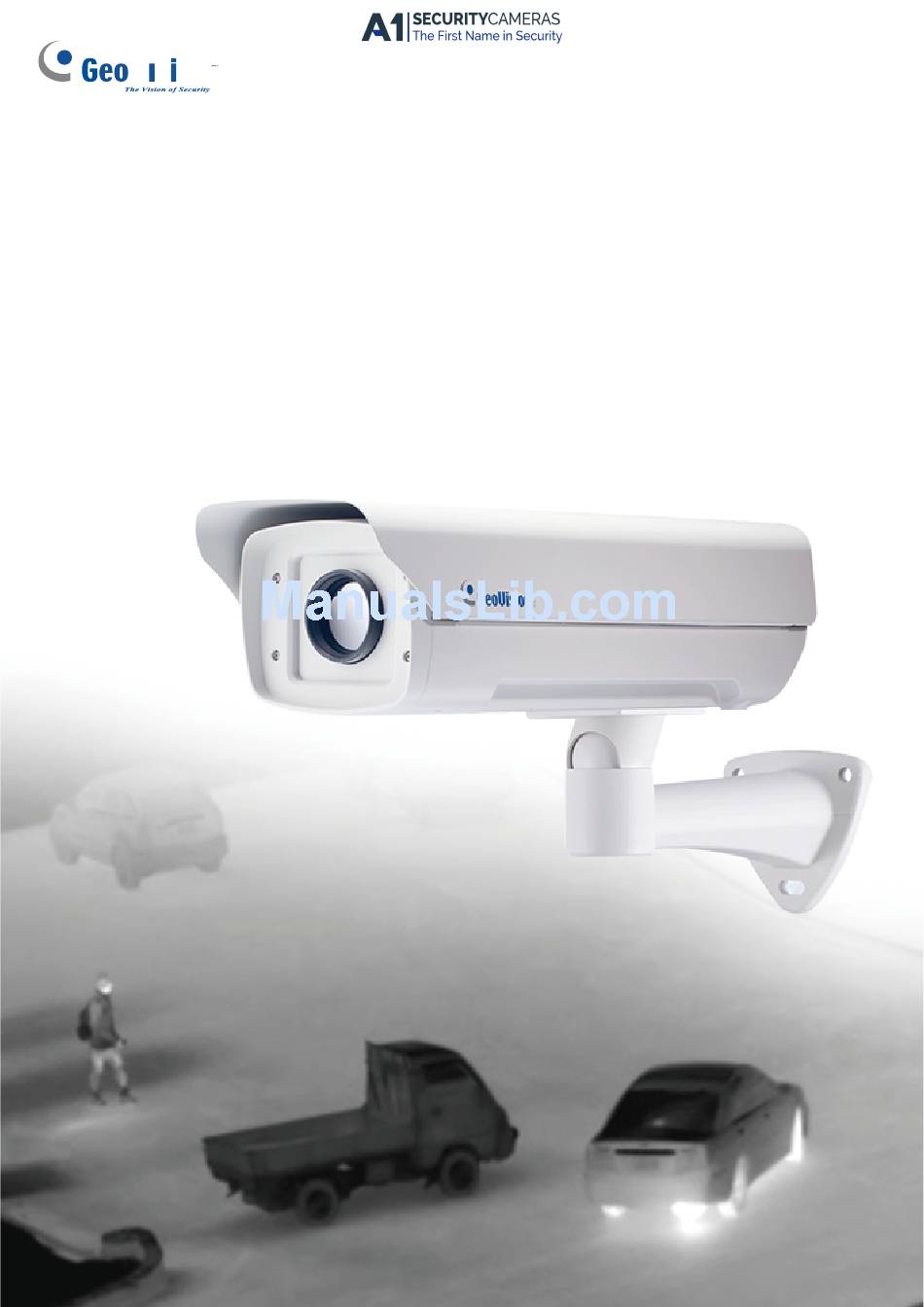

Quick Start Guide

GV-Thermal IP Camera
Available from A1 Security Cameras
TMV10-QG-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-TM0100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GeoVision GV-TM0100

Summary of Contents for GeoVision GV-TM0100

  • Page 1: Quick Start Guide

    GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
  • Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.

  • Page 3: Table Of Contents

    Contents Note for Installing Camera..............ii Optional Accessories ................iii 1. Introduction ..................1 1.1 Packing List ......................2 1.2 Wire Definition ....................... 3 2. Installation ..................4 2.1 Device Installation....................4 2.2 Replacing the Silica Gel Bag.................. 6 3. Connecting the Camera ..............7 4.

  • Page 4: Note For Installing Camera

    Note for Installing Camera When installing, be sure that: 1. The camera is set up above the junction box to prevent water from entering the camera along the cables. Any PoE and power cables are waterproofed using waterproof silicon rubber or the like. The screws are tightened and the cover is in place after opening the camera cover.

  • Page 5: Optional Accessories

    Optional Accessories Optional devices can expand the capabilities and versatility of your camera. Contact your dealer for more information. Name Details The GV-PA191 PoE adapter is designed to provide power GV-PA191 PoE Adapter and network connection to the cameras over a single Ethernet cable.

  • Page 6: Introduction

    Introduction 1. Introduction Welcome to the GV-TM0100 Quick Start Guide. In the following sections, you will learn the basic installations and configurations of GV-TM0100. For a detailed user manual, see the GV-TM0100 User’s Manual on the Software DVD. Available from A1 Security Cameras...

  • Page 7: Packing List

    1.1 Packing List • • GV-TM0100 Supporting Rack • • Hex Key Rubber Pad for Supporting Rack • • Tube 2 mm Hex Key • • Phillips Cap Screw x 2 12V Power Adapter • GV-IPCAM Software CD / DVD •...

  • Page 8: Wire Definition

    Introduction 1.2 Wire Definition Name Function RJ-45 Ethernet / PoE Connection 2-Pin Terminal Block Power Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...

  • Page 9: Installation

    2. Installation 2.1 Device Installation GV-TM0100 can be mounted on the wall using the supplied support rack. Follow the steps below to install your camera. 1. Place the supporting rack on the wall, mark the locations of the three screw holes, and drill three holes on the wall.
  • Page 10 Installation 3. Secure the supporting rack to the wall using the self-prepared screws. 4. Connect the camera to power and network. See section 3 Connecting the Camera. 5. Access the live view. 6. Based on the live view, adjust the angle, zoom and focus of the camera. Loosen the indicated screw with the supplied hex key and adjust the joint.

  • Page 11: Replacing The Silica Gel Bag

    2.2 Replacing the Silica Gel Bag If you open the camera lid, you must replace the original silica gel bag with a new one. Loosen the screws holding the camera’s lid with a screwdriver. Open the camera’s lid and you will find a silica gel bag attached to the interior of the lid. Remove the silica bag and place a new bag back to its original position.

  • Page 12: Connecting The Camera

    Connecting the Camera 3. Connecting the Camera GV-TM0100 can connect to power using either the supplied 12V power adaptor or a PoE adaptor. Follow the steps below to connect your GV-TM0100 to power and network. PoE Connection Use an optional GV-PA191 PoE Adapter to connect the camera to the power and network at the same time.
  • Page 13 Plug the 12V power adapter to the 2-pin terminal block on the camera. Connect the DC power cord to a power source. Use a standard network cable to connect GV-TM0100 to your network. Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...

  • Page 14: Accessing The Camera

    Accessing the Camera 4. Accessing the Camera 4.1 System Requirements To access the functions and settings of GV-TM0100 interface, ensure your PC uses one of the following web browsers. • Browser Microsoft Internet Explorer 7x or later • Mozilla Firefox •...

  • Page 15: Looking Up The Dynamic Ip Address

    4.2 Looking Up the Dynamic IP Address By default, when GV-TM0100 is connected to LAN with a DHCP server, it is automatically assigned with a dynamic IP address. Follow the steps below to look up its IP address. Note: The PC installed with GV-IP Device Utility must be under the same LAN with GV-TM0100.
  • Page 16 Accessing the Camera 4. The login page appears. 5. Type the default ID and password admin and click Apply to login. Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...

  • Page 17: Configuring The Ip Address

    4.3 Configuring the IP Address By default, GV-TM0100 connected to LAN without a DHCP server, is assigned with a static IP address of 192.168.0.10. Follow the steps below to assign a new IP address to avoid IP conflict with other GeoVision devices.
  • Page 18 Accessing the Camera 4. Select Static IP address. Type the IP Address, Subnet Mask, Router/Gateway, Primary DNS and Secondary DNS. 5. Click Apply. GV-TM0100 is now accessible by entering the assigned IP address on the web browser. Important: I f Dynamic IP Address or PPPoE is enabled, you need to know which IP address the camera will get from the DHCP server or ISP to log in.

  • Page 19: The Web Interface

    Configuration, Remote Config, Show Camera Name and Image Menu Enhance. Accesses the following functions 7 PTZ Control Zoom, Focus, and Image Quality Settings Visual PTZ For details, see Chapter 3, GV-TM0100 User’s Manual. Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...

  • Page 20: Upgrading System Firmware

    Upgrading System Firmware 6. Upgrading System Firmware GeoVision periodically releases the updated firmware on the website. To load the new firmware into the GV-TM0100, follow the instructions below. 1. In the Live View window, click the Show System Menu button and select Remote Config.

  • Page 21: Restoring To Factory Default

    7. Restoring to Factory Default You can restore GV-TM0100 to factory default settings using the Web interface or directly on the camera. 7.1 Using the Web Interface 1. In the left menu, select Management and select Tools. 2. Under the System Settings section, click the Load Default button.
