Integrity Voice Alarm Routing Matrix
FMIC Manual
IMPORTANT
THIS SECTION MUST BE READ PRIOR TO THE INSTALLATION / MAINTENANCE OF THIS PRODUCT
This equipment must only be installed and maintained by a suitably skilled and technically competent
person.
No responsibility can be accepted by the manufacturer or distributors of this product for any
misinterpretation of an instruction or guidance note or for the compliance of the system as a whole.
Voice alarm system design is beyond the scope of this document. An understanding of system
components and their use is assumed.
Errors and omissions excepted. The manufacturer's policy is one of continuous improvement and we
reserve the right to alter product specifications at our discretion and without prior notice.
FMIC Overview

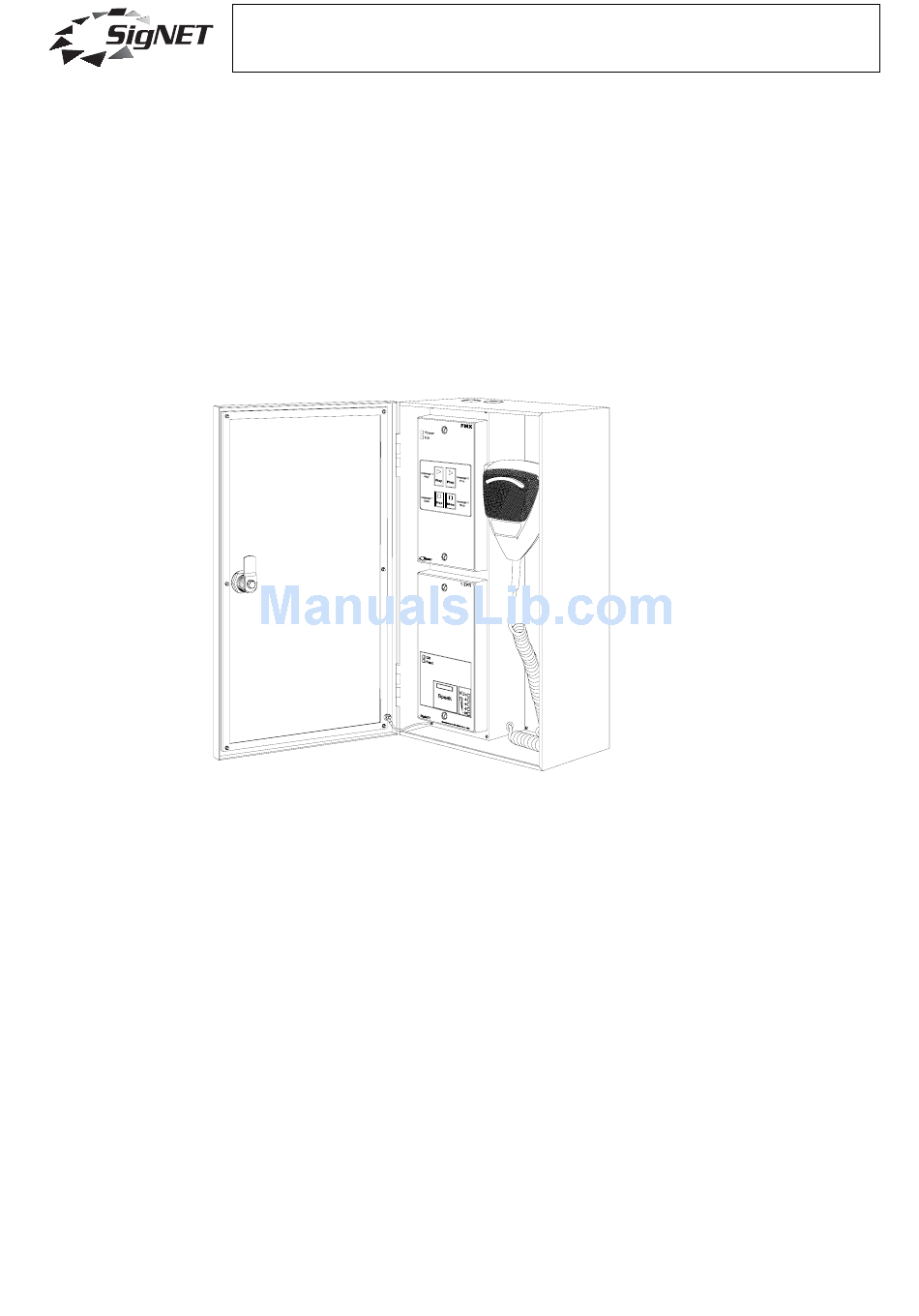

The FMIC comprises a wall-mounted red steel case with a glazed door that contains a close-talking
noise-cancelling fist microphone plus ancillary electronics.
It is designed to be used with SigNET's Integrity voice alarm system and is fully monitored for faults. The
internal electronics comprise two parts, a 1ZPR pre-amplifier and monitoring unit and an FMX fault
monitoring expansion and message control unit.
Up to four FMICs may be connected in a daisy-chain format to one voice alarm input.
When used with the Integrity VA system, it is connected to a one 1LS card and, in most applications, is
required to operate as an all-call microphone, even in case of microprocessor failure. In this case, the
1LS card must be installed in slot 1 of the Integrity mainframe.
The microphone is designed for use in noisy environments and incorporates a lip-guide to help the user
position the microphone close, but not too close, to his mouth.
2
The FMIC is normally connected to the mainframe via two four-core 1.5mm
`fire-rated cables although in
non-life-safety applications, Cat 5 cable may be used.
The front door is normally secured by a cam lock and key, but a 'T-bar' handle may be specified if
required.
Page 1 of 8
DocNo.DCP0002986 ADS 11/12/05 rev0
Advertisement
Table of Contents
Related Manuals for Signet FMIC
Summary of Contents for Signet FMIC
- Page 1 It is designed to be used with SigNET’s Integrity voice alarm system and is fully monitored for faults. The internal electronics comprise two parts, a 1ZPR pre-amplifier and monitoring unit and an FMX fault monitoring expansion and message control unit.
- Page 2 Cables The FMIC is designed to use two four-core fire-rated cables that enter the case via two 20 mm knock- outs in the top or bottom of the case. In non life-safety applications, Cat 5 cable can be used instead. Up to four FMICs can be daisy-chained on up to 1000 metres if cable (fire rated or Cat 5).
- Page 3 Mounting holes The FMIC should be located in an area that will be as quiet as possible in an emergency. Fix the box to the wall, normally between 1.2 and 1.4 metres from the final floor position using suitable fasteners.
- Page 4 Strip and connect the cables to the terminal block as shown below. If you are fitting more than one FMIC, joint the cables in a separate connection block and then use connect to the FMIC using short tails.
- Page 5 All FMICs are provided with the same key (to pass). A ‘T-Bar’ option is available at extra cost, however, this is not recommended for public places. Consider keeping the key in a “break glass” box adjacent to the FMIC. Connecting to Integrity For information on installing Integrity cards in an Integrity Mainframe, see the Integrity Voice Alarm Routing Matrix manual, document number DCS0003214.
- Page 6 Integrity Voice Alarm Routing Matrix FMIC Manual Internal adjustments Chime selection (1) The unit can be set so that a chime is transmitted when the PTT switch is first operated, Move the links as shown below. Mic Monitor (2) This link should be set in the “enable” position so that the fist mic fault monitoring is operational.
-
Page 7: Specifications
Integrity Voice Alarm Routing Matrix FMIC Manual Specifications Dimensions: 350 mm h x 200 mm w x 100 mm d Weight: 3.5 kilogram Supply voltage 20 – 32 Vd.c. (from 1LS card) Current consumption: 50 mA Case colour – red (RAL 3000) 1ZPR Internal indicators –... - Page 8 Integrity Voice Alarm Routing Matrix FMIC Manual Microphone The microphone is a noise-cancelling dynamic microphone designed for close-talking, hand-held applications in quality sound installations where background noise is a problem. The frequency response, especially tailored for voice communications, provides a crisp, clear, highly intelligible sound with 360 degrees minimization of background noise.
