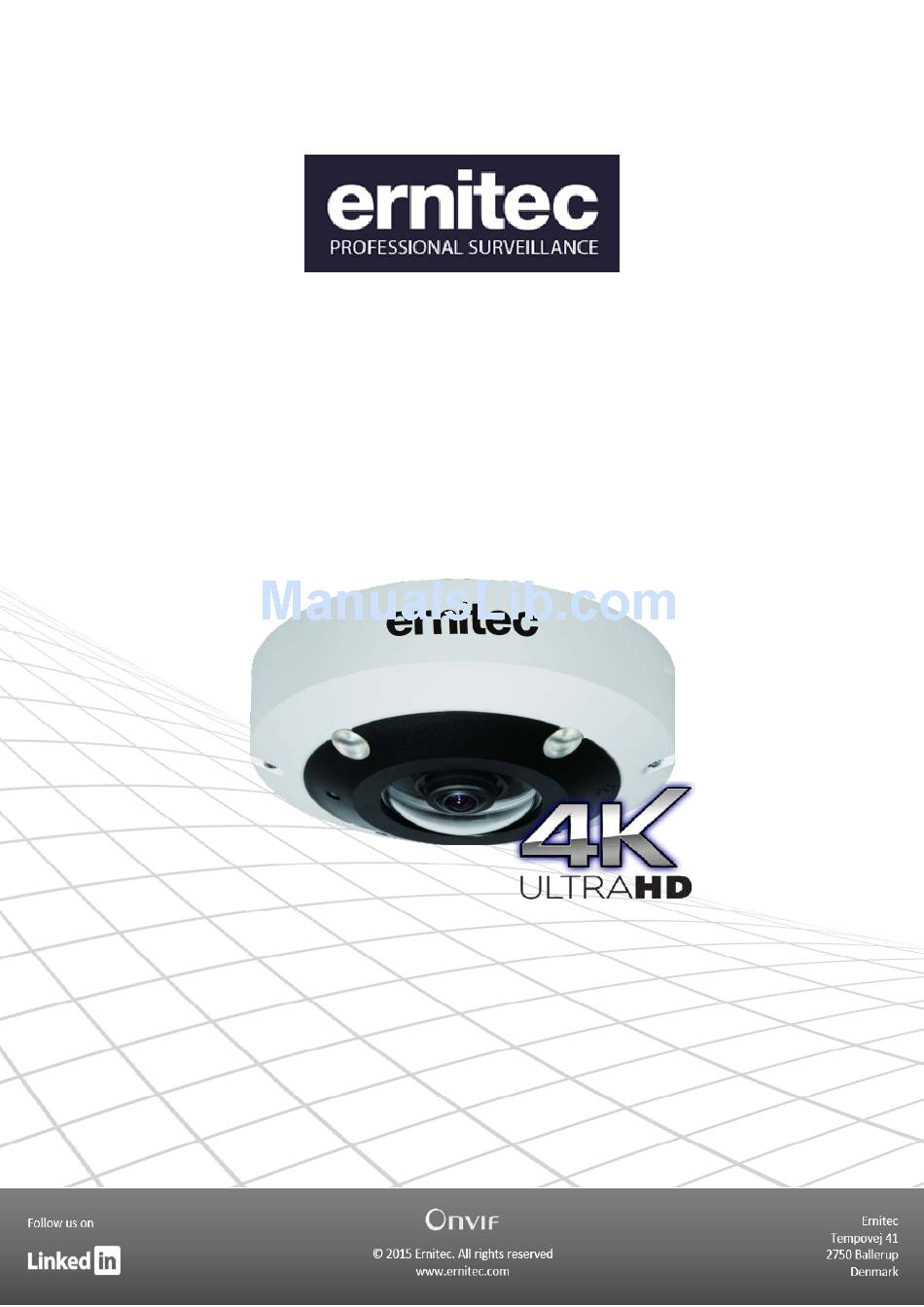

- Page 1 User’s Manual Saturn PX 360 Fisheye 001B0DZXZ2A3...
-
Page 2: Table Of Contents
Table of Contents Overview ..........................2 Features ........................2 Package Contents ....................... 3 Dimensions ........................5 Connectors (Indoor Only)..................... 6 Function Cables (Outdoor Only) .................. 7 Camera Cabling ........................8 Power Connection ....................... 8 Ethernet Cable Connection ..................8 Connect Alarm I/O ....................... 8 Waterproof Cable Connector (Outdoor Only) ............... -
Page 3: Overview

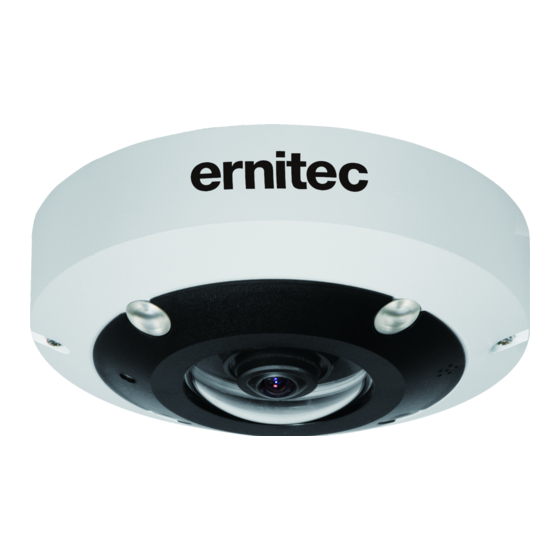

Overview The Hyper Mini Fisheye IP Camera is a high resolution surveillance solution features 360° wide coverage without blind spots. The fisheye camera supports resolution up to 6 Megapixels streaming at 30 fps which allows the videos to be viewed smoothly. Moreover, the fisheye camera supports digital PTZ, panoramic view and several display modes to fulfill users’... -
Page 4: Package Contents
Package Contents Please check the package contains the following items listed below. Indoor Hyper Mini Fisheye IP Self-Tapping Screw (x3) Plastic Anchor (x3) Camera Security Torx Power Terminal Quick Guide USB-key Block NOTE: Users MUST pre-drill and use plastic anchors before fastening the supplied self-tapping screws on the wall. - Page 5 Outdoor Hyper Mini Fisheye Self-Tapping Screw Plastic Anchor (x3) Security Torx IP Camera (x3) Power Terminal Alarm I/O Terminal Quick Guide USB-Key Block Block NOTE: Users MUST pre-drill and use plastic anchors before fastening the supplied self-tapping screws on the wall. NOTE: To purchase power adaptor, please contact the camera manufacturer for further information.
-
Page 6: Dimensions
Dimensions The dimensions of the camera are shown below. -
Page 7: Connectors (Indoor Only)
Connectors (Indoor Only) Please loosen the security screws and open the cover to reach the connectors. The diagram below shows the connectors of the camera. Definition for each connector is given as follows. Connector Definition Remarks DC 12V Power DC 12V Power connection Reserved RJ-45... -
Page 8: Function Cables (Outdoor Only)
Function Cables (Outdoor Only) Connector Definition Remarks Pink Audio In Audio I/O Two-way audio transmission Green Audio Out Black DC 12V – Power (DC 12V) Power connection (2-Pin Terminal Block) DC 12V + Alarm In – Alarm I/O Alarm In + Alarm connection (4-Pin Terminal Block) Alarm Out –... -
Page 9: Camera Cabling
Camera Cabling Please follow the instructions below to complete the cable connections. Power Connection For power connection, please refer to section Connectors (Indoor Only) for the indoor models, and see section All in One Cable (Outdoor Only) for the outdoor models. -
Page 10: Waterproof Cable Connector (Outdoor Only)
Waterproof Cable Connector (Outdoor Only) Follow the instruction below to waterproof the connectors of different types of cables. The supported cables are as shown below. All-in-One Cable IP66 RJ-45 Cable All-in-One Cable Follow the steps below to waterproof the connectors of the All-in-One cable. Step 1: Connect the required devices to the All-in- One cable and coat the joints with silicone gel. - Page 11 IP66 RJ-45 Cable For IP66 RJ-45 cable, please use an RJ-45 IP66 plug for connection to prevent water damage. Follow the steps below for cable connection. Step 1: Take out the supplied connector from the RJ- 45 IP66 plug. Loosen the thread-lock sealing nut on the plug.
-
Page 12: System Requirements
System Requirements To perform the IP camera via web browser, please ensure the PC is in good network connection, and meet system requirements as described below. Items System Requirement Minimum : ® 1. Intel Core™ i5-2430M @ 2.4 GHz 2. 4 GB RAM Personal Computer Recommended: ®... -
Page 13: Access Camera
Access Camera For initial access to the IP camera, users can search the camera through the installer program: DeviceSearch.exe, which can be found in “DeviceSearch” folder in the supplied CD. Accessing the Camera by Device Search Software Step 1: Double click on the program Device Search.exe. Step 2: After its window appears, click on the <Device Search>... - Page 14 Step 8: A prompt window requesting for default username and password will appear. Enter the default username and password shown below to login to the camera. Login ID Password Admin 1234 NOTE: ID and password are case sensitive. NOTE: It is strongly advised that administrator’s password be altered for the security concerns.
- Page 15 Once the Viewer is successfully installed, the Home page of the IP camera will be shown as the figure below. Ceiling Mount Installed Camera...
- Page 16 Wall Mount Installed Camera NOTE: For more details about the function buttons on the Home page, please refer to the Hyper IP Camera Menu Tree in the supplied CD.
-
Page 17: Setup Video Resolution
Setup Video Resolution Users can setup video resolution on Video Format page of the user-friendly browser-based configuration interface. Video Format can be found under this path: Streaming> Video Format. The default video resolution of 5M and 6M models are shown as below. The default resolution varies with different Fisheye Dewarping types, Front End Camera Dewarping and Back End Software Dewarping. -
Page 18: Configuration Files Export / Import
Configuration Files Export / Import To export / import configuration files, users can access the Maintenance page on the user-friendly browser-based configuration interface. The Maintenance setting can be found under this path: System> Maintenance. Users can export configuration files to a specified location and retrieve data by uploading an existing configuration file to the camera. -
Page 19: Tech Support Information
Tech Support Information This chapter will introduce how to delete previously-installed Viewer in the PC and how to setup the Internet security. Delete the Existing DCViewer For users who have installed the DCViewer in the PC previously, please remove the existing DCViewer from the PC before accessing to the IP camera. Deleting the DCViewer In the Windows <Start Menu>, activate <Control Panel>, and then double click on <Add or Remove Programs>. -
Page 20: Setup Internet Security
Setup Internet Security If ActiveX control installation is blocked, please either set Internet security level to default or change ActiveX controls and plug-ins settings. Internet Security Level: Default Step 1: Start the Internet Explorer (IE). Step 2: Click on the <Tools> tab on the menu bar and select <Internet Options>. Step 3: Click on the <Security>...
