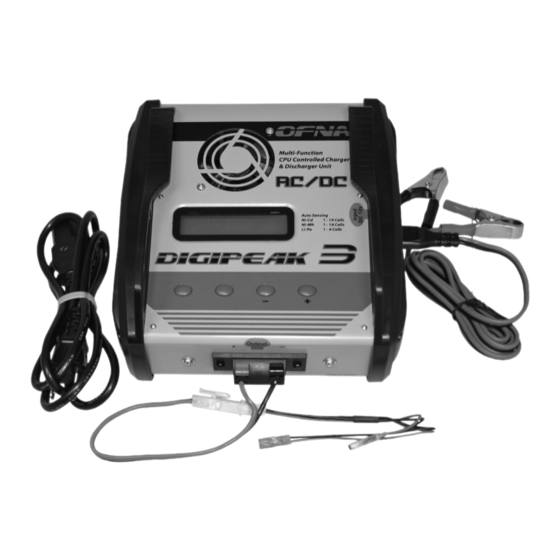

AC/DC CHARGER
CHARGES Ni-Cd or Ni-Mh or Li-Po
FEATURES:
1.Super function 3 in 1 16 bits microchip CPU controller
2. AC, DC are both compatible
AC 110V or 230V switching power supply technologyinput DC 11V ~ 18V input usabl e
3. Two-line 16 characters dot matrix large LCD display
4. AC & DC's plug sockets are removable
5. Universal output terminal
6. Deactivate and reactivatethe beeper by using the "select" button
7. Detect inversion of the battery automaticallyand input reverse protection
8. Built-in a DC cooling fan
9. Entire aluminum casing design - compact and portable
DIGIPEAK -3
1-14 Cell
SPECFICATION:
Input : AC 110V OR 230V / DC 11~18V
Battery Type : Ni-Cd / Ni-MH / Li-Po
Battery Cell : Ni-Cd/Ni-MH1 - 14 Cell (1.2V - 16.8V)
Li-Po 1 - 4 Cell (3.7V - 14.8V)
Charge Rate : 0.3A ~ 5A (0.1A
Discharge Rate : 2A (Constant current)
1
5 Amp
Peak Detection
(AUTO SENSING)
NiCd 1-14 cells
Ni-Mh 1-14 cells
Li-Po
1-4 cells
increments
)
Advertisement
Summary of Contents for Ofna Racing DIGIPEAK-3
- Page 1 DIGIPEAK -3 AC/DC CHARGER CHARGES Ni-Cd or Ni-Mh or Li-Po 1-14 Cell 5 Amp Peak Detection (AUTO SENSING) NiCd 1-14 cells Ni-Mh 1-14 cells Li-Po 1-4 cells SPECFICATION: FEATURES: 1.Super function 3 in 1 16 bits microchip CPU controller Input : AC 110V OR 230V / DC 11~18V 2.
-
Page 2: Discharge Mode
Charge Mode 1.MAIN MENU -> press the (ENTER) into charge mode. 2.Set the current rate before charging. Adjustable charge rates from 300mA-5000mA. The default current is 2A, you can use the +(INCREASE) and -(DECREASE) button to adjust the charge rate. See the table below to select the charge rate for Ni-Cd &... - Page 3 Operation Instr u ction Function Button Operation Signal INCREASE DECREASE ENTER START FLASH Plug the charger into an AC 110V/230V wall outlet or a DC 12V power source. The charger power is on now and the LCD displays the MAIN MENU. NI-CD CHARGE 1:Battery type 2:Charge status...
- Page 4 In Ni-Cd or Ni-MH mode Charge after Discharge Discharging Process Charging Process Process NI-CD 'DISC? CHG' NI-CD CHARGE NI-CD 'CHARGE' NI-CD 'DISCHARGE' C=2.0A C=2.0A D=0.5A END=6.0V 0.5A/6.0V? 2.0A NI-CD DISC? CHG NI-CD CHARGE NI-CD DISCHARGE '0.5A'/6.0V? 2.0A C='2.0A' D='0.5A' END=6.0V Set the CHARGE current NI-CD DISC? CHG NI-CD CHARGE...
- Page 5 In Li-Po mode Discharging Process Charging Process LI-PO CHARGE LI-PO 'CHARGE' LI-PO 'DISCHARGE' C=2.0A 7.4V C=2.0A 7.4V D=0.5A END=6.0V LI-PO CHARGE LI-PO DISCHARGE C='2.0A' 7.4V D='0.5A' END=6.0V LI-PO CHARGE LI-PO DISCHARGE C='4.0A' 7.4V D='2.0A' END=6.0V MIN. CHARGE current is 0.3A MIN.
-
Page 6: Beep Setup
Beep Setup TONE ENABLE TONE 'ENABLE' TONE 'DISABLE' TONE ENABLE TONE DISABLE TONE ON TONE OFF Error Message LCD Display Problem Factor [Error] The output terminal is REVERSE POLARITY connected inversely to the polarity of the battery pack. [Error] Short circuit protection for OUTPUT SHORT the output terminal. -
Page 7: Safety Precautions
Safety Precautions : 1.Please check the voltage in your house if it's consistent to this charger, you can only use it when the voltages are the same. 2.Do not allow children to charge battery packs unless supervised by a responsible adult. 3.Use only rechargeable batteries.
