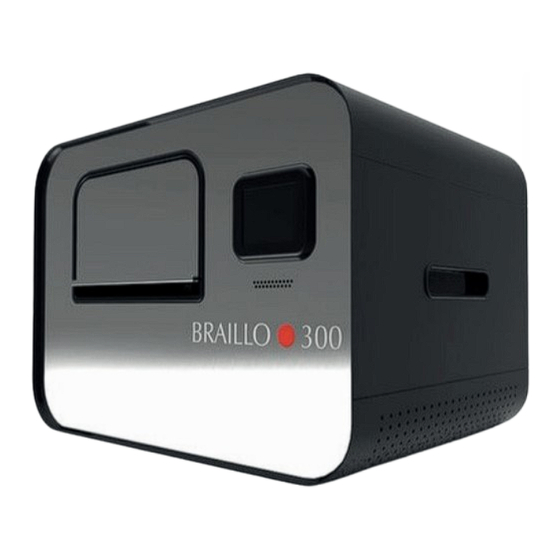

BRAILLO 300 S2
User's Guide
BRAILLO
NORWAY
Rev. June 2017
FOR BETTER BRAILLE - AND MORE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 300 S2 and is the answer not in the manual?

Questions and answers

Related Manuals for Braillo 300 S2

Summary of Contents for Braillo 300 S2

  • Page 1 BRAILLO 300 S2 User’s Guide BRAILLO NORWAY Rev. June 2017 FOR BETTER BRAILLE - AND MORE...
  • Page 2 © - 2017 Braillo Norway AS...
  • Page 3 NORWAY Dear Valued Customer, Thank you for purchasing a Braillo Braille embosser and placing your trust in our company and products. I know that the purchase of a production Braille embosser is a big one, and we are proud that you have chosen us.
  • Page 4 BRAILLO NORWAY AS B 300 S2...

  • Page 5: Table Of Contents

    BRAILLO NORWAY AS B 300 S2 TABLE OF CONTENTS PRINTER BASIC ......... . 7 INSTALLATION .
  • Page 6 NORWAY AS B 300 S2 GENERAL INFORMATION ....... . 90 Declaration of conformity.

  • Page 7: Printer Basic

    BRAILLO NORWAY AS B 300 S2 PRINTER BASIC Thank you for your purchase of the Braillo 300 S2. Please read this manual carefully before installing and operating this printer. Key features • Prints interpoint, both sides of the page are printed simultaneously •...

  • Page 8: Printer Overview

    BRAILLO NORWAY AS B 300 S2 Printer overview Please see the figure below: Note that the right-hand and left-hand side are referred to as if you were standing behind the printer facing the opening where the paper is inserted into the printer. Paper direction...

  • Page 9: Installation

    The printer should be placed on a sturdy table. Please note that this printer weighs 130 kg. Space: The minimum space required for the Braillo 300 S2 is approximately 1.25m x 1.5m (4 x 5 feet). How- ever, it will be more space required both behind and around the printer so that one can easily replace the boxes of paper and perform regular maintenance without moving the printer.

  • Page 10: Unpacking

    Make sure that your Braillo printer has not been damaged in transport. Check if the packing is damaged; If so, it is possible that the printer has also been damaged or scratched. If any damages are found, please contact your distributor or Braillo Norway AS immediately.

  • Page 11: Removal Of The Side Panels

    BRAILLO NORWAY AS B 300 S2 Removal of the side panels The side panels can be removed by turning the quarter revolution fasteners counterclockwise. Turn counterclockwise 1/4 of a revolution Pull the panel out, then a little down...

  • Page 12: Removal Of The Top

    BRAILLO NORWAY AS B 300 S2 Removal of the top If you are going to do maintenance, it can be more convenient to remove the top. Remove both side panels as described in section 2.2. ‘Removal of the side panels’ on page 11.

  • Page 13: Connecting The Printer To The Mains And Computer

    BRAILLO NORWAY AS B 300 S2 Connecting the printer to the mains and computer The connections are on the electric unit inside the printer. They can be reached by removing the side panel on the oposite side from the operator panel.
  • Page 14 BRAILLO NORWAY AS B 300 S2 Connecting to the computer This can be done in two ways, Ethernet or USB. The ethernet is a RJ45 connector, and the USB is a regular USB connector. There is no need to select which of the two input to use. The Printer will connect to the input who receives data first. Meaning, if data comes on the ethernet, the USB will not be operative before the...

  • Page 15: Power On

    BRAILLO NORWAY AS B 300 S2 Power on This printer does not have an on/off switch, so when the mains cable has been connected, the printer will do it’s start up sequence. The display will be black for a moment, then it will show a progress bar for the start up sequence. When done, the display will show “Welcome, press the accept button to con- tinue”.

  • Page 16: Operating The Printer

    BRAILLO NORWAY AS B 300 S2 OPERATING THE PRINTER Inserting paper Paper should be inserted into the printer in the following manner: 1. Place a box of paper at the back of the printer. (Opposite side from the operating panel).

  • Page 17: Operating Panel Functions

    BRAILLO NORWAY AS B 300 S2 Operating panel functions When the printer is powered up, you have to press the Accept button to make the printer ready. Accept button After pressing Accept the window below appears. Please see the explanation on the figure below: Time Date Sheet counters, will count upwards as the...
  • Page 18 BRAILLO NORWAY AS B 300 S2 Navigating in the menus. Move the cursor the desired sub menu, and then press the Accept button. Select this to enter sleep mode Move the Move the Accept or Jump back to cursor up...
  • Page 19 BRAILLO NORWAY AS B 300 S2 To change a setting with just two alternatives. If a setting can have just two alternatives, the display will look similar to this. Active button Inactive button, press to activate, and then press Accept...
  • Page 20 BRAILLO NORWAY AS B 300 S2 Operator panel during printing. Please see the figure below: Embossing Sheet 1 / 5 means that the Printer are now printing sheet 1 of a book with 5 sheets in total. Copy 1 / 1 means there will be just one copy.
  • Page 21 BRAILLO NORWAY AS B 300 S2 Overview of the menu structure. Warning! Welcome printer model printer Ready to Screen Emboss locked Main Menu Warning! Sleep Paper Service Date Sound Printer Counters Layout diagn Time Setup Sheet Embossing Print Date Volume...

  • Page 22: Explanation Of The Different Menu Choices

    BRAILLO NORWAY AS B 300 S2 Explanation of the different menu choices The Paper Layout menu: Main Menu - Paper Layout Sheet length: Main Menu - Paper Layout - Sheet Length The sheet length is the length of the sheet in inches.
  • Page 23 BRAILLO NORWAY AS B 300 S2 Braille type: Main Menu - Paper Layout - Braille type Selects between 6 and 8 dot mode. Line spacing: Main Menu - Paper Layout - Line spacing Selects the Line spacing. The range is from 0 to 16.
  • Page 24 BRAILLO NORWAY AS B 300 S2 The Service/diagnostic menu Main Menu - Warning - Service/diagnostic When entering this menu choice, a warning window will appear. The purpose of this warning is make the user aware that the safety switches on the cover is now disabled. This is done to make it possible to run smaller tests during service.
  • Page 25 BRAILLO NORWAY AS B 300 S2 Manual running: Main Menu - Warning - Service/diagnostic - Warning - Manual running When entering this menu choice, a warning window will appear. This is to make the user aware that print jobs from the computer will not be printed as long as you are in this sub-menu.
  • Page 26 BRAILLO NORWAY AS B 300 S2 Test Sensors: Main Menu - Warning - Service/diagnostic - Test sensors This is a function made for troubleshooting the sensors on the Printer. The “ON” or “OFF” is indicating the current status of the sensor.
  • Page 27 BRAILLO NORWAY AS B 300 S2 The date and time settings Date and time: Main Menu - Date and time Used to change the date and time setting - Date Main Menu - Date and time - Date Used to change the date.
  • Page 28 BRAILLO NORWAY AS B 300 S2 The Printer setup menu Main Menu - Printer setup In this menu the basic settings regarding the Printer is set. Printer model: Main Menu - Printer setup - Warning - Printer model When entering this menu choice, a warning window will appear.
  • Page 29 BRAILLO NORWAY AS B 300 S2 ASCII tables: Main Menu - Printer setup - ASCII tables An ASCII table is the same as a character set. When the Printer receives a character from the computer, it goes to an ASCII table to find out which dot pattern is corresponding to this character. This Printer has a number of ASCII tables, and they are listed like shown in the figure to the right. To select another table, use the up or...

  • Page 30: Messages/Error Messages

    BRAILLO NORWAY AS B 300 S2 Lock screen delay: Main Menu - screen locked Selecting the delay before screen get locked, 0 is screen lock off. The Counters menu Main Menu - Counters Will show two different counters, the first one will show the total number of sheets printed. The second shows the total number of hours the main motor has been running.
  • Page 31 BRAILLO NORWAY AS B 300 S2 Recoverable errors: When there is a recoverable error, the display will show what has happened e. g. “Printer halted, Printer cover open”. And it will stay like that until the error is fixed. Then the display will change to “Printer halted, Press continue to resume”. By pressing Continue the Printer will resume the printing from where it was before the error.
  • Page 32 BRAILLO NORWAY AS B 300 S2 Unrecoverable errors: When there is a unrecoverable error, the display will show what has happened e. g. “General failure, Beam wheel failure”. When this kind of errors occur, the Printer must be reset or switched off and then switched back on again. The job currently being printed has to be sent once more from the com- puter. The different unrecoverable errors are:...

  • Page 33: Test Print

    BRAILLO NORWAY AS B 300 S2 Test Print The test print program is designed to ensure that the 168 printing mechanisms functions properly. This Printer will do an electronic test on all of it’s printing mechanisms continuously during printing. However, this electrical test will not tell if something is wrong mechanically, and therefore it is recom- mended to print a few pages of test print before beginning the day’s production.

  • Page 34: Service And Maintenance

    BRAILLO NORWAY AS B 300 S2 SERVICE AND MAINTENANCE When doing some ligther service or maintenance tasks, it can be enough to remove the side plates on the cover. But for bigger operations we recommend to also remove the top cover. Please see section 2.2.

  • Page 35: Top View

    BRAILLO NORWAY AS B 300 S2 The figure below is a “theoretical” figure showing the parts inside the printing mechanism. The printer has been “sliced” to show more detailed of how it is constructed. top view paper printing pins...
  • Page 36 BRAILLO NORWAY AS B 300 S2 Please see the figure on the previous page. The two shafts, one at the top and one at the bottom, are rotating synchronized. On each shaft there are eccentrics that are moving the beams and papershoes up and down. This movement is used both to hold the paper and to make the dots.
  • Page 37 BRAILLO NORWAY AS B 300 S2 The drawing on this page is meant to help to understand the basic principle of how the dots are printed. Please also see the drawings on the next page. The parts in the upper left of this drawing is one of the magnet racks. The parts in the lower right, are the beam and paper shoes.
  • Page 38 BRAILLO NORWAY AS B 300 S2 Figure A Figure B Figure C Shows the position on the pivot Now the magnet is engaged, The long pivot arm’s hook arm when the printer is not and the long pivot arm has been catch the short pivot arm.

  • Page 39: General Overview

    BRAILLO NORWAY AS B 300 S2 General overview Magnet rack B Magnet rack A Main Belt Main Motor Electric unit Operator panel...

  • Page 40: Troubleshooting, Incorrect Braille

    If your text-file is OK, the problem is caused by the printer. On earlier models of Braillo printers, this could be caused by either a electrical problem or a mechani- cal problem. But on this model of printer, there is integrated a self-diagnostic system that is checking the magnets continuously during printing, and this will trigger an alarm if it detects some electrical problems with the magnets.
  • Page 41 BRAILLO NORWAY AS B 300 S2 Possible reasons for errors: See figures on the next page. If a dot from a certain printing pin is missing regularly, the reason might be one of the following: Defect magnet (The self-diagnostic system should find this one first). Broken short pivot arm. The long pivot arm cannot move because of dirt.
  • Page 42 BRAILLO NORWAY AS B 300 S2 Sponge list Magnet rack Magnet Long pivot arm Magnet rack board Support list Magnet poles Short pivot arm Pin guide Gap between pivot arms Sponge list short pivot arm Printing pin...

  • Page 43: Magnet Rack - Removal

    BRAILLO NORWAY AS B 300 S2 Magnet rack - removal Please see figures below: Disconnect the cables for the magnet rack. Remove the magnet rack by unscrewing the four screws shown in the figure. Magnet racks A, B and C are quite easy to reach, but to remove magnet rack D, it is often best to first remove the paper feed tractor.

  • Page 44: Magnet Rack - Disassembly, Step By Step

    BRAILLO NORWAY AS B 300 S2 Magnet rack - disassembly, step by step There are two main reasons for disassembling the magnet rack. It could be to replace some parts, i.e. defect magnet, worn pivot arm, or it could be for regular maintenance.
  • Page 45 BRAILLO NORWAY AS B 300 S2 Step 2. Remove the two nuts holding the support list, and then remove the support list. Support list Step 3. Remove the two bolts holding the pivot arm fastener and then care- fully remove the pivot arm fastener. The magnet rack is now disas- sembled.

  • Page 46: Magnet - Replacement

    BRAILLO NORWAY AS B 300 S2 Magnet - replacement Please observe that the numbering on the magnets in a magnet rack, always starts at “one” at the end where the connections are. (It does not refer to dot number, character number or column number!).
  • Page 47 BRAILLO NORWAY AS B 300 S2 Step 2. Pull out the defect magnet with, e.g. a narrow needle nose pliers. Magnet Step 3. Check the magnets internal resistance if you have an ohm-meter available. The resist- ance should be from 185 ohm to 240 ohm. Any value outside this range indicates a...
  • Page 48 BRAILLO NORWAY AS B 300 S2 Step 4. Replace the defective magnet with a new magnet. Note the spikes on one of the sides on the magnet. These spikes must be oriented the same direction as the rest of the spikes in the magnet rack.

  • Page 49: Magnet Rack - Cleaning

    BRAILLO NORWAY AS B 300 S2 Magnet rack - cleaning Remove the magnet rack as described in section 4.3. ‘Magnet rack - removal’ on page Then disassemble the magnet rack as described in section 4.4. ‘Magnet rack - disassembly, step by step’...

  • Page 50: Magnet Rack - Adjustment

    BRAILLO NORWAY AS B 300 S2 Magnet Rack - adjustment Before placing the magnet rack in the printer, two adjustments must be checked. The first is the distance between the support list and the pivot arms. This is the travelling distance for the pivot arm. And it should be adjusted to about 0.8 mm using a feeler gauge. Adjust the nuts on both ends of the magnet rack.
  • Page 51 BRAILLO NORWAY AS B 300 S2 The second adjustment is the pressure the sponge list makes against the pivot arms. The sponge list works as a return spring for the pivot arms. The correct adjustment is when the sponge list is slightly pressing against the pivot arms, but the pivot arms can still move freely.

  • Page 52: Magnet Rack - Refitting And Adjusting

    BRAILLO NORWAY AS B 300 S2 Magnet rack - refitting and adjusting Before putting the magnet rack back on the printer, make sure that the magnet rack itself is adjusted as described in the previous section. When placing the magnet rack in the printer: Put in the four fastening screws, but do not tighten them.
  • Page 53 BRAILLO NORWAY AS B 300 S2 The magnet rack must be adjusted in two directions, horizontal and vertical. The horizontal adjustment is done first. This adjustment positions the magnet rack correctly in relation to the short pivot arms. If the printer prints too many or too few dots, the horizontal adjustment could be the problem.
  • Page 54 BRAILLO NORWAY AS B 300 S2 When the arrows at the end of the shafts are pointing in the opposite direction of each other, the short pivot arms will be approximately positioned like in the figure below: Screw for horizontal adjustment Approx. 0.2 mm (As close as possible without touching...
  • Page 55 BRAILLO NORWAY AS B 300 S2 Next is vertical adjustment. Note! The printer must be in the “printing position” when checking this distance. Vertical adjustment approx. 1 mm (will be affected by i.e. paper quality). The vertical adjustment of the magnet rack sets the pressure of the printing pins when making dots.
  • Page 56 BRAILLO NORWAY AS B 300 S2 Adjust upwards by loosening the upper nut and then tighten the lower. Do this on both ends, so the magnet rack stays levelled. Note! Adjust in small steps, only 1/4 of a revolution at a time. Then test the Braille quality.
  • Page 57 BRAILLO NORWAY AS B 300 S2 Note! When adjusting the magnet racks vertically, observe that magnet rack A and B must be moved upwards to increase the pressure, and magnet rack C and D must be moved downwards to increase the pressure.

  • Page 58: Beam And Paper Shoes - Overview

    BRAILLO NORWAY AS B 300 S2 Beam and Paper shoes - overview Please see the figures below: Upper Beam Upper Paper shoe Adiprene springs Lower Paper shoe Plastic shims Paper moves in this direction Return spring (blue) Lower Beam Return spring (green)

  • Page 59: Beam And Papershoes - Removal And Refitting

    BRAILLO NORWAY AS B 300 S2 4.10 Beam and Papershoes - removal and refitting To remove the beam and papershoes, some other parts must be removed first. It must be done in this order: 1. Remove the belt 2. Remove the inside paper guide 3. Remove the paper feed tractor 4. Remove the top frame 5. Remove magnet rack A and B 1.
  • Page 60 BRAILLO NORWAY AS B 300 S2 Beam and paper shoes - removal and refitting (continued) 3. Remove the paper feed tractor Please see section 4.16. ‘Paper feed assembly - remov- ing’ on page 66 for a description on how to remove the tractor.

  • Page 61: Beam - Replacement Of Short Pivot Arm

    BRAILLO NORWAY AS B 300 S2 4.11 Beam - replacement of short pivot arm See the figures below: 1. Remove the four screws as indicated in the figure. Pull out the short pivot arms, there are 21 pcs. on each shaft. 2. Pull out the shaft, and replace the short pivot arm(s).

  • Page 62: Beam - Replacement Of Printing Pin

    BRAILLO NORWAY AS B 300 S2 4.12 Beam - replacement of printing pin See the figures below: Remove the six screws as indicated on the figure. Note! Before the parts are separated, make sure that the beam is held with the printing pins hanging down.

  • Page 63: Return Spring Adjustment

    BRAILLO NORWAY AS B 300 S2 4.13 Return spring adjustment Before performing this adjustment, make sure that the shafts are turned to the correct position. See the marks at the end of the shafts, the arrows must point directly towards each other, like in the figure below.

  • Page 64: Eccentrics Adjustment, Belt Tension

    BRAILLO NORWAY AS B 300 S2 4.14 Eccentrics adjustment, belt tension After removing the belt, it is necessary to align the eccentrics. Put the belt back on, tighten it with the belt tightening wheel (2), and check that the arrows at the end of the shafts (1) are pointing towards each other. See figure below.

  • Page 65: Main Sensor Wheel - Adjustment

    BRAILLO NORWAY AS B 300 S2 4.15 Main sensor wheel - adjustment The main sensor wheel is placed on the lower shaft, on the opposite end from the belt. The shafts must be in the position indicated to the left in the figure below. The timing wheel should now be placed exactly like position (A) in the figure below, i.e. the mark in the middle of the opening in the wheel is placed just opposite the sensor.

  • Page 66: Paper Feed Assembly - Removing

    BRAILLO NORWAY AS B 300 S2 4.16 Paper feed assembly - removing The paper feed assembly can be removed by loosening four nuts. There is no need to remove the nuts completely, just loose them, and then lift the assembly up and pull out.

  • Page 67: Paper Feed Assembly - Adjustment

    BRAILLO NORWAY AS B 300 S2 4.17 Paper feed assembly - adjustment If for some reason the paper feed mechanism has been disassembled it could be that the paper will not stop correctly by the marks on the paper guide.

  • Page 68: Inductive Sensors - Adjustment

    BRAILLO NORWAY AS B 300 S2 4.18 Inductive sensors - adjustment This printer uses inductive sensors in three places. One for the main timing wheel on the lower shaft, and two are controlling the movement on the paper feed mechanism.

  • Page 69: Paper Sensor - Replacing

    BRAILLO NORWAY AS B 300 S2 4.19 Paper sensor - replacing This printer has a sensor to detect if paper is present in the printer. This sensor is situated on the paper guide where the paper enters the printer. The sensor is an infrared, reflective type, and it functions like this: An infrared lamp is sending light downward. If there is paper present, the light will be reflected back, and detected by a photo transistor.

  • Page 70: Maintenance

    BRAILLO NORWAY AS B 300 S2 4.20 Maintenance Weekly (without taking the cover off). Does the printer print correct Braille? How is the Braille dot quality? Check for any damages on the outside of the cover. Are the operator panel functioning? Do the fans work? Are the fans clean? If there is a lot of dust from the paper on the paper guides, use a vacuum cleaner.
  • Page 71 BRAILLO NORWAY AS B 300 S2 Lubrication This should be done every 1000 running hours, or approximately once a year. Lubricate all items marked “1” on the figure below. (These are the only locations in the printer grease may be applied!). Use a universal grease with molybdensulfid.

  • Page 72: Parts - Exploded Views

    BRAILLO NORWAY AS B 300 S2 PARTS - EXPLODED VIEWS Magnet rack Parts magnet rack Name Quantity per. rack Sponge list, magnet rack ..........1 Magnet rack ...............1 Support list, magnet rack ...........1 Shaft, long pivot arm ..........1 Pivot arm, long ............42 Electronic board, magnet rack ........1...

  • Page 73: Beam

    BRAILLO NORWAY AS B 300 S2 Beam Parts beam (upper or lower) Name Quantity per. beam Stroke ball bearing Ø20 ..........2 Beam, (upper or lower) ..........1 Fastener for short pivot arm shaft ......2 Sponge list for short pivot arm ........2 Pin guide ..............1...

  • Page 74: Paper Shoe

    BRAILLO NORWAY AS B 300 S2 Paper shoe Parts paper shoe (upper or lower) Name Quantity per. shoe Retaining ring ............4 Stroke ball bearing Ø20 ..........2 Spacer ................2 Paper shoe (upper or lower) ........1 Plastic shims ..............4...

  • Page 75: Paper Feed

    BRAILLO NORWAY AS B 300 S2 Paper feed Parts paper feed Name Quantity Paper feed tractor ............2 Paper feed sensor no. 1 ..........1 Paper feed sensor no. 2 ..........1 Timing wheel ............1 Stepping motor ............1...

  • Page 76: Shafts, Belt

    BRAILLO NORWAY AS B 300 S2 Shafts, belt Direction of rotation How to get the cog wheel off the shaft? Unscrew the two screws. Parts shaft, belt Place one of Name Quantity the screws in Shaft, complete with bearings ........2 the third hole, Belt 540 L ..............1...
  • Page 77 BRAILLO NORWAY AS B 300 S2 Shaft, exploded view Parts shaft, exploded Name Quantity per. shaft Main bearing with housing ........2 Nut KM5 ..............2 Bearing outer eccentric 6205 2Z ........2 Shaft ................1...

  • Page 78: Top And Bottom Frame

    BRAILLO NORWAY AS B 300 S2 Top and bottom frame Parts top and bottom frame, exploded Name Quantity per. frame Locking ring Ø22 ............4 Stroke ball bearing Ø12 ..........2 Frame .................1 Spacer Ø22 ..............2 Push rod ceramic Ø12X56 ........2...
  • Page 79 BRAILLO NORWAY AS B 300 S2 Frame, complete...

  • Page 80: Technical Specifications

    BRAILLO NORWAY AS B 300 S2 TECHNICAL SPECIFICATIONS Technical specifications Format: Characters per line: 10-42 char. Sheet length: 4-14 inches Sheet width: 140-330 mm Page layout: Normal/Z-fold Page 1: Up/down Printing type: Single sided/interpoint Line spacing: Adjustable, from 0.3175 mm to 10.16 mm. Standard is 5.08 mm...

  • Page 81: Electric Unit - Overview

    BRAILLO NORWAY AS B 300 S2 Electric unit - overview The electric unit is placed on the base plate of the Printer, and contains connections, fuses and power supply. Note that you must disconnect the mains when working on this unit.

  • Page 82: How To Replace Fuses

    BRAILLO NORWAY AS B 300 S2 How to replace fuses The fuses are placed on a PCB inside the electric unit. See figures below for how to open the box. Remember to disconnect the mains cable first! Remove Remove screws screws Lift the lid upwards...
  • Page 83 BRAILLO NORWAY AS B 300 S2 The fuses. Note that the two mains fuses is placed under transparent lids. All the fuses are 5 x 20 mm and can be of glass or ceramic type. Mains - 10 AT Board - 3,15 AT Spare 1 - 1 AT Spare 2 .

  • Page 84: Main Board - Connections

    BRAILLO NORWAY AS B 300 S2 Main board - connections Power Signal Data operator operator Magnet racks panel panel A B C D Audio pre out Not in use Not in use Ethernet in use Not in use Step Not in use...

  • Page 85: Escape-Sequences

    BRAILLO NORWAY AS B 300 S2 Escape-sequences What is an escape-sequence? An escape-sequence is the name for a code which is sent to the printer from the computer to change the parameters which control the way the printer works. All parameters that can be set via the operator panel, can also be changed with escape-sequences.
  • Page 86 BRAILLO NORWAY AS B 300 S2 Note! The escape-sequences will be executed immediately if the printer is not running. How- ever, if the printer is running, the escape-sequences will keep their place in the document, and will be executed when this particular page is printed. Also keep in mind that any page format- ting command must be kept on the front page of a sheet. Then the command will affect both the...
  • Page 87 BRAILLO NORWAY AS B 300 S2 Print Format: Line spacing: ESC C n - Print Format. ESC M nn - Line Spacing. n can be 0 (single-sided) or 1 (interpoint). nn can be from 0 to 16 step. Print Format ASCII...
  • Page 88 BRAILLO NORWAY AS B 300 S2 Page Adjust: Page Margin: ESC R n - Page adjust. ESC T nn - Page margin. n can be from 0 to 9 lines. nn can be from 0 to 20 step. Please keep in mind that there is a difference Step mm ASCII in the terms “page length”...
  • Page 89 BRAILLO NORWAY AS B 300 S2 Software Reset: Print Printer ID: ESC 0 - Soft Reset ESC 4 - Adding the Printer ID This command is used to reset the Printer. It is When you have several Braille Printers produc-...

  • Page 90: General Information

    BRAILLO NORWAY AS B 300 S2 GENERAL INFORMATION Declaration of conformity...

  • Page 91: Warranty

    BRAILLO NORWAY AS B 300 S2 Warranty This product left the factory in a good working condition in accordance with the technical specifica- tions and carries a warranty of 3 years on parts valid from the date of delivery from Braillo Norway A/S. The warranty includes: • Replacement of defect part(s) • Shipping cost for the replaced part(s) The warranty excludes: •...

  • Page 92: Warranty Request Form

    BRAILLO NORWAY AS B 300 S2 Warranty request form (Only one printer/part per document) Customer name: Date: Contact person: Phone number: E-mail address: Hours: Printer number: Printer type: Part name: Part number: Reason for return: Comments: Return to: Phone number: +47 74 84 04 40...

  • Page 93: Addresses And Phone Numbers

    BRAILLO NORWAY AS B 300 S2 Addresses and phone numbers Web: www.braillo.com Administration/Sales department Braillo Norway AS: Office: Storgt. 20, Tønsberg Mail: P.O.Box 447 3101 Tønsberg Norway Phone: +47 33 00 28 70 Telefax: +47 33 00 28 71 e-mail: sales@braillo.com Service Braillo Norway AS: Office: Wessels veg 100, Stjørdal...
