Summary of Contents for Air cat 1680-6

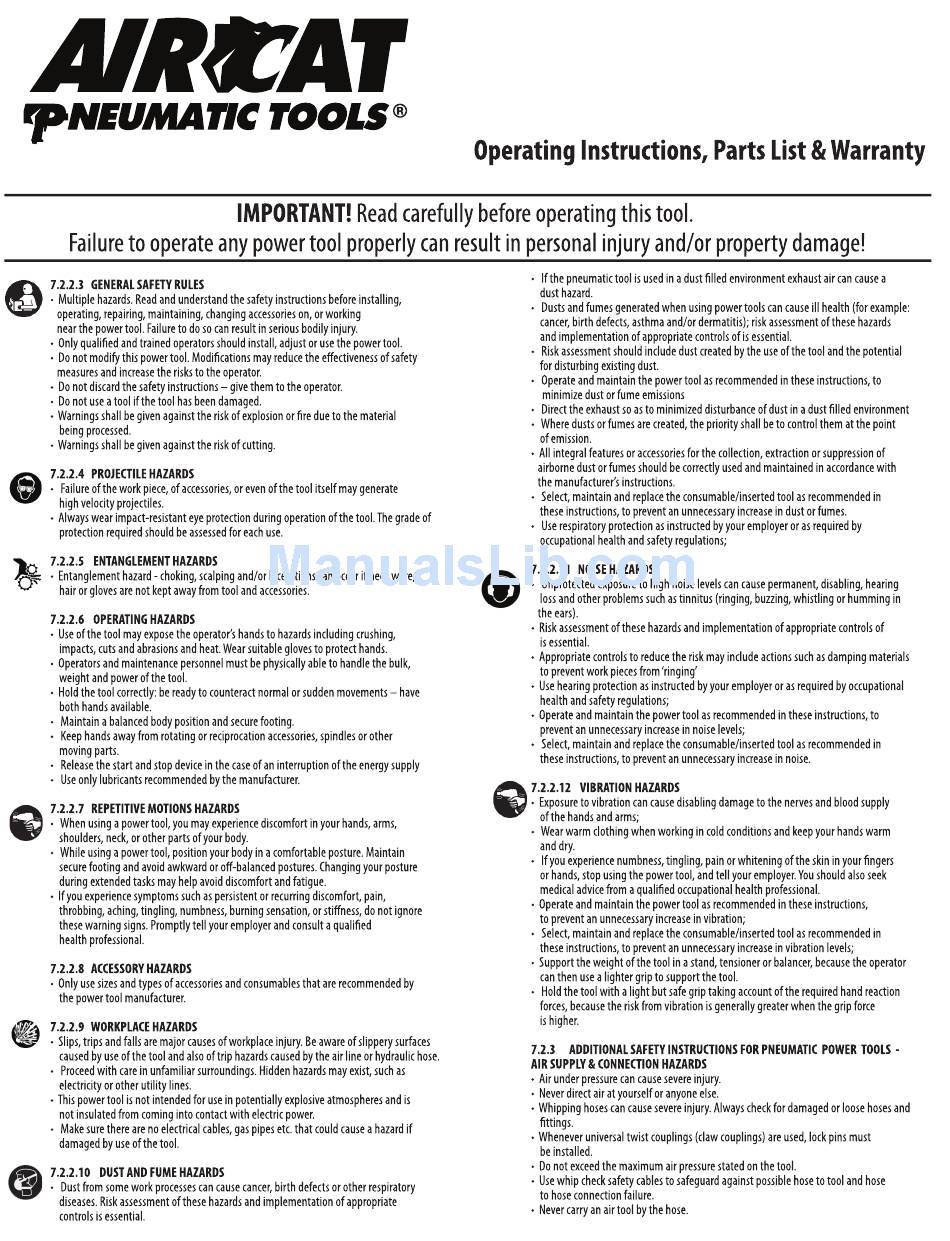

- Page 1 MODEL: 1680-6 3/4" IMPACT WRENCH 6” Ext.
-
Page 2: Air Supply
(lbs.) (in) (CFM) (in.) (in.) (in.) (in.) 1680-6 4500 1200 14.9 14.9 3/8 NPT Air Supply Tools of this class operate on a wide range of air pressure. It is recommended that air pressure of these tools measures 90 PSI at the tool while running free. Higher pressure and unclean air will shorten the tool’s life because of faster wear and may create a hazardous condition and void the warranty. - Page 3 MODEL: 1680-6 3/4" IMPACT WRENCH 6” Ext. Exploded View & Parts List Part Number Description Part Number Description BP1680101 BOLT ASSY BP1680209 SPRING BP1680102 HAMMER CASE BP1680301 BEARING BP1680103 HAMMER CASE BUSHING BP1680302 FRONT BEARING PLATE BP1680104 COLLAR BP1680303 CYLINDER...
