MODEL: 802-5

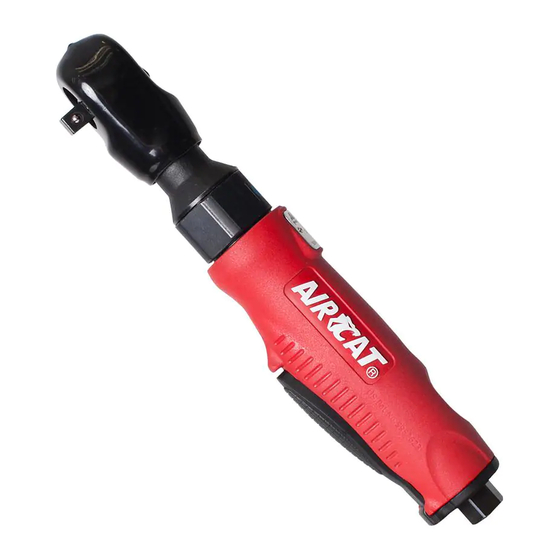

1/2" RATCHET WRENCH

Advertisement

loading
Need help?

Need help?

Do you have a question about the 802-5 and is the answer not in the manual?

Questions and answers

Related Manuals for Air cat 802-5

Summary of Contents for Air cat 802-5

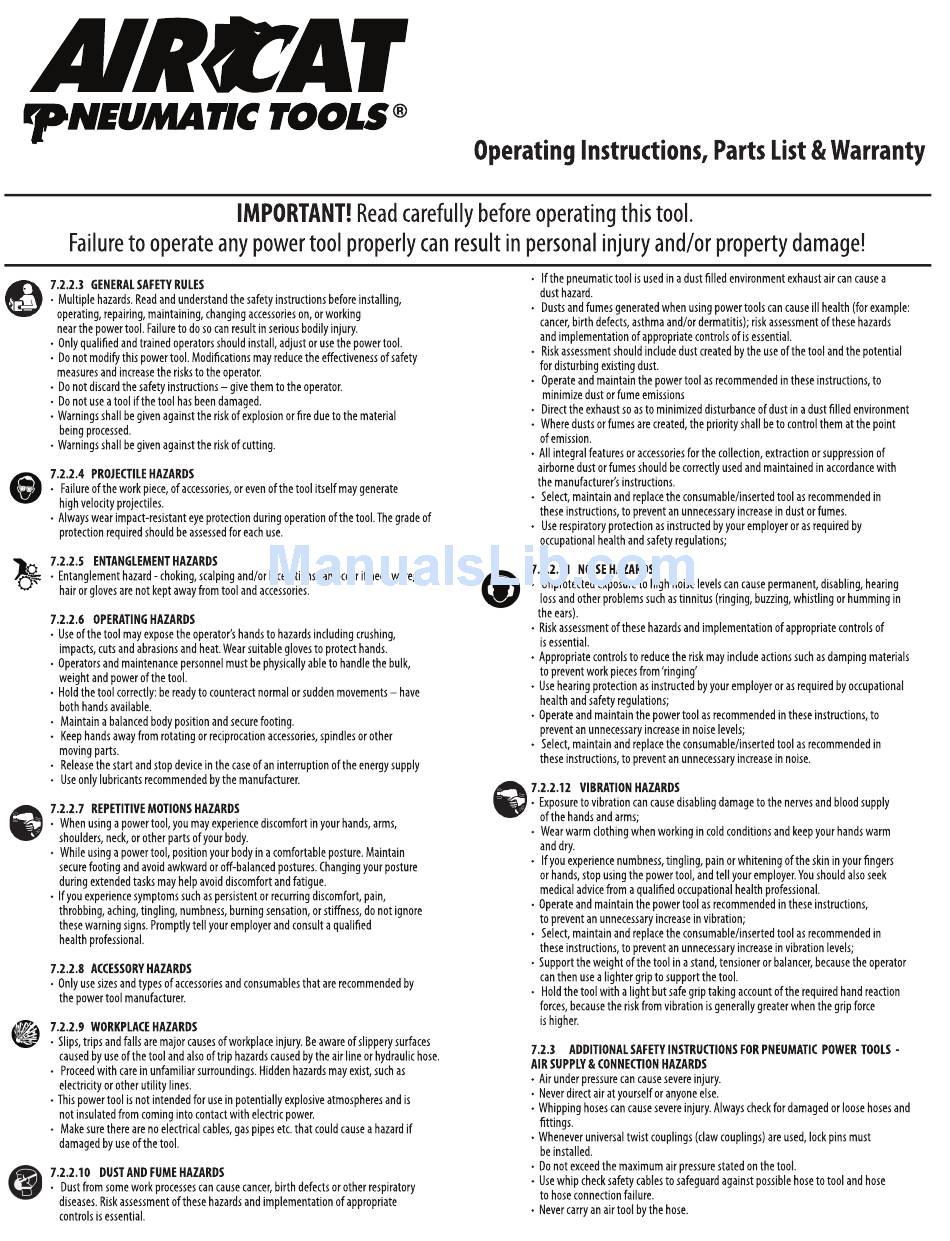

  • Page 1 MODEL: 802-5 1/2" RATCHET WRENCH...

  • Page 2: Air Supply

    (lbs.) (in) (CFM) (in.) (in.) 802-5 2.75 10.5 1/4 NPT Air Supply Tools of this class operate on a wide range of air pressure. It is recommended that air pressure of these tools measures 90 PSI at the tool while running free. Higher pressure and unclean air will shorten the tool’s life because of faster wear and may create a hazardous condition and void the warranty.
  • Page 3 MODEL: 802-5 1/2" RATCHET WRENCH Exploded View & Parts List Part Number Description Part Number Description Qty. 216-009 Ratchet Yoke 00-2306 Ball Bearing 218F-013B Ratchet Housing 217-015 Idle Gear Housing 218F-003 Lock Pin 216-018 Washer 216-002 Spring 00-4159 O-Ring 218F-001B...
  • Page 4 AIRCAT and NITROCAT air tools are warranted to be free from defects in material and workmanship for 2 years from date of purchase. We will repair or replace; at our option any defective part or unit which proves to be defective in material or workmanship during this 2 year period.
