Summary of Contents for Rydeen MN450S

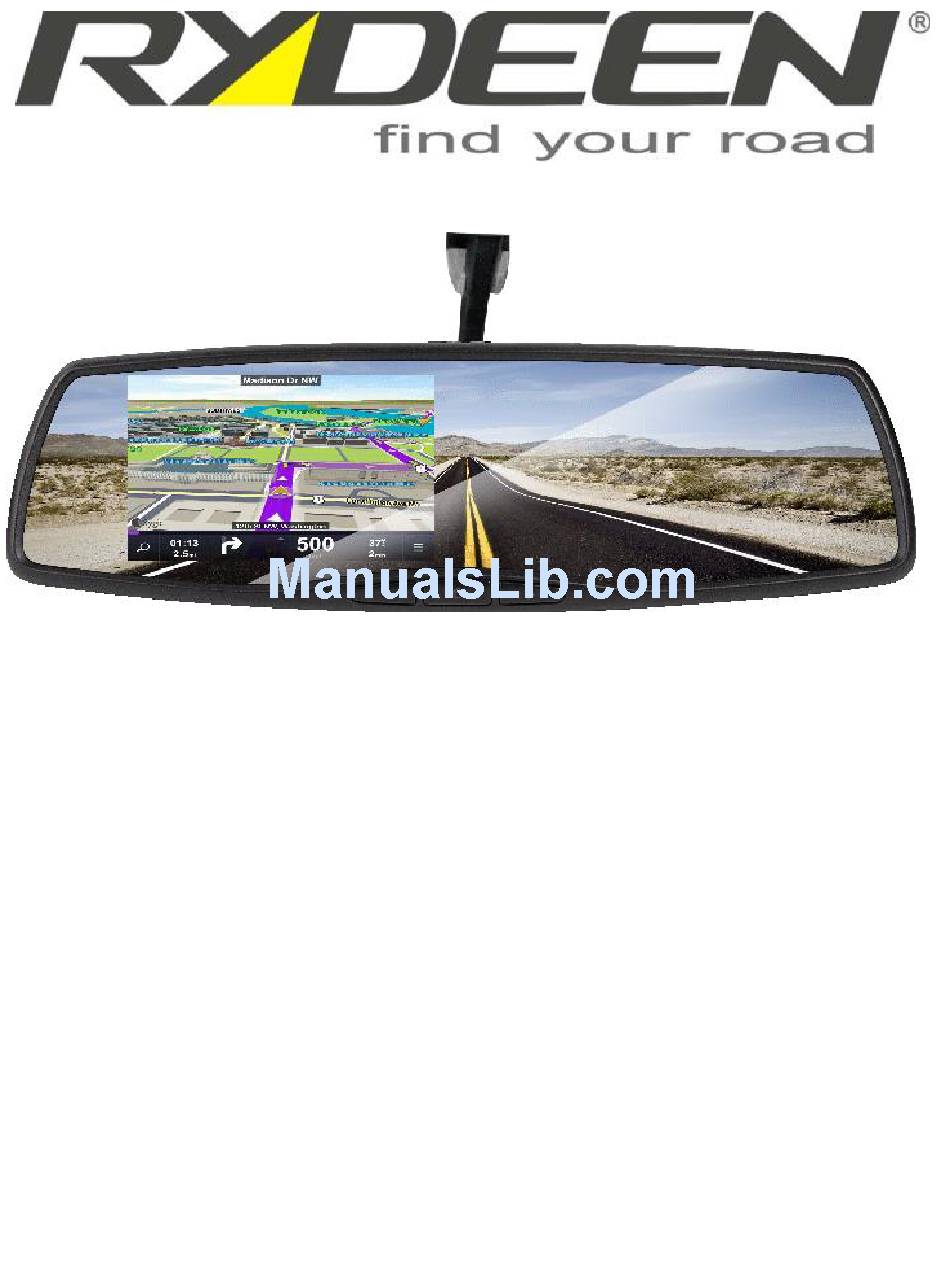

- Page 1 Owner’s Manual MN450S Smart Mirror V1.0...
-
Page 3: Table Of Contents
Contents Contents Welcome Statement & Warnings ..............2 What’s in the Box..................4 Product Overview ..................5 Installation ....................7 User Interfaces ..................10 DVR Operations ..................12 Music Operations ..................13 Specifications ..................14 Maintaining Your GPS ................16 Technical Support Contact Info ............... -
Page 4: Welcome Statement & Warnings
Before making any maneuvers (for example, a U-turn or a left turn) suggested by the MN450S system, please be sure that such a maneuver can be completed legally and safely. Do not follow route suggestions that could put you or your vehicle in a potentially unsafe or illegal circumstance. - Page 5 ONLY WHEN VEHICLE IS COMPLETELY STOPPED AND IT IS SAFE to do so. Be sure the MN450S unit is securely attached to the windshield of your vehicle with the supplied bracket.
-
Page 6: What's In The Box
Product Overview 2. What’s in the box? Your MN450S system comes complete with everything you need to get set up and get going. Please take a moment to review the contents of your system. Main Unit Wire Harness for MN450S... -
Page 7: Product Overview
Product Overview 3. Product Overview MN450S... - Page 8 Product Overview Panel Spread Sheet Item Description 4.3” TFT, Touch Panel Short Press- Decrease Volume While in Volume settings Decrease Short Press- Decrease Brightness While in Brightness settings Short Press- Go to Home Menu Home Long Press- Turn On / Off Screen Short Press- Increase Volume While in Volume settings Increase Short Press- Increase Brightness While in Brightness settings...
-
Page 9: Installation
• Please guarantee professional operations during the whole installation process. • Dropping your MN450S unit or subjecting it to excessive shock and vibrations as this may cause it to malfunction and is not covered by warranty. • The MN450S units ARE NOT WATERPROOF. Avoid exposing it to rain or other forms of excessive moisture. - Page 10 Installation Most vehicles have the mirror mounted directly onto the glass; therefore improper tools or techniques used in the installation could result in a damaged or broken windshield. Rydeen is not responsible for damages to windshield caused by installation processes.
- Page 11 Installation 3) Route the mirror cable along the headliner and down the pillar. Then make power, ground and accessory connections. Yellow - Constant 12V+ source Red - Ignition controlled ACC 12V+ source. Black - Ground (-) Polarity (Connecting to car chassis works the best) 4) Solder or T-taps on pre-tested and verified wires.
-
Page 12: User Interfaces
Device System Settings 5. User Interfaces Opening Screen Main UI On the main menu, you can touch the icon to enter the corresponding operation that you want to use. (GPS: DVR: Music: Touch the Home button on the panel to return to the main menu (no matter what the current user interface you are using). - Page 13 Device System Settings Volume / Brightness Settings Press the “>” or “<” button to increase and decrease volume or brightness (regardless what the current user interface you are using). Touch / swipe the bars on the settings screen to change settings choices between volume and brightness.
-
Page 14: Dvr Operations
Device System Settings 6. DVR Operations Touch the icon on the main menu to enter into DVR interface. Video source will depend on: 1. If extra video in is triggered (unit detects video signal), the video source will be extra video input (backup camera or other video input); 2. -
Page 15: Music Operations
Device System Settings 7. Music Operations Touch the icon on the main menu to enter Music interface. All music files will be stored in Micro SD Card. You can set the preferences by maintaining below interface. You can adjust volume or brightness by pressing the “>” or “<” buttons on the panel. -
Page 16: Specifications
Specifications 8. Specifications 4.3-inch TFT Screen Resolution 480×800 Pixel Built-in GPS Backup Camera Backup view available while reversing WAV, MP3, MP2, AAC, AMR-NB, AMR-WB, Audio decode MIDI, Vorbis, APE Audio code AMR-NB, AMR-WB, AAC 6kHz~96kHz Video decode MP4 / VP8 / GP3 / H.264 4.3”... - Page 17 Specifications Operation -20~+70 (degrees) Temperature Storage -40~+85 (degrees) Working Storage Environment Operation 4%~90%RH Humidity Storage 40%RH Warm start time <= 3sec (outdoor, - 130dBm) Cold start time <= 45sec (outdoor, - 130dBm) (GPS SPEC) Satellite time: 100s Sensitivity: < 2.5m (outdoor, - 130dBm)
-
Page 18: Maintaining Your Gps
RYDEEN MOBILE (a manufacturer of “RYDEEN" products) warrants this product (MN450S) only to the original purchaser as described following: Warranty Period MN450S warrants this product for a period of Three (3) year from the original purchase date. Warranty Coverage This warranty covers all defects in material and workmanship except as specified below. -
Page 19: Warranty Services
Any cosmetic damages due to normal wear and tear. g) Any consumable items (such as fuse or batteries). If any problems develop with your Rydeen products during or after the Limited Warranty Period, or if you have any questions regarding the operation or installation of the product, you should contact your Rydeen retailer. -
Page 20: Fcc Compliance Statement
End User License Agreement 12. FCC Compliance Statement This device complies with Part 15 of the FCC interference limits for Class B digital devices for home or office use. These limits are designed to provide more reasonable protection against harmful interference in a residential installation and are more stringent than “outdoor”... - Page 21 End User License Agreement 4 The object of the Agreement 4.1 The object of this Agreement shall be the navigation guidance software product of Licensor (hereinafter referred to as Software Product). 4.2 The Software Product shall include the operating computer program, its complete documentation, and the map database belonging thereto.
- Page 22 End User License Agreement 7.1.1 to duplicate the Software Product (to make a copy thereof); 7.1.2 to lease, rent, lend, distribute, transfer it to a third person with or without a consideration; 7.1.3 to translate the Software Product (including translation (compilation) to other programming languages);...
-
Page 23: Disclaimer
End User License Agreement 9 Sanctions 9.1 The Licensor hereby informs the User that according to regulations of the CA, should the Licensor find its rights to be breached, the Licensor may 9.1.1 claim the acknowledgement of such breach by court; 9.1.2 claim ceasing the breach and ordering the person under breach from continuing such;... - Page 24 Fax: 1-310-943-3778 Copyright © 2014 RYDEEN by Rydeen. All Rights Reserved. RYDEEN ® is a registered trademark of RYDEEN by Rydeen. These materials are protected by copyright law and international treaties. Any unauthorized use, reproduction or distribution of these materials, or any portion herein, will result in severe civil and criminal penalties and fines.
