- Page 1 Installation Manual and Owner’s Guide PLEASE READ THE MANUAL CAREFULLY BEFORE INSTALLATION AND OPERATION...
- Page 2 Safeties & Cautions: DCK series door machine need professional technician for the installation: （1）All the operations must be implemented according to the instructions, this is very important to personal safety. Improper installation or misuse of the product might cause series damage to personal and property. （2）Please read instructions carefully before installation.
-
Page 3: Function & Characteristic

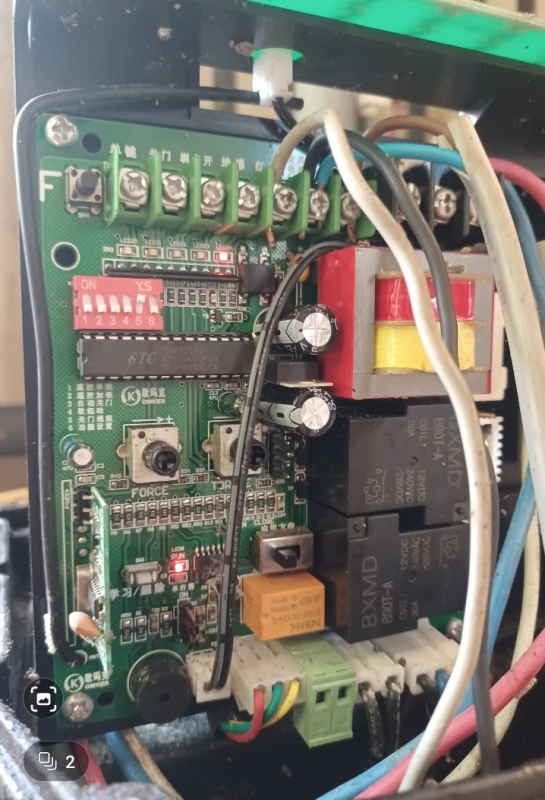

Ⅰ.Product introduction: EXTERNAL SIZE(Fig.1) Function & Characteristic: Install overheat protector in AC motor. The motor will cut off power automatically when the ① temperature reach rated power after a long time working, in order to extend the using life of motor. - Page 4 Ⅱ.Technical parameters: Model DCK-658 DCK-668 DCK-678 DCK-688 Power supply AC Single-phase AC Single-phase AC Single-phase AC Single-phase (Vac) 110V/220V～240V 110V/220V～240V 110V/220V～240V 110V/220V～240V Max. gate weight 1200 2000 (KG) Max.torque 18Nm 22Nm 35Nm 38Nm Rated Power (W) 370W 450W 550W 650W...
- Page 5 Ⅳ.Installation Diagram: Note: Before installation please check if the motor meets your demand. Fig.3 Ⅴ.Installation and Debugging: 5-1 Installation tools Fig.4 5-2 Gear installation (Distance between gear and door body is 24mm) Fig.5...
-
Page 6: Base Installation
5-3 Base installation： Fig.6 5-4 Rack installation: (Remark: Please check whether the sliding gate can be moved smoothly before installation;relase the clutch with the release key) Fig.7 Warning: There must be a clearance between the rack and gear as Fig. 7, in case the motor function and manual operation may be effected. - Page 7 Fig.8 5-5 Limit switch bracket installation: Move the gate manually to the open limit and close limit,mark the points on the rack,then fix the magnet bracket at the limit points on the rack. Pay attention to the direction of limit switch bracket: if it is anti-installed, the motor can not be positioned .
- Page 8 Fig.10 Install the electricity plug to an appropriate position according to safety standard. Install the mounting plate as fig.11. Note: ensure the base board is in horizontal. Fig.11 Fix the base plate onto the frame with four expansion bolts (Fig.11) and put the motor on the base plate, regulate the output gear to match the gear rack, then fasten the nuts.
- Page 9 9 to install fixed-plate for limit magnetic steel. Installation of fixed-plate for limit magnetic steel: use clutch key to release clutch like fig.10. Move the gate manually to the open limit and close limit,mark the points on the rack, then fix the magnet bracket at the limit points on the rack, then close clutch for automatic control.
