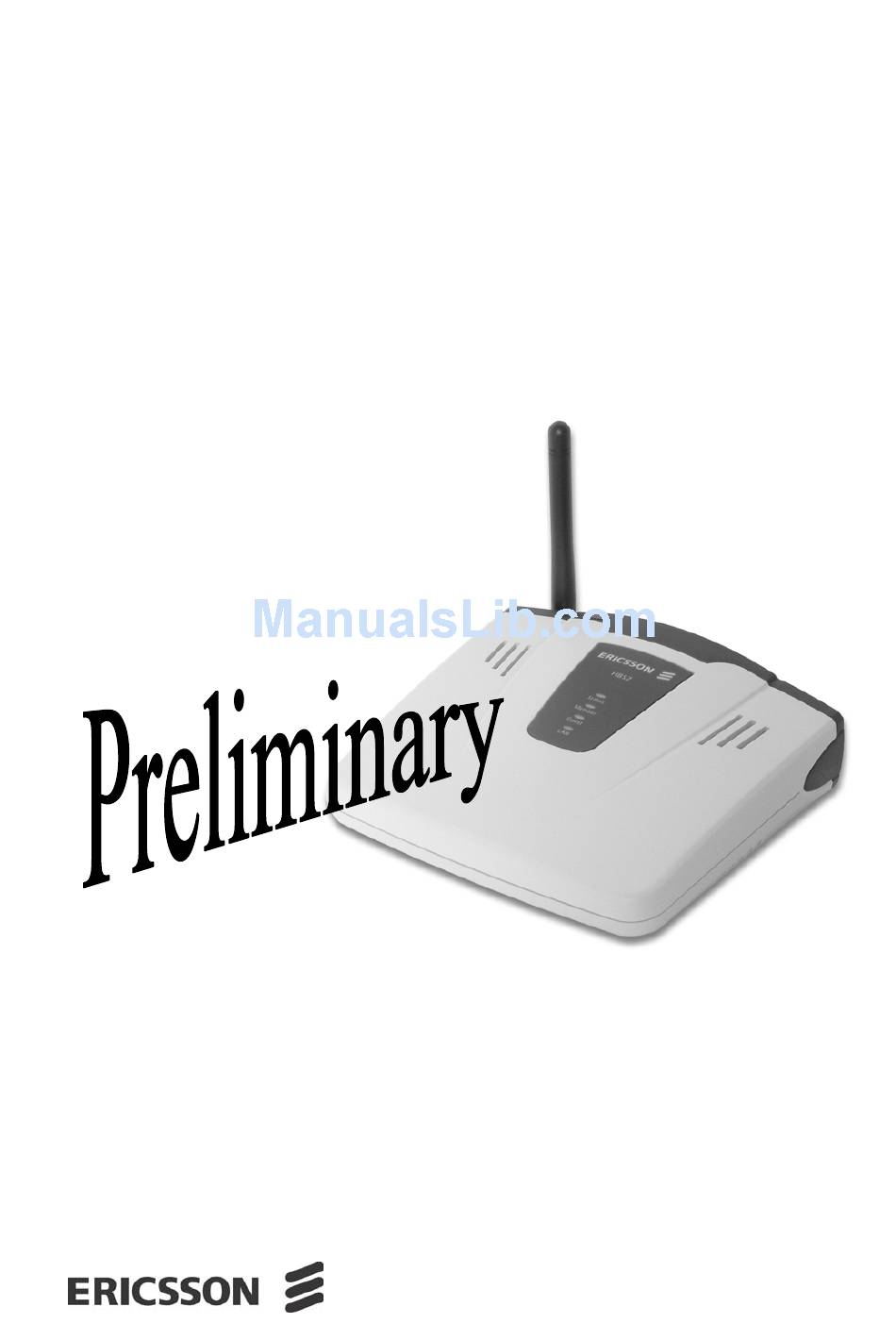

- Page 1 KRD 901 54 Quick Installation Guide Home Base Station 2 Mobile@Home...
- Page 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 3 Figure 1 circles indicate distance to the KRD 901 54 The KRD 901 54 can be placed on the wall; see Figure 2 or standing on a desk, shelf or the like; see Figure 3. In principle the KRD 901 54 may be placed where desired, although, to get the best...
- Page 4 they will influence the transmitted signals. Usually the antenna is recommended to point vertically. Figure 2 Wall mount. Front view to the left. Bottom view to the right. The Screw holes are 80 mm apart Figure 3 Desk and shelf placement...
-
Page 5: Cabling Of Power Connections
Also a Reset function can be activated from the rear panel by using a thin pointy device for at least 3 seconds. Activating the reset button will set the KRD 901 54 up to the factory default settings; i.e. the PIN code and clearing the pairing list. See Figure 4. - Page 6 LED indications of KRD 901 54 On the front of the KRD 901 54 four Light Emitting Diodes (LEDs) are situated. The LEDs gives indications as described in the Table 1 below. The LEDs labeled Member and Guest are only used in relation to the pairing sequence and will be turned off after a short time.
- Page 7 Registering a Mobile Phone to the KRD 901 54 – Pairing In order to make the first call through the KRD 901 54, the Mobile Phone has to be registered to the KRD 901 54 – the so-called pairing or bonding.
-
Page 8: Troubleshooting
Disclaimer: Depending on the Bluetooth capabilities of the Mobile Phone the Mobile@Home link may not co-exist with a Bluetooth headset link. If more Mobile Phones have to be paired to the KRD 901 54, please repeat the above pairing procedure. - Page 9 Ericsson Telecom AB 1/1531-FGC 101 752/1 Uen PA4 Ericsson AB 2004 www.ericsson.com...
