Summary of Contents for Matrix X-spdif 2

  • Page 1 Manual www.matrix-digi.com...
  • Page 2 Summar y ● X-SPDIF 2 USB Audio Class 2.0 is a new designed asynchronous data transmission digital interface, which inherited the high quality of last generation to make it connect to the other devices through IIS directly. It crossed the quality lost of digital signal caused by protocol conversion, while...
  • Page 3 Summar y ● The inner multi-level and multi-group LDO combined with solid-state capacitor, which can filter the superposed noise in the power supply. All the circuit units are supplied by the low or ultra-low noise LDO without DC/DC circuit to avoid high frequency switching noise. Even if using USB bus power supply, it can also maintain the high quality for the internal power supply.

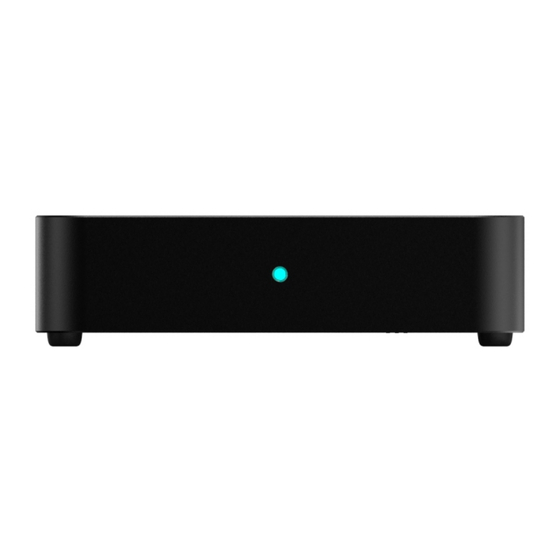

  • Page 4 Front Panel LED Indicator status...
  • Page 5 Rear Panel AES Output IIS Output Coaxial Output USB Input Optical Output AC Power Input...

  • Page 6: Settings & Usage

    Settings & Usage ● Optical/Coaxial/AES The Optical / Coaxial/AES Port can output a maximum 24bit/192kHz sampling rate of PCM signal and 1bit/DSD64 for DoP which are meet the SPDIF coding standard and DoP coding standard. Note: When the front-end devices transfer DSD through Native coding mode, the SPDIF output will turn off, because Native-coded DSD signal can only output from IIS port.
  • Page 7 Settings & Usage ● IIS port configuration The bottom dip switch is used for set up the function of IIS port. The definition of dip switch as shown below: 1.DoP code conversion When playing the DSD audio stream of DoP code, switching on can convert the DoP code into original DSD code output from IIS port;...
  • Page 8 You can set IIS port definition through the bottom dip switch; can reverse polarity of IIS deferential signal, in order to adapt different definition of IIS device.switch on for A definition; switch off for B definition (B definition for all Matrix Audio products.), as shown below: IIS DATA + IIS DATA...
  • Page 9 Settings & Usage 3. MCLK mode switch X-SPDIF2 has two modes of MCLK output to suitable for connecting different devices, The MCLK output frequency when switch on and off as shown in the following table: Switch Position Sample Rate MCLK Frequency MCLK Frequency...
  • Page 10 Settings & Usage ● LED State When USB port doesn't connect to device or connect to the device without installing driver, the LED of X-SPDIF 2 will not light up, and will keep standby mode. Stop Playing DSD_DoP DSD_Native Note: The DSD LED state is for the input data stream in DSD code, not the...
  • Page 11 Drivers installation and configuration 1. Install X-SPDIF 2 drivers for windows Double click the installation files, then choose “Next” Select the installation path and click“Install”...
  • Page 12 Drivers installation and configuration Choose“Always trust the software from Xi'an Matrix Electronic Technology Co., Ltd” in the pop-up dialog box and select "installation". Click “Finish”to complete installation.
  • Page 13 Drivers installation and configuration Click “Finish”to complete installation. 2.The drivers is not necessar y for Mac OS X, please select the audio device directly to “MATRIX Audio X-SPDIF 2” in system preference.

  • Page 14: Technical Specifications

    Technical specifications ● Sampling rate for Optical/Coaxial/AES PCM 16-24Bit /44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz DSD 64(DoP) ● Sampling rate for IIS port PCM 16-32Bit /44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、 352.8kHz、384kHz、705.6kHz、768kHz DSD 64/128/256(DoP) DSD 64/128/256/512(Native) ● System support Windows7/8/8.1/10 system needs to install the supplied driver. Mac OS X10.6.4 or above without installing the driver. Most Android devices can be used via OTG cable.
  • Page 15 Technical specifications ● Power supply specifications USB bus power supply: 5V/500mA External power supply: DC 6~9V，≥800mA Power supply port: outer diameter 5.5mm; inner diameter 2.1mm (+ for inner, - for outer) Note: Don't connect to the power supply with a voltage above 9V, or will cause damage.It will auto disconnect USB bus supply after connected to the external power supply.It needs to connect to the external power supply when using mobile phone or pad which USB port with low current output.
  • Page 16 Free warranty is only for the faulty caused by the quality, not including the wrong operation, negligence or accident. It is beyond our free warranty terms when you change the components or fix it by your own. For more information, please visit www.matrix-digi.com.
  • Page 17 Ver.201704 Xi'an Matrix Electronic Technology Co., Ltd. C2-2411, No.22 Fengcheng 2nd Rd. ,Xi'an , Shaanxi, China support@matrix-digi.com info@matrix-digi.com +86-29-65693537...
