System Manual
In-Home bus: Audio
Issue 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the in-home bus: audio and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SSS Siedle in-home bus: audio

Summary of Contents for SSS Siedle in-home bus: audio

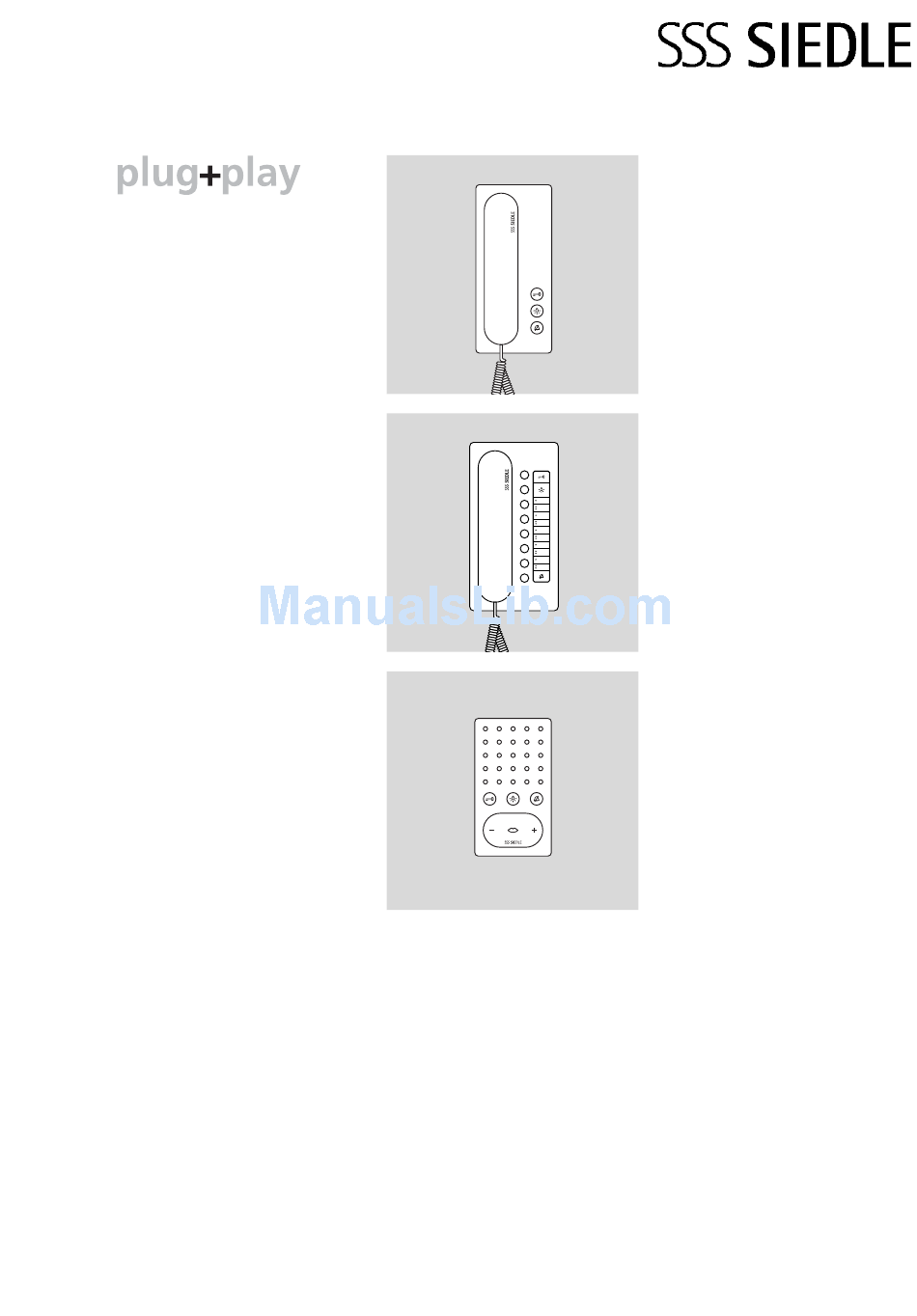

  • Page 1 System Manual In-Home bus: Audio Issue 2007...

  • Page 2: Table Of Contents

    Contents 1 In-Home bus: Audio 6 Programming - manual 7 Supplementary functions System description Overview of functions Switching and control functions 59 Remarks Door release actuation Programming - manual Door call parallel switching (Teach-In) 2 Safety remarks Storey call parallel switching Door call to BTS/BTC 850-...

  • Page 3: In-Home Bus: Audio System Description

    1 In-Home bus: Audio 2 Safety remarks System description Danger Siedle In-Home: Audio Siedle In-Home: Audio „Single line“ „Multiple line“ Configuration Configuration The In-Home bus: The Audio system Mounting, installation and In-Home: Audio „Single line“ is comprises a bus installation with a restricted to 31 users;...
  • Page 4 3 Configuration, conductor lengths in single-line systems Configuration of In-Home: Audio Conductor length The basic installation of In-Home- Conductor material YR conductor or Bus: Audio takes place as a single- J-Y(ST)Y with 0.8 mm diameter: line system. Within this line, the •...
  • Page 5 In-Home bus users: Audio Overview of user assignment of the individual devices Devices occupying 1 user BTS 850-... BTC 850-... BFS 850-... BNS 750-... BSE 650-... BEM 650-... BSM 650-... Devices occupying 2 users BTLM 650-03 BTLE 050-03 CL A xx B STL ...

  • Page 6: Configuration, Conductor Lengths

    3 Configuration, conductor lengths in single-line systems Sample range of a single-line system Cable material YR or J-Y(ST)Y 0.8 mm Distribution of the installation in the sub-distribution board: • Range to door station 1 and door station 2 Each max. 300 m, •...

  • Page 8: Multiple Line System

    3 Configuration, conductor lengths Multiple line system Line 2 Line 15 Line 1...

  • Page 9: Multiple Line System

    Configuration of the multiple line system A multiple line system comprises individual lines which are linked together by two cores. The lines are connected at the bus line rectifier using terminals Sa and Sb. In multiple line systems, door calls and control functions are possible from one line to another.

  • Page 10: In-Home: Audio Users

    4 In-Home: Audio users Door loudspeakers, call buttons BTLM 650-03 BTM 650-01 - BTM 650-04 BTLE 050-03 Bus door loudspeaker module for In- Bus call button modules for In-Home Custom-fit bus door loudspeaker for Home bus. bus 1-4 call buttons, integrated LED In-Home bus.

  • Page 11: Bus Door Loudspeaker

    BRMA 050-01 Siedle Classic Siedle Steel STL... Bus call button matrix for connection CL A 01 B-01 - CL A 08 B-01 Door station with stainless steel of a maximum of 12 existing on-site Door station with stainless steel front, door loudspeaker and call call buttons using screw-type front.
  • Page 12 4 In-Home: Audio users Power supply, line rectifiers BNG 650-0 ZBVG 650-0 NG 602-... Bus line rectifier in a 9-grid housing. Bus power supply accessory for Bus line rectifier in a 6-grid housing. Primary: 230 V AC, 50/60 Hz integration into bus line rectifier Primary: 230 V AC, 50/60 Hz Secondary: 12 V AC, 1 A BNG 650-...
  • Page 13 4 In-Home: Audio users Switching, control BSM 650-... BSE 650-... BEM 650-... Bus switching module in 3-grid Bus switching unit for mounting in Bus input module for mounting in a housing. 4 integrated relays, each 70 mm boxes. LED for status display 70 m box.
  • Page 14 4 In-Home: Audio users PC interface, DoorCom PRI 602-... PRI 602-... USB DCA 650-02 Programming interface for Programming interface for DoorCom-Analog for connection of connection of a Windows PC via connection of a Windows PC via one or more door stations to an serial interface to the Vario bus.

  • Page 15: Switching And Control Functions

    4 In-Home: Audio users Bus telephones, accessories BTS 850-0 BTC 850-0 ZAR 850-0 Standard bus telephone. Connection Deluxe bus telephone. Connection Interfacing relay accessory for at bus cores Ta and Tb. at bus cores TaM and TbM. integration into bus telephones •...
  • Page 16 BFS 850-... in another room or corridor. door release and storey calls Universal switching relay for Connection to In-Home bus: Audio • Speech/control button secondary signal unit, video Call volume steplessly adjustable up • Door release and light button actuation or switching relay, to max.

  • Page 17: Bus Call Button Module Bus Line Rectifier

    5 Installation Bus call button module, bus line rectifier Bus call button module Connection of the bus call button modules to the bus door loudspeaker via ribbon cable. The name plate lighting is supplied from the terminal block of the BTLM 650-03.
  • Page 18 5 Installation AS-THa-1/1 Siedle Vario...
  • Page 19 AS-THa-1/1 Siedle Vario Remarks a) The BNG 650-0 is able to supply 1 Mode of operation door release and max. 16 bus call Calling and speech between the button modules with LED lighting door station and connected bus BTM 650-01, -02, -03, and -04. telephones BTS/BFS/BTC 850-...

  • Page 20: As-Tha-1/1Siedle Custom-Fit Door Loudspeaker

    5 Installation AS-THa-1/1 Siedle custom-fit door loudspeaker...
  • Page 21 AS-THa-1/1 Siedle custom-fit Remarks door loudspeaker a) The BNG 650-0 can also supply the customer's own existing call Mode of operation buttons. A voltage of 12 V AC max. Calling and speech between the 400 mA is available for the lighting if door station and connected bus a door release with an impedance of telephones BTS/BFS/BTC 850-...
  • Page 22 5 Installation AS-THa-1/1 Siedle Classic...
  • Page 23 AS-THa-1/1 Siedle Classic Remarks a) The BNG 650-0 can supply 1 door Mode of operation release and a maximum of 16 Calling and speech between the buttons. door station and connected bus With more than 16 call buttons, an telephones BTS/BFS/BTC 850-... additional transformer TR 603-...
  • Page 24 5 Installation AS-THa-1/1 Siedle Steel...
  • Page 25 AS-THa-1/1 Siedle Steel Remarks a) The BNG 650-0 can supply 1 door Mode of operation release and a maximum of 16 Calling and speech between the buttons. door station and connected bus With more than 16 call buttons, an telephones BTS/BFS/BTC 850-... additional transformer TR 603-...
  • Page 26 5 Installation AS-THa-1/2 Siedle Vario...
  • Page 27 AS-THa-1/2 Siedle Vario Remarks a) The BNG 650-0 is able to supply 1 Mode of operation door release and max. 16 bus call Calling and speech between the button modules with LED lighting door station and the connected bus BTM 650-01, -02, -03, and -04. telephones BTS/BFS/BTC 850-...
  • Page 28 5 Installation AS-THa-2/1 Multiple line system...
  • Page 29 AS-THa-2/1 Multiple line system switching accessory ZPS 850-... possible to max. 8 BTC -... units. Mode of operation For more information, see chapter 7, Calling and speech between the page 62. door station and the connected bus Selective dialling of the door station telephones BTS/BFS/BTC 850-...
  • Page 30 5 Installation AS-THa-1/1 call via display call module DRM 611-0...
  • Page 31 AS-THa-1/1 call via DRM 611-0 Supplementary functions b) Door release 12 V AC, use at least Internal speech communication 20 Ohm, (e.g. TÖ 615-0-...), for Mode of operation possible between the bus telephones possible connection variants see Calling and speech between the with BTC 850-0.
  • Page 32 5 Installation AS-THa-1/1 DoorCom Analog DCA 650-...
  • Page 33 AS-THa-1/1 Remarks DoorCom Analog DCA -... a) The BNG 650-0 is able to supply 1 door release and max. 16 bus call Mode of operation button modules with LED lighting Calling and speech between the BTM 650-01, -02, -03, and -04. door station and the connected a/b With more than 16 illuminated bus telephones of a telephone system.

  • Page 34: Overview Of Functions

    6 Programming Overview of functions Functions with Siedle In-Home and programming possibilities. Terms used in the table are explained in detail on the right-hand side. Basic function Manual Plug+Play PC-Prog. Remarks Prog. Prog. via BPS 650-... (Teach-In) from V 2.00 Door call Storey call Functional after installation,...
  • Page 35 6 Programming Overview of functions Dialling last door A bus secondary signal unit Doormatic The door station from which the last BNS 750-... can be programmed in The door release contact in the bus door call was placed can be dialled parallel to a bus telephone.

  • Page 36: Remarks

    6 Programming Remarks The In-Home bus can be The number ”0” cannot be used Bus handsfree telephone programmed in three ways: as an address! BFS 850-... Picking up and replacing the • In multiple line systems, the bus 1 Programming - Manually, also power supply accessory ZBVG 650-...
  • Page 37 6 Programming - manual Activating the bus line rectifier To activate the programming mode at the bus line rectifier, the programming mode button has to be briefly pressed down. LED1 indicates whether the programming mode is switched on. After activating the programming mode, LED1 changes over from normal mode to programming mode.
  • Page 38 6 Programming - manual Activating the bus door loudspeaker Depending on the type of door station, the programming mode has to be activated in a different way. Activation of the door station is identical for all bus telephones. There is no difference between receiverless bus telephones and bus telephones with receivers.
  • Page 39 6 Programming - manual Activating the bus telephone Activating the bus handsfree telephone 1 Activating the bus telephone 2 Hold down the light button for 1 Activating the bus handsfree Bus telephones are set to the 4 seconds. A protracted telephone programming mode using the light acknowledgement tone is audible in...
  • Page 40 6 Programming - manual Programming door calls Application At the bus telephone, Call from the door station to a bus a different ring tone optionally telephone. be selected. The volume of the door call can be changed at the bus telephone.
  • Page 41 6 Programming - manual Programming door calls Bus handsfree telephone Application At the bus handsfree telephone Call from the door station to a bus At the bus telephone, a telephone. different ring tone can optionally be selected for the door call. The volume of the door call can be changed at the bus telephone.

  • Page 42: Door Calls Via The Storey Call Button

    6 Programming - manual Programming door calls via the storey call button Application Programming is only possible Call from the door station to a bus if the storey call button (ERT) is telephone. connected at the bus telephones. If there is no access available to an apartment, programming can still be carried out in this way.

  • Page 43: Door Calls To Several Bus Telephones

    6 Programming - manual Door calls to several bus telephones Application used in the deluxe bus telephone Supplementary functions, page 62. Where a door call has to be signalled BTC 850-... at several bus telephones Using the manual programming Programming must start at the bus simultaneously.
  • Page 44 6 Programming - manual Programming internal calls Application The muting and Using bus programming software You wish a bus telephone to be able light buttons of the bus BPS 650-0 the buttons of the bus to call and communicate with telephone can be reprogrammed if telephones can be double assigned.
  • Page 45 Tel. 1 Tel. 2 7 At the first bus telephone, hold 8 At the second bus telephone, hold 9 Replace the receiver at both bus down the internal call button you down the internal call button you telephones. Program additional bus wish to use to call the second bus telephones using the same wish to use to call the first bus...
  • Page 46 6 Programming - manual Dialling the door station Application With bus telephones BTS 850-... You wish to be able to call one or and BFS 850-... the light or more door stations from a bus muting button can be used for this telephone using buttons, e.g.
  • Page 47 6 Programming - manual Call differentiation of 2 door stations Application Call differentiation can At the bus telephone you wish to be take place from max. 2 doors. able to tell at which door the door call has been made, e.g. whether a Door call 1 = Tone sequence 1 door call has come from the main Door call 2 = Tone sequence 2...

  • Page 48: Additional Contact On The Bsm 650

    6 Programming - manual Additional contact on the BSM 650-... Application In addition to an already programmed bus telephone, you wish a potential-free switching contact to be closed when a door call is placed. Actuation of an additional bell or lamp on placement of a door call.

  • Page 49: Button Of A Bus Telephone On The Bsm 650

    6 Programming - manual Button of a bus telephone on the BSM 650-... Application Actuation of a contact in the BSM 650-..., e.g. in order to open a garage or switch on a staircase light. 1 Switch on the programming 2 Switch the BSM 650-...

  • Page 50: Call Button Of A Door Station On The Bse 650

    6 Programming - manual Call button of a door station on the BSE 650-... be mounted in a 55 junction box. Application The bus telephone must already be Potential-free switching contact which is closed on placement of a programmed to the call button. door call.

  • Page 51: Button Of A Bus Telephone On The Bse 650

    6 Programming - manual Button of a bus telephone on the BSE 650-... Using the bus programming Application software BPS 650... the Actuation of additional functions switching function/time can now be such as switching on the staircase light or garage door OPEN/SHUT. changed.

  • Page 52: Call Buttons

    6 Programming - manual Bus secondary signal unit BNS 750-... Application Signal device to additionally indicate the door call and/or storey call in another room. 1 Switch on the programming 2 At the door station, hold down the 3 Lift the receiver at the bus tele- mode.

  • Page 53: Programming - Manual

    6 Programming - manual Call via DRM 611-... Application bus telephones BTS/BTC 850-... are already prior to the start of user Bus telephones are called from the used, note that the receiver must be programming. door station via the display call picked up to execute the Names are entered at a PC using the module DRM 611-...

  • Page 54: Basics

    6 Programming - Plug+Play Basics Plug+Play programming offers the door stations with 4 door bell then be closed. opportunity for those without buttons have the same assignment). • After all the telephones have been programming experience to closed, at the bus line rectifier press commission an In-Home bus system.
  • Page 55 Bus custom-fit door loudspeaker The sequence of terminals on the bus call button matrix corresponds to the sequence of bus telephones. Terminal 7.1 = Bus telephone 1 etc. Terminal 7.12 = Bus telephone 12 Siedle Classic The sequence of terminals on the bus call button matrix corresponds to the sequence of bus telephones.
  • Page 56 6 Programming - Plug+Play Example of a 4-family home Example Plug+Play programming 4-family home Restrictions with Plug+Play Possible errors programming • If unsuitable devices log in during • Bus telephones which are already Plug+Play programming (old bus assigned to a door loudspeaker in telephone models such as BTS/ the same line are not reprogrammed.
  • Page 57 6 Programming - Plug+Play Procedure - Example 1 Activate the Plug+Play mode at 2 Set up the bus telephone in 3 Set up the bus telephone in the BNG 650-... , hold down the apartment 1 with the receiver in apartment 2 with the receiver in programming mode button for 5 place, the storey call sounds as an...

  • Page 58: Bps 650-... And Pri 602

    6 Programming - with PC BPS 650-... and PRI 602-... USB Using bus programming software Mobile operation In-Home bus programming: BPS 650-... from V 2.00 the entire function of an In-Home system can be programmed using a Windows PC. For connection of the PC to the In-Home installation, the pro- gramming interface PRI 602-...

  • Page 59: Supplementary Functions

    7 Supplementary functions Switching and control functions Bus switching unit Bus switching module Bus input module BSE 650-... BSM 650-... BEM 650-... Application Application Application 1 Changeover contact, e.g. for 4 working contacts, e.g. for Optical feedback of switching - Switching the outside light - Switching the outside light statuses, e.g.

  • Page 60: Door Release Actuation

    7 Supplementary functions Door release actuation In deviation from the standard plans, release contact which is only closed be used in order to guarantee the the door release can be actuated in when the bell has previously been greatest possible degree of various ways.
  • Page 61 The bus line rectifier DR contact and the door release contact in the door loudspeaker are used. The contact in the BNG 650-0 switches every time the door release button is pressed, the contact in the door loudspeaker only at the door from which the last door call was placed.

  • Page 62: Door Call Parallel Switching

    7 Supplementary functions Door call parallel switching Manual programming: Programming with PC and BPS: In case of manual programming In general, 2 telephones can be During PC programming, 4 only 2 bus telephones can be switched in parallel. Parallel BTS/BFS/BTC 850-...units can be programmed in parallel without operation can be extended when programmed in parallel without a...
  • Page 63 7 Supplementary functions Door call parallel switching Parallel programming of several bus 8 BTC 850-... units possible, if every telephones which do not have any telephones to one call button. BTC 850-... uses a ZPS 850-... additional power supply connected. •...

  • Page 64: Storey Call Parallel Switching

    7 Supplementary functions Storey call parallel switching Parallel storey call The storey call button (ERT) is used to call into the apartment from an apartment door. To call several bus telephones, the ERT terminal can be connected in parallel, e.g. office floor with 4 bus telephones with one storey call button at the storey entrance.

  • Page 65: Supplementary Contact Radio Chime

    7 Supplementary functions Supplementary contact, radio chime, pilfer safeguard Interfacing relay accessory ZAR 850-.../ZARF 850-... Actuation of an additional signalling device such as a radio chime or optical display of the door call. If the contact is required in the sub- distributor, the door call can be programmed to a contact at a BSE 650-...
  • Page 66 7 Supplementary functions Staircase light/Outside light Light actuation Using the light button in the bus telephone BFS/ BTS/BTC 850-... or BTLM 650-... , the light contact at the bus line rectifier BNG 650-... is actuated. Following completion of the installation, this function is active without any further programming.

  • Page 67: Servicing

    8 Servicing Restart, exchange, operating mode Restarting the system range is reduced to 130 m with a installed in the existing system. If A restart of the complete system is 0.8 mm core diameter. different device types are used known as a Power-ON-Reset. together in an existing installation, Switch off the power supply to the Exchange BNG 650-...

  • Page 68: Led Displays Bng 650-0

    8 Servicing LED displays BNG 650-0 The two displays LED1 and LED2 at the bus line rectifier indicate functions for operation and possible faults in the In-Home bus. The following table indicates the possible displays. Display LED1 “Operation” LED flashes evenly 0.3s 0.3s 0.3s...

  • Page 69: Measured Values

    8 Servicing Measured values Measured values at the In-Home bus: Audio, to be measured with a digital multimeter Idle status min. max. Voltage Ta/Tb at bus line rectifier BNG 650-... 26 V DC 29 V DC Voltage Ta/Tb at most distant user 16 V DC Current consumption bus telephones BFS/BTS/BTC 850-...
  • Page 70 9 Glossary Index The latest issues of the In-Home BEM 650-... Address 9, 17 Bus system manual: Audio BFS 850-... As-delivered status is provided in the download area BIM 650-... Call silencing under www.siedle.de. Classic CL ... 11, 22 BNG 650-... BNS 750-...
  • Page 72 S. Siedle & Söhne © 2006/03.07 Printed in Germany Postfach 1155 Order no. 0-1101/036987 GB D-78113 Furtwangen Bregstraße 1 D-78120 Furtwangen Tel. +49 7723 63-0 Fax+49 7723 63-300 www.siedle.de info@siedle.de...
