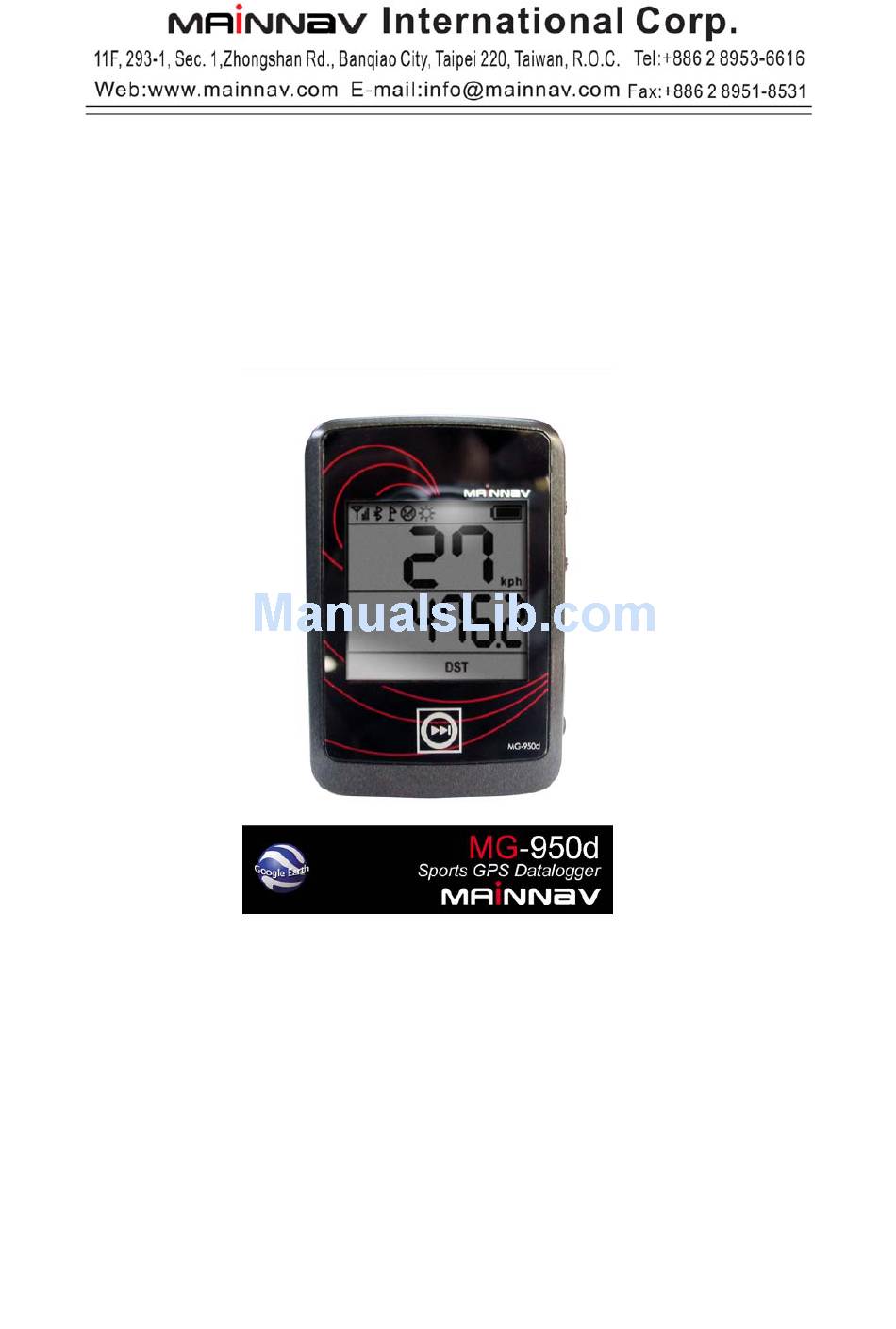

  • Page 1 MG-950d Sport GPS...

  • Page 2: Table Of Contents

    Table of content A. Quick Use ---------------------------------------------------------------------------- B. Introduction ---------------------------------------------------------------------------- C. Feature ---------------------------------------------------------------------------------- D. Specification -------------------------------------------------------------------------- Physical Dimension------------------------------------------------------------------------ Environmental Characteristics---------------------------------------------------------- GPS-------------------------------------------------------------------------------------------- LED Status ---------------------------------------------------------------------------------- Bluetooth ------------------------------------------------------------------------------------ Position accuracy -------------------------------------------------------------------------- Interfaces------------------------------------------------------------------------------------- Connector------------------------------------------------------------------------------------ Battery---------------------------------------------------------------------------------------- Accessory ----------------------------------------------------------------------------------- Certification: -------------------------------------------------------------------------------- Warranty ------------------------------------------------------------------------------------- E. Operational characteristics-------------------------------------------------------- F.

  • Page 3: Quick Use

    “Outbound COM port “. The pass word for paring is “0000”. 6. GPS data logger Turn on the MG-950d and press Power button then enter data logger recorded system, start to record your journey. Stop the data logger function, press “Power” button, it will turn off.
  • Page 4 Others Car charger -- Make sure use Mainnav car charge or it could not transmit GPS data in car When charge the device , the unit could not turn on ( protect circuit ) 8. LCD display Current Speed/Elevation Speed/time...
  • Page 5 9.Button intro Power Back- lighted USB Port Touch Pad 10. Function switch Operation display Definition Stay on – GPS and Bluetooth Power on Press Power button around 3 seconds is on too When you see this mark , that means GPS is fixed GPS fixed When Power on , press power button 3 Data logger is on...

  • Page 6: Introduction

    This new device is compact and easy to carry. MG-950d is a small, robust unit that records NMEA position data from a GPS. It is really...

  • Page 7: Feature

    Record track-logs of vehicle movement User can select among Google earth, Satellite or Hybrid to show the track Built-in GPS application software, could save as KMZ, CSV, GPX and NMEA Integrated Photo with Mainnav Software Transmission data via USB and Bluetooth Weather Proof IPX6 Bluetooth—pair PDA or smart phone for navigation.

  • Page 8: Led Status

    Reacquisition 0.1 sec, averaged Snap start 3 sec, averaged Hot start 6 sec, averaged Warm start 38 sec, averaged Cold start 42 sec, averaged Bluetooth 1) Transmits up to 10 meters. 2) Version V2.0 Position accuracy: 1.Non DGPS (Differential GPS) Position: <10 M at 2D RMS Velocity :0.1 meters/second, with SA off...

  • Page 9: Accessory

    Capacity: 850mAh. Type: Li-ion rechargeable Normal use: 12 hours Accessory 1. Rechargeable battery, 850mAh 2. Car charger: Mini USB , IP:12~24V, OP:5V 500mA 3. Software 4. bike mounting 5. USB cable 6. Warranty card 7.Travel charger Certification: RoHs CE&FCC §Federal Communications Commission (FCC) Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment.

  • Page 10: Operational Characteristics

    All of our GPS products have the one-year warranty and repair policy from the day of purchase. The MG-950d is warranted to be free from defects in material and function for one year from the date of purchase. Any fault product within this period under normal conditions will be replaced without any charge.

  • Page 11: Safety Statement

    7. With user friendly Windows based Google earth software 8. Replay the recorded routes/ time/ speed... point by point Navigation With the acquisition process is completed, the MG-950d sends valid navigation information over output channels. The data include: 1) Velocity...
  • Page 12 NMEA Transmitted Messages Output Messages NMEA Sentence GPGGA: Global positioning system fixed data GPGLL: Geographic position latitude \ longitude GPGSA: GNSS DOP and active satellites GPGSV: GNSS satellites in view. GPRMC: Recommended minimum specific GNSS data GPVTG: Course over ground and ground speed Global Positioning System Fix Data $GPGGA,161229.487,3723.2475,N,12158.3416,W,1,07,1.0,9.0,M, , ,0000*18 Name...
  • Page 13 Value Description Fix not available or invalid GPS SPS Mode, fix valid Differential GPS,SPS mode, Fix valid GPS PPS Mode, Fix valid GNSS Satellites in View (GSV)$GPGSV,2,1,07,07,79,048,42,02,51,062,43,26,36,256,42,27,27,138,42*71 $GPGSV,2,2,07,09,23,313,42,04,19,159,41,15,12,041,42*41 Name Example Units Description Message ID $GPGSV GSV protocol header Number of Range 1 to 3 Messages Message Number...

  • Page 14: Gmt Time Zone Setting

    End of message termination H. World GMT Time zone setting MG-950d time zone setting is from 1~24 hour but in GMT time zone is from +1~+12 and -1~-12. For Mainnav device, time zone from -1~-12 will be deducted from 24 hours.
  • Page 15 Chicago Salt Lake City Los Angeles AKST Anchorage Honolulu Costa Rica El Salvador Oceania Area Country Time zone GMT time zone New Zealand 13 ( October ~ March is daylight saving time ) AEST 11(from Apr to Oct , from Oct Sydney to March is daylight saving time...
  • Page 16 European Country Country GMT time zone (Denmark) 2(Mar to Sep is daylight saving Belgium) 2(Mar to Sep is daylight saving) (Iceland) (Hungary 2(Mar to Sep is daylight saving) (Spain 2(Mar to Sep is daylight saving) Greece 2(Mar to Sep is daylight saving) Poland 2(Mar to Sep is daylight saving) France...
  • Page 17 2(3-9 is daylight saving time) Switzerland 2(3-9 is daylight saving time) Sweden 2(3-9 is daylight saving time) Italy 2(3-9 is daylight saving time) Germany 2(3-9 is daylight saving time) Monaco 2(3-9 is daylight saving time) Luxembourg 2(3-9 is daylight saving time) Asia Area Country GMT time zone...

  • Page 18: Bike Mounting Installs

    Attachment for Bike mount 1 find a position to fix on Handle bar 2 Using screw Combine these two together 3.Fix the rubber under the holder 4. put string through the holder...
  • Page 19 5.Fix on the handle bar – circle on the handle bar 6. tight on the handle bar and cut the over string part 7.Put the device on bike mount and finish attachment...
