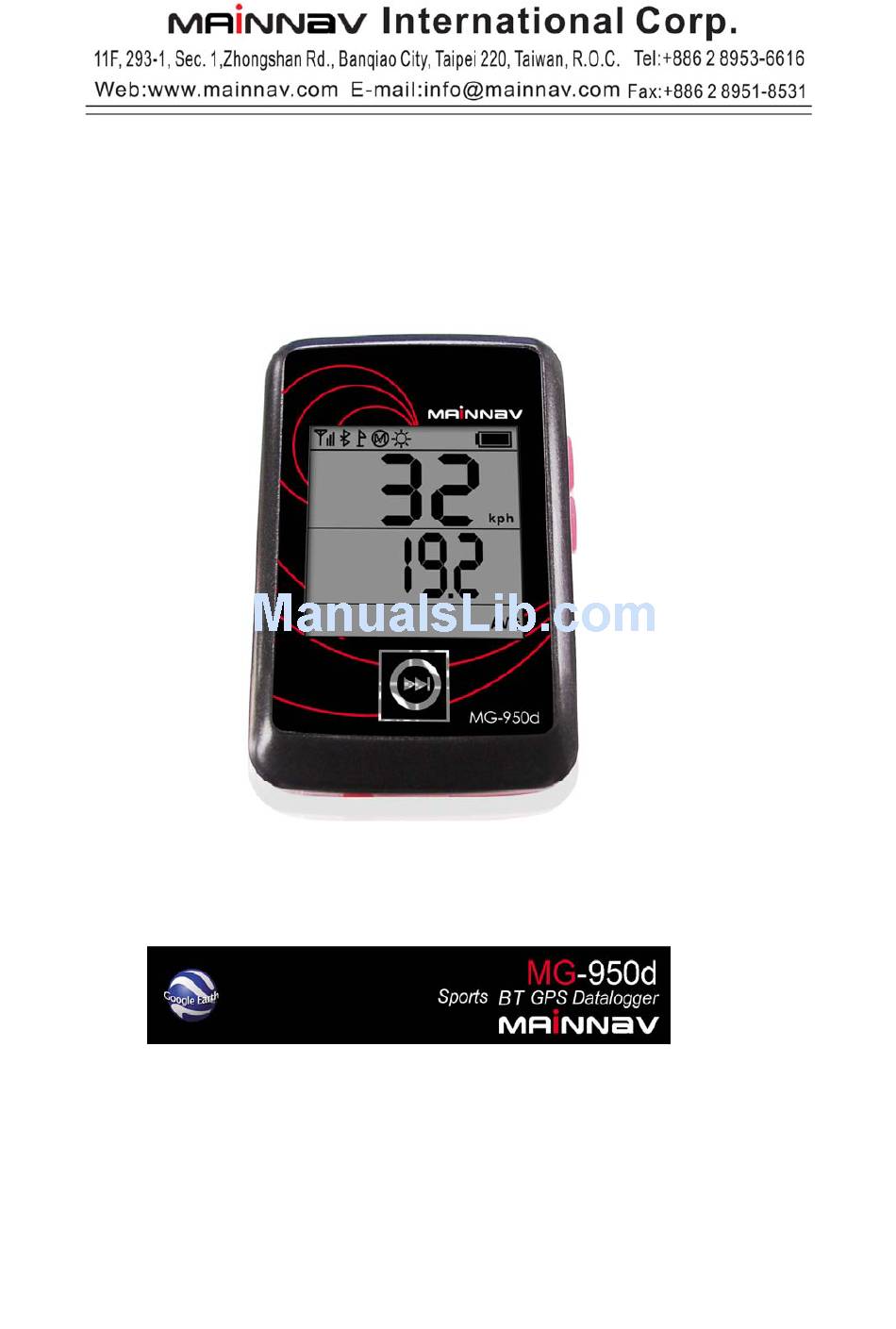

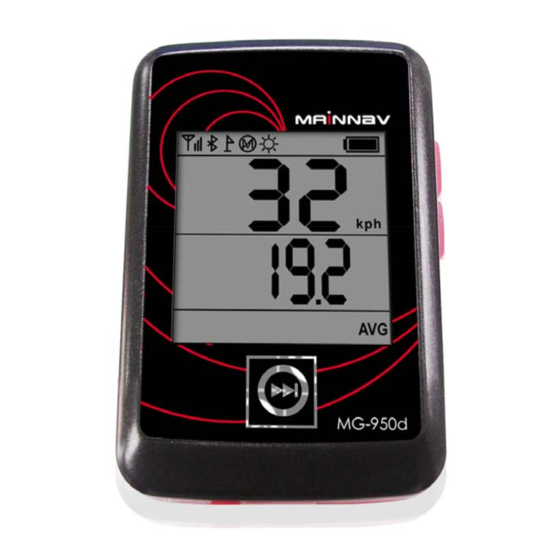

  • Page 1 MG-950d Sport GPS data logger...

  • Page 2: Table Of Contents

    Table of content A. Quick Use ---------------------------------------------------------------------------- B. Introduction ---------------------------------------------------------------------------- C. Feature ---------------------------------------------------------------------------------- D. Specification -------------------------------------------------------------------------- Physical Dimension------------------------------------------------------------------------ Environmental Characteristics---------------------------------------------------------- GPS-------------------------------------------------------------------------------------------- LED Status ---------------------------------------------------------------------------------- Bluetooth ------------------------------------------------------------------------------------ Position accuracy -------------------------------------------------------------------------- Interfaces------------------------------------------------------------------------------------- Connector------------------------------------------------------------------------------------ Battery---------------------------------------------------------------------------------------- Accessory ----------------------------------------------------------------------------------- Certification: -------------------------------------------------------------------------------- Warranty ------------------------------------------------------------------------------------- E. Operational characteristics-------------------------------------------------------- F.

  • Page 3: Quick Use

    66 mA . 3.Turn on the Bluetooth function in your PDA or PC Start up MG-950d receiver for pairing before set off Bluetooth function in PDA or PC. Moreover, check the device is equipped with Bluetooth function.
  • Page 4 8. LCD display Speed/Elevation Speed/time Speed/total mileage Speed/moved time Speed/moved distance Speed/average Speed Speed/ Maximum speed Data turns Zero (time except) GPS signal Bluetooth on Data logger on Memory full backlight on Power 9.Button intro Power Back- lighted Touch pad—move to next page...
  • Page 5 10. Function switch Operation display Definition Stay on – GPS and Bluetooth is on Press Power button 3 seconds When Power on , press power Data logger is on button 2 seconds Press back-lighted button 3 Back-lighted is on seconds Press back-lighted button 5 Data turns Zero seconds...

  • Page 6: Introduction

    This new device is compact and easy to carry. MG-950d is a small, robust unit that records NMEA position data from a GPS. It is really convenient, economical alternative to using a laptop computer especially on long road.

  • Page 7: Environmental Characteristics

    Environmental Characteristics 1. Working temperature: -20 C to +75 C (internal temperature). 2. storage temperature: -55 C to +90 3. input voltage: 5.5 ± 0.5VDC 4. Backup power: 3.7V Rechargeable Li-ion Battery 700mAh, 1) Acquisition:20 channel parallel 2) Tracking: up to 12 satellites 3) Update rate: 1 second 4) Acquisition time Reacquisition...

  • Page 8: Interfaces

    All of our GPS products have the one-year warranty and repair policy from the day of purchase. The MG-950d is warranted to be free from defects in material and function for one year from the date of purchase. Any fault product within this period under normal conditions will be replaced without any charge.

  • Page 9: Safety Statement

    After a position fix has been calculated, valid position, velocity and time is transmitted over the output channel. Also, our MG-950d records NMEA position data from a GPS. It is really convenient, economical alternative to using a laptop computer, especially on long road. Simply connect the logger to a GPS during your trip then download the track data to a PC.

  • Page 10: G Earth Datums &Output Setting

    Earth Datums &output setting NMEA Transmitted Messages Output Messages NMEA Sentence GPGGA: Global positioning system fixed data GPGLL: Geographic position latitude \ longitude GPGSA: GNSS DOP and active satellites GPGSV: GNSS satellites in view. GPRMC: Recommended minimum specific GNSS data GPVTG: Course over ground and ground speed Global Positioning System Fix Data $GPGGA,161229.487,3723.2475,N,12158.3416,W,1,07,1.0,9.0,M, , ,0000*18...
  • Page 11 <CR> <LF> End of message termination Position Fix Indicator Value Description Fix not available or invalid GPS SPS Mode, fix valid Differential GPS,SPS mode, Fix valid GPS PPS Mode, Fix valid GNSS Satellites in View (GSV)$GPGSV,2,1,07,07,79,048,42,02,51,062,43,26,36,256,42,27,27,138,42*71 $GPGSV,2,2,07,09,23,313,42,04,19,159,41,15,12,041,42*41 Name Example Units Description Message ID $GPGSV...
  • Page 12 N/S Indicator N=north or S=south Longitude 12158.3416 dddmm.mmmm E/W Indicator E=east or W=west Speed Over Ground 0.13 Knots Course Over 309.62 Degrees True Ground Date 120598 ddmmyy Magnetic Variation (1) Degrees E=east or W=west Checksum <CR> <LF> End of message termination...

  • Page 13: Bike Mounting Installs

    Bike mounting attachment Step 1screw the mounting together Step 2 combine rubber with mounting and fix on bottom, then put string into the hole. Step 3 Use string to to pierce through the hole , fix the rubber and mounting Step4 put the mounting on handle bar and use string fix tightly, slide the Unit from two side of runner.
