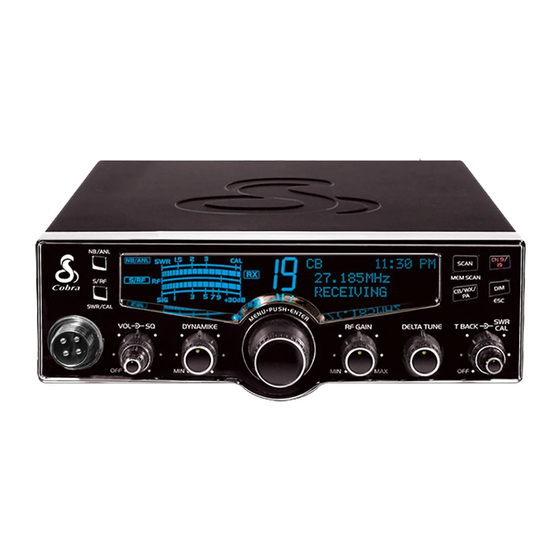

How to Use Your Cobra 29 LX MAX
Features ..................................................................................................................1
The CB Story ..........................................................................................................A1
FCC Regulations, FCC Warnings & Included Accessories
Controls & Indicators .........................................................................................A2
Our Thanks to You ..............................................................................................A3
Customer Support
Location & Mounting/Connection ...........................................................2
CB Antenna & Marine Installation ............................................................6-7
Ignition Noise Interference.............................................................................7
Operating Your 29 LX MAX
Turning On Your CB ......................................................................................8
Setting Channel Selector.............................................................................9
Calibrate For SWR (Standing Wave Ratio).............................................10
To Receive .........................................................................................................12
Selecting a Channel & S-Meter .................................................................13
To Transmit.......................................................................................................14
Setting Dynamike ® .............................................................................................15
Setting Talkback .............................................................................................15
Menu Mode ......................................................................................................16
Setting the Clock ............................................................................................17
Setting the Alarm ................................................................................................17
Setting the Count Down Timer .................................................................18
Key Tones Mode ..................................................................................................18
Radio Check Mode ..............................................................................................19
Setting Display Color Mode .......................................................................20
Setting Brightness Mode .............................................................................21
Turn NightWatch Illumination On/Off .......................................................21
Setting Contrast Mode .....................................................................................22
Bluetooth® Pairing ...................................................................................... 22-23
iRadar Smartphone App .......................................................................... 24-27
Downloading the App .................................................................................24
Pairing the Radio to Use with iRadar ......................................................24
AURA® Location Based Alerts ....................................................................25
iRadar® Community, Using Report Button, Radar Threat Alerts ...27
Rewind-Say-Again® ............................................................................................28
Playback Last Transmission .......................................................................28
Record 10 Second Memo ...........................................................................28
Weather Information .........................................................................................29
Weather Channels .........................................................................................29
Weather Alert Mode ......................................................................................30
Setting Weather Alert Scan and Auto Scan..........................................30
Software Version/Factory Settings ..........................................................31
Setting Delta Tune & RF Gain Control ....................................................32
Program Memory Channels ...........................................................................33
Scan/Memory Scan, Scan Memory Channels & CB Channels ........34
Dimmer Control ..............................................................................................34
Setting Squelch...............................................................................................35
S/RF Meter ........................................................................................................36
External Speaker, Push-To-Talk & Mic Jack ...........................................37
Home And Office Set-Up .............................................................................38
Temporary Mobile Set-Up ..........................................................................39
How Your CB Can Serve You ..........................................................................40
A Few Rules You Should Know .................................................................40
Channel 9 Emergency Messages ..............................................................41
CB 10 Codes .....................................................................................................42
Frequency Ranges ..............................................................................................44
29 LX MAX Specifications ................................................................................45
Warranty Information .......................................................................................46
FCC Statement ...............................................................................................48-49
Optional Accessories .........................................................................................50
If You Need Service/Trademark Info ........................................ Back Cover
Features of This Product
• Selectable 4-Color LCD Display
• Advanced Bluetooth® Connectivity
• Rewind-Say-Again®
• Memo Record
• iRadar App Integration
• Report Feature
• NightWatch® Illumination
• 10 Weather Channels
• Weather Scan
• Emergency Weather Alert
• 40 CB Radio Channels
• 40 Channel Scan
• Memory Channels
• Channel Frequency Read-Out
• Radio Check Diagnostic
• Clock/Timer/Alarm
• Multi-Function Heavy-Duty Electret
Microphone with Phone, Rewind-
Say-Again® & Report Functions
• Full 4 Watts AM RF Power Output
• SWR Calibration Meter
• Instant Channel 19 and 9
• Front Panel 6-Pin Microphone
Connector
• Switchable Automatic Noise Limiter
& Noise Blanker
• Adjustable Dynamike Boost
• Tactile Controls
• 9 Ft Mic Cord
• Programmable Dimmer Control
• RF Gain
• External Push-To-Talk Jack
• External Microphone Jack
Bluetooth® Features
• Dual Point Bluetooth®
• Caller I.D.
• A2DP Audio Streaming
• Phone Directory
1
