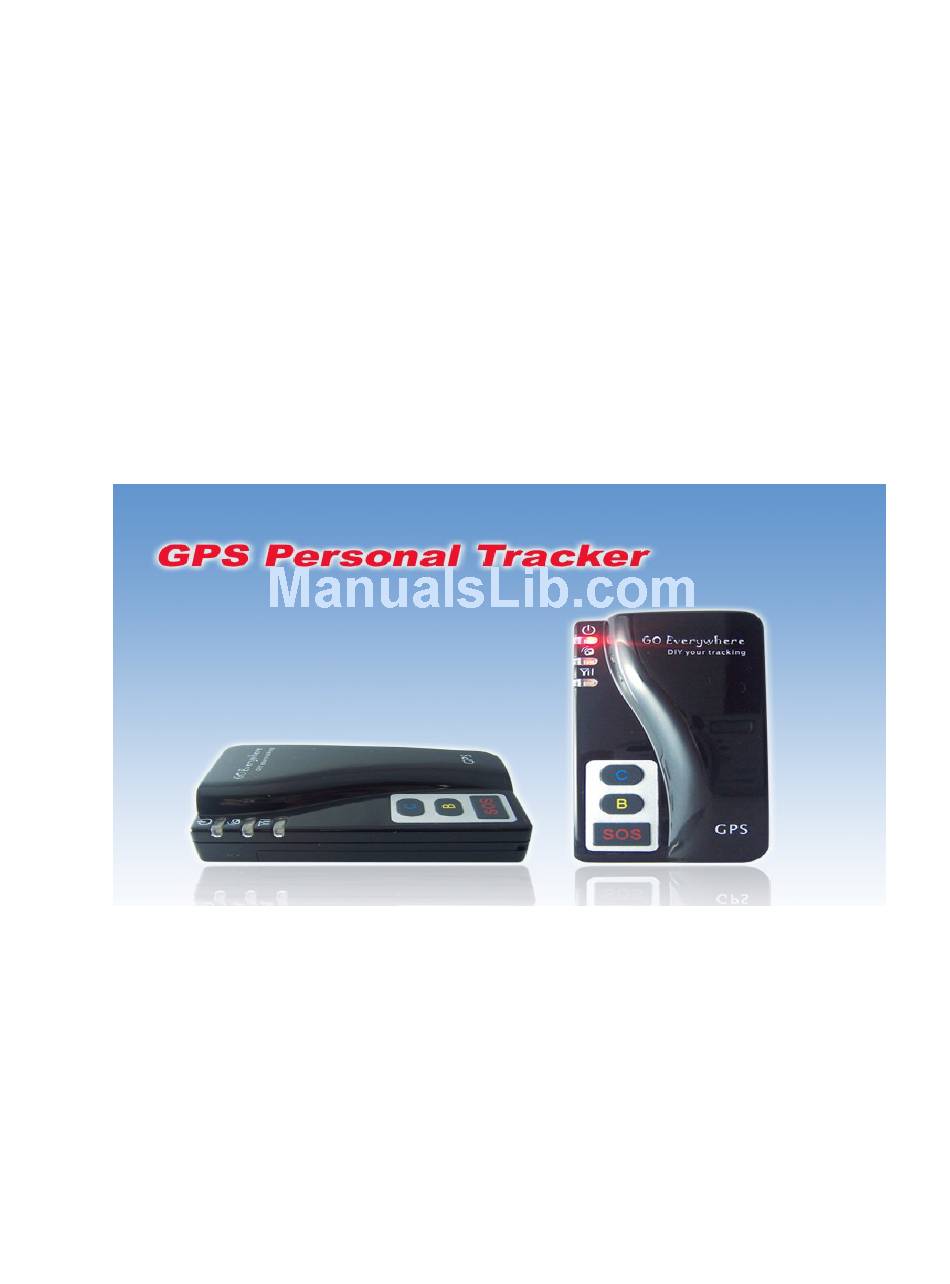

- Page 1 GPS Personal Tracker PT 60 Operating Instruction...
-
Page 2: Table Of Contents
1. Introduction...........................3 2. Feature:............................3 3. Specification ..........................4 4. Hardware description ........................5 5. Get Started............................6 Accessories .........................6 Charge battery ........................6 Buy SIM card........................7 Install SIM card ........................7 6. Operation ............................7 Turn On / Turn Off ......................7 Apply for one position service...................7 Set a time interval for tracking report function ...............8 Stop continuous tracking report function.................8 Set preset phone number for SOS key. -
Page 3: Introduction
1. Introduction PT60 is a personal remote position device with built-in GPS and GSM/GPRS modules. It is a compact size, high accuracy remote location tracking device. Based on GPS satellite, it provides accurate position information under dynamic conditions. Personal remote position device transmit the longitude and latitude coordinate to authorized cell phone. -
Page 4: Specification
LIVE! Real-Time tracking! Locate the locator holder by the mobile phone via SMS (SMS system). SOS button send out exact location for immediate rescue/action. Geo-fencing to restrict movement to a defined radius. No monthly service charges to be paid to the call center 3. -
Page 5: Hardware Description
Operating -25° to 65° C temperature Humidity 5% to 95% Non-condensing Dimension 76 mm × 44mm × 20 mm (13mm) Voltage Rechargeable and replaceable 950 mAh battery (3.7V), 5V for charging input. Charging connector DC 5V (USB port) Standby time Over 50 hours 3 LEDs showing Power, GPS and GSM status, And other operation status. -
Page 6: Get Started
Green LED -- indicate the GSM signal state: State Meaning Constant Lighting One call is coming Light 0.1s dark 0.1s Initial Light 0.1s dark 2.9s GSM receiver work well Light 1s dark 2s No GSM signal Button Function description Button Meaning Power Turn on/Turn off. -
Page 7: Buy Sim Card
Red light is On, it indicates that it is in charging. Red light is Off, it indicates that charge completes. 5.3 Buy SIM card Buy SIM card from local telecommunication service provider. (Note: Please make sure that your SIM card support SMS function and have enough deposit.) 5.4 Install SIM card 6. -
Page 8: Set A Time Interval For Tracking Report Function
(a) Dial PT60 by your mobile phone (b) After listening the ring of PT60 for 10~20 seconds, hang off the phone (c) After 20 second, your mobile phone will receive the Position SMS. 6.3 Set a time interval for tracking report function Tracking report function can be turned on or off according to the requirements of the user .Tracking function will continually report tracker’s position until it get stop command. -
Page 9: Make A Sos Help
This function is used to set what telephone number will be dialed when press SOS key. Step1. Edit a message as following format , send it to PT60 W+password+,+003+,+3+,+1+,+ area number +telephone number For example: “W000000,003,3,1,008613628888444” Step2. About ten seconds later, PT60 will send back one SMS----Set Tel OK/003,3,1,008613628888444. -
Page 10: Display Location On Map
If you want to end talking, you can hang up the calling by pressing the Call B button. 7. Display location on map 7.1 Download Google earth software from http://earth.google.com/ 7.2 Start the Google Earth software. For more information about Google Earth software, please refer to http://earth.google.com/, or you can start the Internet Explorer and type "http://maps.google.com"... - Page 11 Set low power alarm W******,004,X (voltage preset value) =0 , close <3.3V send SMS alarm When PT60 voltage =2 , <3.4V send SMS alarm lower than preset =3 , <3.5V send SMS alarm value, (default ) PT60 will send one lower =4 , <3.6V send SMS alarm power alarm SMS to the =5 , <3.7V send SMS alarm...
- Page 12 For example: Longitude = 114 degree - 04 cent - 57.74 second Latitude degree - cent - 40.05 second B=1, position SMS format is NMEA 0183 Format For example: $GPRMC,072414.000,V,3114.3763,N,1 2131.3255,E,0.00,0.00,050805,*0 C=0, PT60 do NOT hung up when one call incoming . C=1, PT60 hung up after 4~5 rings when call incoming...
-
Page 13: Sms Instruction Example
(default value should ABCDEFG=1011110001 ) GPR Setting Set Tracker ID for PT60 for W******,010,ID ID : the Tracker ID of the tracker, it may GPRS telephone number according the SIM card of PT60 (Tracker ID must be < 14 digits) Set APN W******,011,APN APN : APN string... -
Page 14: Gprs Communication Setting
Meaning: When Dial button C is pressed, PT60 will only send one SMS to “13628888444”. (6) Send Instruction “W******,005,03” Meaning: when the speed is up 30 km/h, PT60 will send one Alarm SMS to the mobile phone linking to SOS alarm (7) Send Instruction “W******,030, (area number)13628888444”... -
Page 15: Caution
Step5: Set time interval of sending GPRS package SMS format: W******,014 , XXXXX ( XXXXX：Be sure that the time interval MUST be FIVE digits). XXXXX: means times interval, (Unit: 10s), the length of XXXXX is in 5 digits, XXXXX=00001, means time interval is 10s For example: W000000,014,00003 SMS meaning: Make PT60 send a GPRS package every 30 seconds PT60 will response one SMS to confirm the setting. - Page 16 (a) Working outdoor,PT60 can get better GPS signal; (b) The front side of PT60 should be placed toward sky; (c)Charging PT60 for 3 hours for the tracker has enough power before usage 2) Check GSM signal is normal In normal, the green led should in rapid blink ----light for 0.1second and then dark for 2.8s in turn If green led is not in this correct state, it indicates GSM communication is wrong.
