- Page 1 Auto leaders 900C Vehicle GPS Tracker User Manual 2009-10-01...
-
Page 2: Table Of Contents
Table of Contents 1. Working Directions........................…..3 2. GPS Tracker Installation.......................3 2.1. Product Parts List ........................3 2.2. Precaution before Installation ....................4 2.3. Installation..........................5 2.4. Wiring Description........................6 3. Operating Instructions .........................7 4. SMS Tracking by Mobile......................10 4.1. Position Report Function....................10 4.2. Tracking Function......................11 4.3. -
Page 3: Working Directions
1. Working Directions Thank you for your purchase of 900C Vehicle GPS Tracker. In order to realize the full functions of this product, please read this manual carefully before starting to use the product. This product can only be maintained and repaired by qualified professional service personnel. - Page 4 2. Wiring Installation 2.1. Product Parts List GPS Tracker Unit GPS Antenna GSM Antenna Car Charger Lighter Socket...
-
Page 5: Precaution Before Installation
2.2. Precaution before Installation Check if all the parts are included. Prepare a SIM card for GSM communication. Use some other mobile phone to confirm that the PIN code has not been set and that it can dial out and receive telephone calls and SMS without problem. -
Page 6: Wiring Description
If your car is with metallic windshield please cut a hole on the windshield above the place where you put the GPS antenna, so that the antenna can receive the GPS signals. 2.3.4 Step 4: Connect power charging 900C connects to the 4pin and 6pin wires. 2.4. Wiring Description 4 pins connector... -
Page 7: Operating Instructions
According to the relay parameter to make sure to following requirement: The input voltage of relay must be suited to the car battery 3. Operating Instructions SMS protocol of 900C, the default password of 900C is 000000 SMS Instruction Format... - Page 8 XXX =000,stop XXX = 001 – 999 time internal (unit: min) Set low power alarm A******,004,X 004: command code When the 900C voltage ******: password, default 000000 is lower than the preset value, 900C will send voltage preset value one lower power alarm...
- Page 9 ******: password, default 000000 the position of the output P =1 output 1 P =2 output 2 the control signal F =1 give the relay the current to drive it (cut off the car power). F =0 cut off the current of the relay (comeback the normal).
-
Page 10: Sms Tracking By Mobile
4.1.1. Get position from vehicle - way 1: No matter where you are, when you want to know the position of your vehicle Send a SMS message or make a telephone call to the 900C. Step1 vehicle will report its location back to you by SMS, which including the position... -
Page 11: Tracking Function
Position Data every 3 minute. Step2. 900C will send back one SMS-----Set Time OK. This SMS means that 900C is in tracking mode now and preset time interval is 3 minutes. Step3. 900C will send back position SMS at preset time interval. -
Page 12: Gprs Tracking By Computer
000000: password, default 000000 119.147.24.211 Platform server ip 8886: Platform server software Port When the 900C connect to the monitor system, the power LED flash by 1 S. Then you can login in the tracking server to manage your car.
Need help?
Do you have a question about the 900C and is the answer not in the manual?
Questions and answers

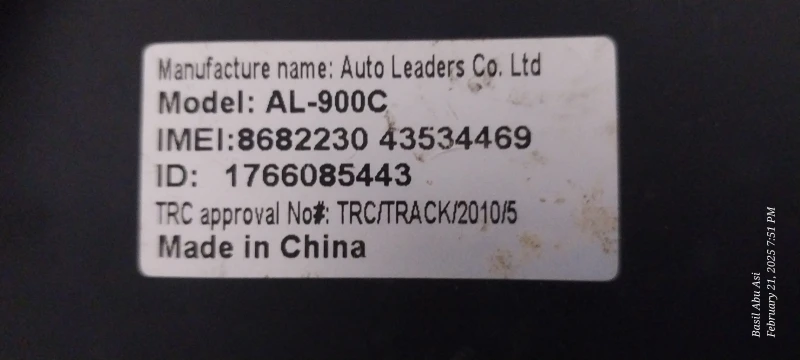

What is the app at Google Play that operates the Auto Leaders model AL 900C gps
