Air Cleaner
Paper filters cannot be cleaned and should be replaced every 100 operating hours;
more often if used in extremely dusty conditions.
WARNING
Never use gasoline or low flash point solvents for cleaning the air filter
element. A fire or explosion could result.
IMPORTANT: Never run the engine without the air filter. Rapid engine wear will
result.
1.

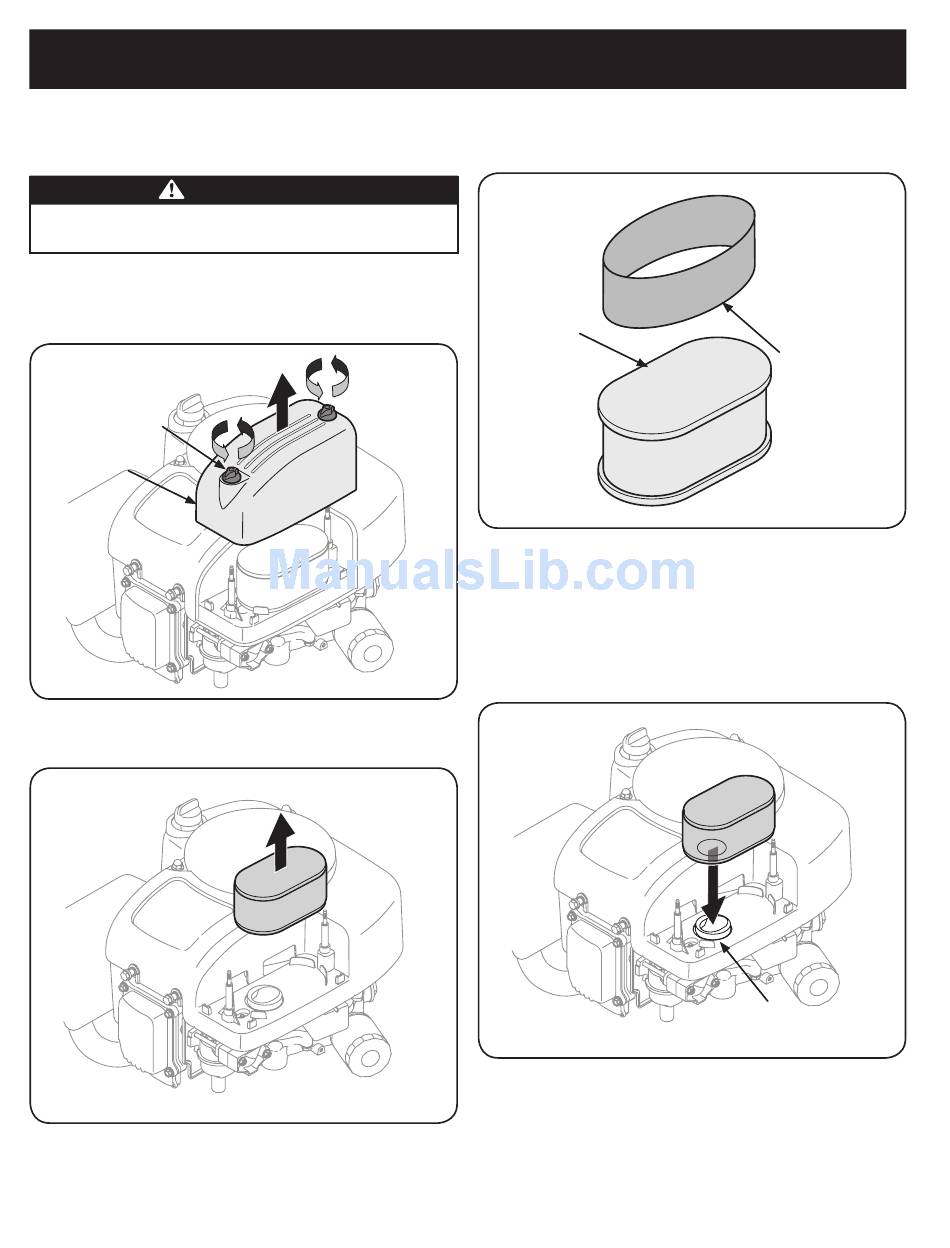

Unscrew the thumb screws and remove the air filter cover. See Figure 14.
Thumb
Screw

Air Filter

Cover
2.
Remove the air filter. See Figure 15.
SERVICE AND MAINTENANCE
Figure 14
Figure 15
3.
Remove the foam pre-filter from around the paper air filter. See Figure
16. Replace paper element when dirty or damaged. Clean foam element or
replace when damaged.
Air Filter
4.
To clean foam element, wash in a mild liquid detergent and water. Squeeze
or press the foam element to rinse out dirt and water. Do not twist; this
could damage or tear the foam element. Allow to dry thoroughly before
using. DO NOT oil the foam element.
5.
Attach the new air filter with foam element, aligning the hole in the air filter
with the intake manifold. See Figure 17.
20
Pre-Filter
Figure 16
Intake
Manifold
Figure 17
