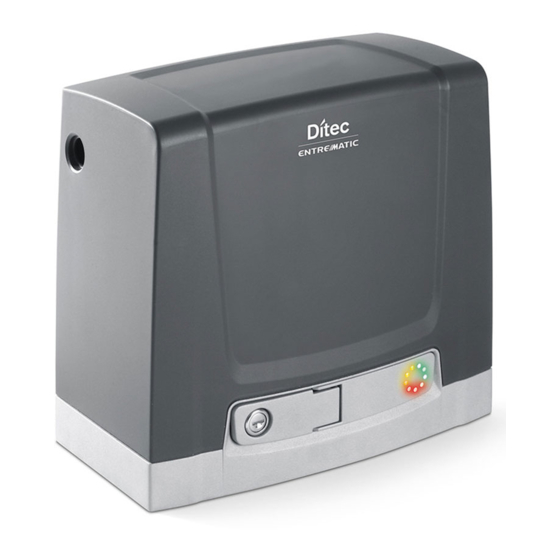

  • Page 1 IP2160EN Ditec NeoS / NeoS+ Technical Manual Sliding Gates (Original instructions) www.entrematic.com...
  • Page 2: Table Of Contents

    Contents Subject Page General safety precautions General safety precautions for the user Declaration of incorporation of partly completed machinery Machinery Directive Technical specifications Operating instructions Standard installation Dimensions Main components Installation Preliminary checks Base plate position Gearmotor installation Rack installation Operation with encoder Magnetic limit switch installation and adjustment Chain drive kit installation...
  • Page 3: General Safety Precautions

    1. General safety precautions Failure to respect the information given in this manual may cause personal injury or damage to the device. Keep these instructions for future reference This installation manual is intended for qualified personnel only. Installation, electrical connections and adjustments must be performed by qualified person- nel, in accordance with Good Working Methods and in compliance with the current regulations.
  • Page 4: General Safety Precautions For The User

    General safety precautions for the user These precautions are an integral and essential part of the product and must be supplied to the user. Read them carefully since they contain important information on safe installation, use and maintenance. These instructions must be kept and forwarded to all possible future users of the system.
  • Page 5: Declaration Of Incorporation Of Partly Completed Machinery

    made available to the user. Only lock and release the door wings when the motor is switched off. Do not enter within the operating range of the wing. To dispose of electrical and electronic equipment correctly, users must take the product to special "recycling centres" provided by the municipal authorities.
  • Page 6: Technical Specifications

    3. Technical specifications Ditec NES300EH Ditec NES300EHP Power supply 230 V~ 50/60Hz 230 V~ 50/60Hz Absorption 1,2 A 1,2 A Fuse F1,6A F1,6A Thrust 300 N 300 N Wing speed 0,1÷0,25 m/s 0,1÷0,25 m/s Max stroke 12 m 12 m...
  • Page 7: Operating Instructions

    Ditec NES1000EHP Ditec NES1000EHPJ Power supply 230 V~ 50/60Hz 120 V~ 50/60Hz Absorption Fuse F2,5 A F6,3A Thrust 1000 N 1000 N Wing speed 0,1÷0,19 m/s 0,1÷0,19 m/s Max stroke 20 m 20 m Max wing weight 1000 kg 1000 kg Service class 4 - INTENSE 4 - INTENSE...
  • Page 8: Standard Installation

    4. Standard installation Ref. Code Description NES300 300 kg gearmotor with control panel NES400 400 kg gearmotor with control panel NES600 600 kg gearmotor with control panel NES1000 1000 kg gearmotor with control panel ZEN2 / ZEN4 Remote control ZEN2C / ZEN4C FL24 Flashing light XEL5...
  • Page 9: Dimensions

    5. Dimensions 210 (NES 300-400) 220 (NES 600-1000) 170 (NES 300-400) 180 (NES 600-1000) 6. Main components Ref. Code Description Motor Control panel Diagnostic circuit Key release Pinion Battery kit Cable inlet Power supply terminal...
  • Page 10: Installation

    7. Installation The given operating and performance features can only be guaranteed with the use of DITEC ac- cessories and safety devices. Unless otherwise specified, all measurements are expressed in mm. 7.1 Preliminary checks Check the stability of the wing (derailing and lateral falls) and the sliding wheels and that the upper guides do not cause any friction.
  • Page 11: Base Plate Position

    7.2 Base plate position [1] Insert the anchor ties into the base plate and fix them with the supplied nuts. [2] Insert the screws in the base plate, secure them with the nuts and then bend the metal tab to prevent the screw from coming out.
  • Page 12: Gearmotor Installation

    7.3 Gearmotor installation -15 +10 M12-low type Release the gearmotor [1] (see OPERATING INSTRUCTIONS). Loosen the front screw [2] and remove the casing by pressing on its sides [3-4]. Place the gearmotor on the base plate. Adjust the gearmotor horizontally by sliding it along the slots of the gearmotor base and vertically with four levelling screws [A].
  • Page 13: Rack Installation

    7.4 Rack installation Release the gearmotor (see OPERATING INSTRUCTIONS) and open the gate. Place the rack against the pinion and sliding the gate manually fix it along its whole length. NB: To make it easier to align the rods correctly, use a scrap piece of rack and rest it underneath the junction point, as shown in the figure detail.
  • Page 14: Operation With Encoder

    7.5 Operation with virtual encoder NEOS gearmotors do not require limit switches because they have a virtual encoder. Mechanical opening and closing end stops must be installed. The gate automatically slows when approaching the end stops. WARNING: when the gate reaches the opening or closing limit stop, it reverses briefly to facilitate manual release of the gearmotor.
  • Page 15: Chain Drive Kit Installation

    7.7 Chain drive kit installation NB: Install the chain drive kit before securing the gearmotor to the base plate. Release the gearmotor (see OPERATING INSTRUCTIONS). [1] Remove pinion [12]. [2] Fix pinion supporting plate [A] to the gearmotor. Insert pinions [B] as illustrated in the diagram. [3] Pass the chain between the pinions by hand.
  • Page 16 NB: Make sure that the distance between the pinion centre and tie rod [F] is correct when the gate is fully open and closed. Secure the chain with nuts [G]. Tighten the chain [E] with the tie rods [F]. Slightly lubricate the chain [E] and the pinions after assembly. WARNING: when the chain traction kit is fitted, the gearmotor drive direction is inverted.
  • Page 17: Electrical Connections

    8. Electrical connections NB: the electrical wiring and start-up of the gearmotors is shown in the CS12E and CS12M control panel installation manuals. Tie not supplied Fascetta non di nostra fornitura Make sure that the yellow-green Assicurarsi che il conduttore conductor is at least 30 mm longer giallo verde sia almeno 30 mm più...
  • Page 18: Installation Of Internal Photocell

    8.1 Installation of internal photocell OPENING LIN2 Additional photocells can be installed inside the gearmotor casing of Ditec NEOS, to protect both opening and closing movements by using the LIN2 photocell. Fit a receiver (RX) or a transmitter (TX) as shown in the figure. Installation of the photocells must comply with standards EN12453 and EN12445.
  • Page 19: Operating Instructions

    Operating instructions General precautions for safe use • Failure to observe the information in the User Manual may lead to personal injury or damage to the equipment. These instructions must be kept and forwarded to all possible future users of the system. •...
  • Page 20 Manual release instructions In the event of a fault or power failure, insert the key and turn it clockwise and completely open the hatch. Manually open the gate. To lock the gate again, close the hatch, turn the key anticlock- wise and remove the key.
  • Page 21 Regular safety checks and safety accessories To meet the national/international requisites and avoid any malfunctioning or risk of injury, carry out the following operations and checks at least once every 6 months (or according to the fre- quency of use of the automation). You are advised to have repairs and adjustments carried out by qualified personnel.
  • Page 22 Troubleshooting / alarms Problem Possible cause No power Short-circuited accessories Contact Technical Service Blown line fuse Contact Technical Service Release door microswitch open Check the position of the key. Close the release door if it's open. The gate doesn't open or close Contact Technical Service Mechanical fault Contact Technical Service...
  • Page 23 Only use original spare parts when repairing or replacing products. The installer must supply all information on the automatic, manual and emergency operation of the motorised door, and must provide the user with the operating instructions. The installer must prepare and keep a maintenance record showing all the routine and extraordinary maintenance work carried out.
  • Page 24 Entrematic Group AB Lodjursgatan 10 SE-261 44, Landskrona Sweden www.entrematic.com...
