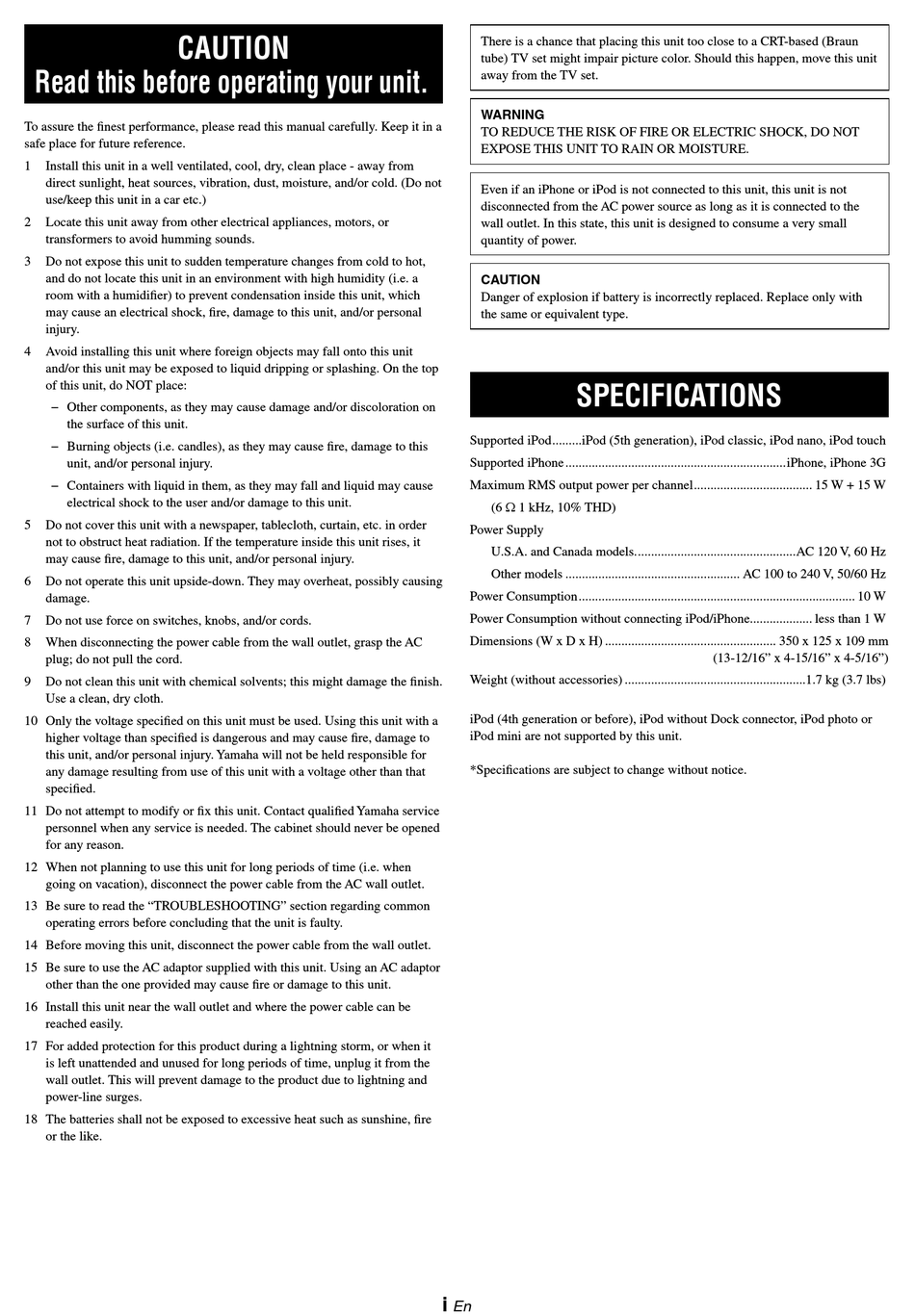

CAUTION

Read this before operating your unit.

To assure the finest performance, please read this manual carefully. Keep it in a
safe place for future reference.
1�
Install this unit in a well ventilated, cool, dry, clean place - away from
direct sunlight, heat sources, vibration, dust, moisture, and/or cold. (Do not
use/keep this unit in a car etc.)
2�
Locate this unit away from other electrical appliances, motors, or
transformers to avoid humming sounds.
3�
Do not expose this unit to sudden temperature changes from cold to hot,
and do not locate this unit in an environment with high humidity (i.e. a
room with a humidifier) to prevent condensation inside this unit, which
may cause an electrical shock, fire, damage to this unit, and/or personal
injury.
4�
Avoid installing this unit where foreign objects may fall onto this unit
and/or this unit may be exposed to liquid dripping or splashing. On the top
of this unit, do NOT place:
Other components, as they may cause damage and/or discoloration on
the surface of this unit.
Burning objects (i.e. candles), as they may cause fire, damage to this
unit, and/or personal injury.
Containers with liquid in them, as they may fall and liquid may cause
electrical shock to the user and/or damage to this unit.
5�
Do not cover this unit with a newspaper, tablecloth, curtain, etc. in order
not to obstruct heat radiation. If the temperature inside this unit rises, it
may cause fire, damage to this unit, and/or personal injury.
6�
Do not operate this unit upside-down. They may overheat, possibly causing
damage.
7�
Do not use force on switches, knobs, and/or cords.
8�
When disconnecting the power cable from the wall outlet, grasp the AC
plug; do not pull the cord.
9�
Do not clean this unit with chemical solvents; this might damage the finish.
Use a clean, dry cloth.
10�
Only the voltage specified on this unit must be used. Using this unit with a
higher voltage than specified is dangerous and may cause fire, damage to
this unit, and/or personal injury. Yamaha will not be held responsible for
any damage resulting from use of this unit with a voltage other than that
specified.
11�
Do not attempt to modify or fix this unit. Contact qualified Yamaha service
personnel when any service is needed. The cabinet should never be opened
for any reason.
12�
When not planning to use this unit for long periods of time (i.e. when
going on vacation), disconnect the power cable from the AC wall outlet.
13�
Be sure to read the "TROUBLESHOOTING" section regarding common
operating errors before concluding that the unit is faulty.
14�
Before moving this unit, disconnect the power cable from the wall outlet.
15�
Be sure to use the AC adaptor supplied with this unit. Using an AC adaptor
other than the one provided may cause fire or damage to this unit.
16�
Install this unit near the wall outlet and where the power cable can be
reached easily.
17�
For added protection for this product during a lightning storm, or when it
is left unattended and unused for long periods of time, unplug it from the
wall outlet. This will prevent damage to the product due to lightning and
power-line surges.
18�
The batteries shall not be exposed to excessive heat such as sunshine, fire
or the like.
There is a chance that placing this unit too close to a CRT-based (Braun
tube) TV set might impair picture color. Should this happen, move this unit
away from the TV set.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS UNIT TO RAIN OR MOISTURE.
Even if an iPhone or iPod is not connected to this unit, this unit is not
disconnected from the AC power source as long as it is connected to the
wall outlet. In this state, this unit is designed to consume a very small
quantity of power.
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with
the same or equivalent type.

SPECIFICATIONS

Supported iPod .........iPod (5th generation), iPod classic, iPod nano, iPod touch
Supported iPhone ...................................................................iPhone, iPhone 3G
Maximum RMS output power per channel .................................... 15 W + 15 W
(6 Ω 1 kHz, 10% THD)
Power Supply
U.S.A. and Canada models. ................................................AC 120 V, 60 Hz
Other models ..................................................... AC 100 to 240 V, 50/60 Hz
Power Consumption .................................................................................... 10 W
Power Consumption without connecting iPod/iPhone................... less than 1 W
Dimensions (W x D x H) .................................................... 350 x 125 x 109 mm
Weight (without accessories) .......................................................1.7 kg (3.7 lbs)
iPod (4th generation or before), iPod without Dock connector, iPod photo or
iPod mini are not supported by this unit.
*Specifications are subject to change without notice.

En
(13-12/16" x 4-15/16" x 4-5/16")
