Operating instructions
Cabinet and locker lock – BS80MLM33

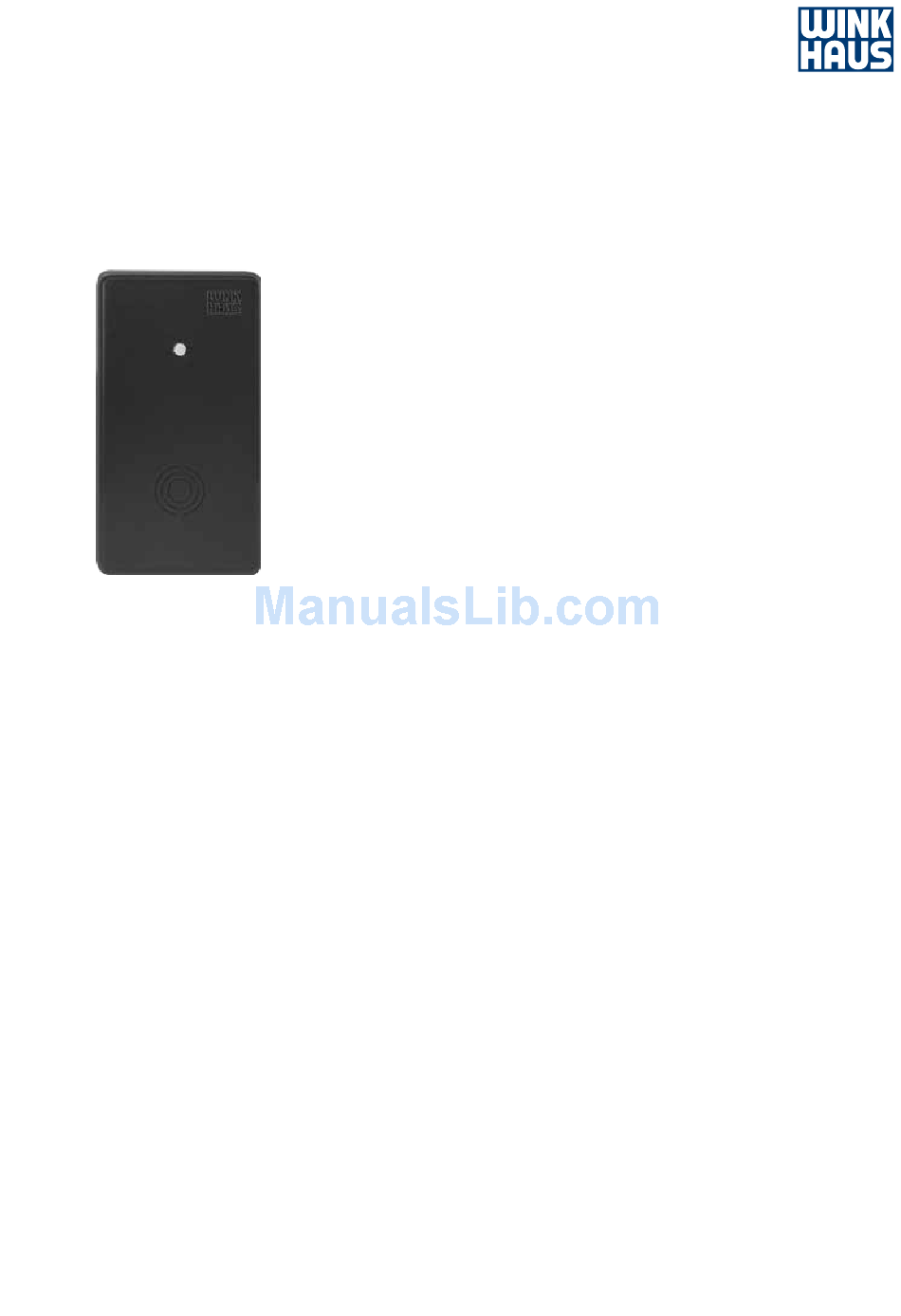

blueSmart reader unit:
Cabinet and locker lock – BS80ML
The BS80MLM33 cabinet and locker lock is an electronic rod furniture lock.
In terms of immunity to electromagnetic interference, these locks are de-
signed for use inside of residential and office buildings in accordance with
EN 61000-6-1:2007. Improper use can destroy the system and render any
claims null and void. These operating instructions provide you the informa-
tion you need to install and operate the BS80MLM33 without trouble.
Technical data:
Frequency:
Range:
Power supply for
control electronics:
Visual signalling:
Acoustic signalling:
Temperature range:
125 kHz
It is essential to observe national legislation on
approved radio frequencies.
Approx. 10 mm between reader unit and
identification medium.
Battery type: 3x AA mignon cell, alkaline 1.5V.
NiCd, NiMH or other rechargeable batteries,
as well as zinc - carbon or lithium batteries
are not permitted!
2-colour LED (red/green)
Buzzer
Operation: +5 °C to +50 °C at
30% to 80% relative air humidity,
non-condensing.
Storage: -25 °C to +70 °C at
30% at 80% relative air humidity,
non-condensing.
Advertisement
Table of Contents
Related Manuals for Winkhaus BS80MLM33
Summary of Contents for Winkhaus BS80MLM33
- Page 1 Operating instructions Cabinet and locker lock – BS80MLM33 The BS80MLM33 cabinet and locker lock is an electronic rod furniture lock. In terms of immunity to electromagnetic interference, these locks are de- signed for use inside of residential and office buildings in accordance with EN 61000-6-1:2007.
-
Page 2: Package Content
Operating instructions Cabinet and locker lock – BS80MLM33 The BS80MLM33 cabinet and locker lock is an electronic rod furniture lock. In terms of immunity to electromagnetic interference, these locks are de- signed for use inside of residential and office buildings in accordance with EN 61000-6-1:2007. -
Page 3: Description Of Operation
The BS80MLM33 allows selective access authorisations to be issued, so that only authorised persons will be granted access to certain furniture. Each electronic control unit in the BS80MLM33 system functions self-sufficiently without cable connection to other control units and the power grid. -
Page 4: Changing Batteries
Commissioning/Mounting: Click! The motor unit, electronics and display unit are not connected to one another upon shipping. Please conduct steps 1 and 2 in sequence in order to obtain a functional unit. After completing a function check, disconnect the display unit (Fig. - Page 5 The furniture handle supplied can be used to close an existing duct with a back plate (18 or 24 mm included in the delivery) on the front plate of furni- ture and simultaneously serves as an opening aid on the door. Further de- tails on the mechanical connection of the M33 system to your furniture can be found in the installation instructions of your furniture manufacturer.
-
Page 6: Safety Instructions
2014/53/EU. The long version of the declaration of CE confirmity is available at: www.winkhaus.com/konformitaetserklaerungen www.winkhaus.de Aug. Winkhaus GmbH & Co. KG · Hessenweg 9 · 48157 Münster · T +49 251 - 49 08 - 0 · F +49 251- 49 08 -145...
