Summary of Contents for Lloyd LWMS80GR

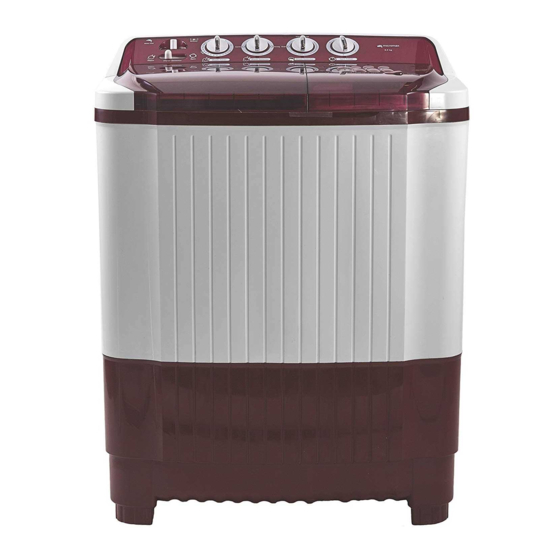

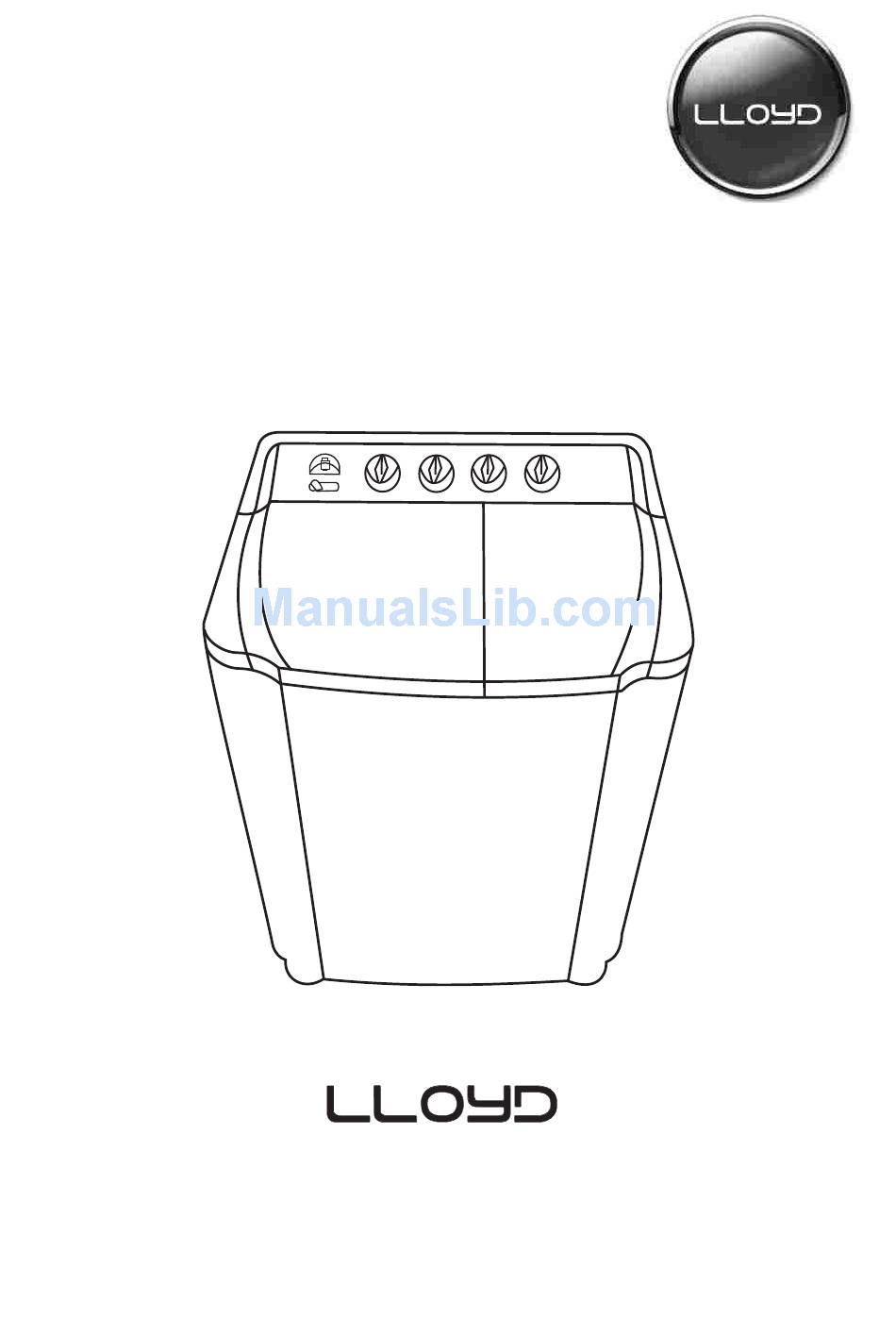

- Page 1 SEMI-AUTOMATIC WASHING MACHINE LWMS80GR / LWMS80BD / LWMS72BP INSTRUCTION MANUAL Please read this manual carefully before operating the machine...
- Page 2 Congratulations on being the proud owner of LLOYD Washing Machine. Your Washing Machine comes with a LLOYD Guarantee of Quality. LLOYD takes great pride in providing its customers with perfect products that adheres to international quality standards. LLOYD committed to provide the ultimate customer satisfaction as nothing brings us greater joy than having satised customers of...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTIONS OF PARTS SPECIFICATION AND WIRING DIAGRAM SAFETY MEASURES INSTALLATION INSTALLATION & HOW TO WASH HOW TO RINSE & HOW TO SPIN CARE & MAINTENANCE WASHING REFERENCE GUIDE TROUBLE SHOOTING GUIDE WARRANTY CARD 8 & 9... -
Page 4: Introductions Of Parts
INTRODUCTIONS OF PARTS WASHING SPIN DRYER COVER COVER WATER SUPPLY SELECTOR SAFETY OVER FLOW COVER-2 FILTER SPIN DRYER BASKET ROTATION FILTER-C CABINET PULSATOR POWER CORD Normal Wash-Rinse Water Inlet Strong Drain Gentle Spin Timer Wash Drain Wash Timer Wash Selector Water Selector 1. -
Page 5: Specifications
SPECIFICATIONS LWMS80GR / LWMS80BD Model LWMS72BP Wash 7.2 Kg. / Spin 6.0 Wash 8.0 Kg. / Spin 6.0 Kg Max. Rated Capacity Power Supply 230V AC / 50Hz 230V AC / 50Hz Washing Input 520 W 500 W Spinning Input... - Page 6 This product must not be disposed together with the domestic waste. this product has to be disposed at an authorised place for recycling of electric and electronic appliances.
-
Page 7: Installation
INSTALLATION Installation area Incorrect installation may course Set on at and rm oor. . severe noise and break down. A carpet must not obstruct the Maintain gap more than 10 cm. ventilation openings. Between the side of drain hose and the wall. -
Page 8: Installation & How To Wash
INSTALLATION & HOW TO WASH Before washing 1. Check the washing instruction labels on the clothing to be washed. 2. Remove all objects from the pockets of the clothing. Objects left in the pockets may damage clothing or break the washing machine (could cause the drain hose to clog). 3. -
Page 10: Troubleshooting Guide
REFERENCE TABLE 1. WEIGHT GUIDE FOR CLOTHES Weight per piece Type of clothing Type of fabric 50g( 1.8oz) Handkerchief Cotton 300g(10.6oz) Bath towel Cotton 200g( 7.1oz) Shirt Mixed fabric Pajama (shirt and pants) 500g(17.6oz) Cotton 800g(28.2oz) Workclothes Mixed fabric 200g( 7.1oz) Blouse Mixed fabric TABLE 2. -
Page 11: Warranty Card
Customer Privileges Dear Customer, Congratulations! We wish you a long and happy association with LLOYD. We would like you to know your privileges with respect to your washing machine You are entitled to: a. Repair or replacement of any parts other than rubber and plastic parts free on charge, for a period of 24 months from the date of Invoice/bill. - Page 12 This warranty is not applicable if the machine is put into any commercial use or used at places like hospitals, institutions. community halls, hostels and other similar applications. LLOYD employees, dealer and service personnel have no authority to vary the terms of this warranty.
- Page 16 This product has to be disposed at an authorized place for recycling of electrical and electronic appliances. Marketed By: LLOYD ELECTRIC & ENGINEERING LIMITED 159, Okhla Industrial Estate Phase-III, New Delhi - 110020 Correspondence Address Plot-2, Industrial Area, Kalkaji, New Delhi - 110019 Email : perfectservice@lloydmail.com...
