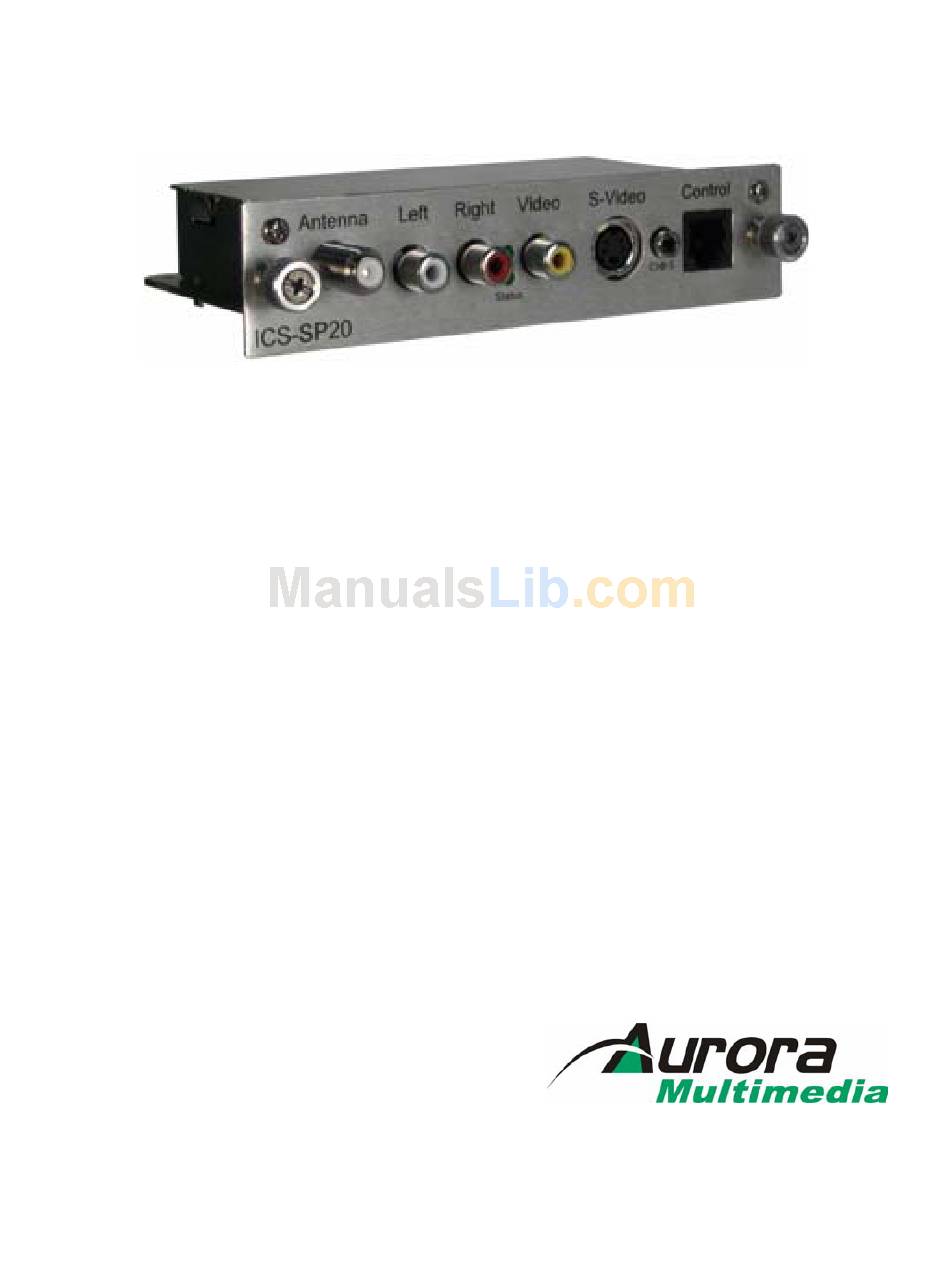

2 Supported IR transmitter(s) and basic key functions The ICS-SP20 is controlled using an IR remote controller. It utilizes IR receiver of the display via the Control S output port (FWD-50PX1 only) or the built in IR sensor of the display.
Sony display. ICS-SP20 Monitor Selection The ICS-SP20 has a setting for which Sony display you are using with your TV tuner device. Enter the menu for the ICS-SP20 and under General Settings, select the correct model of your Sony display.
5 LED functions The two LEDs located on the ICS-SP20 indicate the current state of ICS-SP20 and may be useful for troubleshooting. During the startup (after powering on) the LEDs blink as the unit goes through self-test procedures and firmware booting.
The coaxial connector (ANT) of ICS-SP20 is RF signal input – either aerial or cable TV, UHF/VHF, if the ICS-SP20 shall be used as TV tuner. 6.3 RJ11 Service Port connector RJ11 connector of ICS-SP20 is used as a service port for Sony. Nothing should be connected to this port. Warning: Damage may occur if plug into a different port such as a phone line.
ICS-SP20 maps some additional “channel numbers” to its AV inputs. So when a user selects one of these “channels”, the ICS-SP20 switches to the respective AV input. These reserved channel numbers are based on the values selected in the service menu and could be setup in many different ways as shown below.
Key: “Chroma” Enter selections for the menu. Key: “ON/STBY” Switch ICS-SP20 power on/off. The display panel is switched accordingly if it is connected using the RS- 232 port or IR output port. 7.2 Menu Structure The menu system allows a user to control various aspects of ICS-SP20 configuration.
7.3 General Settings This menu allows control of various “general” aspects of ICS-SP20 behavior. Note that the *-marked options are accessible only in Service mode, and not in Stand-alone mode. A/V Input – Allows user to select the audio/video input source (among the built-in Tuner and...
7.6 Tuner Settings Default Chan -- Specifies the default channel, which will be selected upon ICS-SP20 power-up. If this default channel is set to “0” -- the default channel will be the last channel selected before the ICS-SP20 was powered off.
This menu controls various aspects of interaction with Sony display. This menu is accessible in Service mode only (not in Stand-alone). All these parameters do not affect behavior of ICS-SP20, they are transferred to Display Panel. If the panel control is disabled, all other options effectively do not affect anything.
Orbit Enable -- Allows the enabling of Orbit mode on a per channel basis. Orbit Range -- Selects how much orbit movement will occur. Orbit Cycle -- Determines how often it will orbit. 7.8 CC Settings This menu control Closed Caption decoder – CC signal type, and CC text color. CC State -- CC decoder state: Off –...
+/- browse keys. Checks See if the upper LED of ICS-SP20 is fast-blinking while pressing key and aiming remote at IR sensor on the display. If it is not -– check the batteries in the remote. Make certain Option slot is select to YPbPr Under panel settings check to see if correct model is selected.
Sony Service Port – RJ11 IR IN – 3.5mm TRS (Tip – Signal, Ring – NC, Sleeve – Ground) 8.3 Dimensions Height: 1.25” Depth: 3.25” Length: 5.25” 8.4 Weight Approx. 0.8 lbs for ICS-SP20 unit and 1 lbs with all accessories and boxed...
9 Limited Warranty Aurora Multimedia Corp. Warrants that this product is free of defects in both materials and workmanship for a period of 24 months for parts and labor from date of purchase. During the warranty period, and upon proof of purchase, the product will be repaired or replaced (with same or similar model) at our option without charge for parts or labor for the specified warranty period (24 months parts and labor).
