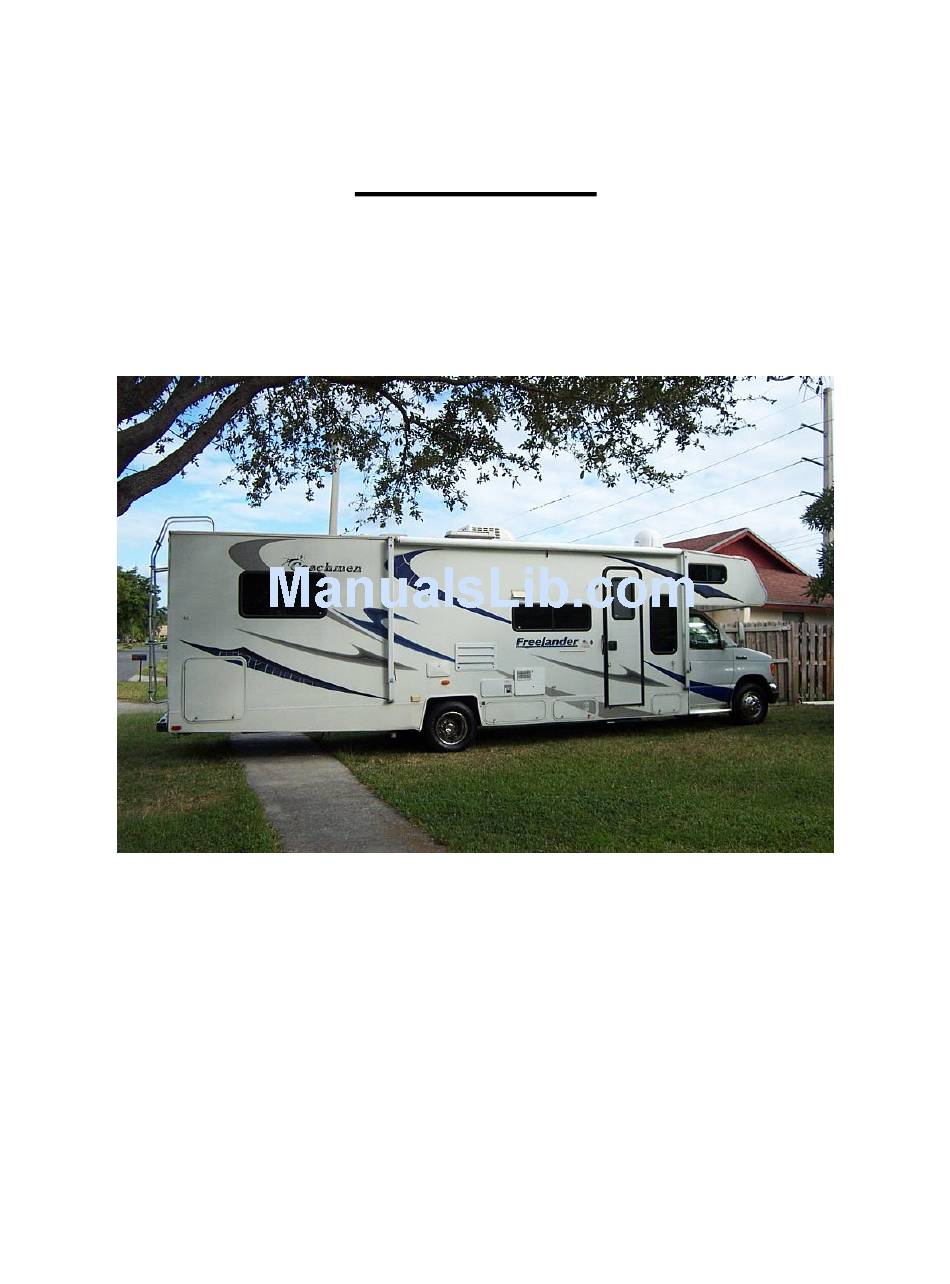

- Page 1 RV Manual 2007 Coachman Freelander 31’, Ford E450...
-
Page 2: Table Of Contents
Table of Contents Electric Power Source Generator Power Master Battery Switch Slide Outs Water Lavatory Propane Cable TV / DVD Player Moon roofs Appliances Fridge Toilet & Sinks Exit switches Storage Blinds Night Sleep Privacy Shades Converting Dining Table / Bed Door Locks Cabinet Drawers Door &... -
Page 3: Generator Power
City Electric Power Source - The shore line hookup is located in the exterior panel to the rear on the RVs driver side. The RV uses 30 amp hookups. - The generator should be off before plugging in cable to hook up to city/park electric power source. - An adapter for use in powering to a conventional 110v outlet is in the access panel. -
Page 4: Master Battery Switch
Master Battery Switch There is a master battery switch for cabin power located at the entrance step. Note: In addition to the generator or city power connection, the master battery switch must be turned on for the AC, refrigerator to function. Slides Slide controls are located on the wall behind the driver seat. -
Page 5: Water
Water - The water hookup for city water is located on the exterior, rear driver side of RV. Use the hose supplied with the RV to hook up to a city water source. -The water operation and fill panel is located on the passenger exterior side of the RV. This panel is utilized to change water input, for use while hooked up to city water, or to fill the onboard tank. -
Page 6: Lavatory
Lavatory Dump – Dump valves are just below the power cord bin on the driver side of the vehicle. Cap must be on during transit or risk $10K fine. Hoses are located in the rear exterior, driver side storage bin, as well as just above the valve. -
Page 7: Cable
Cable A park hookup is located on the exterior of the RV on the driver side rear, above the gas cap. Once a coaxial cable is attached to the RV and the park cable source, cable TV is available throughout the RV. TV/DVD Player The TV channels need to be set by using the menu feature to scan either: the cable when hooked up at a park, or by scanning the air using the internal digital antenna to pick up available channels in your vicinity. -
Page 8: Exit Switches
Exit Switches Switches are located just as you enter the RV stairwell. Battery connect master switch- turns off everything in cabin to ensure battery isn’t drained. Not needed when hooked up to park electric source. Stair Lock switch – keeps outer step locked open when the vehicle is parked, so that they do not retract every time the camper door is opened or closed. - Page 9 Privacy Curtains Sleeping curtains can be drawn to enclose the sleeping compartment above the front cab. Also on board is a privacy shade for nighttime use, to ensure no one can se inside the RV through the front windshield. It is attached with Velcro tabs located around the driver’s cab, along the roof line, and running behind the cab’s visors.
-
Page 11: Door Locks
Door locks The inside of the camper door has 2 red locking switches. The switch to the right locks the handles to both the interior and exterior of the door. It can be opened from the outside with the key, or from the inside with the handle after unlocking the red switch. -
Page 12: Awning
Awning This can be opened when parked and remaining stationary. See owner for demonstration. There is an awning metal rod for use in unlocking the security latch located at top of roller. The rod is in one of the exterior bins. To open, unlatch the gray travel clips from the posts. -
Page 13: Auxiliary Shower
Additionally, the bottoms of the posts can be detached from the RV using the quick-disconnect clamps at the base of the posts, after extending the awning. This allows for a squared frame awning. Auxiliary Shower On the exterior driver side of the RV next to the fuel tank, is an auxiliary shower which can be used to rinse off before entering the RV. -
Page 14: Sunpass
SunPass The RV is supplied with a mini-Sunpass for tolls in Florida. Upon return, a printout of toll activity will be supplied for reimbursement. Occasionally, the Sunpass system requires several days to update. Rear View Camera The RV is outfitted with a rear view camera. The moniter s located behind the driver sun visor. It automatically powers on once the vehicle is started. - Page 15 Comments: I strive to ensure that everything on the RV is in good condition and functioning as it should. Like a boat, constant maintenance is required to fix all the little things that occasionally need replacing. It is not always easy to know what needs to be addressed, when I am not personally using the RV.
