Gpstracker.net.in

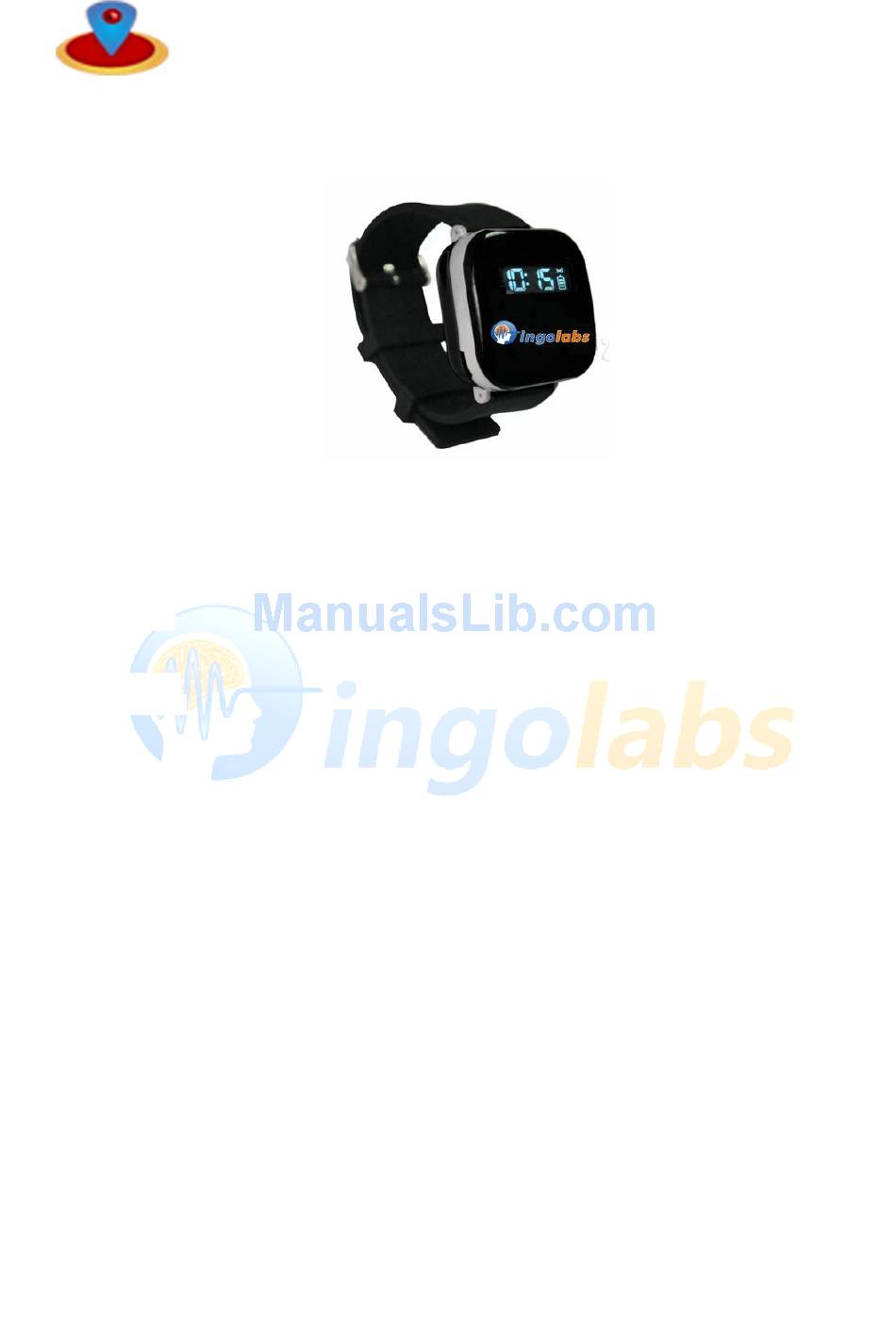

Pp2 model-gps watch
Please read this manual carefully before attempting installation and online activation.
Pictures are for indication and illustration purposes only.
1. Functions
GSM 850/900/1800/1900MHz
GPS location, GPRS data transmission
Inquires the position by SMS or mobile phone or PC
Built-in OLED screen, display time and battery level
One power on/off key
One SOS key
Remote setup by SMS
Remote monitoring voice
Low battery reminding
2. Specification
GSM: 850/900/1800/1900MHz
GPRS: Class 12, TCP/IP
Battery: 420mAh
Current: working ≈50mA
Standby ≈3mA
GPS fixed time: Cold start 30sec(open sky)
Warm start 29sec(open sky)
Hot start 5sec (open sky)
GPS fixed precision: 05m (2D RM)
Gps chip:Siemens chip agps
Temperature: -20℃ ~ +70℃
Humidity: 5% ~ 95% RH
Dimension:39.5(L)x39.5 (W) x15.9(H)mm
3. Prepare
SIM Card: Please use a GSM SIM card.
3.1
Before insert the SIM card, please make sure to turn off the device.
3.2
Please make sure the GPRS can be used, if not, please connect GPRS Service Provider.
3.3
Please make sure the Caller ID can be used.
3.4
Then insert the SIM card and press power key over 3s.
3.5
Maybe you need she APN first, get APN from GPRS Service Provider, then set APN refer 4.2.15
3.6
4. Setting by SMS
4.1 If use service platform, please login this website:
4.2 All of the following commands must be lowercase letters, all of the send commands will be reply. If
Freedom is lost now...!
Advertisement
Related Manuals for Ingolabs Pp2
Summary of Contents for Ingolabs Pp2
- Page 1 Gpstracker.net.in Freedom is lost now…! Pp2 model-gps watch Please read this manual carefully before attempting installation and online activation. Pictures are for indication and illustration purposes only. 1. Functions GSM 850/900/1800/1900MHz GPS location, GPRS data transmission Inquires the position by SMS or mobile phone or PC ...
- Page 2 Gpstracker.net.in Freedom is lost now…! set successful it will reply "set success!” otherwise need to set again. Send the corresponding commands the device will reply the corresponding results. 4.2.1 Set the center number: If you want to use SMS to set device’s working parameter or control the device, you must set the center number first.
- Page 3 Gpstracker.net.in Freedom is lost now…! GPS: GPS fixed or not, and the number of received GSP satellite GPRS: connected server or not, and the GSM signal level LED: soft switch of LED twinkle or off 4.2.8 time zone setting The different areas use different time zone setting. Command: lang,0,zone,n# Time zone n: n= -12 to +12 Anyways time gets automaticallyupdated when watch receives gps position...
- Page 4 Gpstracker.net.in Freedom is lost now…! Screen Status Description Patterning Description Means GPS model is working, and not fix （If the position no display, means GPS not working） Means GPS model is working, and fixed （If the position no display, means GPS not working） Means GSM signal level, five levels(0, 1、2、3、4) Means no SIM card Means battery level...
- Page 5 Note: 1. to know additional features of server plz click on this link. http://www.gpstracker.net.in/premiumserversupport.html 2.for quick setup manual download from below link http://www.gpstracker.net.in/QuickSetup_Downloads/pp2.pdf 3.. download android gps settings application : http://gpstracker.net.in/download/Gps%20Settings.apk 4.Download desktop application from http://www.gpstracker.net.in/download/pwebtrack.rar 5.
- Page 6 Gpstracker.net.in Freedom is lost now…! - 6 -...
