TECHVIEW QM-3578 User Manual

17” led surveillance monitor
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
17" LED Surveillance Monitor
QM-3578
User Manual
1

Advertisement

loading

Related Manuals for TECHVIEW QM-3578

Summary of Contents for TECHVIEW QM-3578

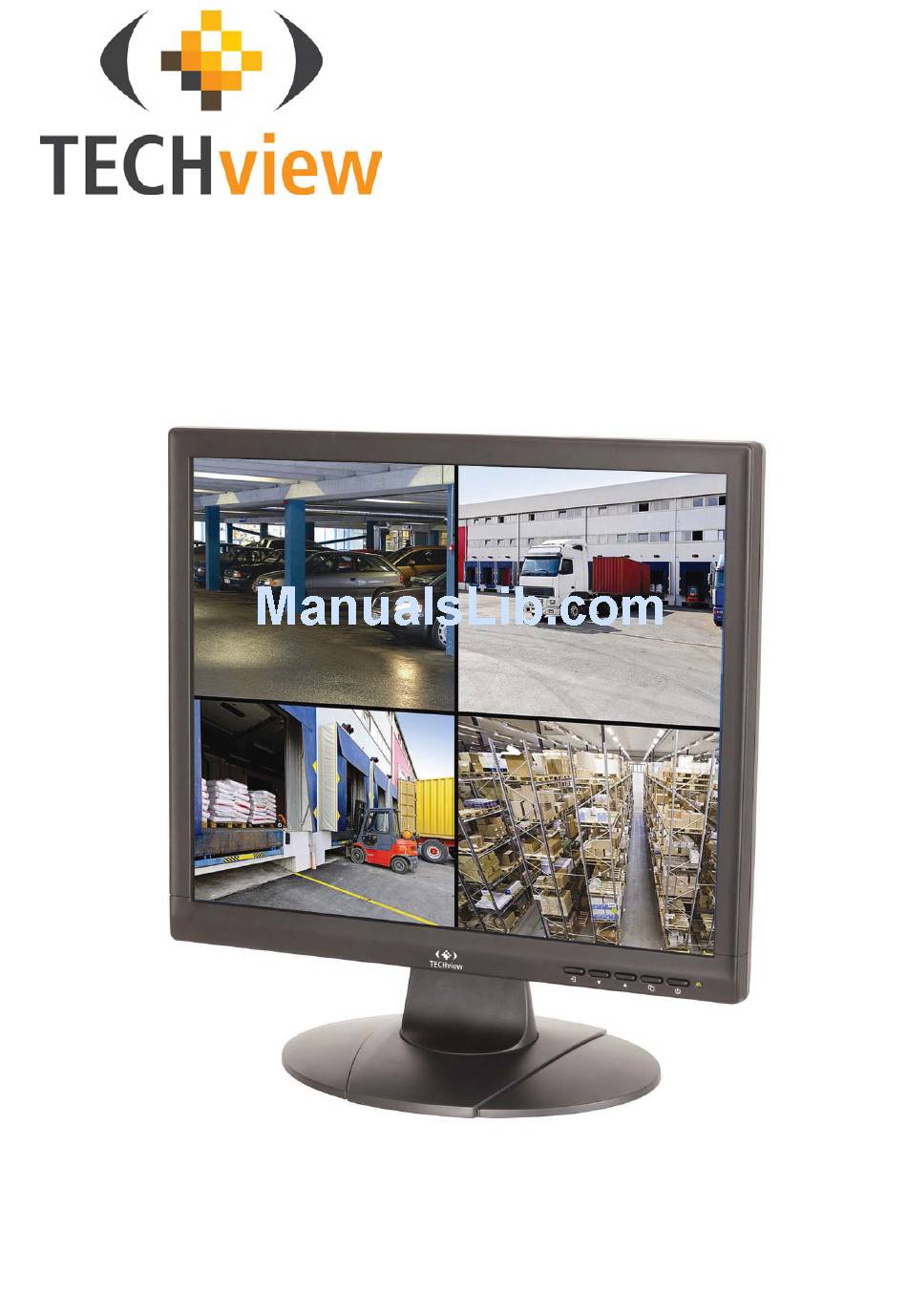

  • Page 1 17” LED Surveillance Monitor QM-3578 User Manual...

  • Page 2: Box Contents

    Box Contents: 1 x 17” LED Surveillance Monitor 1 x Power Cable 1 x HDMI Cable 1 x VGA Cable 1 x 3.5mm Audio Cable Connection Diagram: Please connect the monitor to the external device according to the following I/O interface list. A.
  • Page 3 A. “Source” button  Press the button to display all the input channel menus of devices connected. B. “Up” button  Press the button to move the cursor up to the required function.  Press the button to choose function in the OSD menu. C.
  • Page 4 Audio Menu: The Audio menu can set bass, treble, balance and sound mode. Press the▲▼ buttons to move or press the menu button to confirm and exit. Picture Menu: The Picture menu can set contrast, brightness, hue, saturation, sharpness, colour temperature, overscan and picture mode.
  • Page 5 OSD Menu: The OSD menu can set sleep timer, auto sleep, language, H-position, V-position, duration, transparency and reset defaults. Press the ▲ ▼ buttons to move or press the menu button to confirm and exit. Geometry Menu: The Geometry menu can set H-position, V-position, clock, phase and auto adjust. Press the ▲▼...
  • Page 6 Channel selection The “Source” menu can select channel, the options include VGA, HDMI, BNC, S-VIDEO. Press the ▲▼ buttons to select or press the menu button to confirm. Trouble shooting: Please refer to the table below for trouble shooting methods: Handling method Problem No image or sound...
  • Page 7 Method Change to another channel or source Check if the video line is connected Check if the audio line is connected Possible interference with another electrical product Adjust the fine tuning setting Adjust the luminance setting Adjust the contrast ratio setting Adjust the colour setting Check the systems settings to see if it is set correctly Check if the power is connected and turned on...

  • Page 8: Specifications

    before turning on the power. Turn off the power when clean the product.  Do not touch the fixed components inside the monitor otherwise it might cause damage  to people or the monitor. Please put the facility in a flat, stable and dry place, avoid direct sunlight, high ...
