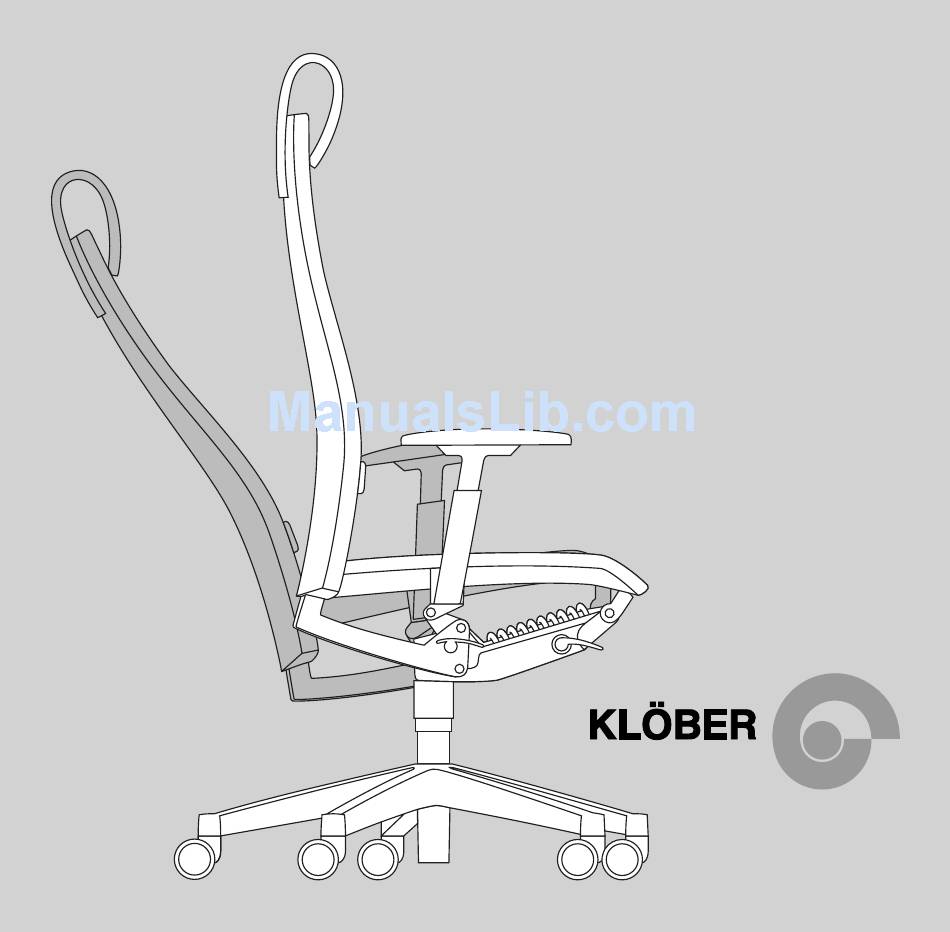

- Page 1 Operators manual CIELLO Office swivel chair for VDU-workstations and desk-workstations...
- Page 2 CIELLO Operating System whilst seated left whilst seated right Air-Support Depth-adjustment Body weight adjustment Locking of Synchro- Seat height mechanism adjustment...
- Page 3 „Air-Support“ height adjustment lumbar support...
- Page 5 Seat height adjustment Your chair can be height-adjusted from 40 to 53 cm using a safety gas spring. Pull the lever under the front right of the seat up and the seat height can be adjusted. Release the lever and the seath height is fixed.
- Page 7 Your Ciello has a practical quick-adjustment system for the bodyweight setting. Adjustment is made using the lever in the middle under the right hand side of your seat.
- Page 9 Locking of the sitting position From an ergonomical point of view, it is adventageous to have continously changing sitting positions whilst working (dynamic seating). However, if required, you can lock the mechanism in pla- ce and thereby temporarily disable the synchro motion. To do this move the lever under the front of the left hand side of the seat downwards –...
- Page 11 Height-adjustable lumbar support (optional) If your Ciello has a so-called „Air-Support“, an inflatable air cushion, integrated into the backrest, which provides adjustable lumbar support, there are two ways to adjust • height adjustment by approx 6 cm • depth of lumbar support, giving a stronger or weaker support.
- Page 13 Adjustable lumbar support (optional) The inflatable air cushion („Air-Support“) allows an alte- ration of the backrest’s shape. Simply squeeze the pump continously (1) until the desired support is achieved. Air is released by pressing button (2) whereby the lumbar support is relaxed.
- Page 15 Adjustable headrest (optional) This chair has an (optional) adjustable head- and neckrest. To adjust the height there is a ratchet slide mechanism - simply pull the rest up and down.
- Page 17 4FD-Arm-Supports The Arm Supports on your Ciello have several functions: 1. Height adjustment +10 cm. Use the button under the arm surface. Press-adjust height – release. Position is now set. 2. Horizontal adjustment of the arm by 5 cm: Push back- wards and forwards on the ratchet slide, until the required position is set.
- Page 18 Norms / Certificates Certificate for ergonomy í The basic data for manu- í facturing CIELLO chairs are CIELLO swivel chairs have the norms and requireme- been verified and certified ments of current seating by LGA Nürnberg: technology. „Approved Safety“ „Certificate for ergonomy“.
- Page 19 Guarantee exchange of castors must take place when changing í You have two years from carpet floor to hard guarantee for this chair. floor and vice versa. For special versions made to customers’ own require- Important notice ! ments, the legal guarantee is applicable.
