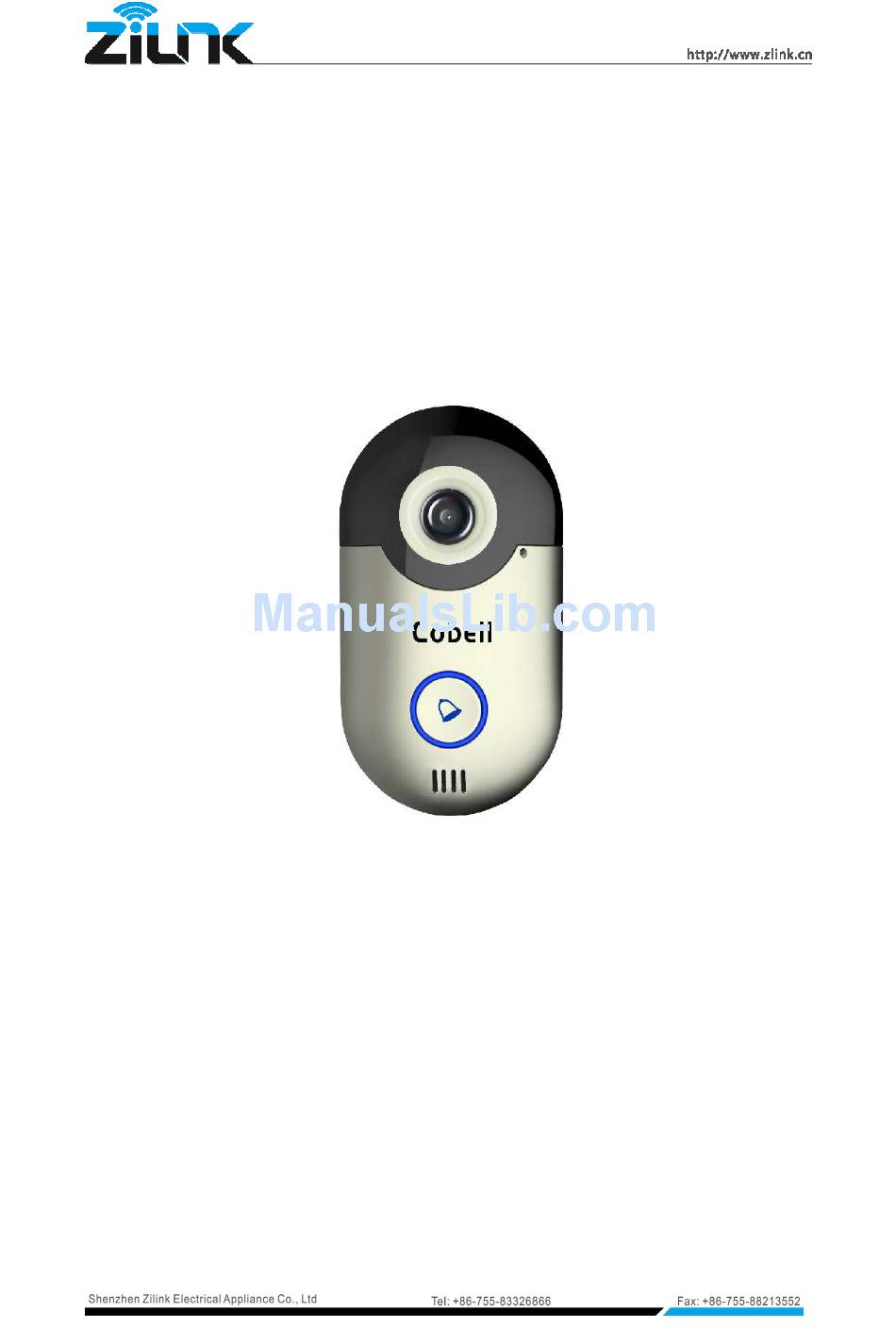

- Page 1 Cobell Installation Guide Wi-Fi Doorbell V1.0...
-
Page 2: Table Of Contents
Contents 1.Preface..........................3 1.1 Diagram........................3 1.2 Package........................4 2.Installation.........................4 2.1 Install the Bracket....................4 2.2 Install the Doorbell....................5 2.3 Power Line Connection ..................5 2.4 Power On........................6 3.Wi-Fi Connection Quick Guide ..................7 3.1 Install the APP ......................7 3.2 Enter Setting Mode....................7 3.3 Set the Wi-Fi Connection ..................7 3.3.1 Connect to the AP Host of Doorbell .............7 3.3.2 Add the Doorbell on APP ................7 3.3.3 Set the Doorbell Connect to the Wi-Fi Router ..........7... -
Page 3: Preface
1.Preface Thank you for using the Wi-Fi Doorbell..Cobell. This is the new smart home wireless doorbell. It supports two way audio, motion detection, snapshots, recording and more. Please take a minute to carefully review these instructions. 1.1 Diagram Front Back 1. -
Page 4: Package
1.2 Package 2. Installation Tools you may need: Pliers, Power Drill or Screw Driver, Wire Strippers, Insulation Tape. Statement: Drill two screw holes on the position that the doorbell will be installed, and put the rubber plug inside, punch a small hole for threading all the cables in advance. Note: The sample installation is on the wooden door, just FYI. -
Page 5: Install The Doorbell
Find the bracket in the package and mount it with the screws, please make sure it vertical. 2.2 Install the Doorbell After the bracket is installed, put all the cables through the small hole, and install the doorbell on the bracket. Then install the screw at the bottom, please make sure it’s tight. 2.3 Power Line Connection... -
Page 6: Power On
Attention: 1. There is no positive or negative for the power line of the doorbell. 2. The Doorbell can only connect to low voltage power from 12~24VAC or 12VDC / 0.5A. 3. Please use insulation tape to keep the power line safely connected. 4. -
Page 7: Wi-Fi Connection Quick Guide
Note: If the Wi-Fi connection settings failed, please make sure the Wi-Fi SSID and password is correct and try it again. 4. APP User Manual for Android 1. Search ”Cobell” from Google Play and install the APP. 2. Click the “Cobell” icon and run the APP. - Page 8 3. The APP main interface, click to show APP settings. Doorbell: Doorbell List Record: Show Visitor Call Information Picture: Show SnapShot Video: Show Record Video File Bell Ring: Set Bell Ring Tone Alarm Ring: Set Alarm Ring Tone About: About the APP information 4.
- Page 9 It supports three types to add a doorbell 1. Type in the Bell ID manually 2. Scan QR Code on the doorbell or package 3. Search in the LAN Then input the doorbell default username admin, no password. 5. Access the Doorbell. :Hold the microphone icon to speak : To listen the sound or mute :Take Video...
- Page 10 6. Please click to change the advanced settings. Voice Prompts: If off, you won’t hear the voice prompts of doorbell Configuration mode: If off, you can’t enter the doorbell setting mode Monitor max time: 10~300 seconds Conversation max time: 10~300 seconds Call wait max time: 10~60 seconds This will allow 5 users to connect to the doorbell at the same time.
- Page 11 This function is in the course of development. Can’t ensure it work normally. Currently the doorbell only supports a motion detection alarm. For the sensitivity, the smaller value the more sensitivity. Delay time means the doorbell will not alarm during the Delay time even it detects motion. The Lock settings is in the course of development.
-
Page 12: App User Manual For Ios
You can set the Doorbell time in Equipment time settings. Click “Manage WiFi Network”, Connect the doorbell with the corresponding SSID. 5.APP User Manual for iOS 1. Download “Cobell” from Apple Store and install the APP. 2. Click the “Cobell” icon and run the APP. - Page 13 3. The APP main interface, click” ” to show the Settings. :Show Doorbell List :Show Visitor Call Information :Show Snapshot :Show Recorded Video File :Set the Call ringtone and Alarm ringtone. :About APP Information 4. Add a Wi-Fi Doorbell. It supports three types to add a doorbell 1.
- Page 14 5. Access the Doorbell . :To listen the sound or mute :Take Video :Take Snapshot :In the course of development, can’t prove this function work normally with all electronic Locks : Prolong the monitor time : Hold the microphone icon to speak 6.
- Page 15 This will allow 5 users to connect to the doorbell at the same time. The same user can’t login to the doorbell on different Smart Phones or Tablets and only the administrator can modify, add or delete User2 thru User5. This function is in the course of development.
- Page 16 The Lock settings is in the course of development. Can’t ensure this function work normally with all the electronic Locks. You can set the doorbell time in Equipment time settings. You can connect the doorbell with corresponding SSID in the WiFi Settings.
-
Page 17: Rf Bell Setting
6. RF Bell Setting Press and hold the RF Bell Volume button, and press the doorbell button for at least 3 times. Then the doorbell will connect with the RF Bell Receiver. The RF Bell supports digital match code, normally, one Wi-Fi doorbell can connect any quantity of RF Bell which you plan to install. -
Page 18: Technical Support
If you have any good suggestions, please contact us freely. For Video, please visit YouTube. For more information, please visit our official website: www.zilink.cn. -
Page 19: Fcc Statement
FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
