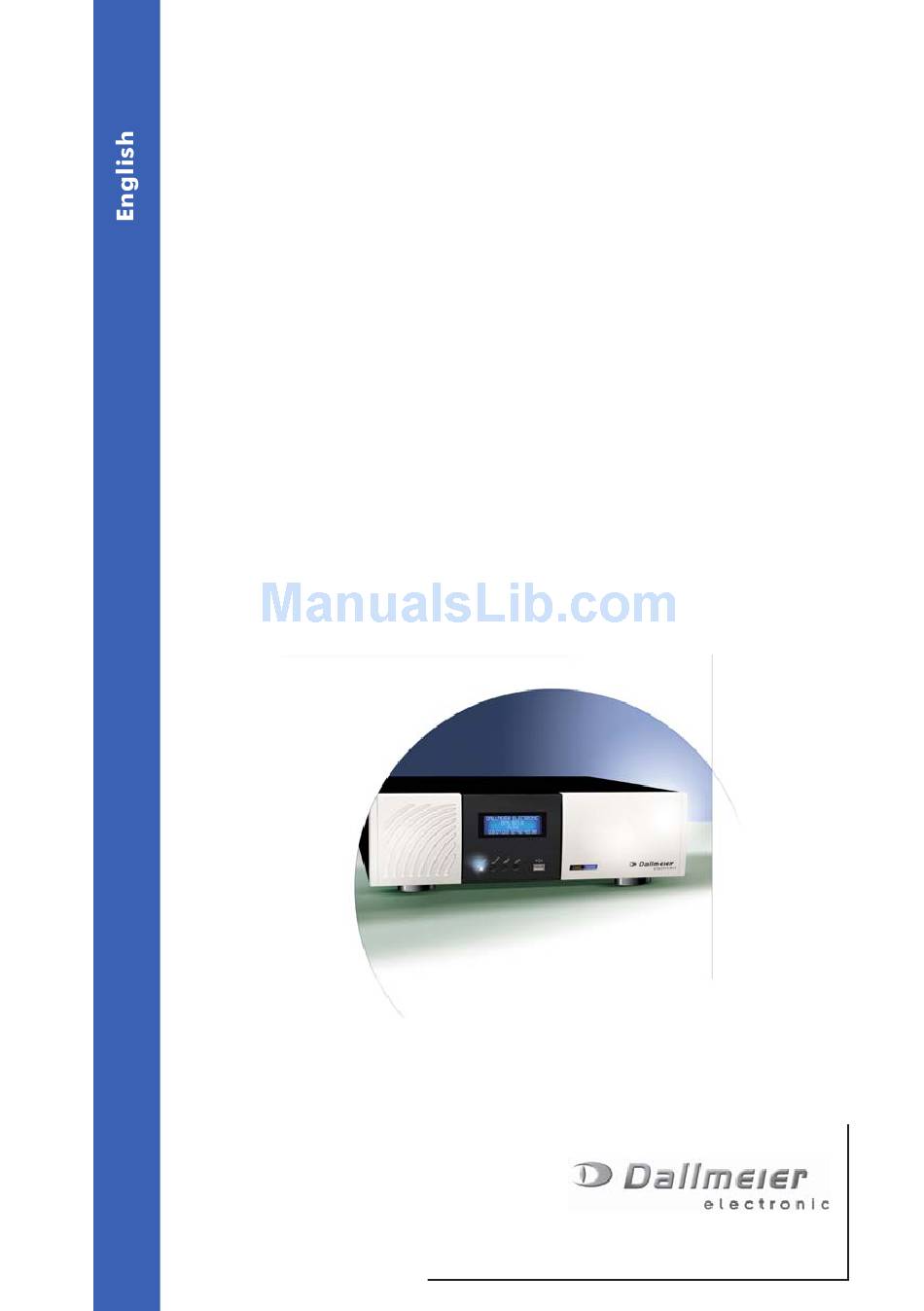

  • Page 1 Installation and configuration Digital HD Recorders DMS 180 III DMS 180 III Enterprise DLS 6 S1 DLS 24 S1 Dallmeier electronic GmbH & Co.KG DK 124.001 EN / Rev. 4.1.0 / 070516...
  • Page 2 All rights reserved. This document may not be copied, photocopied, reproduced, translated, transferred to an electronic medium or converted to a machine-readable form either whole or in part without first receiving written permission from Dallmeier electronic GmbH & Co.KG. We reserve the right to make technical modifications.

  • Page 3: Table Of Contents

    6.3.3 Controlling time centrally via network ........... 51 Setting sequencer ................53 Selecting cameras for the sequencer ..........53 Removing cameras from the display sequence ........54 Blocking cameras for the display sequence ......... 54 Dallmeier electronic GmbH & Co.KG...
  • Page 4 Keyboard mode ................... 85 Test modes ..................85 Available compression levels ............... 88 Assistant mode ................... 89 Logging ....................91 Track settings ..................93 10.1 Picture count setting ................93 10.2 Characteristics of the standard track ........... 95 Dallmeier electronic GmbH & Co.KG...
  • Page 5 Network setup ................... 127 15.1.1 Ethernet / Tokenring ................128 15.1.2 ISDN ....................129 15.1.3 PSTN (Modem) ................. 132 15.1.4 System Name ..................134 15.1.5 Alarm hosts ..................134 15.2 Network - import / export ..............144 Dallmeier electronic GmbH & Co.KG...
  • Page 6 Identifying camera as controllable ............181 18.4.2 Setting camera ID ................182 18.5 Controlling a camera ................. 183 Camera configuration via UTC ............185 19.1 Settings required on the DMS/DLS ............ 185 19.2 Control panel for UTC control ............186 Dallmeier electronic GmbH & Co.KG...
  • Page 7 21.2.5 User options ..................198 Camera termination ................ 201 System parameter export/import ........... 203 23.1 Parameter export ................203 23.2 Parameter - Import ................203 Troubleshooting ................205 Technical data ................. 207 Appendix ..................211 Dallmeier electronic GmbH & Co.KG...
  • Page 8 Digital HD Recorders DMS/DLS Dallmeier electronic GmbH & Co.KG...

  • Page 9: About This Document

    About this document Validity This document is valid for the following systems: DMS 180 III DMS 180 III Enterprise DLS 6 S1 DLS 24 S1 To make things easier, the term "DMS/DLS" is used for all systems in this document.

  • Page 10: Storing The Documents

    IMPORTANT The word IMPORTANT denotes information for preventing damage, incorrect configurations or incorrect actions. NOTE A NOTE offers information on principles, special features and efficient procedure as well as general recommendations. Dallmeier electronic GmbH & Co.KG...
  • Page 11 Expression Expressions in bold and italics generally indicate a control element on the device (switches or labels) or on its user interface (buttons, menu entries). Dallmeier electronic GmbH & Co.KG...
  • Page 12 Digital HD Recorders DMS/DLS Dallmeier electronic GmbH & Co.KG...

  • Page 13: For Your Safety

    Do not make modifications Do not make any modifications to the unit (neither to the software nor the hardware) without consulting Dallmeier electronic. Improper modifications can cause malfunctions or damages. Dallmeier electronic GmbH & Co. KG accepts no liability for damages resulting from unauthorized or improper modifications to the unit.
  • Page 14 Furthermore, the use of peripheral devices that are not tested and approved by Dallmeier electronic results in loss of warranty. In case of doubt, contact the sales partner responsible for your area.
  • Page 15 (pull out the po- wer plug). Please contact the sales partner responsible for your area. Disposal Disconnect the unit from the power supply. Remove all connected units and system components. Return the unit to your respective sales partner. Dallmeier electronic GmbH & Co.KG...
  • Page 16 Digital HD Recorders DMS/DLS Dallmeier electronic GmbH & Co.KG...

  • Page 17: Scope Of Delivery, Transportation

    (accessories). Transportation and packaging Store the original packaging for transportation at a later date. Dallmeier electronic is not responsible for damage resulting from unprofessional/improper transportation. The goods should only be shipped in their original packaging. If the original packaging is no longer available, ensure that the packaging used sufficiently protects the unit against damage, moisture, heat and cold.
  • Page 18 Digital HD Recorders DMS/DLS Dallmeier electronic GmbH & Co.KG...

  • Page 19: Installation And Mounting

    DMS/DLS and the power supplies for their additional components. The DMS/DLS and system components may never be operated with a voltage other than the specified mains voltage. Otherwise, the DMS/DLS can be permanently damaged. Dallmeier electronic GmbH & Co.KG...

  • Page 20: Stand-Alone Installation Of System

    If your DMS/DLS is to be mounted in a 19" equipment cabinet, a corresponding unit bracket is required. 1 Inserting DMS/DLS in 19" bracket Place your DMS/DLS in the unit bracket so that the unit feet are seated in the corresponding cut-out areas (A) (see Fig. 4- Dallmeier electronic GmbH & Co.KG...
  • Page 21 Secure the DMS/DLS to the unit bracket with three screws. Use the holes 1 to 3 for this purpose. The required screws are included with the unit bracket. Fig. 4-2: Holes for securing the DMS/DLS Dallmeier electronic GmbH & Co.KG...

  • Page 22: Mounting With Vds Mounting Kit

    German loss-prevention company) with regard to sabotage protection. NOTE The DMS 180 III is VdS certified if the systems has been configured as a VdS unit at the factory and mounted with the VdS mounting kit on site. Dallmeier electronic GmbH & Co.KG...
  • Page 23 Screw the fixed-mount frame (A) to the support surface with four bolts (B). Leave sufficient space for cable installation in the rear. Space for 10 cm space for connections outlet fan 10 cm space for intake fan Fig. 4-4 Dallmeier electronic GmbH & Co.KG...
  • Page 24 (C) off. IMPORTANT Damage to components susceptible to static electricity when touched. Ensure that you are discharged of static electricity (grounded) before touching the DMS/DLS. Wear suitable ESD shoes or a grounding strip. Fig 4-5 Dallmeier electronic GmbH & Co.KG...
  • Page 25 For safety reasons, place the housing cover back on the system before any further testing. Do not screw the cover down yet, as it must be removed once again for installation of the cable cover (Item 6). Dallmeier electronic GmbH & Co.KG...
  • Page 26 Insert the cable cover (H). When doing so, raise the cable cover slightly to hook in the guide projections (J). Ensure that the securing tab (I) is positioned above the threaded hole (K). Fig. 4-7 Dallmeier electronic GmbH & Co.KG...
  • Page 27 Affix the VdS seal over screw D. This seal is used for security and is damaged when the screw is loosened. The seal is included in the VdS kit. The VdS seal can also be ordered separately. Fig. 4-8 Dallmeier electronic GmbH & Co.KG...

  • Page 28: Removal

    Fault alarm will be triggered if removal is carried out incorrectly! Ensure that the DMS/DLS is shut down. Ensure that a fault alarm cannot be triggered. To mount, follow the procedure in reverse order for the cable cover and fixed-mount frame. Dallmeier electronic GmbH & Co.KG...

  • Page 29: Connection

    Danger of death from electric shock caused by lightning. Data transfer and video cables may not be connected or detached during a storm. Connection assignment 2 8 9 10 11 18 19 Fig.: 5-1 Fully-equipped system Dallmeier electronic GmbH & Co. KG...
  • Page 30 Video inputs C1 through C24 The 24 video inputs of the DMS 180 III and DLS 24 S1 are BNC jacks labeled C1 through C24. Termination of the video inputs can be activated and deactivated individually via the software.
  • Page 31 (e.g. ISDN or SCSI). PS/2 mouse connection A PS/2 mouse is required if you operate your system via a video monitor. The menus for playback and setup are presented on the video monitor (video outputs M1/M2). Dallmeier electronic GmbH & Co. KG...
  • Page 32 Blue Line in 15 VGA connection SCD 25 This VGA connection is to be used with DMS 180 III, DLS 6 S1 and DVS 600 systems if splitter card MCD 25 (14) was not also ordered. The splitter card MCD 25 is already integrated into recording system DLS 24 S1.
  • Page 33 The ISDN connection is optional for all systems. 19 SCSI connection* The SCSI connection is optional for all systems. 20 Sensor card* When a sensor card (optional) is used, your system can be operated as a video sensor with integrated recording. Dallmeier electronic GmbH & Co. KG...

  • Page 34: Connection Panel

    IN and OUT are found on the connection panel. Video input contacts The BNC jacks for inputs 19 to 24 are only connected on DLS 24 S1 and DMS 180 III systems. Contact IN Camera-based contacts The fourth pin strip...

  • Page 35: Connection Variants - Vga/Cvbs/Yc

    CVBS or Y/C monitor is used on the CVBS or Y/C output of the MCD 25. The following applies, in general: If you would like to work with the VGA interface, the USB connection for the mouse is to be used. Dallmeier electronic GmbH & Co. KG...
  • Page 36 When using the PS/2 mouse, a menu is only seen on the VGA monitor if a split window was defined as „Monitor Split“ in the splitter configuration. IMPORTANT If you use a Y/C or FBAS monitor, please contact your sales partner. Dallmeier electronic GmbH & Co. KG...

  • Page 37: Contact In

    5.4.1 Contacts for individual cameras The DLS 6 S1 system has three 8-pin Vago pin strips. The DLS 24 S1 and DMS 180 III systems each feature four 8-pin pin strips. Contacts for individual cameras Camer as 1 through 6...

  • Page 38: Global Contacts

    Interfaces > Contact IN dialog. Global contacts G1 through G6 Fig. 5-7 Both outer pins of the pin strip for global contacts are also grounded. The contact pins are designated G1 through Fig. 5-8 Dallmeier electronic GmbH & Co. KG...

  • Page 39: Relay Contacts (Contact Out)

    Voltage limits are yielded from the insulation densities and the protective cut-off. Switching speed of the output relay 200 ms or slower (VdS); must be reduced via software, as approx. 100 ms is possible. Dallmeier electronic GmbH & Co. KG...

  • Page 40: Quiescent-Current Monitoring

    (internal resistance Ri) via relay 1 and resistor R1. at X12 Flowing current IR corresponds to the quiescent current of the burglar alarm. Rel 1 IO-PCB Fig. 5-9: Principle of quiescent-current monitoring Dallmeier electronic GmbH & Co. KG...

  • Page 41: Required Work On The Recorder

    Chap. Mounting during installation must be observed. Shut down your system and disconnect the unit from the mains (pull mains plug) before opening the system and beginning the work described in the following. Dallmeier electronic GmbH & Co. KG...
  • Page 42 The X12 contact strip should be separated from the base and not attached to the base again until R1 has been soldered in. IMPORTANT Solder remains can cause a short-circuit and subsequent failure of the system. Dallmeier electronic GmbH & Co. KG...
  • Page 43 Information regarding the quiescent current, internal resistance and voltage is found in the manual for the respective burglar alarm. In general, resistance corresponding to the R1 resistor is also delivered with the burglar alarm. Dallmeier electronic GmbH & Co. KG...
  • Page 44 Digital HD Recorders DMS/DLS Dallmeier electronic GmbH & Co. KG...

  • Page 45: Basic Settings

    For this purpose, click the number 3 on the virtual keyboard and confirm your input by clicking OK. Click the Setup button. Fig. 6-1 Additional selection options for setting your system appear in the dialog selection which appears. Dallmeier electronic GmbH & Co.KG...

  • Page 46: Selecting Language

    The language must be adjusted by clicking on Stan- dard. IMPORTANT If entries for Search criteria have already been changed manually, these changes will be lost when you click on Standard. The Search criteria dialog will then only contain the standard entries. Dallmeier electronic GmbH & Co.KG...

  • Page 47: Selecting System Parameters

    Bank system parameters when used in banks and credit institutions taking Accident Prevention Regulations into account. NOTE Please note that only the Industry system parameters are available for the DMS 180 III Enterprise. This dialog is accessed via: Setup > System > System Parameters Click the Default button for the selection of System Parame- ters.

  • Page 48: Setting Date And Time

    Fig. 6-3 You can set the date and time manually with the cursor buttons In the Date Format field you can adjust the format for the date display to the form common in your country. Dallmeier electronic GmbH & Co.KG...

  • Page 49: Setting Time Zone

    COM interface to which the radio clock module DCF 77 is connected. The connection of the radio clock model DFM-1-USB is made via the USB port. The activation is done via Setup > System > Time. Fig. 6-4 Dallmeier electronic GmbH & Co.KG...
  • Page 50 The deviation of the set time from the actual time is too large. In this case, set the time manually first. The set time may not deviate more than 1 000 seconds from the actual time. Then activate the radio clock module. Dallmeier electronic GmbH & Co.KG...

  • Page 51: Controlling Time Centrally Via Network

    Use timeserver mode. Mark the Client function. Enter the IP address of the DMS/DLS set as the Master with the virtual keyboard. A click on the button Ping starts a test of the connection. Fig. 6-6 Dallmeier electronic GmbH & Co.KG...
  • Page 52 Digital HD Recorders DMS/DLS Dallmeier electronic GmbH & Co.KG...

  • Page 53: Setting Sequencer

    The selected cameras and their order are displayed in the Display Sequence field. If you click the button with the camera symbol (A), the list of active cameras is updated. Fig. 7-1 Dallmeier electronic GmbH & Co.KG...

  • Page 54: Removing Cameras From The Display Sequence

    If the camera(s) is/are also to be blocked from track playback, we recommend setting up a se- parate track for the recording of all "blocked" cameras. By issuing corresponding authorizations (see Chap. User manager), this track can only be viewed by selected users. Dallmeier electronic GmbH & Co.KG...

  • Page 55: Switching Speed Of The Sequencer

    10 seconds. Activating event switching If the picture of a camera is to be switched to based on an event, you can select between Movement and Contact in the Event Switching field. Fig. 7-5 Dallmeier electronic GmbH & Co.KG...

  • Page 56: Settings For Monitor 2

    If you use the USB mouse to operate the DMS/DLS, the display of menus on the FBAS monitors is generally suppressed. When playing back recorded pictures, you will also see this playback on the FBAS monitors. Dallmeier electronic GmbH & Co.KG...

  • Page 57: Deactivating Picture And Menu Display On Monitor 2

    Monitor 2. The normal sequencer mode is retained on Monitor 2. All access to the menus and the evaluation of recordings is thus hidden from the viewer of Monitor 2. Dallmeier electronic GmbH & Co.KG...
  • Page 58 Digital HD Recorders DMS/DLS Dallmeier electronic GmbH & Co.KG...

  • Page 59: Camera Settings

    (A). A camera symbol will appear. Clicking the camera symbol again undoes the selection. If the pictures of a camera are to be recorded on a single track (track "S"), click the corresponding checkbox under Standard (C). Dallmeier electronic GmbH & Co.KG...

  • Page 60: Displaying Preview

    Ring recording can occur on tracks 1 to 3 (common name A, B and C). The number of pictures per track can be selected as desired (see Chap. Track settings) and determines the recording duration on the track. Dallmeier electronic GmbH & Co.KG...

  • Page 61: Camera Settings (Recording Mode)

    Motion detection/sensitivity Recording interval normal (sec.) Use Camera Timer Alarm recording interval (sec.) Database usage Pre-alarm picture count Recording Options Pre-alarm recording interval (sec.) Contact recording duration (sec.) Compare sense time (0.0 - 9.0 sec.) Dallmeier electronic GmbH & Co.KG...

  • Page 62: Recording Modes

    Very sensitive Sensitive If Motion Detection was selected in the Normal Recording Mode field, the sensitivity of the Insensitive motion detection can be set here. The Very insensitive sensitivity can be set to 5 different levels. Dallmeier electronic GmbH & Co.KG...

  • Page 63: Contact Recording Modes

    A contact immediately saves the recording track before being overwritten. Mark If a contact is triggered, a mark (index) is written onto the recording track. With this, you can skip from index to index during a picture search. Dallmeier electronic GmbH & Co.KG...
  • Page 64 Recording interval = 0.500 (2 pictures/sec.) Fig. 8-6 If the timer contact is triggered again during a timer recording, the recording is extended from this point in time according to the recording duration set in the Contact Recording Duration field. Dallmeier electronic GmbH & Co.KG...

  • Page 65: Contact Recording Mode Save And Event

    Contact Recording Duration field from this point on. Once this time has expired, the track in question, and thus the recording, is saved (delayed save). With Event, recording occurs before and after the event which triggered the contact. Dallmeier electronic GmbH & Co.KG...

  • Page 66: Contact Recording Duration

    Contact recording duration The value in the Contact Recording Duration field determines the recording duration for contact recording modes Timer and Event. The following table shows an overview of possible/useful settings in relation to the recording modes. Dallmeier electronic GmbH & Co.KG...

  • Page 67: Recording Interval

    (up to 25) for each trigger (e.g. with motion detection). Depending on the activity, this would decrease the ring memory accordingly. Recording interval normal The value in the Recording interval normal field determines the recording rate during normal operation. Dallmeier electronic GmbH & Co.KG...

  • Page 68: Resolution - Normal/Resolution - Alarm

    In this field, you can enter the number of pictures to be recorded in a separate ring memory. This pre-alarm ring is saved when recording is triggered in recording modes Motion Detection and Contact. Recording is then continued in accordance with the configuration. Dallmeier electronic GmbH & Co.KG...

  • Page 69: Compare Sense Time

    If your settings are to apply equally for all cameras, activate the chekbox next to Track Specific. If you would like different settings for different cameras, activate the radio button Camera Specific and repeat the individual steps for the connected camera. Fig. 8-8 Dallmeier electronic GmbH & Co.KG...

  • Page 70: Using A Database

    – header2 – header3 etc. model. A picture search using the database is thus more effective and faster, as the individual headers can be searched one after another. Dallmeier electronic GmbH & Co.KG...

  • Page 71: Changing Camera Names

    On. Changing camera names Each camera is given the number of the respective video connection. For a unique assignment to the monitoring area of the cameras, the numbers can be replaced by clear, identifying names. Dallmeier electronic GmbH & Co.KG...

  • Page 72: Recorder And Camera Description

    Click on Setup > Recording > Camera descriptions. In the Camera description dialog you can enter a more precise designation for both your recording system and for the various cameras. Fig. 8-12 Dallmeier electronic GmbH & Co.KG...
  • Page 73 When playing back pictures that were recorded after activating the search items, the detailed description is displayed at the upper right. Fig. 8-14: Display during playback Dallmeier electronic GmbH & Co.KG...

  • Page 74: Sedor

    SEDOR and click the corresponding field (see Fig. 8-15, A). Fig. 8-15: SEDOR field is red. The learning process is in progress. This field is initially shown in red. Dallmeier electronic GmbH & Co.KG...

  • Page 75: Parameter Setting For Sedor

    Sedor field. The SEDOR Properties for Camera No..dialog opens. Fig. 8-17 The Limit slider allows you to define the limit (in %) for the edge criterion. Dallmeier electronic GmbH & Co.KG...

  • Page 76: Restarting Learning Process For Sedor

    A reanalysis of the picture information and saving of the relevant characteristics is started automatically. After the learning process is completed (display for State of Learning is green, 100 %), click on Close. Dallmeier electronic GmbH & Co.KG...

  • Page 77: Activating Smartfinder Function

    Click in the Camera settings dialog in the SF column on the field for the camera you want to activate SF for. Fig. 8-18 2 Activating object coordinates as search criterion Activate the checkbox for the Object coordinates option in the Search Items dialog. Fig. 8-19 Dallmeier electronic GmbH & Co.KG...

  • Page 78: Advanced Settings In The Smartfinder

    These positions are only saved, however, if a picture corresponding to the frame rate was also recorded. In the Camera Settings dialog right-click the respective SmartFinder field to open the Settings for SmartFinder dialog. Fig. 8-20 Dallmeier electronic GmbH & Co.KG...

  • Page 79: Sensitivity

    To see the relation between track 1 and track 2 of a SmartFinder database entry, a database entry of one event (track 1) is also to apply for the following recorded picture on track 2. Dallmeier electronic GmbH & Co.KG...
  • Page 80 The disadvantage here, however, is that the number of pictures on track 2 must be increased or the total recording time on track 2 must be reduced. Dallmeier electronic GmbH & Co.KG...

  • Page 81: Activating Camera Control

    Fig. 8-21 At this you distinguish two different types of Camera control: Control of an S/N head or dome camera via DNI. Control or Configuration of a UTC-capable Dallmeier electronic camera. The configuration of both variants is described separately in the chapter 19 and 20.
  • Page 82 Digital HD Recorders DMS/DLS Dallmeier electronic GmbH & Co.KG...

  • Page 83: Options

    IMPORTANT Accident Prevention Regulation for Banks - system parameter Bank! If the system parameters for "Bank“ are set, the minimum alarm duration is permanently set to 900 seconds. No setting under 900 seconds is possible. Dallmeier electronic GmbH & Co.KG...

  • Page 84: System Messages

    Clicking the System Messages button shows the available and freely selectable messages. A message then appears if the corresponding checkbox was activated. Hard disk faults are generally displayed. Fig. 9-2 Dallmeier electronic GmbH & Co.KG...

  • Page 85: Keyboard Mode

    DMS/DLS. For normal operation of the DMS/DLS, always select Off here. Fig. 9-4 Dallmeier electronic GmbH & Co.KG...
  • Page 86 The small number shows the quantity of detected objects. Number of detected objects Video input Fig. 9-7: One moved object detected Fig. 9-6: No moved objects NOTE Precise evaluation of the motion detection display remains reserved for the specially-trained professionals. Dallmeier electronic GmbH & Co.KG...
  • Page 87 Fig. 9-8: Tracking Performance display The performance display provides information on the system utilization of your DMS/DLS. NOTE Checking the system utilization is provided as a tool for trained professionals in case of problems. Fig. 9-9 Dallmeier electronic GmbH & Co.KG...

  • Page 88: Available Compression Levels

    This dialog allows to define the selectable compression levels and their designations for the Tracks dialog. The compression level „0“ corresponds to the lowest and „4“ to the highest compression. Clicking on the Compression levels… button shows the selectable compression levels. Fig. 9-10 Dallmeier electronic GmbH & Co.KG...

  • Page 89: Assistant Mode

    The activation and configuration of the assistant mode can only be carried out by the administrator. Click the Assistent mode… button to open the Dialog Selection for Setup Assistent Mode (see fig. 9-12). Fig. 9-11 Dallmeier electronic GmbH & Co.KG...
  • Page 90 The corresponding authorizations must be activated in the User Management (see section User Management) to make the selected setup dialogs available in the assistant mode. If these authorizations are deactivated, the setup dialogs will be shown in gray. Fig. 9-13 Dallmeier electronic GmbH & Co.KG...

  • Page 91: Logging

    Setup > System > Options> Logging Fig. 9-14 First select the protocol level: Low, Medium or High (A). If necessary, adjust the logging settings by checking or unchecking the corresponding checkboxes. Finally confirm by clicking on OK. Dallmeier electronic GmbH & Co.KG...
  • Page 92 Digital HD Recorders DMS/DLS Dallmeier electronic GmbH & Co.KG...

  • Page 93: 10 Track Settings

    The recording rate is to be 4 pictures per second. 24 hours = 86 400 seconds At 4 pictures per second, the picture count over 24 hours 4 x 86 400 = 345 600 pictures. Dallmeier electronic GmbH & Co.KG...
  • Page 94 The name standard track applies for the Indus- trie system parameters. The function and characteristics, however, are identical to the holdup track (Bank system parameters) and gas pump (Tank system parameters). Dallmeier electronic GmbH & Co.KG...

  • Page 95: Characteristics Of The Standard Track

    400) must be recorded per camera. Setting for track 1, 2 or 3: As the pictures of all 3 cameras are recorded to one track, the picture count must be set to 518 400 (3 x 172 800). Dallmeier electronic GmbH & Co.KG...
  • Page 96 The 2 700 pictures consist of: 900 pre-alarm pictures (recording rate: 1 picture/ second) and 1 800 alarm pictures (recording rate: 2 pictures/ second). With this setting 15 minutes of recording each are ensured for the pre-alarm and the alarm. Dallmeier electronic GmbH & Co.KG...

  • Page 97: 10.2.2 Using The Standard Track For Alarms

    With an alarm, the frame rate is to be 2 pictures per second and the recording duration 15 minutes as well. Recording occurs continuously for pre- and post-alarm. The appropriate required frame rate (recording interval) is set in the Cameras sub-dialog. Fig. 10-3 Dallmeier electronic GmbH & Co.KG...
  • Page 98 Number of STANDARD-Tracks setting. Saved standard tracks can be identified in the tab for Standard Tracks by the extra information for the date and time of saving. Fig. 10-5 Dallmeier electronic GmbH & Co.KG...

  • Page 99: Levels Of Compression

    Please note that 20 GB of the hard disk in your DMS/DLS are reserved for the operating system. The maximum possible picture count can be calculated with the following formula: hard disk size [ GB ] x 1 024 picture count = picture size [ KB ] Dallmeier electronic GmbH & Co.KG...
  • Page 100 In day-to-day use, the picture content of the area determines the appropriate compression. Compression level 0 is usually selected for alarm recording, however, as the best possible picture quality is desired for evaluation in case of an alarm. Dallmeier electronic GmbH & Co.KG...

  • Page 101: Memory Occupation

    Frame or field recording You can set the recording resolution by clicking the button with the monitor symbol. You can set whether recording is to occur in field mode or frame mode for each individual track. Fig. 10-10 Dallmeier electronic GmbH & Co.KG...
  • Page 102 Recording in frame mode Fig. 10-12 IMPORTANT Frame mode should only be selected if the scene to be recorded has only a few moving objects and the evaluation of freeze-frame pictures is not limited to non-moving objects. Dallmeier electronic GmbH & Co.KG...

  • Page 103: Changing Track Name

    Tracks dialog. You can enter the desired name with the virtual keyboard. Both capital and lower-case letters are allowed. The number of characters per track name is limited to 9. Dallmeier electronic GmbH & Co.KG...

  • Page 104: Track Timer

    To select a larger time area, move the cursor Fig. 10-14 to the desired time start. Press and hold the left mouse button. Now drag a rectangle over the time area which is to be inactive for picture recording. Dallmeier electronic GmbH & Co.KG...

  • Page 105: Exceptions In The Weekly Schedule

    Click Active and select the time in which the system is to be active which deviates from the standard setting, as described above. Fig. 10-16 Dallmeier electronic GmbH & Co.KG...

  • Page 106: Vds Emergency Track

    (230,000 pictures) is fixed and cannot be changed, The emergency track is configured in the dialog headed Configuration of emergency tracks. This can be opened from the Tracks dialog by clicking on Emergency tracks. Fig. 10-18 Dallmeier electronic GmbH & Co.KG...
  • Page 107 This Duration of recording is displayed in the bottom section of the dialog. The Estimated activity and the Estimated number of movement pauses can also be declared to refine this estimated value. Dallmeier electronic GmbH & Co.KG...
  • Page 108 Digital HD Recorders DMS/DLS Dallmeier electronic GmbH & Co.KG...

  • Page 109: 11 Setting Areas

    First click the camera whose pictures are to be recorded via motion detection and for which you would like to make settings. A digitized picture appears in the picture window as it is at the time of selection. Dallmeier electronic GmbH & Co.KG...

  • Page 110: Active Picture Areas

    Areas dialog was opened remain intact. NOTE Check the recording after setting the area. If the active areas are too small, there is a risk that important pictures will not be recorded. Dallmeier electronic GmbH & Co.KG...

  • Page 111: 12 Setting Camera Timer

    To mark a large timeframe, move the mouse Fig. 12-2 point to the required start time. Press and hold the left mouse button. Now drag a rectangle over the time area which is to be inactive for picture recording. Dallmeier electronic GmbH & Co.KG...

  • Page 112: Exact Setting Of Active Time Area

    The time is displayed for the selected active range with the start and stop time between the graphic display and the monthly calendar. You can increase or decrease the desired time area with the "+" and "–" buttons. Dallmeier electronic GmbH & Co.KG...

  • Page 113: Exceptions In The Weekly Schedule

    Click Active and select the time in which the system is to be active which deviates from the Fig. 12-6 standard setting, as described above. Dallmeier electronic GmbH & Co.KG...
  • Page 114 Click on Cancel to not apply the settings. Die vor dem Aufruf des Dialogs gemachten Einstellungen bleiben erhalten. The Use camera timer checkbox must be checked in the Camera settings sub-dialog to apply the settings when recording. Fig. 12-8 Dallmeier electronic GmbH & Co.KG...

  • Page 115: 13 Splitter Function

    If necessary contact your sales partner. MCD 25 SCD 25 MCD-25 MCD-25 Fig. 13-1 FBAS The splitter function is configured in the Splitter dialog.This dialog is accessed via: Setup > System > Display > Splitter Dallmeier electronic GmbH & Co.KG...

  • Page 116: Signal Output

    (for example VGA and FBAS) at the same time. NOTE If you wish to output the splitter function on a FBAS or Y/C monitor, please contact the Dallmeier electronic Support team. 13.2 Selection of the split mode With the splitter presentation, a differentiation is made between the live split and the playback split.
  • Page 117 The split partitioning must be adapted accordingly for this reason. The first time the splits are called up, all split windows are occupied with camera 1, and with some split types one split window with monitor presentation P. Dallmeier electronic GmbH & Co.KG...

  • Page 118: Function Assignment In Individual Split Windows

    Assignment of a camera to split windows With this assignment, a camera number is directly assigned to a split window. After the assignment, the picture from the selected camera always appears in this split window. Dallmeier electronic GmbH & Co.KG...

  • Page 119: Assigning Empty Split Windows

    Click on Auto. The automatic assignment is carried out for the selected split type only Click on Auto all. The automatic assignment is done on all split types of the selected split mode. Fig. 13-7 Dallmeier electronic GmbH & Co.KG...

  • Page 120: Monitor Presentation P In Split Type 2X2

    Split type in the "Live Split" split mode MCD-25 If you have selected the Live Split mode, you can set the following splits in the Split Type selection list. 2 x 2 3 x 3 4 x 4 4 x 4 c Dallmeier electronic GmbH & Co.KG...
  • Page 121 Monitor presentation P function. The splits which can be selected (Live mode) are displayed in the Context dialog when accessed via the dialog and can be selected directly by clicking the mouse. Fig. 13-9: Context dialog Dallmeier electronic GmbH & Co.KG...

  • Page 122: Split Type In The "Playback Split" Split Mode Mcd-25

    Split type in the "Playback Split" split mode MCD-25 If you have selected the Playback Split split mode, you can set the following splits in the Split Type selection list. 11a1B 11a1A 12a1A 12a1B 23a1 11a3a1 Dallmeier electronic GmbH & Co.KG...

  • Page 123: Split Types When Using The Scd 25

    If you have a system without MCD 25, the VGA monitor will be connected via the SCD 25. Both with live splits and with the playback splits, there are some restrictions compared to the MCD 25. Dallmeier electronic GmbH & Co.KG...

  • Page 124: Live Splits With Scd 25

    With the playback splits it is only possible to choose between the split types 8a1 and 2a2a1. 2a2a1 The single split is only available in the toolbar and is automatically assigned the Monitor presentation P function. Fig. 13-12 Dallmeier electronic GmbH & Co.KG...

  • Page 125: 14 Service

    Check the enabled function. Fig. 14-1 14.2 Update IMPORTANT Disconnect all plugs from the In contact of your recording system before starting the update procedure. Do not reconnect the plugs until the update procedure has been fully completed! Dallmeier electronic GmbH & Co.KG...
  • Page 126 Please follow the instructions which appear. Fig. 14-2 Start the update procedure again by clicking the Setup button in the main dialog and follow the procedure described above. Dallmeier electronic GmbH & Co.KG...

  • Page 127: 15 Network/Isdn

    In the Settings dialog selection, select the area for which you would like to make the settings. Fig. 15-1 The ISDN and PSTN selections are only available if activation was ordered with the system or at a later date. Dallmeier electronic GmbH & Co.KG...

  • Page 128: Ethernet / Tokenring

    The first three groups of the IP address must be entered for proper functioning even if a router is not used. Example: IP address 192.168.2.230 230.180.2.250 Router 192.168.2.x 230.180.2.x Data Rate: Auto MBit/s HD MBit/s HD MBit/s FD MBit/s FD Dallmeier electronic GmbH & Co.KG...

  • Page 129: Isdn

    User: The access ID/username of the dial-up connection is fixed and is not to be confused with the user password of the DMS/DLS. Password: Password for ISDN access. Dallmeier electronic GmbH & Co.KG...
  • Page 130 Confirm your entry by clicking OK. All phone numbers to be checked for a connection must be activated with a check in the checkbox. In Fig. 15-6, only the first call number is activated. Fig. 15-6 Dallmeier electronic GmbH & Co.KG...
  • Page 131 ISDN dialog. Fig. 15-7 Mark the checkbox next to Remote Number Access to activate the function. NOTE If INAC is active, access is blocked even if no number is sent when a connection is established. Dallmeier electronic GmbH & Co.KG...

  • Page 132: Pstn (Modem)

    COM 2. The MODEM selection can only be made for one interface. Confirm your setting by clicking OK. With the initial configuration of PSTN, the setting menu appears immediately for PSTN (see Fig. 15-9). Dallmeier electronic GmbH & Co.KG...
  • Page 133 TerminalAdapter, its MSN, can be edited. User: Identifying name for dial-up via modem. The user name "pstn" is fixed and cannot be changed. Password: Password for PSTN access. Protocol: Internal number for manufacturer Dallmeier electronic GmbH & Co.KG...

  • Page 134: System Name

    The reception station for alarms (e.g. PView station) is called alarm host. The settings in the Alarm Hosts dialog determine which messages are forwarded to which alarm host and, if necessary, when (timer). Click: Setup > Network > Alarm-Hosts Fig. 15-11 Dallmeier electronic GmbH & Co.KG...
  • Page 135 A separate selection can be made for each alarm host. Fig. 15-12 Fig. 15-13 First select the alarm host for which you would like to set the messages. Then click the Messages button. Dallmeier electronic GmbH & Co.KG...
  • Page 136 Click the keyboard symbol and assign another name for the selected Alarm-Host. Fig. 15-15 The required IP adress can only be entered in the corresponding sub-dialog of Ethernet, ISDN or PSTN / TA (see the following description). Dallmeier electronic GmbH & Co.KG...
  • Page 137 The Ping Timeout determines the maximum duration of an attempt to transfer an alarm message to an alarm host. If this is not possible within the specified period, the recording system cancels the attempt. The Ping Timeout duration is set in seconds. Dallmeier electronic GmbH & Co.KG...
  • Page 138 "users" have been created on the host PC here. It is imperative that access rights be assigned to them. Enter the respective password for each user in the Password field. The entry gast is set as default. Dallmeier electronic GmbH & Co.KG...
  • Page 139 Please ensure that the appropriate „users“ have been created on the host PC. These users must always be assigned selection rights. Enter the password for the appropriate user in the Password field. The default entry is gast. Dallmeier electronic GmbH & Co.KG...
  • Page 140 First select the alarm host for which you would like to configure the timer. Fig. 15-25 To set the timer, activate the checkbox next to Timer active. Then click the activated Set- tings... button. Fig. 15-26 Dallmeier electronic GmbH & Co.KG...
  • Page 141 3. Click on Send test-message if you wish to send a one-off message. In the pull-down menu you can decide when this message should be sent within a timeframe of 10 minutes. Dallmeier electronic GmbH & Co.KG...
  • Page 142 (interval). The number of attempts per report is limited, however. If a connection cannot be established after the specified number of attempts, the corresponding report is discarded. Dallmeier electronic GmbH & Co.KG...
  • Page 143 If the connection attempts remain unsuccessful, the corresponding report is discarded. Applying the settings Click on Apply Settings to save the settings without leaving the Alarm hosts dialogs. Otherwise click OK. Fig. 15-30 Dallmeier electronic GmbH & Co.KG...

  • Page 144: Network - Import / Export

    To import/export your network settings, click: Setup > Network > Import / Export and choose between Import and Export. Fig. 15-31 Fig. 15-32 The medium you use can be selected for both export and import. Dallmeier electronic GmbH & Co.KG...

  • Page 145: 16 System Security

    Dallmeier systems. The few ports which are still relevant are enabled in the default setting to ensure full compatibility to the other Dallmeier units. If certain ports are not required for the current recorder configuration, they can be deactivated in the System Security dialog.
  • Page 146 Digital HD Recorders DMS/DLS Dallmeier electronic GmbH&Co.KG...

  • Page 147: 17 Interfaces

    Then decide on the interface, COM 1 or COM 2, for which you would like to make settings. Fig. 17-1 Available functions You set the function of the interface in the Function field. Fig. 17-2 Dallmeier electronic GmbH & Co.KG...
  • Page 148 Users must log on using two chip cards on the FBAS interface. Timer Allows the Dallmeier DFM-1 timer to be connected. After a reboot this will automatically be used as the timer for the recorder. Transparent Using this function data can be sent via the recorder to another data channel device.
  • Page 149 This function allows the connection of an external control desk or (camera control) a dome camera via a Dallmeier Network Interface (DNI-1). Card reader For this function a TOWITOKO twin card reader can (for VGA GUI) be connected to act as an access control.

  • Page 150: Contact In (Global Contacts)

    First of all only the freely configurable global contacts will be displayed (Global 1-6). The camera-related contact inputs (camera 1 to max. 24) are displayed if you check the Show camera contacts checkbox. Fig. 17-5: Activate camera contacts Dallmeier electronic GmbH & Co.KG...

  • Page 151: Leading And Trailling Edge

    The configuration of the functions for the trailing edge is displayed when the show Function n.c. checkbox is checked. Fig. 17-6: Activation of trailling edge These functions are set in exactly the same way as the functions for the leading edge (see below). Dallmeier electronic GmbH & Co.KG...

  • Page 152: Setting

    This is indicated by displaying an orange button next to the function name. Fig. 17-8: Contact parameters button Click on Contact parameters. The Contact Parameters dialog will appear. Make the required settings and confirm them by clicking on OK. Dallmeier electronic GmbH & Co.KG...

  • Page 153: Functions

    (or until the corresponding track is full). The alarm state can then only be stopped by the Stop alarm contact function. Dallmeier electronic GmbH & Co.KG...
  • Page 154 Recording will be stopped for Permanent cameras. If the recording mode of a camera is Contact or Motion detection, the next event will not trigger the recording. Which camera is relevant is defined in the Contact Parameter dialog. Dallmeier electronic GmbH & Co.KG...
  • Page 155 DVS 600), all sensor channels are activated as standard. This function can be used to deactivate one or more sensor channels using Configuration. The channels are reactivated automatically after elapse of 300 seconds. Dallmeier electronic GmbH & Co.KG...
  • Page 156 The prerequisite is that the relevant cameras are configured for recording. Camera Deassign This is the opposite of Camera Assign. Camera Deassign cancels the reservation of the wavelet board for a specific camera. Dallmeier electronic GmbH & Co.KG...

  • Page 157: Configuration Of Camera-Related Contacts

    Fig. 17-9: Camera contacts configuration Make the required settings. Confirm by clicking on OK. The camera-related contact input for each enabled camera can be configured. It is of no consequence whether it is connected or configured for recording. Dallmeier electronic GmbH & Co.KG...

  • Page 158: Relay Out

    (tabs Relay 1 through Relay Fig. 17-11 17.3.1 Function The available functions are found in the following list. The list of available functions is accessed by clicking next to the Function field. Dallmeier electronic GmbH & Co.KG...
  • Page 159 (SO) static object. HKAlarm The relevant relay responds when HK sends an alarm message to tank. Alarm messages are: (Cover, CoverClr) change at cover contact, (Sabo, SaboClr) change at sabotage contact, (Move, MoveClr) change at movement contact. Dallmeier electronic GmbH & Co.KG...
  • Page 160 IO card, initialization of the display. HKeeping OR-combination of the three top HK-relay functions. The relay responds when a change from the previous condition has occurred. Dallmeier electronic GmbH & Co.KG...

  • Page 161: Timer

    The unit connected to the respective relay determines whether the relay must function as an normally open contact or an normally closed contact. The selection for this can be made in the Type field. Fig. 17-13 Dallmeier electronic GmbH & Co.KG...

  • Page 162: Printers

    Click the New button. Select your printer’s Manufacturer in the left- hand list. Select your printer Model in the right-hand list. The drivers for the listed printer models are already integrated in your DMS/DLS. Fig. 17-15 Dallmeier electronic GmbH & Co.KG...
  • Page 163 NOTE If your printer model is not listed, try selecting one of the previous models or contact the Support Department of Dallmeier electronic GmbH & Co.KG. Entering printer name Click the keyboard symbol and issue a unique name for the selected printer (e.g.

  • Page 164: Changing Printer Properties

    If the printer is addressed directly via an IP address, "raw" must be entered as the queue name. If you are unsure about how to set up the IP address and queue name, please contact the network administrator. Dallmeier electronic GmbH & Co.KG...

  • Page 165: Adding A Printer

    You can create up to 4 printers in your DMS/DLS. 17.4.4 Removing printer from the list Select the name of the printer you would like to delete in the printer list (Printer dialog). Then click the Delete button. Dallmeier electronic GmbH & Co.KG...

  • Page 166: Defining A Printer As The Default Printer

    You will recognize which printer is defined as the default printer in the list from the printer symbol next to the printer name. NOTE If you exit the Printer dialog by clicking OK, a test page is automatically printed. Dallmeier electronic GmbH & Co.KG...

  • Page 167: Dis Configuration

    DMS/DLS, the OSD (On Screen Display) of the DIS appears in the respective split. Click the relevant split with the mouse cursor. The DIS can now be fully controlled via this interface. Dallmeier electronic GmbH & Co.KG...

  • Page 168: Ups - Uninterruptible Power Supply

    This selection is only activated if the UPS function was selected in the Serial Interfaces dialog. First select the UPS Type used in the UPS dialog. Currently, three types from manufacturer APC (American Power Conversion Corp.) are supported. Fig. 17-26 Dallmeier electronic GmbH & Co.KG...

  • Page 169: Card Reader

    When the card data have been imported, access to the system is only possible using an appropriate card in the card reader. If you cannot access the system, only the service personnel (system installer or support) can reinstate access. Dallmeier electronic GmbH & Co.KG...

  • Page 170: Import Card Data

    The dialogs are closed when this time period expires. Closing occurs regardless of the activity being carried out in the dialogs. With the setting "0", the dialogs are closed immediately when the card is removed. Dallmeier electronic GmbH & Co.KG...

  • Page 171: Activating The Card Reader

    Insert an empty and formatted floppy disk into the drive of the DMS/DLS or a USB stick into an available USB port. Select the corresponding storage medium in the Card Reader dialog. Click Export. NOTE Only the manufacturer can change the card data. Dallmeier electronic GmbH & Co.KG...

  • Page 172: Dni Setup

    Digital HD Recorders DMS/DLS 17.8 DNI setup DNI stands for Dallmeier Network Interface and is required when using the data interface DNI-1. If DNI (external system) has been set as a function in the Serial interfaces dialog, the DNI Setup button will be active in the Input/output interfaces selection menu.

  • Page 173: External Storage System

    (e.g. for monitoring the temperature in a server room). If there is a connection between the DMS/DLS and the weather sensor, the IP address of the weather sensor is entered in the Weather sensor dialog. Dallmeier electronic GmbH & Co.KG...

  • Page 174: Premote

    Audio settings field. Set the maximum bandwidth for data transmission in kilobits per second (Kbps) in the max. bandwidth field using the slider (A) or the virtual keyboard. Fig. 17-35 Dallmeier electronic GmbH & Co.KG...
  • Page 175 NOTE If the images are displayed in PView in a non- fluid manner and with insufficient quality, the maximum bandwidth (Kbps) should be increased accordingly. Dallmeier electronic GmbH & Co.KG...
  • Page 176 Digital HD Recorders DMS/DLS Dallmeier electronic GmbH & Co.KG...

  • Page 177: 18 Camera Control Via Dms/Dls

    The control signals are transferred from the serial interface of the DMS/DLS via a master DNI and one or more slave DNIs to the control unit of the relevant camera(s). NOTE For additional information on the Dallmeier Network Interface, please see the separate DNI Manual. 18.1 Connection schematic Pan/tilt head Serial interface, e.g.

  • Page 178: Setting Function Of Serial Interface

    Then select the DNI (Cam Control) entry (B) in the Function field. Once you have confirmed your selection by clicking OK, the Camera Control button in the Interfaces in-/ output dialog is activated. Fig. 18-2 Dallmeier electronic GmbH & Co.KG...

  • Page 179: Selecting Control Protocol

    If a DNI network is not connected, the following fault message appears: "Fault accessing DNI". 18.3.2 Programming slave DNIs The DNIs linked to the dome or pan/tilt head as slaves must now be programmed with the control protocol required for the relevant pan/tilt head. Dallmeier electronic GmbH & Co.KG...
  • Page 180 Export button. Deleting protocols Listed protocols not needed or no longer needed should be deleted for reasons of clarity. Select the files to be deleted (*.bin) in the selection list and click the Delete button. Dallmeier electronic GmbH & Co.KG...

  • Page 181: Setting Id For Controllable Camera

    Camera Settings dialog. This dialog is accessed via: Setup > Recording > Cameras To do this, left-click on the field with the relevant camera in the Control column. Fig. 18-5 Dallmeier electronic GmbH & Co.KG...

  • Page 182: Setting Camera Id

    The camera ID must be defined in the Control dialog. You can open this dialog direct by right-clicking on the symbol for camera control via DNI (dome). Fig. 18-8 First of all the mode for camera control is requested. Dallmeier electronic GmbH & Co.KG...

  • Page 183: Controlling A Camera

    If you have connected several controllable cameras, proceed as described to set each camera. 18.5 Controlling a camera Now check the control of the cameras and the settings you made. For control of the cameras, see operating instructions, chapter Controlling a camera. Dallmeier electronic GmbH & Co.KG...
  • Page 184 Digital HD Recorders DMS/DLS Dallmeier electronic GmbH & Co.KG...

  • Page 185: 19 Camera Configuration Via Utc

    19 Camera configuration via UTC If Dallmeier UTC-capable cameras are in use, they can be configured using DMS/DLS. NOTE In order to be able to configure cameras via UTC, the relevant cameras must be directly connected to the recorder. If there is a video distributor between the camera and the recorder, UTC control is not possible.

  • Page 186: Control Panel For Utc Control

    If the mouse pointer is inside the rectangle, you can position the zoom area (A) whilst holding the mouse button. Fig. 19-4 Click on the Center button (B) to reset your zoom setting. Dallmeier electronic GmbH & Co.KG...

  • Page 187: Save Zoom Factor And Position

    Right-click again on the button under which you have saved the position. Select Change name. You can fix up to eight picture sections for each camera. Fig. 19-6 By clicking on one of the buttons you can select the appropriate section directly. Dallmeier electronic GmbH & Co.KG...

  • Page 188: Configure Camera

    Fig. 19-7 Fig. 19-8 NOTE Please see the precise description of the camera configuration in the manual for the appropriate camera. 19.4.1 Functions Select menu points. Select setting. Select/save setting. Back to previous menu. Dallmeier electronic GmbH & Co.KG...

  • Page 189: Close Menu And Save Configuration

    Configure the camera to suit you wishes. Close the camera menu using the Save settings option. Go to one of the three selection buttons with the mouse pointer and right-click on it. Select Save configuration. Fig. 19-12 Dallmeier electronic GmbH & Co.KG...

  • Page 190: Reset Camera Settings

    If you reset the camera configuration, all your in- dividual settings, including the settings you have saved for the direct selection process, will be lost. Click on Reset camera. 19.6 End UTC control Click on Camera control again. Dallmeier electronic GmbH & Co.KG...

  • Page 191: 20 Hdd Management

    In the example, the IDE drive is set for recording (Rec) and the CD drive (CD burner) for backups. It is not possible to use one drive for both functions. The total storage space available for recording is 216.2 GB in the example. Dallmeier electronic GmbH & Co.KG...
  • Page 192 This prevents hard disks of different sizes from no longer matching the configuration of your DMS/DLS, for example (number of pictures - required storage space). To ensure proper functioning of your DMS/DLS, settings in the Harddisk Management dialog should only be made by trained professionals. Dallmeier electronic GmbH & Co.KG...

  • Page 193: 21 User Manager

    However, the Setup > System > User management authorization can be activated for all other groups, but this only allows the password for the group that is currently logged in to be changed. Fig. 21-1 Dallmeier electronic GmbH & Co.KG...

  • Page 194: Issuing Permissions

    Confirm by clicking on OK. Fig. 21-2 21.1.2 Change group name or login Select a group. Click on Edit group. Enter the group name (Login). Click OK. Fig. 21-3 Dallmeier electronic GmbH & Co.KG...

  • Page 195: Define Or Change Passwords

    Confirm 2nd password. Click OK. Fig. 20-5 Fig. 21-5 If you wish to deactivate the Dual-control login: Click on the checked Dual-control login checkbox. Enter and confirm the 1st password. Confirm by clicking on OK. Dallmeier electronic GmbH & Co.KG...

  • Page 196: Login As User

    Admin1 and Admin2. The password must therefore be changed for both users. Click on the group to which a new user is to be assigned. Click on Add user. Fig. 21-6 Dallmeier electronic GmbH & Co.KG...

  • Page 197: User Rights

    In the Edit user dialog you can assign the current user a new password. It is not possible to change the User login. Enter Old password. Enter a New password. Confirm New password. Click OK. Fig. 21-9 Dallmeier electronic GmbH & Co.KG...

  • Page 198: Delete Users

    System > User management NOTE The settings made in the Options dialog will apply to all groups and their users. Mark the Login as user radio button. The Options button will be activated. Click on Options. Fig. 21-10 Dallmeier electronic GmbH & Co.KG...
  • Page 199 (letters and numbers, no special characters or spaces). This password must then be entered each time the user wishes to login. Dallmeier electronic GmbH & Co.KG...
  • Page 200 Digital HD Recorders DMS/DLS Dallmeier electronic GmbH & Co.KG...

  • Page 201: 22 Camera Termination

    (signal level, color, brightness etc.). This dialog is accessed via: Setup > System > Camera Termination Fig. 22-1 Click the button next to the camera connection you would like to check or switch: On / Off. Dallmeier electronic GmbH & Co.KG...
  • Page 202 Digital HD Recorders DMS/DLS Dallmeier electronic GmbH & Co.KG...

  • Page 203: 23 System Parameter Export/Import

    If you export the system parameters to a USB stick, a ZIP file will be saved in addition to the parameter files. This contains various log and protocol files, which permit the Dallmeier Support team to analyze the recorder if necessary.
  • Page 204 Digital HD Recorders DMS/DLS Dallmeier electronic GmbH&Co.KG...

  • Page 205: 24 Troubleshooting

    This termination could be via not normal. bright. a monitor or a terminating The output signal on M2 is resistor. diverted to this card when MCD-25 is used. Dallmeier electronic GmbH & Co.KG...
  • Page 206 MCD-25 setting in the "Options" menu display. is set to "Synchronous". Changing the setting to "Asynchronous" will remedy this. If technical problems occur, whose cause you cannot eliminate yourself, please contact your respective dealer/sales partner. Dallmeier electronic GmbH & Co.KG...

  • Page 207: 25 Technical Data

    24 FBAS / BNC 1Vss - 75 Ohm DMS 180 III Enterprise 24 FBAS / BNC 1Vss - 75 Ohm DMS 180 III Enterprise Pro 24 FBAS / BNC 1Vss - 75 Ohm DLS 6 S1 18 FBAS / BNC 1Vss - 75 Ohm...
  • Page 208 Playback speed DMS 180 III Enterprise PAL: 100/200 HB/s (1 camera) NTSC: 100/240 HB/s (1 camera) DMS 180 III Enterprise Pro PAL: 150/300 HB/s (1 Kamera) NTSC: 150/360 HB/s DLS 6 S1 PAL: max. 50 HB/s (1 camera) NTSC: max. 60 HB/s...
  • Page 209 With housing feet, H = 133 mm Temperature +5 °C to +40 °C / 41 °F – 104 °F Expanded temperature range (VdS conformity) up to +55 °C /131 °F Weight approx. 10 – 12 kg, without internal hard disk expansion Dallmeier electronic GmbH & Co.KG...
  • Page 210 Digital HD Recorders DMS/DLS Dallmeier electronic GmbH & Co.KG...

  • Page 211: Appendix

    Appendix Dallmeier electronic GmbH & Co.KG...
  • Page 212 C-TICK / FCC / CB - DK 4624 Kalagate VdS certificate The new DMS 180 III recorder from Dallmeier electronic is the world’s first digital picture storage system certified by the VdS Schadensverhütung GmbH, a German loss-prevention company checkpoint. Previously, only the minimum requirements for video technology pursuant to the stipulations of IT technology were fulfilled.
  • Page 213 PC components and through our own development of the critical components (power supply, mainboard, housing, components for input/output contacts, compression components), Dallmeier electronic has fulfilled an important criterion for certification. NOTE Your recording system must be installed as a VdS...
  • Page 214 The recording systems must be forge-proof, e.g. it must be possible to determine via an electronic watermark on a CD copy whether or not it is authentic. Encryption-protection, which protects against unauthorized access to the "closed" system and prevents manipulation from outside. Dallmeier electronic GmbH & Co.KG...

  • Page 215: Declaration Of Conformity

    Product: DMS 180 III, DMS 180 III Enterprise, DLS 6 S1, DLS 24 S1 Manufacturer: Dallmeier electronic GmbH & Co.KG Cranachweg 1 D - 93051 Regensburg As manufacturer we declare that the products named above are in accordance with the following EC-Directives: •...

This manual is also suitable for:

Dms 180 iii enterpriseDls 6 s1Dls 24 s1

Table of Contents
