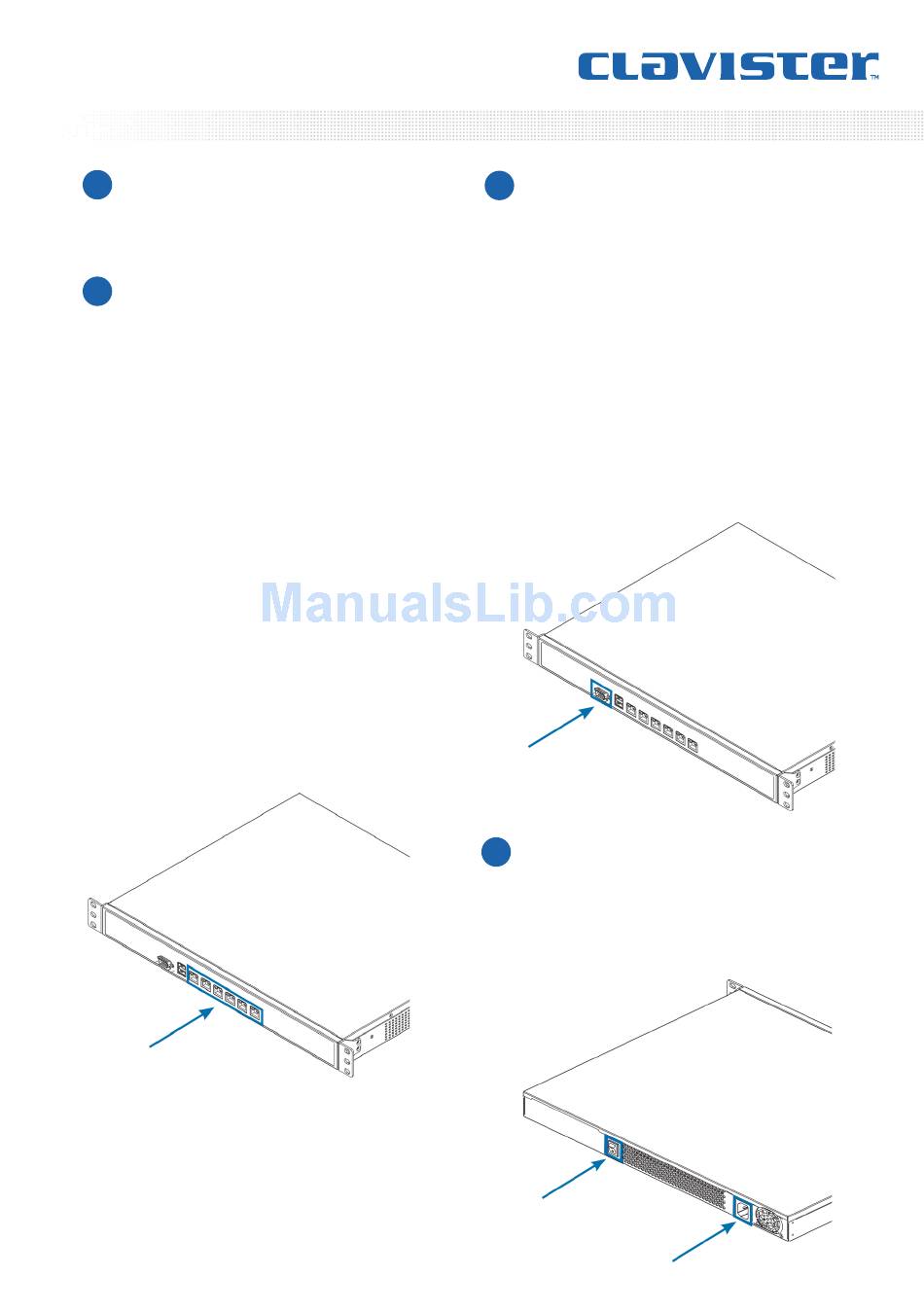

Clavister SG3200 Quick Start Manual

SG3200 Quick Start Guide
1
Unpack the SG3200 and place the
device in a suitable location.
2
Connect the management interface
The initial configuration of the SG3200
determines which Ethernet interface is to be
used for remote management by a workstation
running the FineTune management software.
Any interface on the SG3200 can be selected
for this purpose and that interface can still be
used for normal traffic.
The interface selected should be attached
to the same network as the management
workstation (or a network accessible from the
management server via one or more routers).
Connect the selected SG3200 interface to a
switch or hub in the network using a regular
straight-through Ethernet cable as illustrated
below.
An interface can be connected directly to the
management workstation using a crossover
cable.
3
Connect a Console
a) The SG3200 serial console port is an RS-232
port that enables connection to a console
for initial configuration. The console can be
a terminal or PC with a serial port. If using a
PC, it should be running a terminal emulator
such as HyperTerminal. The console must
communicate with the SG3200 console port
using settings: 9600 baud, No parity, 8 bits,
1 stop bit and No Flow Control.
b) With the RS-232 cable supplied, connect
the console directly to the console port on
the SG3200.
4
Switch on SG3200 power
Once a console is connected and running,
switch on the SG3200 by connecting the
power cable and pressing the power switch
at the back of the unit.
