Control Systems Technology

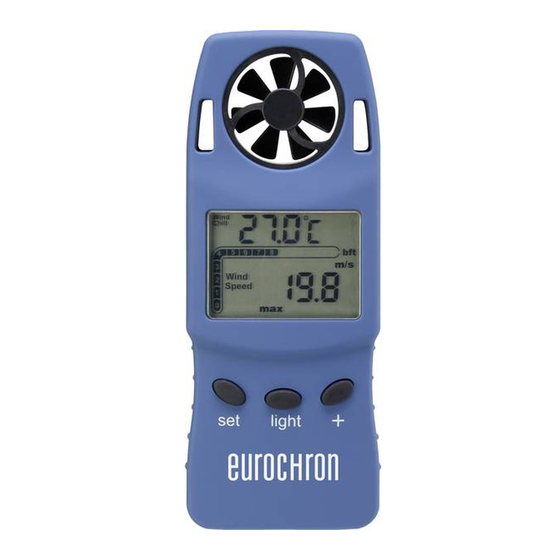

Handheld Anemometer
Instruction Manual
www.anemometer.co.za
aer@consystec.co.za
Advertisement
Table of Contents
Related Manuals for Eurochron WS4003
Summary of Contents for Eurochron WS4003
- Page 1 Handheld Anemometer Instruction Manual Table of Contents Introduction ............................. 2 Inventory of Content ........................2 3. Feature……………………………………………………………………………………………...2 4. Setting Up…………………………………………………………………………………………..2 5. Display……………………………………………………………………………………………. .2 Function Keys ..........................3 Wind Speed& Temperature vs. Altitude& Baromtric display ............3 Wind Speed& Temperature Display Mode ................3 Altitude&...
-
Page 2: Introduction
1. Introduction Congratulations on purchasing this pocket-sized anemometer. This innovative product provides wind speed, wind chill, temperature, barometric and altitude information for any outdoor activity. The operation of this product is simple and straightforward and by reading this operating manual, users will receive the optimum benefits of all its features. -
Page 3: Function Keys
5. Display Sections: The display is divided into 2 sections as below figure shows: Sub display: 1.display temperature/wind chill under wind speed mode. 2. Display barometric and temperature under Altitude mode. Main display: Wind speed/Altitude display modes 6. Function keys: The anemometer uses the following keys: 6.1 SET key: ... - Page 4 Press the + key to toggle between the three wind speed display modes. Current wind speed maximum wind speed average wind speed Current wind speed: device will measure the current speed and update every 1.5 seconds. Maximum wind speed: During the measuring, the Maximum value of wind speed logged. It will be cleared after a restart.
-
Page 5: Altitude& Baromtric Display
Wind Chill The anemometer calculates automatically wind chill, which can provide useful information for preparing outdoor activities in cold weather. “Wind chill” provides an indication of how cold it feels given the combined effects of the actual air temperature and the wind speed. Wind chill temperature is only defined for temperatures at or below 50 °F(10 °C) and wind speeds above 4.8 kilometers per hour. -
Page 6: Set Mode
Barometric When user select the barometric display, the anemometer will measure and update the barometric every 3 seconds in the first 3 minutes. After 3 minutes, the updating interval becomes 1 minute. And the ABS/REL altitude will be calculated based on barometric values. Note: The barometric will show”... -
Page 7: Low Battery Display
Beaufort scale km/h ft/min 0-0.2 0-58 0.3-1.5 59-314 1.6-3.3 6-11 315-668 3.4-5.4 7-10 8-12 12-19 669-1082 5.5-7.9 11-16 13-18 20-28 1083-1574 8.0-10.7 17-21 19-24 29-38 1575-2125 10.8-13.8 22-27 25-31 39-49 2126-2735 13.9-17.1 28-33 32-38 50-61 2736-3385 17.2-20.7 34-40 39-46 62-74 3386-4093 20.8-24.4 41-47... -
Page 8: Specifications
Comfort level is the body’s effect based on ranges of temperature. Comfort Level Range Range is defined as the amount or extent a value can be measured. Wind Chill Wind chill is the felt air temperature on exposed skin due to wind. It measures the effect of wind on air temperature.
