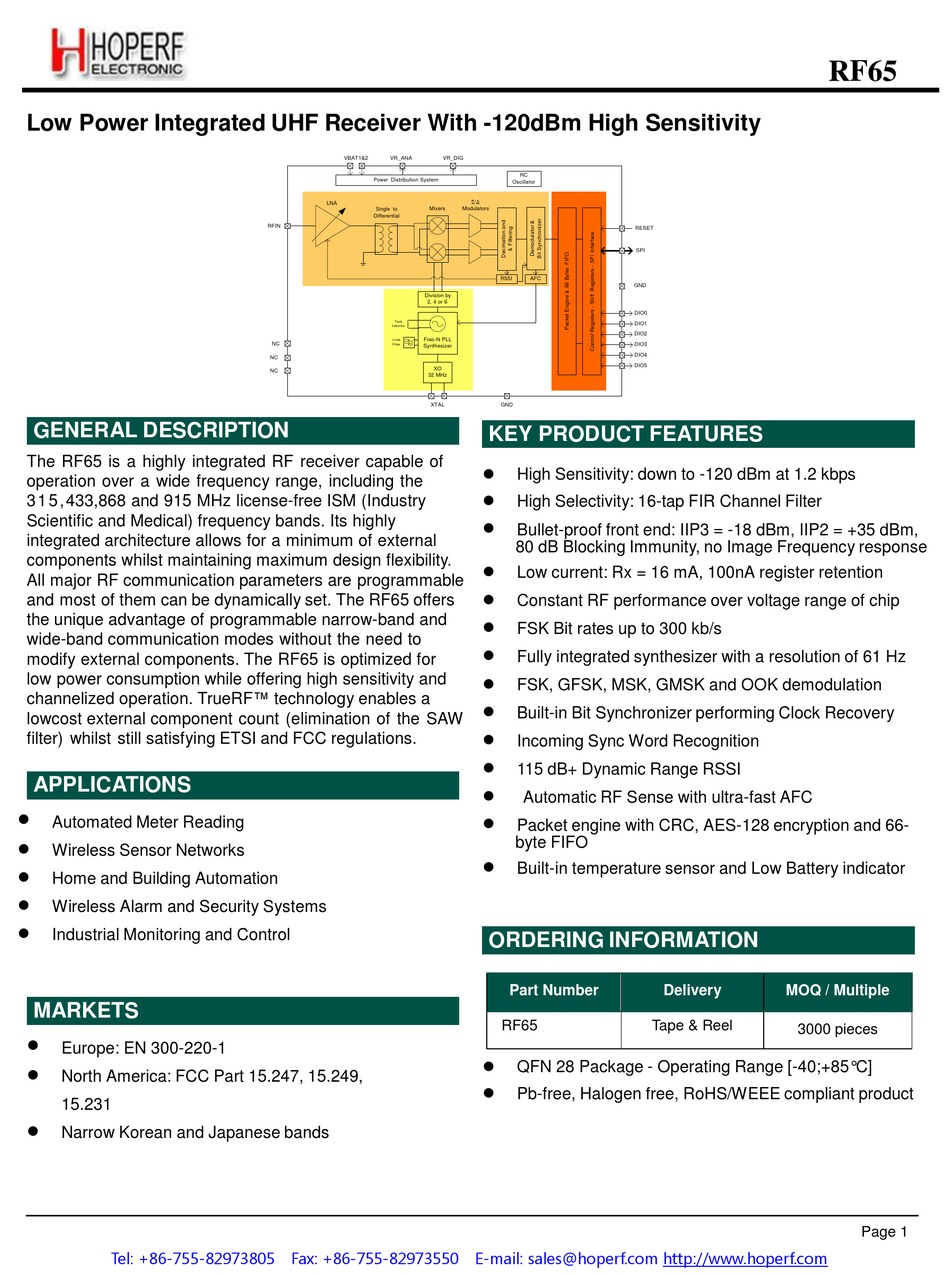

Low Power Integrated UHF Receiver With -120dBm High Sensitivity
GENERAL DESCRIPTION
The RF65 is a highly integrated RF receiver capable of
operation over a wide frequency range, including the
3 1 5 , 433,868 and 915 MHz license-free ISM (Industry
Scientific and Medical) frequency bands. Its highly
integrated architecture allows for a minimum of external
components whilst maintaining maximum design flexibility.
All major RF communication parameters are programmable
and most of them can be dynamically set. The RF65 offers
the unique advantage of programmable narrow-band and
wide-band communication modes without the need to
modify external components. The RF65 is optimized for
low power consumption while offering high sensitivity and
channelized operation. TrueRF™ technology enables a
lowcost external component count (elimination of the SAW
filter) whilst still satisfying ETSI and FCC regulations.
APPLICATIONS
Automated Meter Reading
Wireless Sensor Networks
Home and Building Automation
Wireless Alarm and Security Systems
Industrial Monitoring and Control
MARKETS
Europe: EN 300-220-1
North America: FCC Part 15.247, 15.249,
15.231
Narrow Korean and Japanese bands
Tel: +86-755-82973805 Fax: +86-755-82973550 E-mail: sales@hoperf.com http://www.hoperf.com
VBAT1&2
VR_ANA
VR_DIG
Power Distribution System
LNA
Single to
Mixers
Differential
RFIN
Division by
2, 4 or 6
Tank
Inductor
Frac-N PLL
Loop
NC
Filter
Synthesizer
NC
XO
NC
32 MHz
XTAL
RC
Oscillator
Σ/Δ
Modulators
RESET
SPI
RSSI
AFC
GND
DIO0
DIO1
DIO2
DIO3
DIO4
DIO5
GND
KEY PRODUCT FEATURES
High Sensitivity: down to -120 dBm at 1.2 kbps
High Selectivity: 16-tap FIR Channel Filter
Bullet-proof front end: IIP3 = -18 dBm, IIP2 = +35 dBm,
80 dB Blocking Immunity, no Image Frequency response
Low current: Rx = 16 mA, 100nA register retention
Constant RF performance over voltage range of chip
FSK Bit rates up to 300 kb/s
Fully integrated synthesizer with a resolution of 61 Hz
FSK, GFSK, MSK, GMSK and OOK demodulation
Built-in Bit Synchronizer performing Clock Recovery
Incoming Sync Word Recognition
115 dB+ Dynamic Range RSSI
Automatic RF Sense with ultra-fast AFC
Packet engine with CRC, AES-128 encryption and 66-
byte FIFO
Built-in temperature sensor and Low Battery indicator
ORDERING INFORMATION
Part Number
RF65
QFN 28 Package - Operating Range [-40;+85° C]
Pb-free, Halogen free, RoHS/WEEE compliant product
RF65
Delivery
MOQ / Multiple
Tape & Reel
3000 pieces
Page 1
