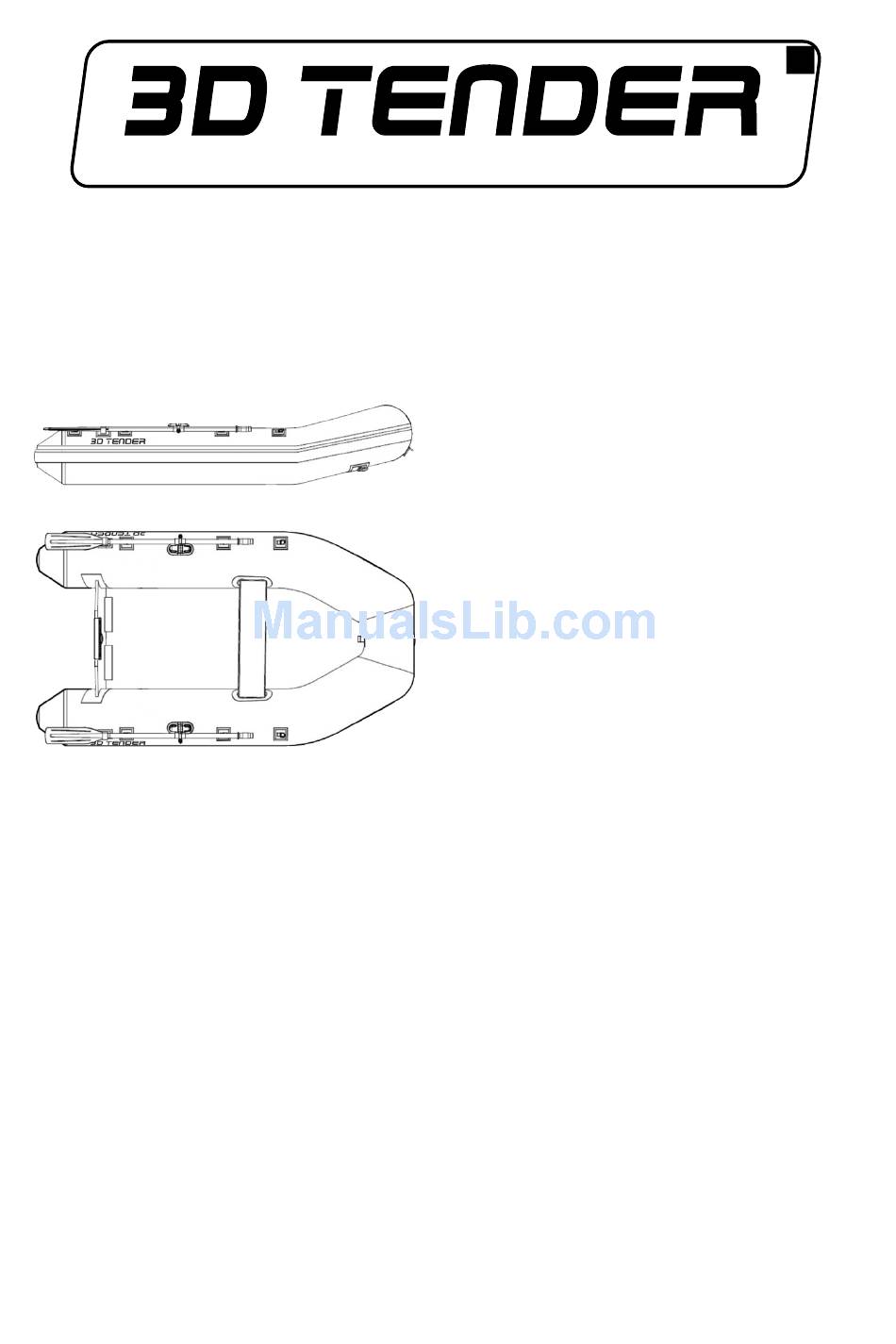

OWNER MANUAL
Summary :
Introduction ........................................................................................................................................................................ 2
Warranty Informations................................................................................................................................................. 2
Safety Alerts ...................................................................................................................................................................... 4
Safe boating recommandations........................................................................................................................... 5
Craft data ............................................................................................................................................................................. 7
Floorboard installation............................................................................................................................................ 13
Transporting..................................................................................................................................................................... 15
Operation ........................................................................................................................................................................... 16
Outboard motor ........................................................................................................................................................... 21
Maintenance..................................................................................................................................................................... 21
Storage .............................................................................................................................................................................. 23
Service assistance ........................................................................................................................................................ 23
FOLDABLE TENDERS :
Superlight Twin Air
Superlight Twin Round Air
Superlight Twin VIB Air
World Travel
Twin V-Shape
Twin Eva
Twin Hypalon
Twin Fastcat
LT 240
XPRO Heavy Duty
www.3dtender.com
®
Advertisement
Table of Contents

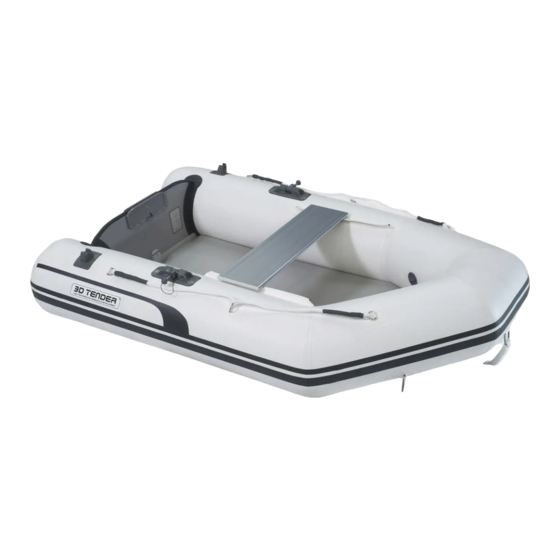

Summary of Contents for 3D Tender TWA290
-
Page 1: Table Of Contents
® OWNER MANUAL FOLDABLE TENDERS : Superlight Twin Air Superlight Twin Round Air Superlight Twin VIB Air World Travel Twin V-Shape Twin Eva Twin Hypalon Twin Fastcat LT 240 XPRO Heavy Duty Summary : Introduction ..................................2 Warranty Informations..............................2 Safety Alerts .................................. -
Page 2: Introduction
INTRODUCTION Congratulations on your purchase of a 3D Tender Boat. We are convinced it will bring years of boating plaisir. However, for your security and to ensure that you gain maximum satisfaction, please read this user manual carrefully. It contains all the safety and operation instructions that you need to get the most out of your new 3D Tender boat. - Page 3 If the service provided is not covered by this warranty, the purchaser shall pay for all related labor and material, and any other expenses associated with that service. The purchaser shall not, unless requested by 3D Tender, ship the product or parts of the product directly to 3D Tender.
-
Page 4: Safety Alerts
8. Using the boat for races or any activity of competition cancel the limited warranty. 9. Works of assembly and disassembly the equipments of the boat, as well as transportations to, and from the service station are at the expense of the owner. 10. -
Page 5: Safe Boating Recommandations
SAFE BOATING RECOMMANDATIONS : 1 - Always wear a life jacket Local authorities require that you carry an approved flotation device, or life jacket, for each per- son aboard your vessel. We recommend wearing a life jacket at all times while boating because you never know when an accident may occur. -
Page 6: Fire Safety
Danger When operating, passengers must avoid standing up or hanging appendages outside of the boat. Leaking fuel is a fire hazard, inspect fuel system regularly. Shut off the engine before boarding from the water. Warning Shall the operator or passenger fall out the bot, the possibility of serious injury or death from being run over by the boat can be greatly reduced by stopping the engine imediately. -
Page 7: Craft Data
CRAFT DATA : Boat specifications : Superlight Twin Air Model TWA290 TWA270 TWA250 TWA230 TWA200 TWA180 TWA160 A Overall length (cm) B Overall beam (cm) C Inside length (cm) D Inside beam (cm) Total weight (Kg) 16,9 15,8 14,5 13,8... - Page 8 Superlight Twin Round Air Model TWRA250 TWRA235 TWRA200 TWRA180 TWRA160 A Overall length (cm) B Overall beam (cm) 114,5 101,5 100,5 C Inside length (cm) D Inside beam (cm) 48,5 44,5 43,5 Total weight (Kg) 12,2 11,8 Max. passengers Max load (Kg) Tube (cm) 28,5 28,5...
- Page 9 World Travel Model WT235 WT200 A Overall length (cm) B Overall beam (cm) C Inside length (cm) D Inside beam (cm) Total weight (Kg) Max. passengers Max load (Kg) Tube (cm) 37-32 37-32 Number of airtight chambers Shaft Short Short Max.
- Page 10 Twin Eva Model TWE290 TWE270 TWE250 TWE230 TWA200 TWA180 TWA160 A Longueur extérieur (cm) B Largeur extérieur (cm) C Longueur intérieur (cm) D Largeur intérieur (cm) Poids total (Kg) 21,1 19,8 18,1 17,3 14,9 13,5 Nombre de passagers max. Charge max. (Kg) Tube (cm) 34-40 34-40...
- Page 11 Twin Fastcat Model TWC330 TWC300 TWC280 TWC260 TWC230 TWC200 A Overall length (cm) B Overall beam (cm) C Inside length (cm) D Inside beam (cm) Total weight (Kg) Max. passengers Max load (Kg) Tube (cm) 48-30 48-29 48-29 45-29 42-29 42-29 Number of airtight chambers Shaft...
- Page 12 XPRO Heavy Duty Model HD 550 HD 500 HD 460 HD 420 HD 380 HD 360 HD 320 A Overall length (cm) B Overall beam (cm) Total weight (Kg) Max. passengers Max load (Kg) 1 300 1 200 1 100 1 087 Tube (cm) Number of airtight chambers...
-
Page 13: Floorboard Installation
Instructions to install the floorboard in the foldables models Slatted floor : When you purchase a new slatted floor tender from 3D Tender, the floor boards are already in- stalled in the boat bottom. To prepare your boat, you only need to inflate your tube as described in the operation section of this manual. - Page 14 Inflatable floor : This is a flat inflatable floor with eventually a separate inflatable keel and a thrust board. Please refer to the instruction below to install the floor. - The keel (B) is already a stuck to the bottom when the boat is packed. Do not move the keel. Install the thrust board (A) through the belt on the downside of the floor.
-
Page 15: Transporting
Aluminium floor : - Place part 1 as far in the front of the boat as possible. Make sure the hole in the deck is aligned with the valve of the keel. - Place part 2 into the boat. Put the two parts of floorboard in line. - Take Part 3, eventually Part 4, and make a bridge with Part 2 / Part 3. -
Page 16: Operation
OPERATION : Pre-operation check list : - Check the pressure level in each chamber using a pressure gauge. Recommended working pres- sure is displayed on manufacturer’s plate. - Make sure the outboard motor is securely fastened to the transom. - Make sure the drain plug is fully functional. - Check fuel tank level and make sure it suits you plan. - Page 17 Inflate each chamber in turn, do not inflate a chamber completely then move on to the next one. Start with the rear chambers. repeat procedure until all chambers are evenly inflated to the recommended working pressure. Use air gauge to measure the tube pressure. If yoi do not have any gauge, firmy press the tube with one finger, if it goes down by about 10mm, the tube pressure is correct.
-
Page 18: Load Distribution
Caution Keep the drain open when the boat is kept outside of the water. The rain water could fill the boat and create stress and damage. Danger Do not open the drain plug when the boat is afloat but not in motion. Load distribution Please refer to the maximum number of passengers and load capacity of the boat in this manual or on the manufacturer’s plate. - Page 19 Bow down, too much trim-in Bow up, too much trim-out Right position Towing Your boat can be towed using the towing eye located at the bow. The boat must be empty when towed. Remove outboard motor, fuel tank and equipment. No passenger should be aboard. The boat should be towed at low speed.
- Page 20 3 - Please note that towed dinghies need to be constantly monitored and especially at night. 4 - When a dinghy is towed, the conditions may vary quite dramatically so the responsability for its security rests entirely with the skipper. Warning No passenger should be onboard.
-
Page 21: Outboard Motor
OUTBOARD MOTOR : Install the outboard motor on the transom so that it is positionned as close to the center as possible. Tighten the transom clamp screws evenly and securely. Occasionally check the clamp screws for tighness during operation of the outboard motor because they could become loose due to engine vibration. - Page 22 - Repairs should, however, be undertaken in a well ventilated area Repair PVC boat : 3D Tender boats that haves tubes constructed with PVC fabrics require PU based adhesive and RC hardener. Acetone solvant is recommended to prepare the surface before gluing. Use only recommended solvant and adhesive.
-
Page 23: Storage
Upholstery 3D TENDER is using marine grade upholstery fabric to offer best resistance to UV and ageing. Periodic washing with mild detergent and warm water is the best way to keep your upholstery look good. Special vinyl cleaner can also be used to remove difficult stains. No fabrics can last forever when constantly exposed to the elements.
