DH195,060,000
K71155
Base-top
2 pcs
K12122
Shelf
1 pcs
L00460
Front list
1 pcs
Drawer slide Left
500
2 pcs
Aventos
Aventos
Flip up L/R
Cap left
2 pcs
1 pcs
07-05-2015 2
/
K12122
Shelf
2 pcs
K13525
K13520
Back panel
Back panel
1 pcs
Drawer slide Right
500
2 pcs
ID21561
ID21561
Aventos
Cap right
Aventos mounting plate
2 pcs
1 pcs
H554,060
Drawer front
1 pcs
Cap
10x5
2 pcs
HS19260,000
K10120
Side
2 pcs
L03260
1 pcs
Screw flh
4x35
6 pcs
L04863
Door
1 pcs
1 /
17
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kvik H554-060
Summary of Contents for Kvik H554-060

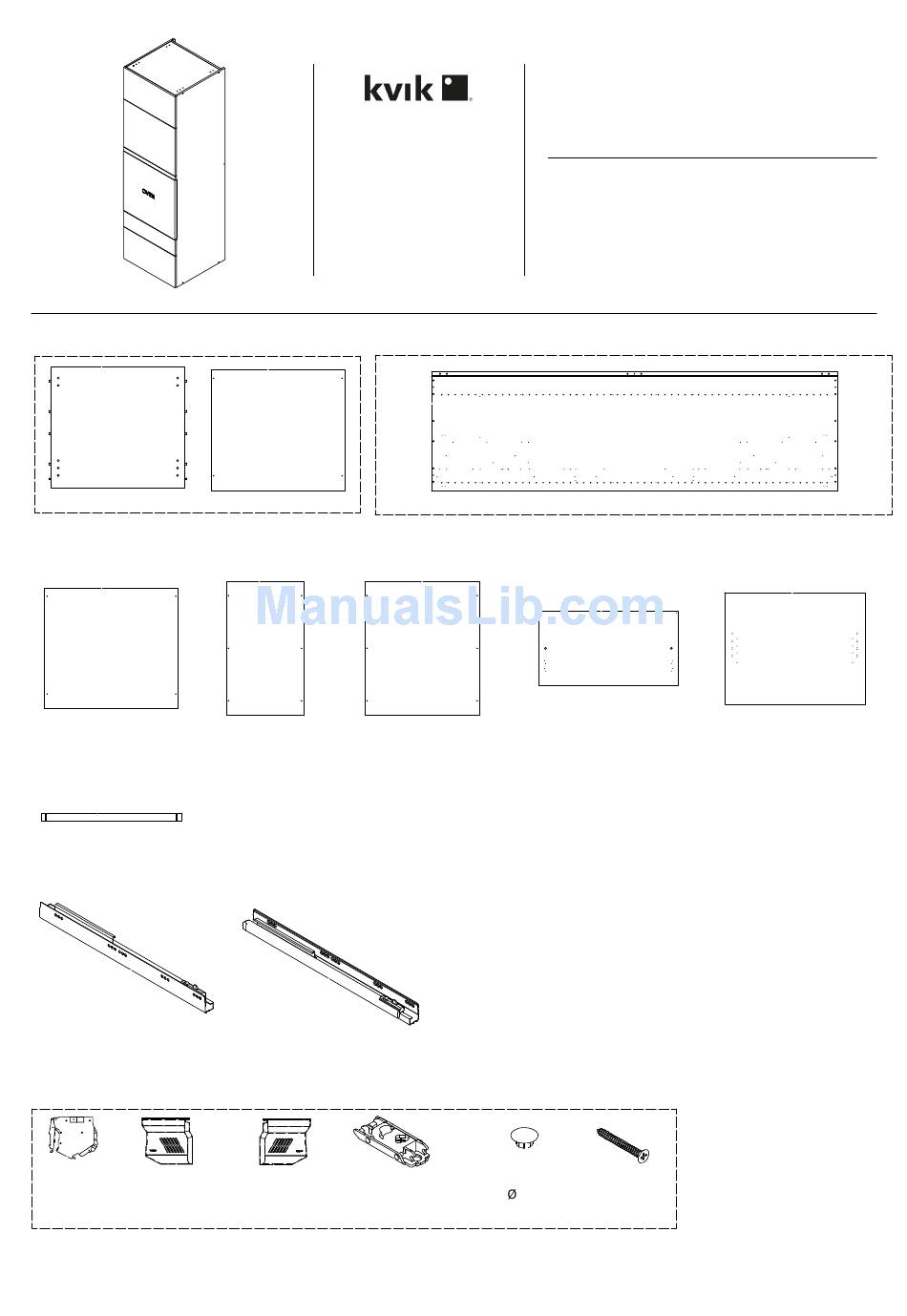

- Page 1 H554,060 DH195,060,000 HS19260,000 K71155 K12122 K10120 Base-top Shelf Side 2 pcs 2 pcs 2 pcs K13525 K13520 L04863 K12122 L03260 Back panel Back panel Door Shelf Drawer front 1 pcs 1 pcs 1 pcs 1 pcs 1 pcs L00460 Front list 1 pcs Drawer slide Left Drawer slide Right...
- Page 2 H554,060 H00060 Cap left Mounting plate Cap right Spring left Spring right Connecting rod Arm right Arm left 1 pcs 2 pcs 1 pcs 1 pcs 1 pcs 1 pcs 1 pcs 1 pcs BP00020-BP00032-BP00033(x2) Bumper Screw flh Screw flh Euro screw Shelf support Front list holder...
- Page 3 H554,060 FIG. Euro screw Screw flh Euro screw 6,3x11 mm 3,5x15 mm 6,3x11 mm 2 pcs 7 pcs 6 pcs Shelf support 14x12 mm 5 6 pcs Screw flh 3,5x15 mm K10120 Side Euro screw Screw flh 6,3x11 mm 3,5x15 mm Drawer slide Left Drawer slide Left 2 pcs...
- Page 4 H554,060 FIG. Screw flh EWIVA 3.5x15mm Arm left 5 pcs K10120 Side FIG. Hole dept 10mm K10120 Side 07-05-2015 2...
- Page 5 H554,060 FIG. Aventos left Aventos left 3 pcs Aventos left 1 pcs K10120 Side FIG. Euro screw Euro screw Screw flh 6,3x11 mm 6,3x11 mm 3,5x15 mm 6 pcs 7 pcs 2 pcs Shelf support 14x12 mm 5 6 pcs Screw flh 3,5x15 mm K10120...
- Page 6 H554,060 FIG. K10120 Side FIG. EWIVA Screw flh Arm right 3.5x15mm 5 pcs K10120 Side 07-05-2015 2...
- Page 7 H554,060 FIG. Hole dept 10mm K10120 Side FIG. Aventos right Aventos right 3 pcs Aventos right 1 pcs K10120 Side 07-05-2015 2...
- Page 8 H554,060 FIG. Click Left Right K10120 Side K10120 Side FIG. K71155 Base-top K10120 Side K71155 Base-top 07-05-2015 2...
- Page 9 H554,060 FIG. Screw flh 3,5x45 mm 4 pcs K10120 Side Screw flh 3,5x45 mm 4 pcs 07-05-2015 2...
- Page 10 H554,060 K12122 Shelf K12122 Shelf K12122 Shelf K12122 Shelf K13525 Back panel Screw flh 3,5x45 mm 12 pcs K13520 Back panel 07-05-2015 2 10 /...
- Page 11 H554,060 Screw ph 3x16 mm 4 pcs Front list holder 25x10 mm 6 2 pcs Flush L00460 Front list Press 07-05-2015 2 11 /...
- Page 12 H554,060 Adjustment EWIVA Connection rod EWIVA Connection rod EWIVA Connection rod 07-05-2015 2 12 /...
- Page 13 H554,060 Click Click EWIVA Cap left ID21561 Aventos Mounting plate 4 pcs Bumper ID21561 7x1,5 mm Aventos Mounting plate 2 pcs 10x5 2 pcs L03260 Drawer front Bumper 7x1,5 mm 07-05-2015 2 13 /...
- Page 14 H554,060 L03260 Drawer front Click Click Aventos left 07-05-2015 2 14 /...
- Page 15 H554,060 Adjustment 07-05-2015 2 15 /...
- Page 16 H554,060 Screw flh 3.5x15mm 8 pcs Bumper 7x1,5 mm EWIVA Mounting plate 2 pcs Bumper 7x1,5 mm Bumper L04863 7x1,5 mm Door Bumper 7x1,5 mm L04863 Door L04863 Door Click 07-05-2015 2 16 /...
- Page 17 H554,060 07-05-2015 2 17 /...
