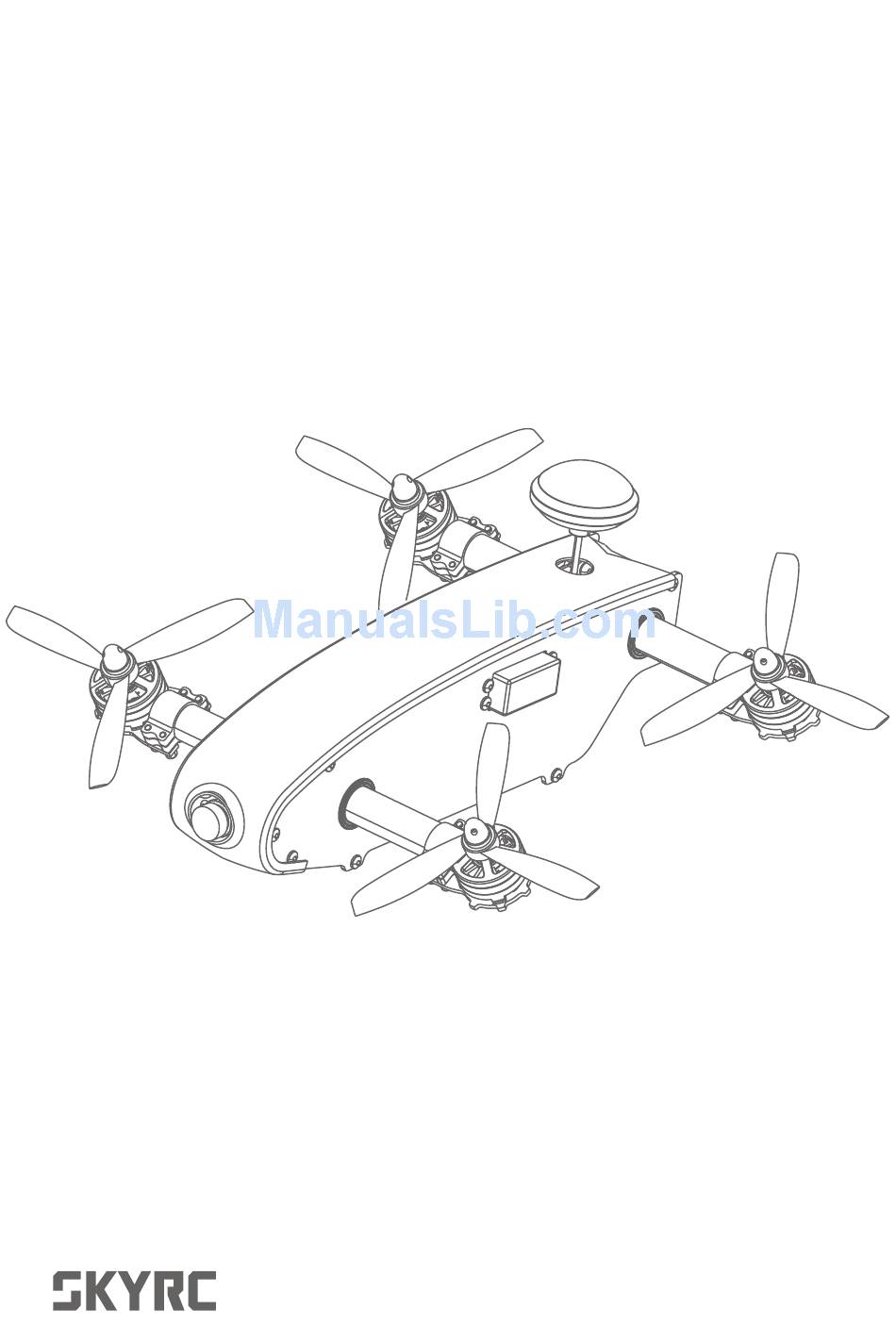

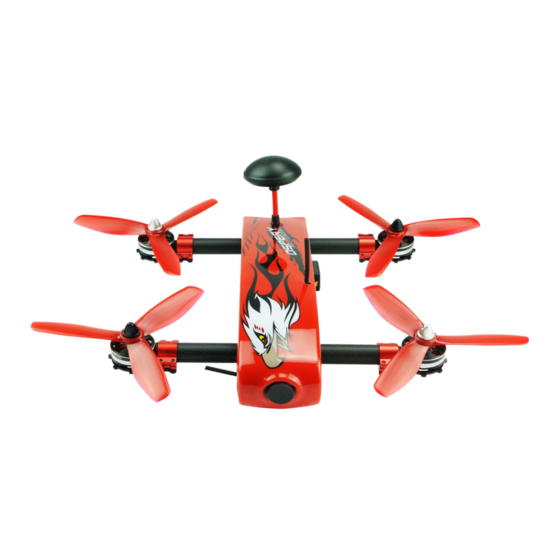

- Page 1 OSPERY FPV RACER Instruction Manual [Version 1.0] Dynamic Rotor Tilting Quadcopter...
- Page 2 Comparatively at same speed, other pilots will be looking at grounds only and getting slapped by the trees, while OSPERY pilots will dodge everything with a beautiful precision due to better forward views.
-
Page 3: Remote Controller
Switch C Switch A Switch D Left Stick Right Stick Power Button Power Button Capacitive Touch Screen In the Package Remote Control Antenna Socket Screw x 4 Main Body 6040 Propeller x 8 L Wrench OSPERY FPV RACER 02 ·... -
Page 4: Attention Before Flight
Attention before flight The OSPERY FPV racer is recomended for piolts, 14 years or older, with RC hobby experience. Only fly the OSPERY FPV racer in dry weather, with low wind, please do not fly in rain or heavy foggy conditions. -
Page 5: Battery Installation
2 seconds to change band. Actual Frequency number will be display on the monitor or goggle through OSD. A video receiving equipment is needed (such as SkyRC FPV monitor, FPV Goggle etc.) to display an image and OSD information. - Page 6 To attach the propellers correctly, you need match the spin direction on the motors with the propellers. Hold the motor in place with one hand, then using L-Wrench and turn in opposite direction to secure the propeller. L-Wrench Silver Nut Black Nut Black Nut Silver Nut · 05 OSPERY FPV RACER...
-
Page 7: Ready For Flight
For the normal flight mode, put the switch C to middle position. Put the aircraft on a horizontal place and connect the aircraft power, then the rear LED light turn on. (Make sure positive and negative connected correctly) OSPERY FPV RACER 06 ·... -
Page 8: Motor Unlock / Lock
Motor Unlock / Lock Motor Unlock After binding the remote controller with the OSPERY FPV racer, Gently push the throttle stick down and move the rudder (YAW) stick to the right side and hold for more than 2 seconds to unlock the motors. - Page 9 This section explains how to control the orientation of the Drone through the remote controller. Flying upwards or downwards down Yawing (rotating towards left or right) Pitching (moving onwards or backwards) Rolling (turning towards left or right) OSPERY FPV RACER 08 ·...
- Page 10 SETUP OSPERY & SPECIFICATIONS SETUP OSPERY The open source flight controller firmware that we chose to power the OSPERY is Baseflight, mainly due to the code is stable, mature and proven to work. Because Baseflight is constantly evolving, you will get the most updated setup instructions from their website.
-
Page 11: Specifications
2204 Brushless Motor Working Voltage 2-3S LiPo Working Current 2300±5% Servo Working Voltage 4.8-6.0V DC Specification 6.8kg@5V 60° 0.15S Weight and Size Weight(FPV Drone) 470g(without battery) Weight(Remote Controller) 514g Size 368mm 174mm 113.3mm 120.5mm 78mm 182.5mm OSPERY FPV RACER 10 ·... -
Page 12: Warranty And Service
Safety Precautions and Liability Exclusion OSPERY FPV Racer is NOT a toy. It is not suitable for using by any children under 14 years of age. It is a race quad and not come with GPS hold, and it does require a fair amount of skill to pilot it.
