Summary of Contents for Brookstone 315223

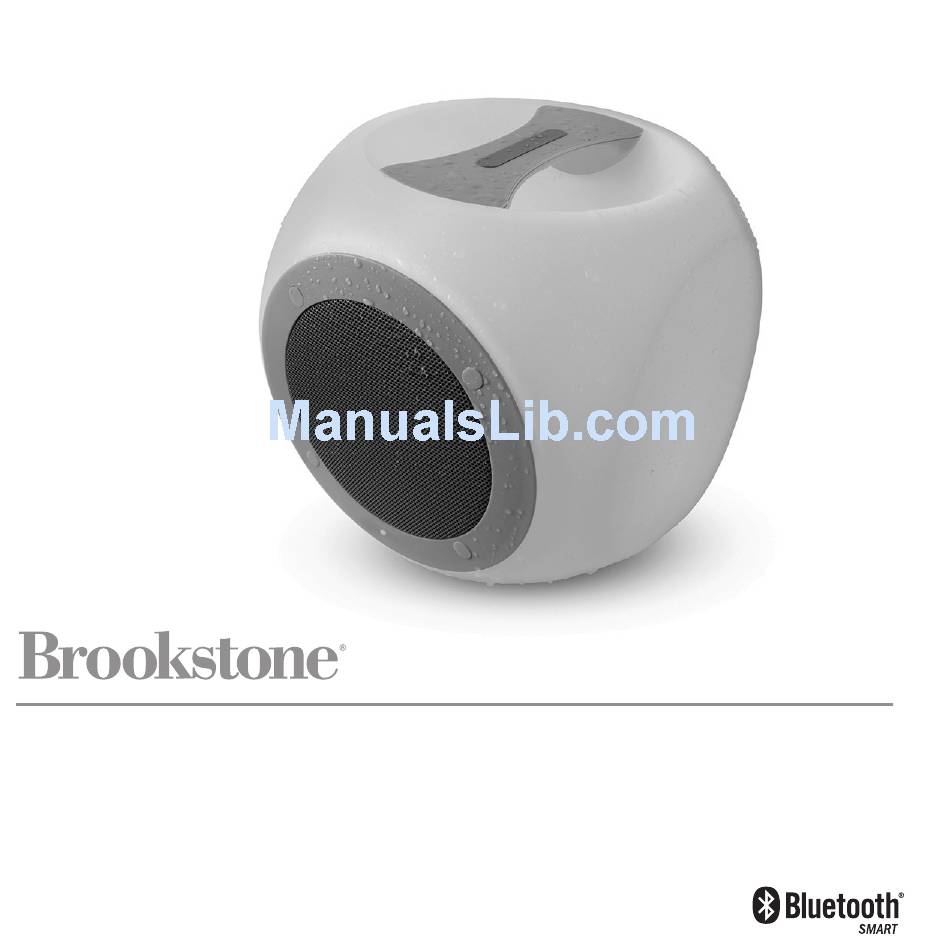

- Page 1 ELUMA CUBE SPEAKER ™ WIRELESS • WEATHERPROOF • APP CONTROLLED...
-
Page 2: Table Of Contents
TABLE OF CONTENTS CAUTION Warnings and Cautions........1 • T O REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. - Page 3 SAFETY AND HANDLING INFORMATION LITHIUM-ION BATTERY WARNINGS For maximum product life, do not drop, throw, or crush the This device contains a non-removable Lithium-Ion battery. The speaker. Do not expose it to operating temperatures outside battery must be recycled or disposed of properly. Contact your 25°F to 120°F (-4°C to 49°C). local waste management office for information on battery recycling or disposal. SAVE THESE INSTRUCTIONS WARNING DANGER 1. C lose supervision is necessary when this appliance/ To reduce the risk of electric shock, burns, fire or injury: product is used by or near children or mentally 1. Do not use while bathing or in a shower. disabled individuals. 2. D o not place or store unit where it can fall or be pulled 2. U se this unit only for its intended use as described in into a tub or sink. this manual. 3. D o not place in, drop or submerge in water or 3. U nplug this unit during lightning storms or when unused other liquid.
- Page 4 around the unit when storing. electric shock or injury to persons when the unit is used. 7. T he unit should be situated away from direct sunlight 13. D o not operate in the presence of explosive and/or or heat sources such as radiators, electric heaters, heat flammable fumes. registers, stoves, or other units (including amplifiers) that 14. N ever remove the plug from the outlet by pulling the produce heat. Avoid placing on top of stereo equipment power cord. that radiates heat. 8. N ever block the air openings of the unit with materials such as clothing, plastic bags or papers, or place it on a soft surface such as a bed or couch, where the air openings may be blocked. 9. D o not overload the electrical outlet. Use only the power source as indicated. 10. D o not carry this unit by its cord or use the cord as a handle. 11. N ever operate this unit if it has a damaged cord or plug, if it is not working properly, or if it has been dropped or damaged, or dropped into water. If the unit’ s power supply cord or plug is damaged, do not attempt to fix it yourself.
-
Page 5: Fcc Information
Modifications not authorized by the manufacturer may void the used in accordance with the instructions, may cause harmful user’ s authority to operate this device. interference to radio communications. However, there is FCC ID: 2AGOQ-Y641 no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the Apple, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in equipment off and on, the user is encouraged to try to correct the U.S. and other countries. the interference by one or more of the following measures: App Store is a service mark of Apple Inc. • Reorient or relocate the receiving antenna. Android is a trademark of Google, Inc. • Increase the distance between the equipment and receiver. Google Play is a trademark of Google, Inc. The Bluetooth word mark and logos are registered trademarks owned ® • C onnect the equipment to an outlet on a circuit different by Bluetooth SIG, Inc. and any use of such marks by Brookstone is under from that to which the receiver is connected. license. • C onsult the dealer or an experienced radio/TV technician © Brookstone 2016... - Page 6 LOCATION OF PARTS AND CONTROLS LOCATION OF PARTS AND CONTROLS (SPEAKER) (SPEAKER) Remote IR Sensor Bluetooth/Charging LED Indicator Micro USB In Port (under port cover) Aux In Port (under port cover) Power/Light Button Micro USB Charging Cable USB Adapter...
-
Page 7: Location Of Parts And Controls
LOCATION OF PARTS AND CONTROLS LOCATION OF PARTS AND CONTROLS (REMOTE CONTROL) (REMOTE CONTROL) Red Button 17. Smooth Mode Button Green Button 18. Cyan Button Purple Button 19. Fade Mode Button Yellow Button 20. Blue Button Candle Button 21. Strobe Mode Button White Button 22. Flash Mode Button 7. Track Back Button 23. Light Button 8. Track Forward Button 24. Brightness - Button 9. Volume - Button 25. Brightness + Button 10. Volume + Button... - Page 8 LOCATION OF PARTS AND CONTROLS LOCATION OF PARTS AND CONTROLS (APP) (APP) Light Spectrum Selector 18. Fade Mode Button Brightness - Button 19. Smooth Mode Button Brightness + Button 20. Power Off Button Light Button 21. Mode Button Flash Mode Button Strobe Mode Button Volume - Button Songs Button 9. Artists Button 10. Mute Button 11. Track Back Button 12. Track Forward Button 13. Play/Pause Button 14. FAV Button 15. Albums Button 16. Volume + Button 17. Beat Mode Button...
-
Page 9: Charging The Speaker
CHARGING THE SPEAKER PAIRING YOUR DEVICE 1. L ift the port cover and insert the MICRO USB CHARGING 1. Prepare your device to pair using Bluetooth ® technology, CABLE into the MICRO USB IN PORT on the speaker. making sure the device is within 33 feet of the speaker. Plug the MICRO USB CHARGING CABLE'S USB Refer to your device’s owners manual for details if connection into the included USB ADAPTER or into the necessary. USB port on your computer. The speaker will be fully 2. Press and hold the POWER/LIGHT BUTTON on the charged in approximately 8 hours. speaker for 3 seconds or press the POWER BUTTON 2. The CHARGING LED INDICATOR is RED while the on the remote until the BLUETOOTH LED turns on and speaker is charging. When the speaker is fully charged, starts flashing. The speaker will announce “Bluetooth” the CHARGING LED INDICATOR turns off. For first then “Waiting for Connection.” time use, fully charge the speaker. 3. Select “Eluma Cube Speaker” on your device. If 3. When the battery is low, the speaker will announce “Low prompted, use 0000 as a PIN for the pairing code. Battery.” 4. When “Eluma Cube Speaker” is selected, the BLUETOOTH LED will be solid blue and the speaker will announce “Bluetooth Connected”. -
Page 10: Downloading Free App
Note: To cancel the pairing mode, either press the POWER/ SYNCING APP AND SPEAKER LIGHT BUTTON on the speaker for 3 seconds or press the 1. Once a Bluetooth ® connection has been made between POWER BUTTON on the remote. The speaker will your device and the Eluma Cube Speaker (please refer announce “Power Off” and turn off. to page 15 for pairing instructions), open the Eluma Cube app on your device. -
Page 11: Listening To Audio
LISTENING TO AUDIO 7. Press the TRACK FORWARD BUTTON on the remote or in the Eluma Cube app to go to the next track. 1. Press and hold the POWER/LIGHT BUTTON on the 8. Press the TRACK BACK BUTTON on the remote or speaker for 3 seconds or press the POWER BUTTON in the Eluma Cube app to go to the previous on the remote until the BLUETOOTH LED turns on and track. starts flashing. The speaker will announce “Bluetooth” then “Waiting for Connection.” 9. To access music from your devices music library, press the ARTISTS, SONGS or ALBUMS BUTTONS in the 2. The speaker will automatically remember the last paired device. Depending on your device, “Eluma Speaker” may Eluma Cube app. need to be selected in your device’s menu. When the last 10. To save a song as a favorite, press the heart on the song paired device is found, the speaker will announce screen in the Eluma Cube app. “Bluetooth Connected.” 11. To access favorites, press the FAV BUTTON in the Eluma 3. Press the VOLUME + BUTTON on the remote or in the Cube app. Eluma Cube app to increase audio volume. 12. To turn the speaker off, press and hold the POWER 4. Press the VOLUME - BUTTON on the remote or in the LIGHT BUTTON on the speaker for 3 seconds, press the Eluma Cube app to decrease audio volume. POWER BUTTON on the remote or press the POWER 5. Press the MUTE BUTTON in the Eluma Cube app to OFF BUTTON in the Eluma Cube app. -
Page 12: Using The Lights
USING THE LIGHTS SELECTING LIGHT COLORS 1. Press the POWER/LIGHT BUTTON on the speaker or 1. Press the RED BUTTON on the remote to activate the the LIGHT BUTTON on the remote to turn the lights on red light. to Beat mode. 2. Press the GREEN BUTTON on the remote to activate 2. When the color selected is solid, press the the green light. BRIGHTNESS + BUTTON on the remote or in the 3. Press the BLUE BUTTON on the remote to activate Eluma Cube app to increase the light brightness. the blue light. 3. When the color selected is solid, press the 4. Press the PURPLE BUTTON on the remote to activate BRIGHTNESS - BUTTON on the remote or in the Eluma the purple light. Cube app to decrease the light brightness. 5. Press the YELLOW BUTTON on the remote to activate 4. Press the POWER/LIGHT BUTTON on the speaker or the yellow light. the LIGHT BUTTON on the remote to turn the lights off. 6. Press the CYAN BUTTON on the remote to activate the cyan light. 7. Press the CANDLE BUTTON on the remote to activate candlelight. -
Page 13: Selecting Light Modes
SELECTING LIGHT MODES USING AUX IN 1. Plug one end of a 3.5mm-to-3.5mm cable (not 1. Press the FLASH BUTTON on the remote or in the included) into your audio device, just like you would a pair Eluma Cube app to activate the Flash mode, a fast of headphones. transition of Red, Green, Blue, Purple, Yellow, Cyan, Orange and White lights. 2. L ift the port cover and plug the other end of the cable into the speaker’s AUX IN port. 2. Press the STROBE BUTTON on the remote or in the Eluma Cube app to activate the Strobe mode, a fast flash 3. Press the MODE BUTTON on the remote or in the of the last color selected. Eluma Cube app to switch to Aux In mode. The speaker will announce “Line In.” 3. Press the FADE BUTTON on the remote or in the Eluma Cube app to activate the Fade mode, a slow 4. Use your audio device to control music playback. fading in and out of the Red, Green and Blue lights. 5. Use your audio device, the remote control or the 4. Press the SMOOTH BUTTON on the remote or in the Eluma Cube app to control volume. Eluma Cube app to activate the SMOOTH mode, a slow 6. Press the MODE BUTTON on the remote or in the transition of Pink, Purple, Blue, Cyan, Green, Yellow and... -
Page 14: Care And Maintenance
CARE AND MAINTENANCE APP COMPATIBILITY The Eluma Cube Speaker is water resistent. Do not submerge iPhone SE iPad Pro (12.9 inch) in water. iPhone 6s Plus iPad Pro (9.7 inch) To clean, wipe the speaker with a soft, dry cloth. iPhone 6s iPad Air 2 iPhone 6 Plus iPad Air iPhone 6 iPad mini 4 REPLACING THE REMOTE CONTROL BATTERY iPhone 5s iPad mini 3 1. Remove the REMOTE CONTROL BATTERY iPhone 5c iPad mini 2 COMPARTMENT. iPhone 5 iPad mini 2. Place a new CR2025 button cell battery into the battery iPod touch 5th generation iPad (4th generation) ® ® compartment according to the polarity indicator. -
Page 15: Specifications
SPECIFICATIONS TROUBLESHOOTING Power Supply (input) ... . . AC 100V~240V, 50/60 Hz ISSUE SOLUTION Power Supply (output) ......DC 5V, 1A Bluetooth ®... -
Page 16: Warranty
ONE (1) YEAR LIMITED WARRANTY Warranty does not apply to any non-Big Blue Audio products. Manufacturers or suppliers other than Big Blue Audio may provide their own warranties to the purchaser, Big Blue Audio LLC warrants this product against defects in materials and/ but Big Blue Audio, in so far as permitted by law, provides these products “as is.” or workmanship under normal use for a period of ONE (1) YEAR from the This warranty does not apply to: a) damage caused by failure to follow instructions date of purchase by the original purchaser (“Warranty Period”). If a defect relating to product’s use or the installation of components; b) damage caused... - Page 17 Find thousands more great ideas online 315223 315225 Merrimack, New Hampshire, USA 03054 • 800-846-3000 • Brookstone.com...
