User Manual
M20 Action Camera User Manual
(for Livestreaming Applications)
www.peephole-store.com
www.iat101.com
ia-tecs@hotmail.com
Advertisement
Related Manuals for SJCAM M20
Summary of Contents for SJCAM M20
- Page 1 M20 Action Camera User Manual (for Livestreaming Applications) www.peephole-store.com www.iat101.com ia-tecs@hotmail.com...
- Page 2 Very simple set up You can just use a M20 action camera an Android phone to upload your actions to YouTube, Facebook, USTREAM , Twitter etc … to show your friends over the world live...
- Page 5 4.) Connect the OTG Cable’s Micro USB port to Android phone 5.) After step 4, the M20, and battery will turn on automatically, and M20 will showing USB device, select and click PC camera 6.) The APP software CameraFi Live will prompt asking if allowing it to access the USB device, please click “Yes”...

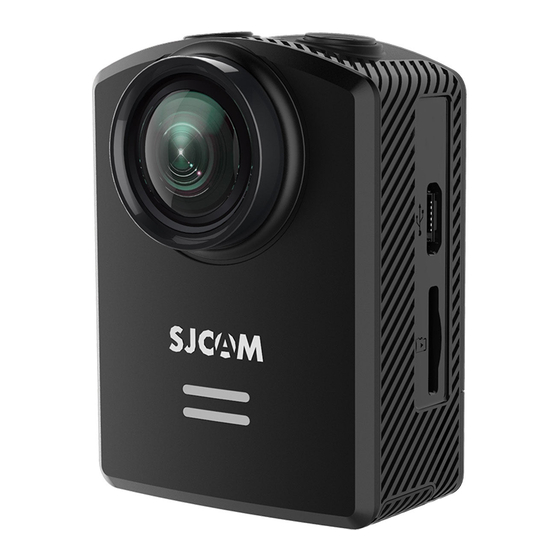

- Page 6 SJCAM M20 Description: The SJCAM M20 is SJCAM’s smallest action camera to date. Weighing in at just 55 grams the M20 truly has a miniature form factor. But do not be fooled by the M20’s small size. The camera is one of SJCAM’s most feature robust products ever. Powered by a NTK96660 processor, the M20 takes vivid pictures, and awesome 2,5K videos, via its Sony IMX206 16 mega pixel sensor.
- Page 7 SJCAM M20 Specifications: • LCD 1.5” LTPS Screen • Image Sensor 16.35 Mega Pixel Sony IMX206 • Image resolution: 16 Mega Pixel (4608*3456)/ 12 Mega Pixel (4032*3024)/10 Mega Pixel(3648*2736) / 8 Mega Pixel (3264*2448)/5 Mega Pixel (2592*1944) • 3 MP(2048*1536)/ 2MHD(1920*1080)/ VGA(640*480)/ 1.3MP(1280*960) •...
- Page 8 ● Detachable battery, easy to replace and charge SJCAM M20 Package Contents: 1 x Original SJCAM M20 Action Cam; 1 x Waterproof Housing; 1 x Quick Release Buckle 1 x Handlebar Seat post Mount 1 x Curved Adhesive Mount; 1 x Flat Adhesive Mount; 1 x 3-Way Pivot Arm Mount 2 x 3M Adhesive Tape;...
- Page 12 Wiring diagram for car dashcam application HDMI Cable RCA video cable Backup camera Remote control to select viewing channels between M20 camera and car backup camera www.peephole-store.com www.iat101.com ia-tecs@hotmail.com...
