PS Power MT5000 User Manual

Intelligent battery charger

Advertisement

Quick Links

Intelligent Battery Charger
MT5000 USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT5000 and is the answer not in the manual?

Questions and answers

Summary of Contents for PS Power MT5000

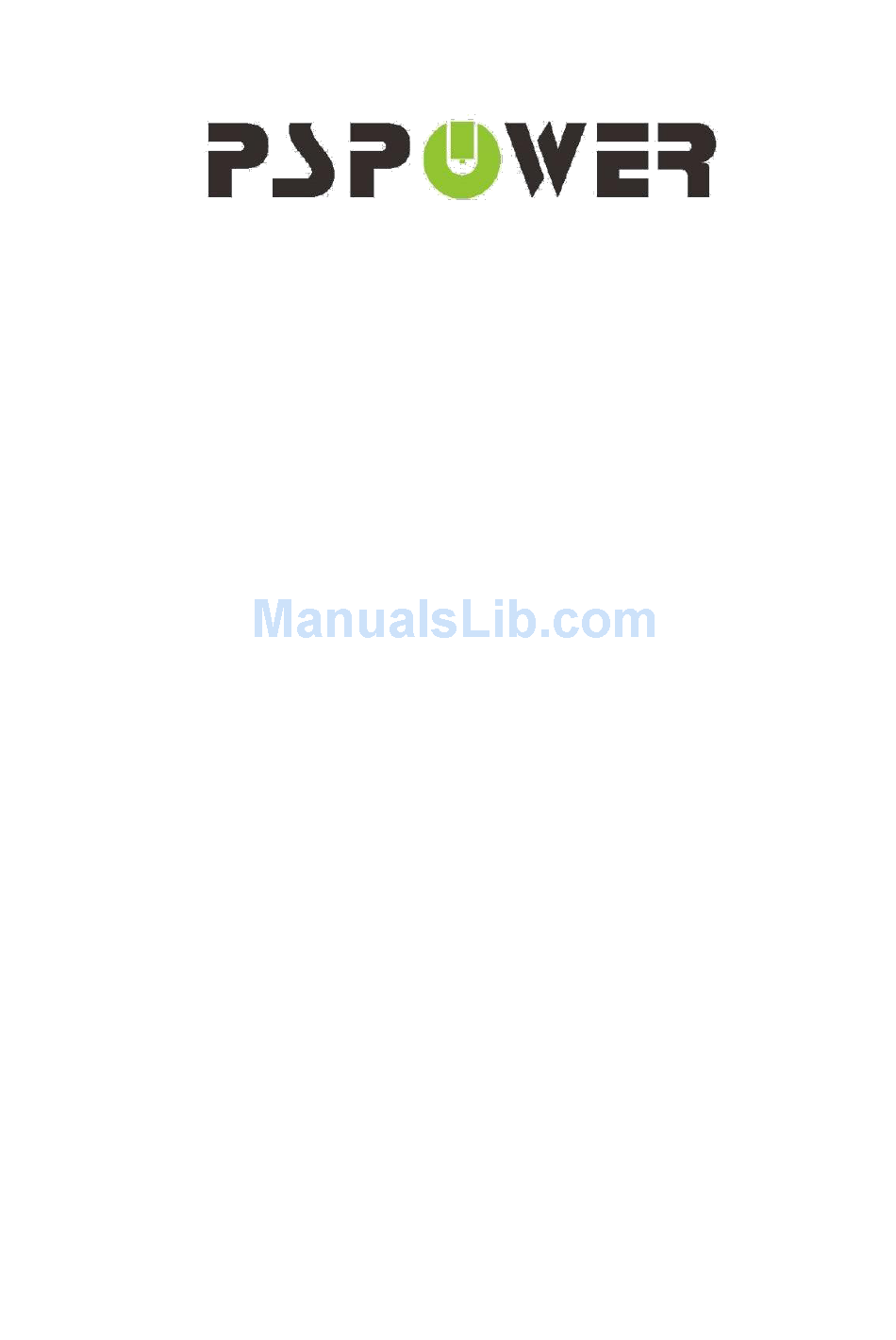

  • Page 1 Intelligent Battery Charger MT5000 USER MANUAL...
  • Page 2 1 Requirements and Functions: 1) With DC input 12V/3A ,Every slot can be charged independently and Controlled by microcomputer 2) Four charging currents: 500mA/ 1000mA/ 1500mA/ 2000mA. 3) Intelligent function include: capacity test function; discharge function, inner resistance test function, intelligent charge function; Power bank function. 4) Battery Types :Ni-MH /Ni-Cd 1.2V、Li-ion-3.7V(Li-ion: 18650, 18490,18350, 17670, 17500, 16340, 14500, 10440, Ni-MH/Ni-Cd: AA/AAA/C/SC/D size batteries.
  • Page 3 2.2 Description of working operation: ● Charge Mode: When charger connected to the power supply, all characters will be showed on the LCD screen for 3 seconds. 3 seconds later, the charger will detect the battery condition, if there is no battery in charger or bad battery is put in charger, it will shows”...
  • Page 4 —when battery is charging by default current, select other charge current after 8 seconds, LCD display will show charging current, voltage, time and tested capacity (the third process during test mode) till the battery is charged fully. ---It will automatically transfer into discharging after fully charged, then it will start discharging with 500mA current and record discharged capacity until batteries are fully discharged.
  • Page 5 ● Temperature protection: when the temperature inside the charger is detected by TDS and up to 60 ℃,stop to charge. ● It have over-charge, over-voltage, lower voltage, short-circuit and reverse charging protection. it will not damage the battery and charger. 3.
