INSTALLTION
VENT TERMINATION
Do not terminate vent in an enclosed or semi-enclosed
area such as: carports, garage, attic, crawl space, under
a deck, porch, narrow walkway, closely fenced area, or
any location that can build up a concentration of fumes
such as a stairwell, covered breezeway etc.
Vent surfaces can get hot enough to cause burns if
touched. Adults should supervise children when they are
in the area of a hot stove. Non-combustible shielding or
guards may be required.
Termination Cap: The termination of the outside chim-
ney of the pellet stove shall be located in accordance with
the following:
A. Higher than 3' (.92m) above any forced air inlet (air
conditioner, etc.) located within 10' (3m).
B. Not less than 4' (1.2m) below, 4' (1.2m) horizontally
from or 1' (3.1m) above any gravity air inlet (door,
window, etc.) which flue gases could re-enter the
dwelling.
C. Not less than 2' (.6m) from combustible materials
such as an adjacent buildings, fences, protruding
parts of the structure, roof overhang, plants and
shrubs, etc. and not less than 7' (2.1m) above grade
when located adjacent to the public sidewalks (ac-
cess). The final termination of the exhaust system
must be configured so that flue gases do not jeop-
ardize the safety of people passing by, overheat
combustible portions of nearby structures or enter the
dwelling.
D. Not less than 3' (.92m) below an eave (maximum
overhang of 3' (.92m) or any construction that proj-
ects more than 2" (51mm) from the plane of the wall.
E. The distance from the bottom of termination to grade
is 12" (305mm) minimum. This is conditional upon
plants and nature of grade surface: Be careful to
choose a location for the vent termination which does
not expose people or shrubs to high heat from the
exhaust gases. The exhaust gases are not hot
enough to ignite grass, plants and shrubs located in
the vicinity of the termination although they should be
a minimum of 3' (.92m) away. The grade surface un-
der the termination must not be a lawn.
Since sparks may escape from the exhaust pipe of
F.
any stove, use caution when positioning the vent pipe.
Refer to pipe manufacturer's instructions when in-
stalling and terminating the exhaust. The vent pipe
should be horizontal and never run the pipe in a
downward direction (recommend a ¼" (7mm) rise
per foot horizontal).
Notes:
•
It is not recommended to terminate exhaust vent on the
prevailing wind side of the house.
•
It is not recommended using a termination cap with a
screen (fly ash can collect in a screen resulting in
blockage).

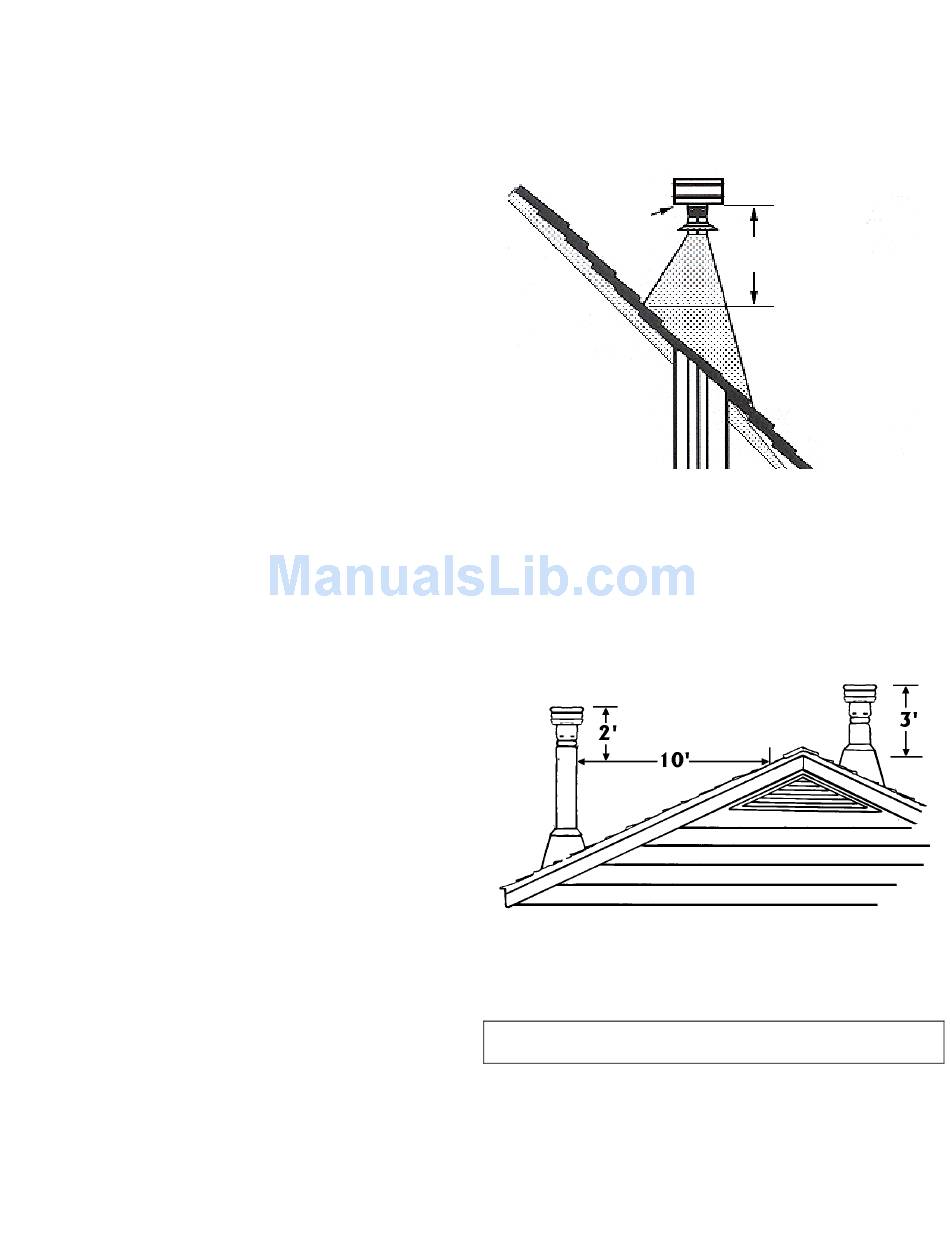

Chimney Height Requirements
The vent termination height required is 12" minimum
above the roof penetration point as illustrated below (Ref.
National Standard, NFPA 7-4.1). Check with your local
building official for additional requirements for your area.
REQUIRES A
LISTED TERM-
INATION CAP *
Manufactured (Mobile) Home
Chimney Height Requirements
The chimney must extend 3' (.92m) above the level of
roof penetration and a minimum of 2' (.61m) higher than
any roof surface within 10' (3m) (see below). Check with
your local building officials for additional requirements for
your area.
REQUIRES A LISTED
TERMINATION CAP *
To pass inspection in nearly any jurisdiction, the chimney
must meet both safety and exhaust flow requirements.
The (3' by) 2' by 10' rule applies to both masonry and
factory built chimneys.
* Ref. NFPA 7 – 4.1.2, Vents installed with a listed cap shall
terminate in accordance with the terms of the cap's listings.
PAGE 13
12" MIN
TERMINATION MUST BE
AT LEAST 12" (305mm)
ABOVE THE HIGHEST
POINT WHERE IT PASS-
ES THROUGH THE ROOF
SURFACE.
TOP OF FLUE MUST BE 3' HIGHER THAN
HIGHEST POINT OF ROOF PENETRATION
TOP OF FLUE MUST BE 2'
HIGHER THAN ANY PART OF
ROOF WITHIN 10' HORIZONTAL
