Summary of Contents for Focal SUB AIR

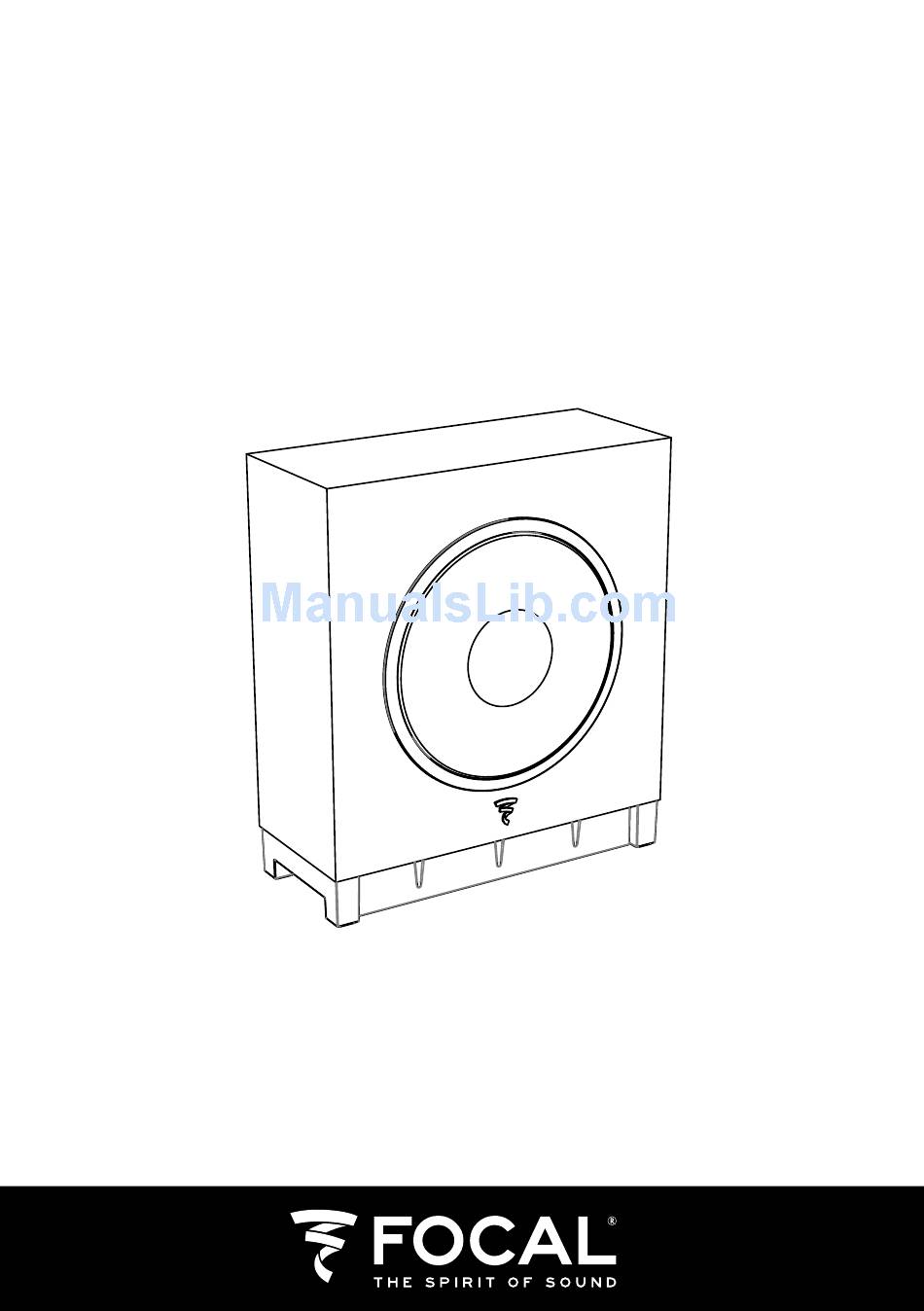

  • Page 1 SUB AIR User manual / Manuel d'utilisation...
  • Page 2 U s e r m a n u a l English 1. description package contents ∙ 1 x Sub Air ∙ 1 x Sub Air Transmitter ∙ 1 x grille cable cover ∙ 1 Sub Air wall mounting kit Sub Air Wall-mount insert 21 cm loudspeaker connection...
  • Page 3 SUB AIR U s e r m a n u a l Sub Air transmitter Wireless connection button (underneath unit) power supply connector RIght connection status led left...
  • Page 4 Sub Air subwoofer in a corner. If the Sub Air is positioned up against a wall not in a corner, or a long way away from the room walls, the very long wavelengths of the low frequencies reproduced will cause random excitation of resonances in the listening space.
  • Page 5 Using the Sub Air wall mounting kit. Screw the female part to the Sub Air, using the screws supplied. Secure the male part to the wall where you want to fit the Sub Air. Attach the rubber feet to the rear of the Sub Air.
  • Page 6 Plug the 5 volt supply into the Sub Air transmitter. RIght Pre-out left Connect low level RCA inputs When a 2-channel amplifier with pre-out line outputs is used, Sub Air transmitter must always be connected using the RCA stereo Right/Left inputs. RIght Subwoofer Connect to the LFE input When a multi-channel audio/video amplifier is used, the Sub Air transmitter's single LFE input should be connected to the "Subwoofer"...
  • Page 7 It is only possible to connect one Sub Air to one Sub Air transmitter at a time and the other way round. once the connection has been made you will not have to repeat the procedure.
  • Page 8 5.1 set-up, we advise you to set the Sub Air at ¾ volume and to then adjust the sub-woofer volume with your Home Cinema amplifier. If you have a 2.1 set-up, the volume setting of your Sub Air is heavily dependent on your room interior and listening point.
  • Page 9 5. Wired connection of Sub Air Pre-out Connection to low level RCA inputs When a 2-channel amplifier with pre-out line outputs is used, Sub Air must always be connected using the RCA stereo Right/Left inputs. SUBWOOFER Connection to LFE input When a multi-channel audio/video amplifier is used, the Sub Air's single LFE input should be connected to the "Subwoofer"...
  • Page 10 SUB AIR U s e r m a n u a l 6. led meaning guide Connection LED on Sub Air and Sub Air Transmitter. LED status Meaning Additional information Glowing continuously Sub Air and Sub Air Transmitter are The transmitter is able to send audio...
  • Page 11 Running-in period The driver used in the Sub Air is made up of complex mechanical elements and requires an adaptation period before it delivers the best of its performances. They must get adapted to the temperature and humidity conditions of their environment.
  • Page 12 U s e r m a n u a l conditions of guarantee All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guarantee in force in the country where the original purchase invoice was issued.
