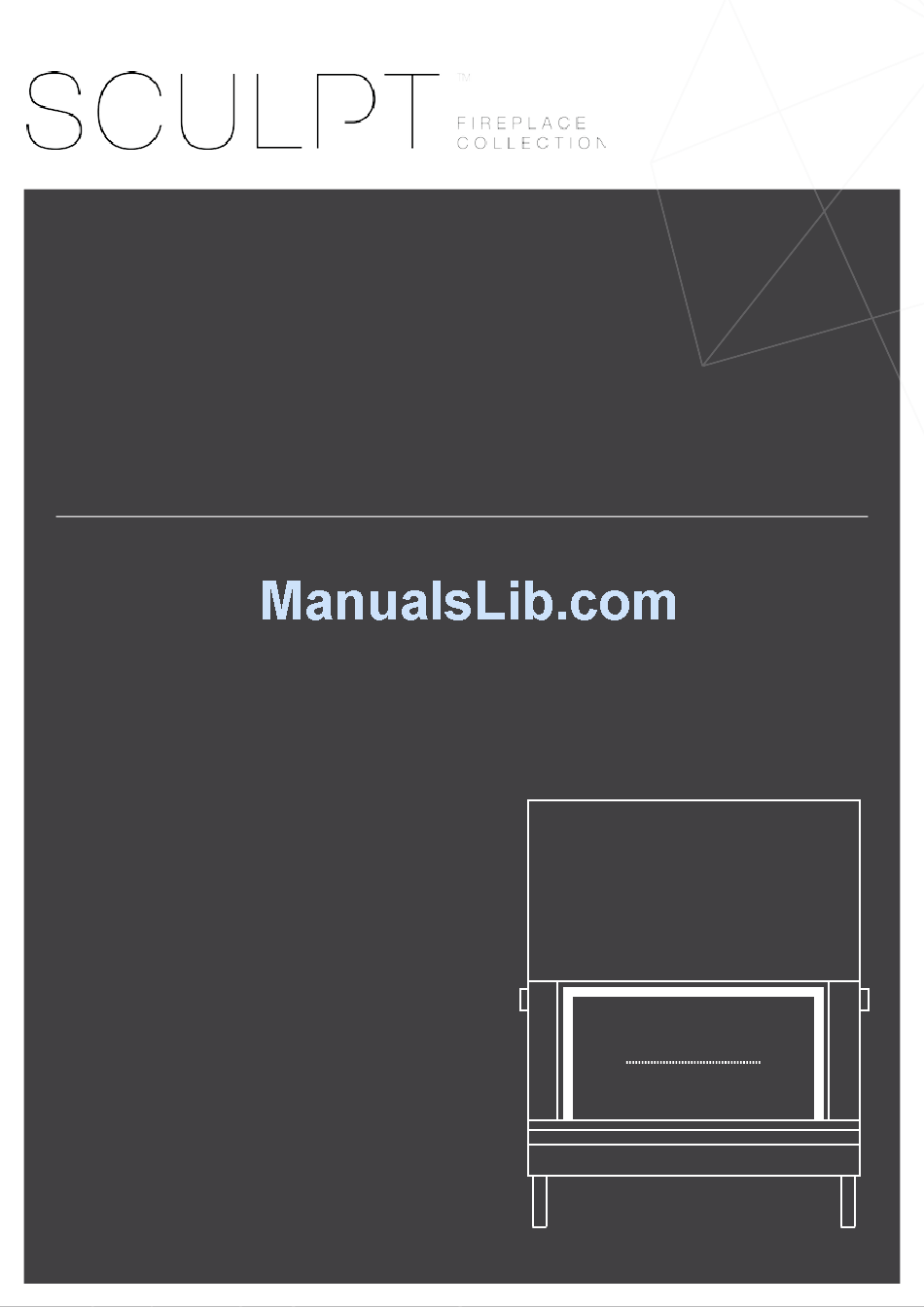

Sculpt Fireplaces H1200/DS Installation & User Manual

Axis series
Hide thumbs
Table of Contents

Advertisement

Quick Links

aXiS
H1200/DS | H1400 | H1600/DS | H1600XXL/DS
H1200VLG/D | H12003V | epi950
inStallation & USer GUiDe
1. SpecificationS
2. preliminary inStall GUiDe
3. oUtDoor air kit
4. componentS liSt
5.0 inBUilt aGainSt comBUStiBle Wall
5.1 maSonry Brick inStallation
5.2 HeBel inStallation
5.3 Skamol: refer to Skamotec 225 manUal
6. inBUilt into iSlanD Wall
no comBUStiBle SUrroUnDinGS
7. operation & maintenance
8. Warranty
notice to inStaller:
these instructions must be left with the owner, who should keep them for future use.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H1200/DS and is the answer not in the manual?

Questions and answers

Related Manuals for Sculpt Fireplaces H1200/DS

Summary of Contents for Sculpt Fireplaces H1200/DS

  • Page 1 H1200/DS | H1400 | H1600/DS | H1600XXL/DS H1200VLG/D | H12003V | epi950 inStallation & USer GUiDe 1. SpecificationS 2. preliminary inStall GUiDe 3. oUtDoor air kit 4. componentS liSt 5.0 inBUilt aGainSt comBUStiBle Wall 5.1 maSonry Brick inStallation 5.2 HeBel inStallation 5.3 Skamol: refer to Skamotec 225 manUal...
  • Page 2 ComplianCe plate and serial number. the instructions in this manual are recommendations only, the distributor and manufacturer bears no liability to the interpretation of these instructions.
  • Page 3 Congratulations! thank you for choosing Sculpt fireplaces as your heater of choice. Your fireplace is the result of careful design, artisan engineering and safety tests. If it is properly installed, used and maintained, you may be sure that you will have an outstanding heating feature in your home for years to come.
  • Page 4 all fireplaCes in this manual Conform to australian and new Zealand standards as/nZs 2918;2001 domestiC solid fuel burning applianCes & as/nZs 4012/4013(2014). iMPortant *Heating capacity of the following appliances are a guide only and refers to areas with 2.4m ceilings and 6 or more star rated buildings.

  • Page 6: Specifications

    1. SpecificationS aXiS H1200 Solid steel firebox with 60mm thick fire bricks material 30kW KW output Up to 200m2 Heating capacity* Clean frame-less design(trim options available) facace Secure swing & lift door glass door 5.4m minimum flue HeigHt 250mm, 300mm, 350mm flue sizes Two ducts and two registers includes Hot air Kit...
  • Page 7 1. SpecificationS aXiS H1200DS Solid steel firebox with 60mm thick fire bricks material 30kW KW output Up to 200m2 Heating capacity* Clean frame-less design(trim options available) facace Secure swing & lift door glass door 5.4m minimum flue HeigHt 250mm, 300mm, 350mm flue sizes Two ducts and two registers includes Hot air Kit...
  • Page 8 1. SpecificationS aXiS H1400 Solid steel firebox with 60mm thick fire bricks material 32.5kW KW output Up to 280-320m2 Heating capacity* Clean frame-less design(trim options available) facace Secure swing & lift door glass door 5.4m minimum flue HeigHt 300mm, 350mm, 400mm flue sizes Two ducts and two registers includes Hot air Kit...
  • Page 9 1. SpecificationS aXiS H1600 Solid steel firebox with 60mm thick fire bricks material 35kW KW output Up to 300-350m2 Heating capacity* Clean frame-less design(trim options available) facace Secure swing & lift door glass door 5.4m minimum flue HeigHt 300mm, 350mm, 400mm flue sizes Two ducts and two registers includes Hot air Kit...
  • Page 10 1. SpecificationS aXiS H1600DS Solid steel firebox with 60mm thick fire bricks material 25kW KW output Up to 250m2 Heating capacity* Clean frame-less design(trim options available) facace Secure swing & lift door glass door 5.4m minimum flue HeigHt 300mm, 350mm, 400mm flue sizes Two ducts and two registers includes Hot air Kit...
  • Page 11 1. SpecificationS aXiS H1600XXl Solid steel firebox with 60mm thick fire bricks material 40kW+ KW output Up to 350-400m2 Heating capacity* Clean frame-less design(trim options available) facace Secure swing & lift door glass door 5.4m minimum flue HeigHt 300mm, 350mm, 400mm flue sizes Two ducts and two registers includes Hot air Kit...
  • Page 12 1. SpecificationS aXiS H1600XXl DS Solid steel firebox with 60mm thick fire bricks material 30kW KW output Up to 300m2 Heating capacity* Clean frame-less design(trim options available) facace Secure swing & swing door glass door 5.4m minimum flue HeigHt 300mm, 350mm, 400mm flue sizes Two ducts and two registers includes Hot air Kit...
  • Page 13 1. SpecificationS aXiS H1200 3V Solid steel firebox with 60mm thick fire bricks material 20kW KW output Up to 200m2 Heating capacity* Clean frame-less design(trim options available) facace Secure swing & lift door glass door 5.4m minimum flue HeigHt 250mm, 300mm, 350mm flue sizes Two ducts and two registers includes Hot air Kit...
  • Page 14 1. SpecificationS aXiS epi 950 Solid steel firebox with 60mm thick fire bricks material 20kW KW output Up to 150-200m2 Heating capacity* Clean frame-less design(trim options available) facace Secure swing & lift door glass door 5.4m minimum flue HeigHt 280mm, 330mm, 380mm flue sizes Two ducts and two registers includes Hot air Kit...
  • Page 15 aXiS H1200 VlG/D Solid steel firebox with 60mm thick fire bricks material 20kW KW output Up to 200m2 Heating capacity* Clean frame-less design(trim options available) facade Secure swing & lift door glass door 5.4m minimum flue HeigHt 250mm, 300mm, 350mm flue sizes Two ducts and two registers includes Hot air Kit...
  • Page 16 Sculpt Fireplaces & Axis reserves the right to change these specifications without prior notice. for reasons of quality control, some of our appliances are delivered assembled. parts including legs and baffle plate may need to be installed on site.

  • Page 17: Important Warning

    2. preliminary inStall GUiDe it is the users duty to make themselves aware of and apply all national or more restrictive local standards and regulations (AS/NZS 2918:2001). iMPortant Prior to unpacking and installation check that the appliance has not been damaged during transport. ensure you check the glass, the door(s), the damper operation and the door locking mechanism Before any work is carried out, as per local and national regulations and laws, this appliance Must be installed by a licensed professional as per australian and new Zealand standards 2918:2001.
  • Page 18 2. preliminary inStall GUiDe Please reaD Prior to install fresh air inlet, reCommended for all installations the air inlet is recommended for installation and is essential for the proper function of the appliance. the fresh combustion air inlet must be a minimum 300mm2 and ideally positioned (see point A & B on diagram). Air vents False Ceiling Hot air grid...

  • Page 19: Leg Assembly

    2. preliminary inStall GUiDe Please reaD Prior to install leg assembly Before beginning any work, we remind you to check the resistance and stability of the floor where the appliance is to be installed. installing the legs will allow you to raise the appliance by a total of 600mm. to streamline the installation we advise you to assemble the feet sets prior to beginning the leg assembly.
  • Page 20 2. preliminary inStall GUiDe Please reaD Prior to install opening lower Vents - required if applianCe is to installed without legs if you plan on installing the unit excluding the legs you mUSt open the all vents located at the bottom of the appliance prior to installation, this will ensure sufficient air flow around the unit, failure to complete this step will impact negatively on the functioning of the appliance.
  • Page 21 3. oUtDoor air kit Please reaD Prior to install fleXi flue for optional outdoor air kit H1200, H1200Ds, H1200VlD/g, H1400, H1600, H1600 Ds, H1600XXl, H1600XXlDs the diagram pictures below details the air kit connection options for axis appliances(H1200, H1200Ds, H1200VlD/g, H1400, H1600, H1600Ds, H1600XXl, H1600XXlDs), depending on your particular installation and model your options may be limited.
  • Page 22 3. oUtDoor air kit Please reaD Prior to install fleXi flue for optional outdoor air kit applianCe H1200 3V, ePi950 **iMPortant**Please ensure you have attached legs before beginning the installation of the outdoor air kit. the diagram pictures below details the air kit connection options for axis appliances(H1200 3V and ePi950), depending on your particular installation and model your options may be limited.
  • Page 23 3. oUtDoor air kit step 4. fix outdoor air kit exchange into place, utilising access located in the interior of the appliance refer to diagram e for the correct positioning of washers and screws. once completed connect ducting to run to exterior air connection, ensure the exterior connection is protected by a vermin proof cowl.

  • Page 24: Components List

    4. componentS liSt iMPortant This components list details the number of flue supplied(by the retailer) according to unit and minimum flue kit requirements. for correct use please ensure you are referring to your unit model and installation kit type. for any questions in relation to the supplied components contact your local retailer.
  • Page 25 Sculpt Fireplaces & Axis reserves the right to change these specifications without prior notice. iMPortant: For possibly replacing the flue or for a technical intervention, the installation of an access hatch on the fireplace cavity is highly recommended.
  • Page 26 maSonry Brick inStallation step 1: base Lay a masonry base, minimum 75mm thick (ie. solid bricks). the base should be laid on a adequate ground supporting it’s weight. step 2: baCk wall Using masonry, construct the back wall from the base to the top of the ceiling.
  • Page 27 maSonry Brick inStallation step 4: assembly of legs if your installation requires the unit be elevated install the appliance legs at this stage, ensure the legs are adjusted and fixed at this stage. *iMPortant* refer to appliance legs installation in the preliminary install section.
  • Page 28 maSonry Brick inStallation step 6: trim (optional step) **important** Trim must be fitted onto the firebox PRIOR to installing the front of the enclosure. Manoeuvre the trim on the front of the firebox On the side of the façade of the firebox drill two holes at 4.2mm.
  • Page 29 maSonry Brick inStallation step 9: CaVity lid 300mm **important** below side Vents Ceiling CaVity lid it is highly recommended the cavity lid be installed flat to to be fully ensure sufficient air flow around the appliance. sealed to front Vents all edges.
  • Page 30 maSonry Brick inStallation step 12: triple skin flue triple skin flue is to then be continued above the cavity lid. the lower end of the triple skin casing shall be close fitting against the lid and the outer casing must be ventilated. air vents on the first length of triple skin flue must be cut by the installer.
  • Page 31 maSonry Brick inStallation step 18: hearth (floor proteCtor) the hearth must be constructed from masonry or a non combustible material and must extend 500mm in front of any part of the appliance, 250mm on either side of the appliance and have a thickness of 75mm. step19: baffle plate ensure the baffle plate sits securely in place, this step is vitally important for the safe use and proper functioning of the...
  • Page 32 HeBel inStallation step 1: base Lay a masonry base, minimum 75mm thick (ie. solid bricks). the base should be laid on a adequate ground supporting it’s weight. step 2: baCk wall Using masonry, construct the back wall from the base to the top of the ceiling.
  • Page 33 HeBel inStallation step 4: steel frame Construct a steel frame (minimum 51mm thick) on either side of the enclosure. please allow for a 25mm air gap all the way around the appliance. **important** it is strongly recommended that the steel frame be constructed with a minimum distance of 300mm below the ceiling, this allows the cavity lid to be placed directly above and prevents heat from traveling above the lid via the frame.
  • Page 34 HeBel inStallation step 8: outdoor air kit (optional) outdoor air kit any depression or lack of fresh air within the room where the fireplace is located can cause emanation of smoke to flow eXternal back into the room and the unit to run inefficiently. it is highly wall recommended that an outdoor air kit be installed in six or more star rated homes, or any install where a mechanical...
  • Page 35 HeBel inStallation step 11: insulation Using recommended Fibretex 650 Rockwool(minimum 30mm thick), install a layer on each inside wall panel and secure into place. step 12: CaVity lid & Vents **important** side Vents CaVity lid it is highly recommended the cavity lid be installed flat to 300mm to be fully ensure sufficient air flow around the appliance.
  • Page 36 HeBel inStallation step 14: side walls Using Hebel build a layer of bricks from the base to the top of the ceiling on either side of the enclosure. side Vents if you are installing your appliance with side vents, ensure you leave the necessary gaps when constructing the side walls.
  • Page 37 HeBel inStallation step 17: flue installation roof CaVity duCting: the triple skin flue will then be continued into the roof cavity triple ConneCted to aboVe and extended above the roof line as per australian & new skin designated roof Zealand Standard aS/nZ 2918:2001. flue room(s) line...
  • Page 38 HeBel inStallation step 20: hearth (floor proteCtor) the hearth must be constructed from masonry or a non combustible material and must extend 500mm in front of any part of the apppliance, 250mm on either side and have a thickness of 75mm. step 21: baffle plate ensure the baffle plate sits securely in place, this step is vitally important for the safe use and proper functioning of the...
  • Page 39 Skamotec inStallation Skamotec 225 is light weight material providing several advantages- excellent r-value, high mechanical strength, low thermal conductivity and maximum service temperatures of 1000 c°. the exceptional heat resistance makes the Skamotec 225 able to withstand continuous heat cycles to full service temperature limit and the low thermal conductivity provides maximum insulation throughout the temperature range making it the ideal product when building custom fireplace enclosures.* Please reFer to sKaMoteC 225 installation Manual...
  • Page 40 inBUilt into iSlanD Wall step 1: base Lay a masonry base, minimum 75mm thick (ie. solid bricks). the base should be laid on a adequate ground supporting it’s weight. step 2: sheet metal layer (optional step) place a thin piece of sheet metal on top of the bricks in order to level the base and safely manoeuvre the firebox.
  • Page 41 inBUilt into iSlanD Wall step 4: assembly of legs if your installation requires the unit be elevated install the appliance legs at this stage, ensure the legs are adjusted and fixed at this stage. **iMPortant** Please refer to appliance legs installation in the preliminary install section.
  • Page 42 inBUilt into iSlanD Wall step 8: trim (optional step) **important** Trim must be fitted onto the firebox PRIOR to installing the front of the enclosure. Manoeuvre the trim on the front of the firebox On the side of the façade of the firebox drill two holes at 4.2mm.
  • Page 43 inBUilt into iSlanD Wall step 11: duCting the duct must be 4 Zero type(aluminium inner core, aluminium outer, poly insulated, minimum ri.0) and tested to as 4254.1-2012. outlet must be metal. This unit has been supplied with a ducting kit (consisting of two ducts and two metal registers), while it is highly recommended that it be installed, if not installed it will have no implication on the functioning of the unit.
  • Page 44 inBUilt into iSlanD Wall step 14: duCting Continued... install the ducting to each transition piece and extend into the roof space and to the desired room(s). Cut a hole in the ceiling and install a metal register into the ceiling of the room the vents will be allocated in.
  • Page 45 inBUilt into iSlanD Wall step 17: front frame attach a heat resistant material from the base to the top of the ceiling on the front of the enclosure. step 18: Ventilation **important** Ventilation is required to assist with air circulation. a minimum of two air intake grills are required at the bottom and a minimum of two air out-take grills are required at the top of the masonry enclosure.

  • Page 46: Ignition Instructions

    Misty or foggy weather may possibly favour back flow of the smoke, which may be a health hazard. In this case, only use the fireplace as is necessary. for safety reasons, assemblies of appliances and accessories not provided or recommended by axis or sculpt fireplaces are not permitted. unsuitable equipment may cause dysfunctions and disorder upon use).

  • Page 47: Slow Burning

    operation & maintenance iMPortant Warning storing any flammable materials (paper, linen, furniture, solvents, flammable liquids, spray containers, gas bottle, etc.) close to the fireplace is strictly forbidden. all these products should never be stored even for a short while in wood storages or recesses laid out under or near the appliance.

  • Page 48: Fire-Bricks

    operation & maintenance triple burn system large glass Viewing area The large glass viewing area not only ensures great view of the fireplace, but assists in radiation of heat. dafs Axis inbuilt wood fireplaces are equipped with DAFS (Double Air Flow System) technology, this allows oxygen to be injected into the combustion chamber.
  • Page 49 operation & maintenance refraCtory fire briCks These inbuilt Axis fireplace are internally lined with manually assembled interlocking refractory bricks. This method avoids dilation by encouraging uniform and extended heat accumulation. While an axis wood heater is in use, the bricks, (which are baked at 1350° Celsius during the manufacturing process) will be heated to 600° Celsius. When the fire has dissipated the heat retained inside the bricks will still radiate heat, ensuring the fireplaces long lasting heating capacity well after the fire has ceased.

  • Page 51: Test Reports

    8. teSt reSUltS test reports h1200/ds | h1400 | h1600/ds | h1600XXl/ds | h1200 3V | h1200Vlg/d | epi950 duCted heat transfer applianCe test teStinG laBoratory Hrl technology manUfactUrer aXiS moDel H1200, H1200DS, H1400, H1600, H1600DS, H1600XXl, H1600XXlDS, H1200 3V, H1200VlD, H1200VlG, epi950 iSSUe Date 18.11.2015...

  • Page 52: Warranty Does Not Cover

    9. Warranty warranty AXIS fireboxes and firebricks are guaranteed for 10 years on the general structure of the firebox and refractory bricks, 5 years on the door lifting mechanism, 2 years on wearing parts including ash pan, ash grate and fire grate retainers. Excluded from the guarantee: door seals, ropes, gaskets, glass, baffle plate, glass, appliance joints, thermal screens, moveable parts and any degradation resulting from poor maintenance or incorrect use.

  • Page 53: Warranty Card

    9. Warranty warranty Card date of purChase plaCe of purChase date of installation ComplianCe CertifiCate no. model no. name and address of purChaser phone no. email address Please include a copy of your receipt and compliance certificate email or post warranty information to info@sculptfireplaces.com.au po Box, 1232 mornington, Vic 3931 1300 851 304...

  • Page 54: Final Words

    10. final WorDS Whilst every effort is taken to avoid errors, ScUlpt fireplace collection cannot accept responsibility for the accuracy of any statement, extract or information contained within this manual nor can any of its contributors who have submitted material for inclusion. ScUlpt fireplace collection may change or update this manual and anything described in it without notice.
  • Page 55 10. final WorDS Sculpt fireplace collection is an australian owned company who exclusively supply some of world’s most sought after high-end luxury fireplaces. Intent on providing Australians with a dynamic collection of designer fires, Sculpt fireplace collection has strategically gathered not only award winning fireplace designs, but also fireplaces that have been manufactured with high quality materials and the best raw steel that is built to last.
  • Page 56 1300 851 304 info@sculptfireplaces.com.au po Box, 1232 mornington, Vic 3931 edition 25.05.17...
