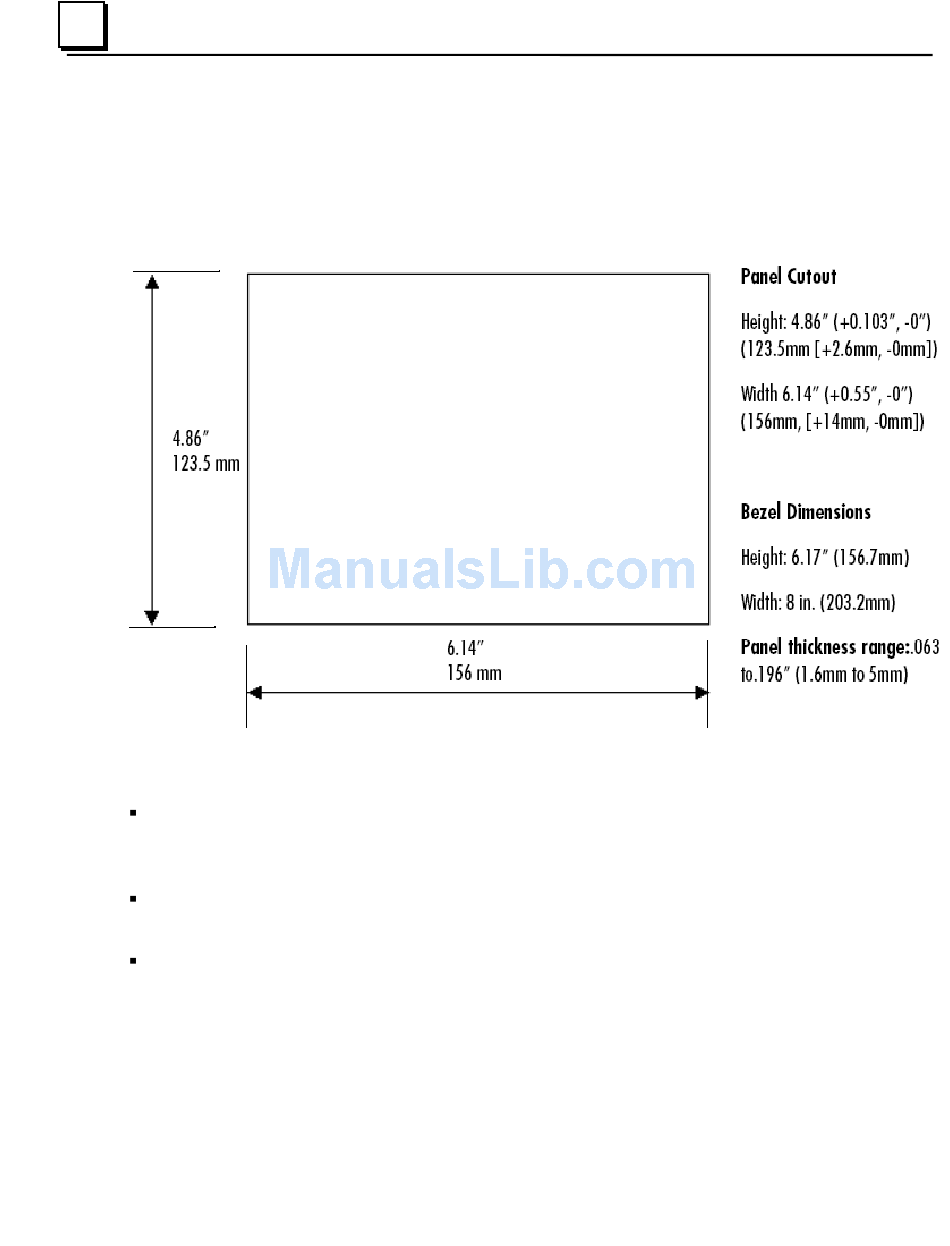

Panel Cutout

For enclosure mounting, cut an opening in the panel according to the following
specifications.
Notes:
For compliance to NEMA 4, 4x, and 12 qualification, the unit must be
mounted in a comparably NEMA rated (IP56 equivalent) panel or
enclosure.
For compliance to ATEX agency qualification, the unit must be mounted in
an IP66 panel or enclosure.
To avoid gasket degradation, limit repeated insertions or removals of the
unit and retightening of the mounting clips. For full protection, always use a
fresh gasket. Replacement gaskets may be ordered using part number
IC754ACC06GAS.
1-6 6" QuickPanel* ViewBasic, Monochrome, Round Bezel – September 2010
Depth 2.026" (51.5mm)
