SH-FX71_RQTX1122-Y_En.book Page 1 Thursday, November 19, 2009 4:48 PM
Designed for Panasonic Home Theater Sound Systems that
are compatible with the SH-FX71.
Panasonic Consumer Electronics
Company, Division of Panasonic
Corporation of North America
One Panasonic Way, Secaucus,
New Jersey 07094
http://www.panasonic.com
C Panasonic Corporation 2009
Printed in Malaysia
until
2009/12/30
If you have any questions contact
In the U.S.A. and Puerto Rico:
1-800-211-PANA (7262)
In Canada: 1-800-561-5505
Only for U.S.A. and Puerto Rico:
The warranty can be found on page 13.
Only for Canada: The warranty can be found on page 15.
Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3
www.panasonic.ca

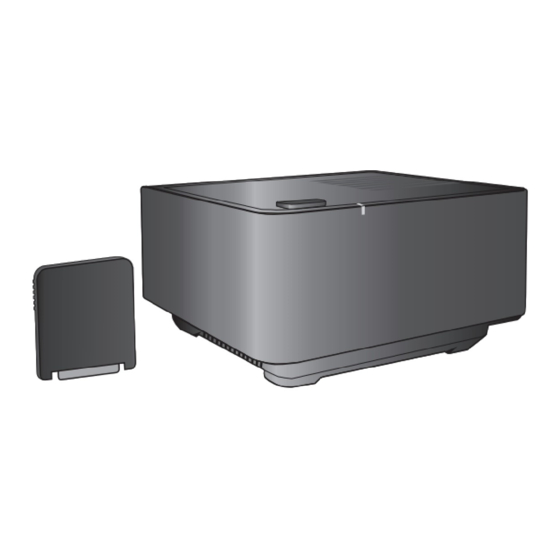

Operating Instructions

Wireless System
SH-FX71
Model No.
PP
RQTX1122-Y
p
F1209SA0

Advertisement

Table of Contents
loading

Related Manuals for Panasonic SH-FX71

Summary of Contents for Panasonic SH-FX71

  • Page 1: Operating Instructions

    Model No. If you have any questions contact In the U.S.A. and Puerto Rico: 1-800-211-PANA (7262) Designed for Panasonic Home Theater Sound Systems that In Canada: 1-800-561-5505 are compatible with the SH-FX71. Only for U.S.A. and Puerto Rico: The warranty can be found on page 13.
  • Page 2 OVERHEATING, ENSURE THAT CURTAINS AND ANY may cause undesired operation. OTHER MATERIALS DO NOT OBSTRUCT THE Responsible Party: Panasonic Corporation of North America VENTILATION VENTS. One Panasonic Way Secaucus, NJ 07094 The socket outlet shall be installed near the equipment and easily...

  • Page 3: Important Safety Instructions

    SH-FX71_RQTX1122-Y_En.book Page 3 Thursday, November 19, 2009 4:48 PM IMPORTANT SAFETY INSTRUCTIONS Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference. 10) Protect the power cord from being walked on or pinched particularly 1) Read these instructions.

  • Page 4: Accessories

    Please note them in the space provided below and keep for future reference. MODEL NUMBER SH-FX71 ∏ AC power supply cord (K2CB2CB00021) SERIAL NUMBER For use with this unit only. Do not use it with other equipment.

  • Page 5: Table Of Contents

    SH-FX71_RQTX1122-Y_En.book Page 5 Thursday, November 19, 2009 4:48 PM Control reference guide Table of contents Introduction ∫ Top of the main unit IMPORTANT SAFETY INSTRUCTIONS..........3 Accessories ................... 4 Control reference guide................. 5 Setup ..................... 6 Connections ..................7 Making the wireless link ..............9 Using the surround back speakers ...........

  • Page 6: Setup

    SH-FX71_RQTX1122-Y_En.book Page 6 Thursday, November 19, 2009 4:48 PM Setup Preparation ∫ Wireless setup diagram ≥ Turn off all equipment before connection and read the appropriate operating instructions. 5.1ch e.g. ≥ Connect the AC power supply cord after all other connections are complete.

  • Page 7: Connections

    SH-FX71_RQTX1122-Y_En.book Page 7 Thursday, November 19, 2009 6:26 PM 7.1ch Connections e.g. (Using two units of the wireless system) ∫ Digital transmitter Home theater unit Refer also to the operating instructions for your home theater unit. (with the digital transmitter) Do not insert or remove while the home theater unit is on.
  • Page 8 SH-FX71_RQTX1122-Y_En.book Page 8 Thursday, November 19, 2009 4:48 PM Setup Connections ∫ Wireless system Preparation If the surround speaker cables (with a blue connector and a gray connector) have already been connected, disconnect the surround speaker cables from your home theater unit. Connecting the speakers to the wireless system SPEAKERS ENCEINTES...

  • Page 9: Making The Wireless Link

    SH-FX71_RQTX1122-Y_En.book Page 9 Thursday, November 19, 2009 4:48 PM Making the wireless link ≥ Refer also to the operating instructions for your home theater unit. ≥ When you enjoy 7.1-channel playback, refer also to “Using the surround back speakers” ( 10).

  • Page 10: Using The Surround Back Speakers

    SH-FX71_RQTX1122-Y_En.book Page 10 Thursday, November 19, 2009 4:48 PM Setup Using the surround back speakers By using 2 sets of SH-FX71, you can enjoy 7.1-channel playback, making ∫ Pairing the surround speakers and surround back speakers wireless ( Preparation Use only a digital transmitter supplied with the SH-FX71.

  • Page 11: Product Service

    (United States and Puerto Rico)” on page 14. indicator) is flashing. Alternatively, turn the wireless system off, In Canada, contact the Panasonic Canada Inc. Customer Care disconnect the AC power supply cord, Centre at 1-800-561-5505, or visit the website (www.panasonic.ca), and then reconnect it.

  • Page 12: Specifications

    SH-FX71_RQTX1122-Y_En.book Page 12 Thursday, November 19, 2009 4:48 PM Specifications Maintenance Clean this unit with a soft, dry cloth. AMPLIFIER SECTION ≥ Never use alcohol, paint thinner or benzine to clean this unit. ≥ Before using chemically treated cloth, carefully read the instructions that Output power came with the cloth.

  • Page 13: Limited Warranty (Only For U.s.a. And Puerto Rico)

    If your product does not work properly because of a defect in materials or This warranty ONLY COVERS failures due to defects in materials or workmanship, workmanship, Panasonic Consumer Electronics Company (referred to as “the and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty warrantor”) will, for the length of the period indicated on the chart below, which starts...
  • Page 14 For hearing or speech impaired TTY users, TTY : 1-877-833-8855 Accessory Purchases (United States and Puerto Rico) Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at: http://www.pstc.panasonic.com or, send your request by E-mail to: npcparts@us.panasonic.com...

  • Page 15: Limited Warranty (Only For Canada)

    PANASONIC PRODUCT – LIMITED WARRANTY EXCHANGE PROGRAM Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to replace the product for a period as stated below from the date of original purchase.
