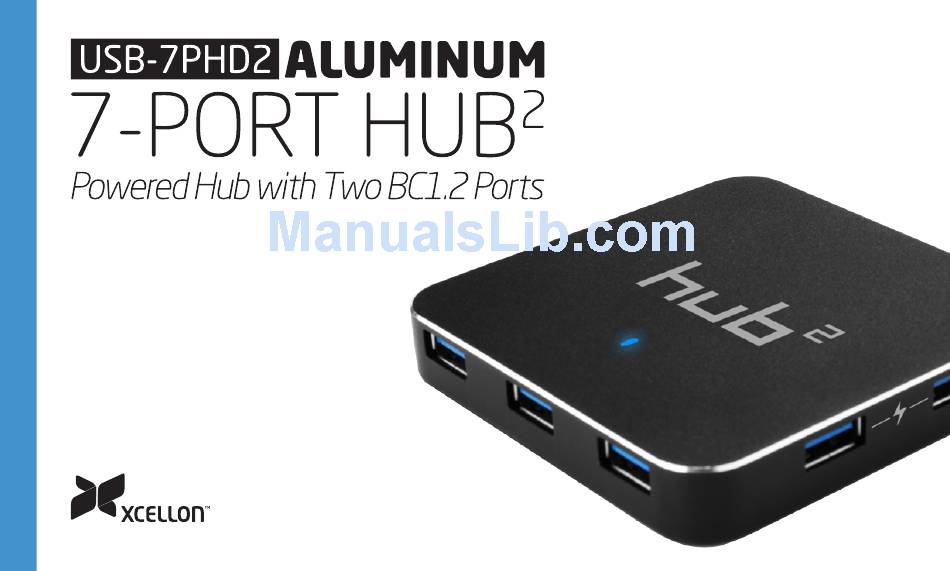

- Page 1 User Manual...
- Page 2 Thank you for choosing Xcellon. Xcellon’s Hub is a powered 7-port USB hub that expands your computer’s USB 3.0 port into multiple powered ports. Each USB port is capable of delivering SuperSpeed USB transfer rates up to 5 Gbps. An independent power supply provides stable power for critical USB devices like external hard drives without overtaxing your computer’s power supply.
- Page 3 Please read and follow these instructions, and keep this manual in a safe place. » Back up your data before using this product in order to prevent loss of important data. Xcellon will not be responsible for any data loss.
- Page 4 Overview USB 3.0 upstream port DC IN DC power port USB 3.0 data ports LED indicator USB 3.0 data/2.4 A charging ports Contents Include USB hub » » Power adapter AC power cable » » USB 3.0 cable » Mounting sticker »...
-
Page 5: System Requirements
System Requirements » Available USB port on the computer » Mac / Windows / Linux operating systems Mounting Instructions The Hub includes a mounting sticker that allows for secure placement of the hub on a wall, the back of a monitor, or a desk or tabletop. The mounting sticker can be used only once. - Page 6 AC Power Mode Connecting the hub to an AC outlet provides stable power for running critical USB devices like external hard drives or printers. In this mode, the BC1.2 ports can charge phones, tablets, or other USB devices.
-
Page 7: Bus-Powered Mode
Bus-Powered Mode In bus-powered mode, the Hub receives its power from the computer and allows you to sync data at home or while traveling. -
Page 8: Charging Mode
Charging Mode In charging mode, the two BC1.2 ports can be used to charge devices without connecting the hub to a computer. -
Page 9: Specifications
Specifications Ports Seven USB 3.0 Standard-A ports two with 2.4 A charging) USB 3.0 Standard-A for PC connection USB Compatibility 3.1 Gen 1, 3.0, 2.0, 1.1 System requirements Mac / Windows / Linux operating systems Adapter output 12 V / 4 A Chipset VL813 Construction... -
Page 10: One-Year Limited Warranty
One-Year Limited Warranty This XCELLON product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider’s discretion, of any product that fails during normal use of this product in its intended... - Page 11 FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state. To obtain warranty coverage, contact the Xcellon Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Xcellon along with the RMA number and proof of purchase.
- Page 12 Xcellon is a registered trademark of the Gradus Group. © 2016 Gradus Group LLC. All Rights Reserved.
