User manual TOM600
Item partnumber : 61-200-0600
SURFACE RESISTIVITYMETER

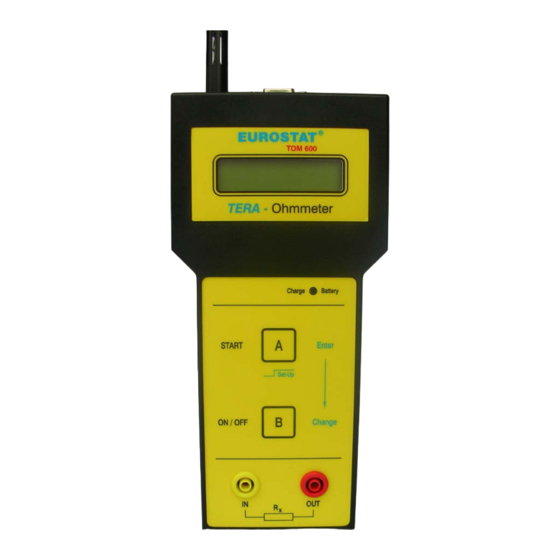

EUROSTAT TOM600
The Surface Resistivimeter EUROSTAT 600 operates with the Voltage-Current-Measurement.
12
High resistances up to 2x10
Ohm (2 TERA Ohm) can be measured with a voltage of
x
100 volts and a precision of ±1 x10
As peculiarity, the ambient temperature and the humidity will be measured and stored to every
measured resistance value
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for EUROSTAT TOM600
- Page 1 Item partnumber : 61-200-0600 SURFACE RESISTIVITYMETER EUROSTAT TOM600 The Surface Resistivimeter EUROSTAT 600 operates with the Voltage-Current-Measurement. High resistances up to 2x10 Ohm (2 TERA Ohm) can be measured with a voltage of 100 volts and a precision of ±1 x10...
-
Page 2: Table Of Contents
User manual TOM600 Item partnumber : 61-200-0600 List of contents Description Operation Instruction Start up Charging the battery Measureranges and Voltage Set – Up Functions Measure Voltage / Display Mode Timer Other Display Information’s Display Contrast PC – Operating system requirements... -
Page 3: Description
Item partnumber : 61-200-0600 Description The surface resistivimeter EUROSTAT TOM600 is suitable very well for the mobile use in industrial areas through its compact housing and through the battery power. It can also be used stationary with a plug power Important: supply. -
Page 4: Set - Up Functions
2.2. Charging the NiMH Battery The EUROSTAT TOM600 allowed only to operating directly with the enclosed power supply. Also only with these the installed NiMH – batteries can be charged. Connect the power supply to the integrated socket, and connect the plug power supply to a power socket. If the appliance is switched off, and the charging work green Charge LED shines. - Page 5 User manual TOM600 Item partnumber : 61-200-0600 By pressing key (B) „Change“ it appears T= 002s and than in 1 second Steps up to10 Second. After that the timer starts with T=010s the changing steps are now 10 Seconds up to 60 Seconds, after this you get 60 second steps up to 240 seconds.
-
Page 6: Other Display Information's
(example : file 1 : table mat ; file 2 : ground mat…) Timer If the timer is not activated, the EUROSTAT 600 directly switches on the resistance display in the on-line operation. According to the chosen display mode and voltage mode in the display appears: Example: R=5.5xE10Ω... -
Page 7: Pc - Operating
Connect the TERA – Ohmmeter with the PC – Interface cable to a free serial PC Interface (COM 1 or 2) from your PC, and press key „A“ to switch on the TERA – Ohmmeter. Make a Double click at the Desktop at the EUROSTAT 600 Icon. The software will start automatically when Excel is installed at your PC. -
Page 8: Safety Advice
Make sure, that there is no voltage on your measuring. External Voltage gives you a wrong measure value and can destroy your instrument ! Parts of Delivery EUROSTAT TOM600 Partnumber : 61-200-0601 • Tera – Ohmmeter EUROSTAT 600 with temperatur and huminity sensor • 4 pce. rechargeable NIMH Mignon (AA) Batteries •... -
Page 9: Maintenance / Calibration
User manual TOM600 Item partnumber : 61-200-0600 • Ring Electrode to EOS/ESD S 11.11 + DIN EN 61340 –5-1, -2-3 comprising to the measurement of transit and surface resistances, 1 shielded and 1 no shielded Measure cord. other electrodes are available on inquiry Maintenance / Calibration The appliance is maintenance-free. - Page 10 User manual TOM600 Item partnumber : 61-200-0600 How to install the tester It is preferable to connect the smallest cord on the yellow side (amplifier side) and the long cord on the red side. When using a single cord, prefer the yellow side (INPUT)
- Page 11 User manual TOM600 Item partnumber : 61-200-0600...
