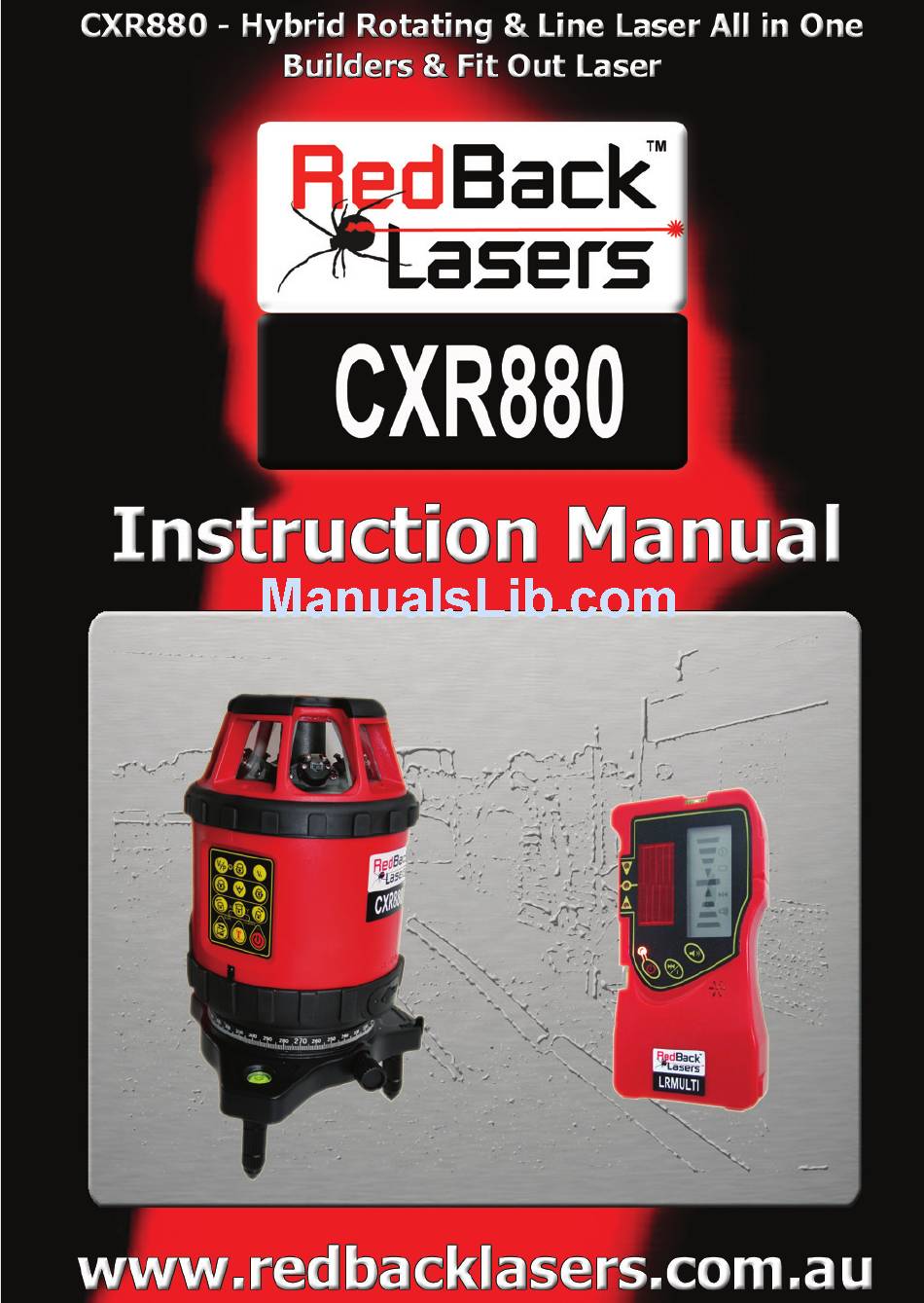

Summary of Contents for RedBack Laser CXR880
-
Page 2: Table Of Contents
CONTENTS User Safety Introduction and CXR880™ Accessories CXR880™Diagram CXR880™ Keypad and Remote Control Operating Instructions Batteries Power and Tilt Rotating Laser Line Lasers Grade Setting Laser Receiver LRMULTI Setting a Site Square Calibration Self Check & Technical Specifications Care & Maintenance, Trouble Shooting... -
Page 3: Introduction And Cxr880™ Accessories
Receiver in line mode you can quickly and accurately set up your site. The CXR880™ is also ideal for all types of internal fit out such as windows, plaster, electrical and much, much more, using either the vertical lines or the horizontal rotating beam in scan mode visibly. -
Page 4: Cxr880™Diagram
CXR880 DIAGRAMS CXR880 Laser Unit 1. Laser Output Window 2. Remote Sensor 3. Charging Socket and LED 4. Keypad (page5) 5. Plumb Down Output 6. 5/8” – 11tpi Screw Thread 7. Battery Compartment Tripod Base a. 5/8” – 11tpi Screw Thread b. -
Page 5: Cxr880™ Keypad And Remote Control
Keypad Rotation On/Off Verticals On/Off & Verticals On/Off Pulse (outdoor line) On/Off Scan Mode Control Grade Mode Control Power On/Off Tilt Mode On/Off (default on) Remote On/Off Remote Control & Receiver Scan Mode Grade Mode Control Control Re Level a. Bubble Vial Power On/Off Rotation b. -
Page 6: Operating Instructions
CXR880 OPERATING INSTRUCTIONS Battery & Charging Instructions The CXR880 has two battery options either 4 x standard “C” size Alkaline or the Ni-Mh rechargeable packs. For standard 4 x “C” alkaline operation simply insert batteries into the battery compartment in the direction indicated and replace the battery compartment cover. -
Page 7: Power And Tilt
Tilt mode is somewhat similar to tilt on a pinball table in that if when running the CXR880 detects significant disturbance or movement that could effect the accuracy of your work the laser will “Tilt” (stop working) and the laser beams will flash to indicate this. -
Page 8: Rotating Laser
CXR880 OPERATING INSTRUCTIONS cont. Rotation Speed Settings & Turning off Rotation • In rotating mode, a short press of the Rotating Speed Button will switch the rotating speed between 500rpm (default) and 200rpm. • An extended press of this button (approximately one second), will stop the laser rotating and the rotating laser will turn off. -
Page 9: Line Lasers
Vertical Line Operation (refer to diagram page 5) The vertical lines on the CXR880 can be used both indoors visibly and outdoors in pulse mode with the included LRMULTI receiver set in line mode (see receiver instructions on page 12). Lines can used either in conjunction with the rotating beam or on their own. -
Page 10: Grade Setting
Setting Slope/Grades - Rotating Laser (refer to diagram page 5) The CXR880 can be used to set grades. In Slope (Grade) Mode you can set a Grade in either the X and or the Y Axis of up to 8% see the markings on top of laser for axis alignment. - Page 11 Setting a Grade Following is a method of setting a grade using the slope grade buttons as previously discussed. Here we will run through setting a single grade on the X axis, for a dual grade simple repeat the process on the Y axis. Set up the laser aligning the X axis with the direction of the required grade rise/fall, the laser can be placed anywhere on site as long as the X axis runs parallel with the desired grade.
-
Page 12: Laser Receiver Lrmulti
LRMULTI RECEIVER INSTRUCTIONS Laser Receiver LRMULTI (refer to diagram page 5) The Multi Function Receiver detects both pulsed laser lines and rotating lasers although not at the same time. The LRMULTI can be switched between rotating and line modes with the Power button on the receiver. •... -
Page 13: Setting A Site Square
Site Squares and general outdoor and indoor layout without the need to do a 3-4-5 calculation. First place the CXR880 over the datum corner for the desired 90 degree square using the plumb down reference point. Next align one of the vertical lines with one of the lengths by placing the receiver on it side at the far end of the line to the datum point. -
Page 14: Calibration Self Check & Technical Specifications
CXR880 TECHNICAL SPECIFICATIONS Technical Specifications Laser Wavelength 635nm <1mW Laser Class Range with Receiver 500m Diam Rotating 60m Radius Line (Pulse) Horizontal Accuracy ±2mm/20m Vertical Line Accuracy ±2mm/10m Plumb Down point Accuracy ±4mm/10m Vertical Line Angle Accuracy ±3mm/10m Rotation Speeds... -
Page 15: Care & Maintenance, Trouble Shooting
Make sure laser is stored dry, dry out before storage to prevent damage. • Remove batteries when not used for an extended period of time to prevent leakage. • The CXR880 is a precision instrument and should not be subjected to excessive knocks, drops or vibrations. •... -
Page 16: Warranty
“Workmanship” refers to handling, assembly and manufacturing processes done by or for CMI Industries Pty Ltd in order to manufacture the products. “Warranty Period” For the CXR880 Two Years. Warranty period is from original purchase date, no extension is made in the event of warranty replacement products supplied or time spent being repaired.
